GSU50L-ARTNKA (2013)
Toyota Highlander (Nap)
(1312- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

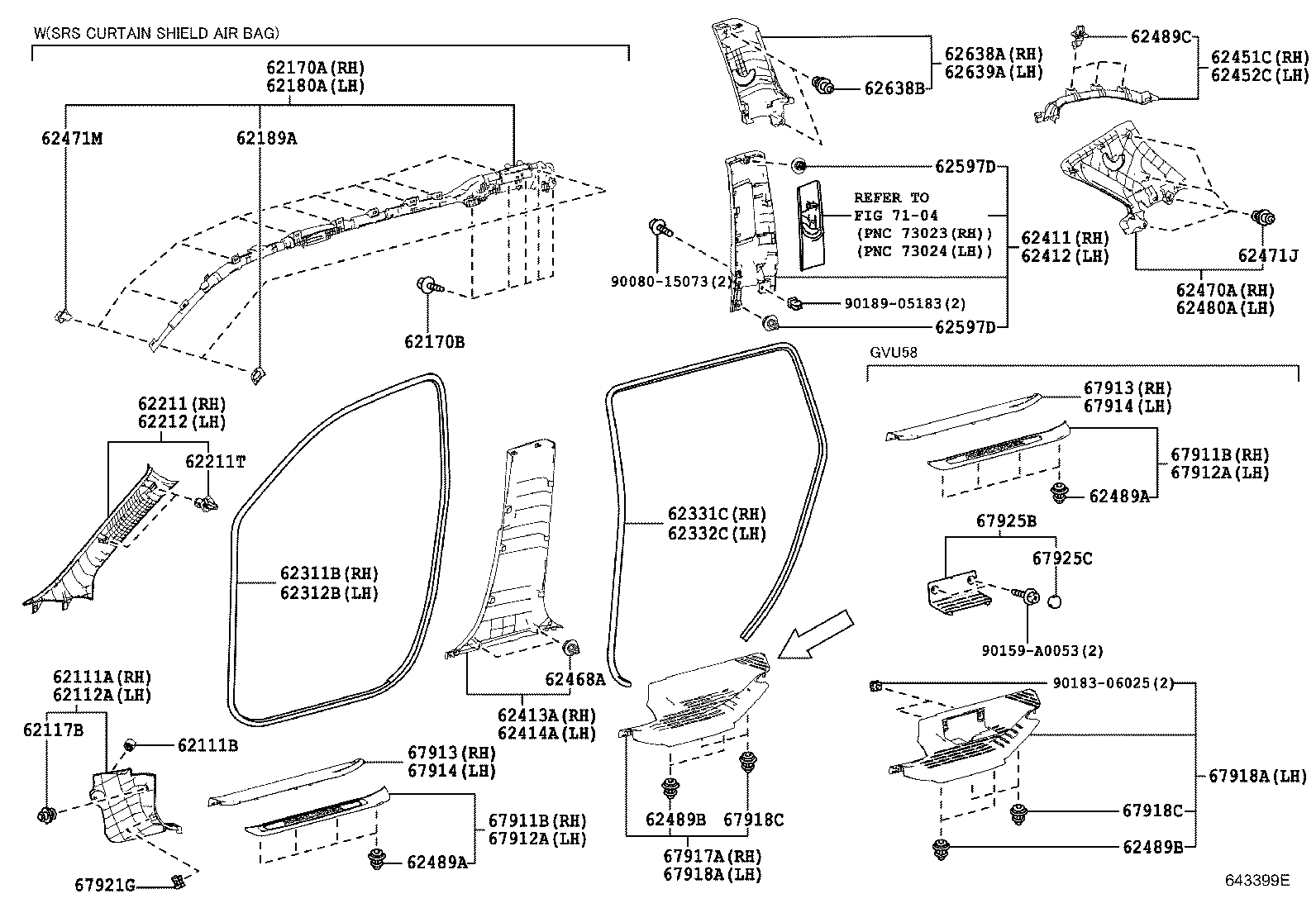

| 62111A - TRIM SUB-ASSY, COWL SIDE, RH | ||||
| 62101-0E050C0 |
GSU5#,GVU58 BLACK,TRIM0#,1#,2# |
1 | ||
| 62111B - CLIP(FOR COWL SIDE TRIM) | ||||
| 90467-A0024 |
ASU50,GSU5#,GVU58 |
2 | ||
| 62112A - TRIM SUB-ASSY, COWL SIDE, LH | ||||
| 62102-0E070C0 |
GSU5#,GVU58 BLACK,TRIM0#,1#,2# |
1 | ||
| 62117B - CLIP, NO.1(FOR COWL SIDE TRIM) | ||||
| 62489-0E010 |
ASU50,GSU5#,GVU58 |
2 | ||
| 62170A - AIR BAG ASSY, CURTAIN SHIELD, RH | ||||
| 62170-0E051 |
ASU50,GSU5#,GVU58 |
1 | ||
| 62170-0E050 |
ASU50,GSU5#,GVU58 |
1 | ||
| 62170B - BOLT, W/WASHER | ||||
| 90080-11628 |
ASU50,GSU5#,GVU58 |
10 | ||
| 62180A - AIR BAG ASSY, CURTAIN SHIELD, LH | ||||
| 62180-0E050 |
ASU50,GSU5#,GVU58 |
1 | ||
| 62180-0E051 |
ASU50,GSU5#,GVU58 |
1 | ||
| 62189A - SPACER, CURTAIN SHIELD AIR BAG CLIP | ||||
| 62189-42010 |
ASU50,GSU5#,GVU58 |
4 | ||
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62210-0E060B1 |
ASU50,GSU5#,GVU58 GRAY,TRIM1#,2# |
1 | ||
| 62210-0E060A1 |
ASU50,GSU5#,GVU58 FLAXEN,TRIM0# |
1 | ||
| 62211T - CLIP(FOR FRONT PILLAR GARNISH) | ||||
| 62217-0E040 |
ASU50,GSU5#,GVU58 UPPER |
2 | ||
| 62217-52120 |
ASU50,GSU5#,GVU58 LOWER |
2 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62220-0E060B1 |
ASU50,GSU5#,GVU58 GRAY,TRIM1#,2# |
1 | ||
| 62220-0E060A1 |
ASU50,GSU5#,GVU58 FLAXEN,TRIM0# |
1 | ||
| 62311B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH | ||||
| 62311-0E050C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM0#,1#,2# |
1 | ||
| 62312B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH | ||||
| 62312-0E050C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM0#,1#,2# |
1 | ||
| 62331C - WEATHERSTRIP, REAR DOOR OPENING TRIM, RH | ||||
| 62331-0E050C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM0#,1#,2# |
1 | ||
| 62332C - WEATHERSTRIP, REAR DOOR OPENING TRIM, LH | ||||
| 62332-0E050C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM0#,1#,2# |
1 | ||
| 62411 - GARNISH, CENTER PILLAR, RH | ||||
| 62410-0E060B0 |
ASU50,GSU5#,GVU58 GRAY,TRIM1#,2# |
1 | ||
| 62410-0E060A0 |
ASU50,GSU5#,GVU58 FLAXEN,TRIM0# |
1 | ||
| 62412 - GARNISH, CENTER PILLAR, LH | ||||
| 62420-0E060B0 |
ASU50,GSU5#,GVU58 GRAY,TRIM1#,2# |
1 | ||
| 62420-0E060A0 |
ASU50,GSU5#,GVU58 FLAXEN,TRIM0# |
1 | ||
| 62413A - GARNISH, CENTER PILLAR, LOWER RH | ||||
| 62413-0E050C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM0#,1#,2# |
1 | ||
| 62414A - GARNISH, CENTER PILLAR, LOWER LH | ||||
| 62414-0E050C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM0#,1#,2# |
1 | ||
| 62451C - GARNISH, ROOF SIDE RAIL, REAR RH | ||||
| 62450-0E010A0 |
ASU50,GSU5#,GVU58 FLAXEN,TRIM0# |
1 | ||
| 62450-0E010B0 |
ASU50,GSU5#,GVU58 GRAY,TRIM1#,2# |
1 | ||
| 62452C - GARNISH, ROOF SIDE RAIL, REAR LH | ||||
| 62460-0E010A0 |
ASU50,GSU5#,GVU58 FLAXEN,TRIM0# |
1 | ||
| 62460-0E010B0 |
ASU50,GSU5#,GVU58 GRAY,TRIM1#,2# |
1 | ||
| 62468A - CLIP (FOR CENTER PILLAR REAR GARNISH) | ||||
| 90467-09232 |
ASU50,GSU5#,GVU58 |
4 | ||
| 62470A - GARNISH ASSY, ROOF SIDE, INNER RH | ||||
| 62470-0E130A0 |
ASU50,GSU5#,GVU58 FLAXEN,TRIM0# |
1 | ||
| 62470-0E130B0 |
ASU50,GSU5#,GVU58 GRAY,TRIM1#,2# |
1 | ||
| 62471J - CLIP (FOR ROOF SIDE GARNISH) | ||||
| 62489-0E010 |
ASU50,GSU5#,GVU58 |
8 | ||
| 62471M - CLIP | ||||
| 90467-18017 |
ASU50,GSU5#,GVU58 |
18 | ||
| 62480A - GARNISH ASSY, ROOF SIDE, INNER LH | ||||
| 62480-0E130A0 |
ASU50,GSU5#,GVU58 FLAXEN,TRIM0# |
1 | ||
| 62480-0E130B0 |
ASU50,GSU5#,GVU58 GRAY,TRIM1#,2# |
1 | ||
| 62480-0E131A0 |
GSU5#,GVU58 FLAXEN,TRIM0# |
1 | ||
| 62480-0E131B0 |
ASU50,GSU5#,GVU58 GRAY,TRIM1#,2# |
1 | ||
| 62489A - CLIP, ROOF SIDE INNER GARNISH | ||||
| 90467-10167 |
ASU50,GSU5#,GVU58 |
8 | ||
| 62489A - CLIP, ROOF SIDE INNER GARNISH | ||||
| 90467-10167 |
ASU50,GSU5#,GVU58 |
8 | ||
| 62489B - CLIP, ROOF SIDE INNER GARNISH | ||||
| 62489-0E010 |
ASU50,GSU5#,GVU58 |
4 | ||
| 62489B - CLIP, ROOF SIDE INNER GARNISH | ||||
| 62489-0E010 |
ASU50,GSU5#,GVU58 |
4 | ||
| 62489C - CLIP, ROOF SIDE INNER GARNISH | ||||
| 62489-60020 |
ASU50,GSU5#,GVU58 |
6 | ||
| 62597D - CLIP | ||||
| 90467-09232 |
ASU50,GSU5#,GVU58 |
4 | ||
| 62597D - CLIP | ||||
| 90467-09232 |
ASU50,GSU5#,GVU58 |
4 | ||
| 62638A - GARNISH, QUARTER PILLAR, RH | ||||
| 62550-0E010A0 |
ASU50,GSU5#,GVU58 FLAXEN,TRIM0# |
1 | ||
| 62550-0E010B0 |
ASU50,GSU5#,GVU58 GRAY,TRIM1#,2# |
1 | ||
| 62638B - CLIP | ||||
| 62489-0E010 |
ASU50,GSU5#,GVU58 |
4 | ||
| 62639A - GARNISH, QUARTER PILLAR, LH | ||||
| 62560-0E010A0 |
ASU50,GSU5#,GVU58 FLAXEN,TRIM0# |
1 | ||
| 62560-0E010B0 |
ASU50,GSU5#,GVU58 GRAY,TRIM1#,2# |
1 | ||
| 67911B - PLATE, FRONT DOOR SCUFF, OUTSIDE, RH | ||||
| 67911-0E070C0 |
GSU5#,GVU58..G BLACK,TRIM0#,1#,2# |
1 | ||
| 67911-0E060C0 |
ASU50,GSU5#,GVU58..M,N BLACK,TRIM0#,1#,2# |
1 | ||
| 67911B - PLATE, FRONT DOOR SCUFF, OUTSIDE, RH | ||||
| 67911-0E070C0 |
GSU5#,GVU58..G BLACK,TRIM0#,1#,2# |
1 | ||
| 67911-0E060C0 |
ASU50,GSU5#,GVU58..M,N BLACK,TRIM0#,1#,2# |
1 | ||
| 67912A - PLATE, FRONT DOOR SCUFF, OUTSIDE LH | ||||
| 67912-0E070C0 |
GSU5#,GVU58..G BLACK,TRIM0#,1#,2# |
1 | ||
| 67912-0E060C0 |
ASU50,GSU5#,GVU58..M,N BLACK,TRIM0#,1#,2# |
1 | ||
| 67912A - PLATE, FRONT DOOR SCUFF, OUTSIDE LH | ||||
| 67912-0E070C0 |
GSU5#,GVU58..G BLACK,TRIM0#,1#,2# |
1 | ||
| 67912-0E060C0 |
ASU50,GSU5#,GVU58..M,N BLACK,TRIM0#,1#,2# |
1 | ||
| 67913 - PLATE, FRONT DOOR SCUFF, RH | ||||
| 67913-0E060C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM0#,1#,2# |
1 | ||
| 67913 - PLATE, FRONT DOOR SCUFF, RH | ||||
| 67913-0E060C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM0#,1#,2# |
1 | ||
| 67914 - PLATE, FRONT DOOR SCUFF, LH | ||||
| 67914-0E060C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM0#,1#,2# |
1 | ||
| 67914 - PLATE, FRONT DOOR SCUFF, LH | ||||
| 67914-0E060C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM0#,1#,2# |
1 | ||
| 67917A - PLATE, REAR DOOR SCUFF, RH | ||||
| 67917-0E050C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM0#,1#,2# |
1 | ||
| 67918A - PLATE, REAR DOOR SCUFF, LH | ||||
| 67918-0E050C0 |
ASU50,GSU5# BLACK,TRIM0#,1#,2# |
1 | ||
| 67918A - PLATE, REAR DOOR SCUFF, LH | ||||
| 67918-0E050C0 |
ASU50,GSU5# BLACK,TRIM0#,1#,2# |
1 | ||
| 67918C - CLIP(FOR REAR SCUFF PLATE) | ||||
| 67773-0E020 |
ASU50,GSU5#,GVU58 |
4 | ||
| 67918C - CLIP(FOR REAR SCUFF PLATE) | ||||
| 67773-0E020 |
ASU50,GSU5#,GVU58 |
4 | ||
| 67921G - RETAINER, FRONT DOOR SCUFF PLATE | ||||
| 67921-0E050 |
ASU50,GSU5#,GVU58 |
2 | ||
| Common parts | ||||
| 90080-15073 | ||||
| 90159-A0053 | ||||
| 90183-06025 | ||||
| 90189-05183 | ||||
| Linked diagrams | ||||
| 7104 | ||||
