GSU50L-ARTNKA (2013)
Toyota Highlander (Nap)
ILLUST NO. 1 OF 3(1312- )N
ROOF PANEL(NORMAL)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-0E907 |
GSU5#,GVU58..G MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63102-0E907 |
GSU5#,GVU58..G MOON ROOF-WITH(PANORAMA ROOF)&SATELLITE RADIO-WITHOUT |
1 | ||
| 63102-0E906 |
ASU50,GSU5#..N MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 63102-0E905 |
ASU50,GSU5#,GVU58..N |
1 | ||
| 63102-0E906 |
GSU5#,GVU58..G,M |
1 | ||
| 63105A - FRAME SUB-ASSY, BACK DOOR OPENING | ||||
| 63105-0E050 |
ASU50,GSU5#,GVU58 |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-0E110 |
GSU5#,GVU58..G,M SATELLITE RADIO-WITHOUT |
1 | ||
| 63111-0E210 |
GSU5#..N SATELLITE RADIO-WITH |
1 | ||
| 63111-0E130 |
GSU5#,GVU58..G MOON ROOF-WITH(PANORAMA ROOF)&SATELLITE RADIO-WITHOUT |
1 | ||
| 63111-0E140 |
GSU5#,GVU58..G MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63111-0E120 |
GSU5#,GVU58..G,M |
1 | ||
| 63111-0E160 |
ASU50,GSU5#..N MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 63111-0E150 |
ASU50,GSU5#..N |
1 | ||
| 63142A - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63103-0E040 |
GSU5#,GVU58..G MOON ROOF-WITH(PANORAMA ROOF)&SATELLITE RADIO-WITHOUT |
1 | ||
| 63103-0E030 |
ASU50,GSU5#,GVU58..N |
1 | ||
| 63142-0E050 |
ASU50,GSU5#..N MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 63103-0E040 |
GSU5#,GVU58..G MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63142-0E050 |
GSU5#,GVU58..G,M |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63143-0E050 |
ASU50,GSU5#,GVU58 |
1 | ||
| 63144A - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63123-0E030 |
ASU50,GSU5#,GVU58 |
1 | ||
| 63145A - REINFORCEMENT, ROOF PANEL, NO.5 | ||||
| 63177-0E010 |
ASU50,GSU5#,GVU58 |
1 | ||
| 63146D - REINFORCEMENT, ROOF PANEL, NO.6 | ||||
| 63178-0E010 |
ASU50,GSU5#,GVU58..N |
1 | ||
| 63148A - REINFORCEMENT, ROOF PANEL, NO.7 | ||||
| 63144-0E050 |
ASU50,GSU5#,GVU58 |
1 | ||
| 63169B - PLATE, ROOF PANEL REINFORCEMENT, RH | ||||
| 63169-0E040 |
ASU50,GSU5#,GVU58 |
1 | ||
| 63169-0E041 |
ASU50,GSU5#,GVU58 |
1 | ||
| 63179 - PLATE, ROOF PANEL REINFORCEMENT, LH | ||||
| 63179-0E040 |
ASU50,GSU5#,GVU58 |
1 | ||
| 63179-0E041 |
ASU50,GSU5#,GVU58 |
1 | ||
| 63180 - CLIP(BRACKET, ROOF RACK) | ||||
| 63479-0E010 |
GSU5#,GVU58..G,M |
4 | ||
| 63479-0E010 |
ASU50,GSU5#,GVU58..N |
2 | ||
| 63479-0E010 |
GSU5#,GVU58..G TIRE & DISK WHEEL-245/55R19 CHROME PAINTED&MOON ROOF-WITH(PANORAMA ROOF) |
2 | ||
| 63479-0E010 |
GSU5#,GVU58..G ROOF RAIL-WITH(PLATING)&MOON ROOF-WITH(PANORAMA ROOF) |
2 | ||
| 63479-0E010 |
GSU5#,GVU58..G MOON ROOF-WITH(PANORAMA ROOF) |
2 | ||
| 63180 - CLIP(BRACKET, ROOF RACK) | ||||
| 63479-0E010 |
GSU5#,GVU58..G,M |
4 | ||
| 63479-0E010 |
ASU50,GSU5#,GVU58..N |
2 | ||
| 63479-0E010 |
GSU5#,GVU58..G TIRE & DISK WHEEL-245/55R19 CHROME PAINTED&MOON ROOF-WITH(PANORAMA ROOF) |
2 | ||
| 63479-0E010 |
GSU5#,GVU58..G ROOF RAIL-WITH(PLATING)&MOON ROOF-WITH(PANORAMA ROOF) |
2 | ||
| 63479-0E010 |
GSU5#,GVU58..G MOON ROOF-WITH(PANORAMA ROOF) |
2 | ||
| 63185D - BRACKET, ROOF RACK, FRONT | ||||
| 63187-0E080 |
GSU5#,GVU58..G TIRE & DISK WHEEL-245/55R19 CHROME PAINTED&MOON ROOF-WITH(PANORAMA ROOF) |
2 | ||
| 63187-35020 |
ASU50,GSU5#,GVU58 |
2 | ||
| 63187-0E080 |
GSU5#,GVU58..G ROOF RAIL-WITH(PLATING)&MOON ROOF-WITH(PANORAMA ROOF) |
2 | ||
| 63187-0E080 |
GSU5#,GVU58..G MOON ROOF-WITH(PANORAMA ROOF) |
2 | ||
| 63185H - BRACKET, ROOF RACK | ||||
| 63187-0E080 |
GSU5#,GVU58..G TIRE & DISK WHEEL-245/55R19 CHROME PAINTED&MOON ROOF-WITH(PANORAMA ROOF) |
2 | ||
| 63187-48020 |
ASU50,GSU5#,GVU58 |
2 | ||
| 63187-0E080 |
GSU5#,GVU58..G MOON ROOF-WITH(PANORAMA ROOF) |
2 | ||
| 63187-0E080 |
GSU5#,GVU58..G ROOF RAIL-WITH(PLATING)&MOON ROOF-WITH(PANORAMA ROOF) |
2 | ||
| 63186 - BRACKET, ROOF RACK, FRONT | ||||
| 63187-0E050 |
GSU5#,GVU58..G,M |
2 | ||
| 63187A - BRACKET, ROOF RACK, REAR | ||||
| 63187-0E060 |
GSU5#,GVU58..G,M |
2 | ||
| 63189A - BRACKET, ROOF RACK, CENTER | ||||
| 63185-48010 |
ASU50,GSU5#,GVU58..N |
4 | ||
| 63189A - BRACKET, ROOF RACK, CENTER | ||||
| 63185-48010 |
ASU50,GSU5#,GVU58..N |
4 | ||
| 63479 - RETAINER, ROOF INNER RACK | ||||
| 63479-0E040 |
ASU50,GSU5#,GVU58..N |
2 | ||
| 63479-0E040 |
GSU5#,GVU58..G,M |
4 | ||
| 63479 - RETAINER, ROOF INNER RACK | ||||
| 63479-0E040 |
ASU50,GSU5#,GVU58..N |
2 | ||
| 63479-0E040 |
GSU5#,GVU58..G,M |
4 | ||
| Common parts | ||||
| 63230-48010 | ||||
ILLUST NO. 1 OF 3(1312- )HTWC ; (1312- )G,M..D4
ROOF PANEL(MOON)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-0E907 |
GSU5#,GVU58..G MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63102-0E907 |
GSU5#,GVU58..G MOON ROOF-WITH(PANORAMA ROOF)&SATELLITE RADIO-WITHOUT |
1 | ||
| 63102-0E906 |
ASU50,GSU5#..N MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 63102-0E905 |
ASU50,GSU5#,GVU58..N |
1 | ||
| 63102-0E906 |
GSU5#,GVU58..G,M |
1 | ||
| 63105A - FRAME SUB-ASSY, BACK DOOR OPENING | ||||
| 63105-0E050 |
ASU50,GSU5#,GVU58 |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-0E110 |
GSU5#,GVU58..G,M SATELLITE RADIO-WITHOUT |
1 | ||
| 63111-0E210 |
GSU5#..N SATELLITE RADIO-WITH |
1 | ||
| 63111-0E130 |
GSU5#,GVU58..G MOON ROOF-WITH(PANORAMA ROOF)&SATELLITE RADIO-WITHOUT |
1 | ||
| 63111-0E140 |
GSU5#,GVU58..G MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63111-0E120 |
GSU5#,GVU58..G,M |
1 | ||
| 63111-0E160 |
ASU50,GSU5#..N MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 63111-0E150 |
ASU50,GSU5#..N |
1 | ||
| 63118 - SUPPORT, ROOF PANEL, RH | ||||
| 63118-0E050 |
ASU50,GSU5#..N MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 63118-0E050 |
GSU5#,GVU58..G,M |
1 | ||
| 63119 - SUPPORT, ROOF PANEL, LH | ||||
| 63119-0E020 |
GSU5#,GVU58..G,M |
1 | ||
| 63119-0E020 |
ASU50,GSU5#..N MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 63142A - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63103-0E040 |
GSU5#,GVU58..G MOON ROOF-WITH(PANORAMA ROOF)&SATELLITE RADIO-WITHOUT |
1 | ||
| 63103-0E030 |
ASU50,GSU5#,GVU58..N |
1 | ||
| 63142-0E050 |
ASU50,GSU5#..N MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 63103-0E040 |
GSU5#,GVU58..G MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63142-0E050 |
GSU5#,GVU58..G,M |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63143-0E050 |
ASU50,GSU5#,GVU58 |
1 | ||
| 63144A - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63123-0E030 |
ASU50,GSU5#,GVU58 |
1 | ||
| 63145A - REINFORCEMENT, ROOF PANEL, NO.5 | ||||
| 63177-0E010 |
ASU50,GSU5#,GVU58 |
1 | ||
| 63148A - REINFORCEMENT, ROOF PANEL, NO.7 | ||||
| 63144-0E050 |
ASU50,GSU5#,GVU58 |
1 | ||
| 63169B - PLATE, ROOF PANEL REINFORCEMENT, RH | ||||
| 63169-0E040 |
ASU50,GSU5#,GVU58 |
1 | ||
| 63169-0E041 |
ASU50,GSU5#,GVU58 |
1 | ||
| 63179 - PLATE, ROOF PANEL REINFORCEMENT, LH | ||||
| 63179-0E040 |
ASU50,GSU5#,GVU58 |
1 | ||
| 63179-0E041 |
ASU50,GSU5#,GVU58 |
1 | ||
| 63180 - CLIP(BRACKET, ROOF RACK) | ||||
| 63479-0E010 |
GSU5#,GVU58..G,M |
4 | ||
| 63479-0E010 |
ASU50,GSU5#,GVU58..N |
2 | ||
| 63479-0E010 |
GSU5#,GVU58..G TIRE & DISK WHEEL-245/55R19 CHROME PAINTED&MOON ROOF-WITH(PANORAMA ROOF) |
2 | ||
| 63479-0E010 |
GSU5#,GVU58..G ROOF RAIL-WITH(PLATING)&MOON ROOF-WITH(PANORAMA ROOF) |
2 | ||
| 63479-0E010 |
GSU5#,GVU58..G MOON ROOF-WITH(PANORAMA ROOF) |
2 | ||
| 63180 - CLIP(BRACKET, ROOF RACK) | ||||
| 63479-0E010 |
GSU5#,GVU58..G,M |
4 | ||
| 63479-0E010 |
ASU50,GSU5#,GVU58..N |
2 | ||
| 63479-0E010 |
GSU5#,GVU58..G TIRE & DISK WHEEL-245/55R19 CHROME PAINTED&MOON ROOF-WITH(PANORAMA ROOF) |
2 | ||
| 63479-0E010 |
GSU5#,GVU58..G ROOF RAIL-WITH(PLATING)&MOON ROOF-WITH(PANORAMA ROOF) |
2 | ||
| 63479-0E010 |
GSU5#,GVU58..G MOON ROOF-WITH(PANORAMA ROOF) |
2 | ||
| 63185D - BRACKET, ROOF RACK, FRONT | ||||
| 63187-0E080 |
GSU5#,GVU58..G TIRE & DISK WHEEL-245/55R19 CHROME PAINTED&MOON ROOF-WITH(PANORAMA ROOF) |
2 | ||
| 63187-35020 |
ASU50,GSU5#,GVU58 |
2 | ||
| 63187-0E080 |
GSU5#,GVU58..G ROOF RAIL-WITH(PLATING)&MOON ROOF-WITH(PANORAMA ROOF) |
2 | ||
| 63187-0E080 |
GSU5#,GVU58..G MOON ROOF-WITH(PANORAMA ROOF) |
2 | ||
| 63185H - BRACKET, ROOF RACK | ||||
| 63187-0E080 |
GSU5#,GVU58..G TIRE & DISK WHEEL-245/55R19 CHROME PAINTED&MOON ROOF-WITH(PANORAMA ROOF) |
2 | ||
| 63187-48020 |
ASU50,GSU5#,GVU58 |
2 | ||
| 63187-0E080 |
GSU5#,GVU58..G MOON ROOF-WITH(PANORAMA ROOF) |
2 | ||
| 63187-0E080 |
GSU5#,GVU58..G ROOF RAIL-WITH(PLATING)&MOON ROOF-WITH(PANORAMA ROOF) |
2 | ||
| 63186 - BRACKET, ROOF RACK, FRONT | ||||
| 63187-0E050 |
GSU5#,GVU58..G,M |
2 | ||
| 63187A - BRACKET, ROOF RACK, REAR | ||||
| 63187-0E060 |
GSU5#,GVU58..G,M |
2 | ||
| 63189A - BRACKET, ROOF RACK, CENTER | ||||
| 63185-48010 |
ASU50,GSU5#,GVU58..N |
4 | ||
| 63189A - BRACKET, ROOF RACK, CENTER | ||||
| 63185-48010 |
ASU50,GSU5#,GVU58..N |
4 | ||
| 63479 - RETAINER, ROOF INNER RACK | ||||
| 63479-0E040 |
ASU50,GSU5#,GVU58..N |
2 | ||
| 63479-0E040 |
GSU5#,GVU58..G,M |
4 | ||
| 63479 - RETAINER, ROOF INNER RACK | ||||
| 63479-0E040 |
ASU50,GSU5#,GVU58..N |
2 | ||
| 63479-0E040 |
GSU5#,GVU58..G,M |
4 | ||
| Common parts | ||||
| 63230-48010 | ||||
| 90080-17244 | ||||
| 90105-A0235 | ||||

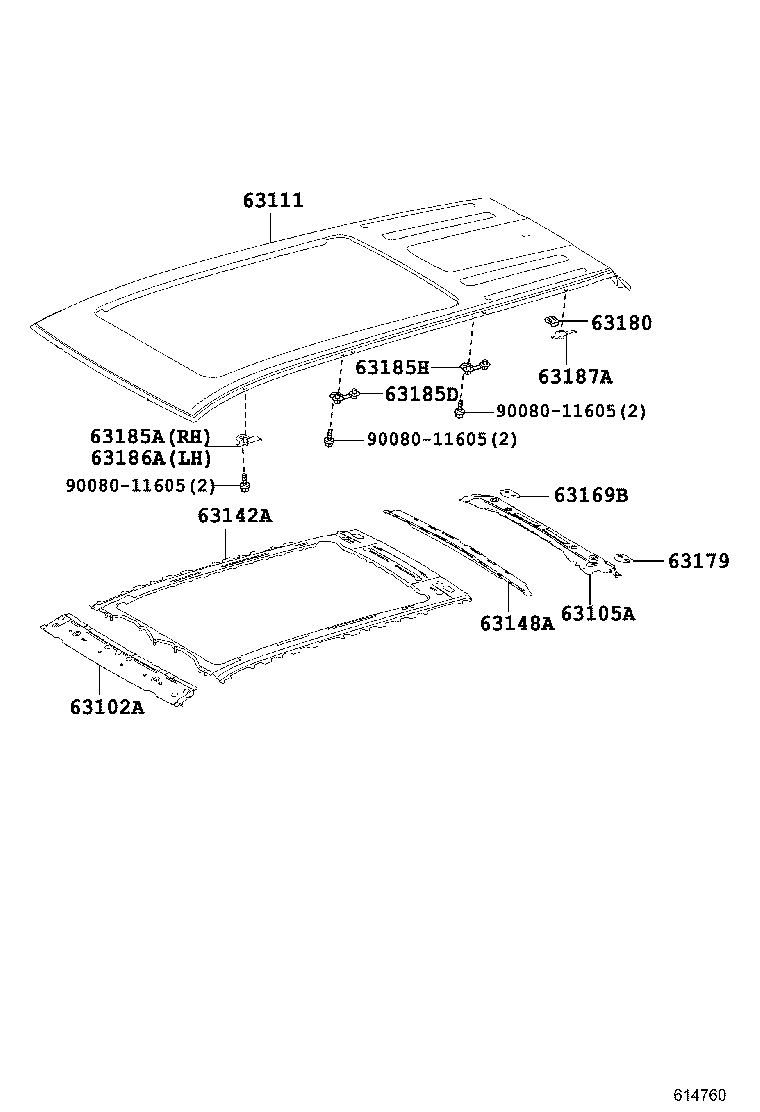

ILLUST NO. 1 OF 3(1312- )G
ROOF PANEL(PANORAMA)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-0E907 |
GSU5#,GVU58..G MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63102-0E907 |
GSU5#,GVU58..G MOON ROOF-WITH(PANORAMA ROOF)&SATELLITE RADIO-WITHOUT |
1 | ||
| 63102-0E906 |
ASU50,GSU5#..N MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 63102-0E905 |
ASU50,GSU5#,GVU58..N |
1 | ||
| 63102-0E906 |
GSU5#,GVU58..G,M |
1 | ||
| 63105A - FRAME SUB-ASSY, BACK DOOR OPENING | ||||
| 63105-0E050 |
ASU50,GSU5#,GVU58 |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-0E110 |
GSU5#,GVU58..G,M SATELLITE RADIO-WITHOUT |
1 | ||
| 63111-0E210 |
GSU5#..N SATELLITE RADIO-WITH |
1 | ||
| 63111-0E130 |
GSU5#,GVU58..G MOON ROOF-WITH(PANORAMA ROOF)&SATELLITE RADIO-WITHOUT |
1 | ||
| 63111-0E140 |
GSU5#,GVU58..G MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63111-0E120 |
GSU5#,GVU58..G,M |
1 | ||
| 63111-0E160 |
ASU50,GSU5#..N MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 63111-0E150 |
ASU50,GSU5#..N |
1 | ||
| 63142A - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63103-0E040 |
GSU5#,GVU58..G MOON ROOF-WITH(PANORAMA ROOF)&SATELLITE RADIO-WITHOUT |
1 | ||
| 63103-0E030 |
ASU50,GSU5#,GVU58..N |
1 | ||
| 63142-0E050 |
ASU50,GSU5#..N MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 63103-0E040 |
GSU5#,GVU58..G MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63142-0E050 |
GSU5#,GVU58..G,M |
1 | ||
| 63148A - REINFORCEMENT, ROOF PANEL, NO.7 | ||||
| 63144-0E050 |
ASU50,GSU5#,GVU58 |
1 | ||
| 63169B - PLATE, ROOF PANEL REINFORCEMENT, RH | ||||
| 63169-0E040 |
ASU50,GSU5#,GVU58 |
1 | ||
| 63169-0E041 |
ASU50,GSU5#,GVU58 |
1 | ||
| 63179 - PLATE, ROOF PANEL REINFORCEMENT, LH | ||||
| 63179-0E040 |
ASU50,GSU5#,GVU58 |
1 | ||
| 63179-0E041 |
ASU50,GSU5#,GVU58 |
1 | ||
| 63180 - CLIP(BRACKET, ROOF RACK) | ||||
| 63479-0E010 |
GSU5#,GVU58..G,M |
4 | ||
| 63479-0E010 |
ASU50,GSU5#,GVU58..N |
2 | ||
| 63479-0E010 |
GSU5#,GVU58..G TIRE & DISK WHEEL-245/55R19 CHROME PAINTED&MOON ROOF-WITH(PANORAMA ROOF) |
2 | ||
| 63479-0E010 |
GSU5#,GVU58..G ROOF RAIL-WITH(PLATING)&MOON ROOF-WITH(PANORAMA ROOF) |
2 | ||
| 63479-0E010 |
GSU5#,GVU58..G MOON ROOF-WITH(PANORAMA ROOF) |
2 | ||
| 63185A - BRACKET, ROOF RACK, FRONT RH | ||||
| 63187-0E070 |
GSU5#,GVU58..G MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63187-0E070 |
GSU5#,GVU58..G ROOF RAIL-WITH(PLATING)&MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63187-0E070 |
GSU5#,GVU58..G TIRE & DISK WHEEL-245/55R19 CHROME PAINTED&MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63185D - BRACKET, ROOF RACK, FRONT | ||||
| 63187-0E080 |
GSU5#,GVU58..G TIRE & DISK WHEEL-245/55R19 CHROME PAINTED&MOON ROOF-WITH(PANORAMA ROOF) |
2 | ||
| 63187-35020 |
ASU50,GSU5#,GVU58 |
2 | ||
| 63187-0E080 |
GSU5#,GVU58..G ROOF RAIL-WITH(PLATING)&MOON ROOF-WITH(PANORAMA ROOF) |
2 | ||
| 63187-0E080 |
GSU5#,GVU58..G MOON ROOF-WITH(PANORAMA ROOF) |
2 | ||
| 63185H - BRACKET, ROOF RACK | ||||
| 63187-0E080 |
GSU5#,GVU58..G TIRE & DISK WHEEL-245/55R19 CHROME PAINTED&MOON ROOF-WITH(PANORAMA ROOF) |
2 | ||
| 63187-48020 |
ASU50,GSU5#,GVU58 |
2 | ||
| 63187-0E080 |
GSU5#,GVU58..G MOON ROOF-WITH(PANORAMA ROOF) |
2 | ||
| 63187-0E080 |
GSU5#,GVU58..G ROOF RAIL-WITH(PLATING)&MOON ROOF-WITH(PANORAMA ROOF) |
2 | ||
| 63186A - BRACKET, ROOF RACK, FRONT LH | ||||
| 63188-0E010 |
GSU5#,GVU58..G ROOF RAIL-WITH(PLATING)&MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63188-0E010 |
GSU5#,GVU58..G TIRE & DISK WHEEL-245/55R19 CHROME PAINTED&MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63188-0E010 |
GSU5#,GVU58..G MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63187A - BRACKET, ROOF RACK, REAR | ||||
| 63187-0E060 |
GSU5#,GVU58..G,M |
2 | ||
| Common parts | ||||
| 90080-11605 | ||||
ILLUST NO. 2 OF 3(1312- )HTWC ; (1312- )G,M..D4
SLIDING ROOF(MOON)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63201G - GLASS SUB-ASSY, SLIDING ROOF | ||||
| 63201-0E040 |
GSU5#,GVU58..G,M *TEM,T=4.0,DK.GRAY |
1 | ||
| 63201-0E050 |
GSU5#,GVU58..G *TEM,T=4.0,DK.GRAY,MOON ROOF-WITH(PANORAMA ROOF),NO.1 |
1 | ||
| 63201-0E040 |
ASU50,GSU5#,GVU58..N *TEM,T=4.0,DK.GRAY,MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 63201-0E060 |
GSU5#,GVU58..G *TEM,T=4.0,DK.GRAY,MOON ROOF-WITH(PANORAMA ROOF),NO.2 |
1 | ||
| 63203F - HOUSING SUB-ASSY, SLIDING ROOF | ||||
| 63203-0E070 |
ASU50,GSU5#,GVU58..N MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 63203-0E080 |
GSU5#,GVU58..G,M TELEVISION & DVD PLAYER-WITH |
1 | ||
| 63203-0E090 |
GSU5#,GVU58..G MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63203-0E070 |
GSU5#,GVU58..G,M |
1 | ||
| 63205A - CABLE SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63205-06020 |
GSU5#,GVU58..G,M |
1 | ||
| 63205-06020 |
ASU50,GSU5#,GVU58..N MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 63217G - GARNISH, SLIDING ROOF SIDE, RH | ||||
| 63217-06040 |
GSU5#,GVU58..G,M |
1 | ||
| 63217-06180 |
ASU50,GSU5#,GVU58..N MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 63217-06040 |
ASU50,GSU5#,GVU58..N MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 63217-06180 |
GSU5#,GVU58..G,M |
1 | ||
| 63217-0E030 |
GSU5#,GVU58..G MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63218G - GARNISH, SLIDING ROOF SIDE, LH | ||||
| 63217-06040 |
GSU5#,GVU58..G,M |
1 | ||
| 63217-06180 |
GSU5#,GVU58..G,M |
1 | ||
| 63218-0E030 |
GSU5#,GVU58..G MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63217-06180 |
ASU50,GSU5#,GVU58..N MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 63217-06040 |
ASU50,GSU5#,GVU58..N MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 63236 - CLAMP, SLIDING ROOF OR REMOVABLE ROOF DRAIN HOSE | ||||
| 63236-0E020 |
ASU50,GSU5#,GVU58..N MOON ROOF-WITH(TILT & SLIDE) |
6 | ||
| 63236-0E020 |
GSU5#,GVU58..G,M |
6 | ||
| 63236 - CLAMP, SLIDING ROOF OR REMOVABLE ROOF DRAIN HOSE | ||||
| 63236-0E020 |
ASU50,GSU5#,GVU58..N MOON ROOF-WITH(TILT & SLIDE) |
6 | ||
| 63236-0E020 |
GSU5#,GVU58..G,M |
6 | ||
| 63236D - CLAMP, SLIDING ROOF DRAIN HOSE | ||||
| 63236-08040 |
ASU50,GSU5#,GVU58..N MOON ROOF-WITH(TILT & SLIDE) |
4 | ||
| 63236-08040 |
GSU5#,GVU58..G,M |
4 | ||
| 63236D - CLAMP, SLIDING ROOF DRAIN HOSE | ||||
| 63236-08040 |
ASU50,GSU5#,GVU58..N MOON ROOF-WITH(TILT & SLIDE) |
4 | ||
| 63236-08040 |
GSU5#,GVU58..G,M |
4 | ||
| 63236E - CLAMP, SLIDING ROOF DRAIN HOSE | ||||
| 63236-48020 |
GSU5#,GVU58..G,M |
5 | ||
| 63236-48020 |
ASU50,GSU5#,GVU58..N MOON ROOF-WITH(TILT & SLIDE) |
5 | ||
| 63236E - CLAMP, SLIDING ROOF DRAIN HOSE | ||||
| 63236-48020 |
GSU5#,GVU58..G,M |
5 | ||
| 63236-48020 |
ASU50,GSU5#,GVU58..N MOON ROOF-WITH(TILT & SLIDE) |
5 | ||
| 63236E - CLAMP, SLIDING ROOF DRAIN HOSE | ||||
| 63236-48020 |
GSU5#,GVU58..G,M |
5 | ||
| 63236-48020 |
ASU50,GSU5#,GVU58..N MOON ROOF-WITH(TILT & SLIDE) |
5 | ||
| 63247E - HOSE, SLIDING ROOF DRAIN, REAR RH | ||||
| 63247-0E070 |
GSU5#,GVU58..G,M |
1 | ||
| 63247-0E081 |
GSU5#,GVU58..G MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63247-0E080 |
GSU5#,GVU58..G MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63247-0E070 |
ASU50,GSU5#,GVU58..N MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 63247-0E071 |
GSU5#,GVU58..G,M |
1 | ||
| 63247-0E071 |
ASU50,GSU5#,GVU58..N MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 63248E - HOSE, SLIDING ROOF DRAIN, REAR LH | ||||
| 63248-0E030 |
ASU50,GSU5#,GVU58..N MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 63248-0E031 |
ASU50,GSU5#,GVU58..N MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 63248-0E040 |
GSU5#,GVU58..G MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63248-0E041 |
GSU5#,GVU58..G MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63248-0E030 |
GSU5#,GVU58..G,M |
1 | ||
| 63248-0E031 |
GSU5#,GVU58..G,M |
1 | ||
| 63249E - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-0E060 |
GSU5#,GVU58..G MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63249-0E050 |
GSU5#,GVU58..G,M |
1 | ||
| 63249-0E050 |
ASU50,GSU5#,GVU58..N MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 63249F - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-0E060 |
GSU5#,GVU58..G MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63249-0E050 |
ASU50,GSU5#,GVU58..N MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 63249-0E050 |
GSU5#,GVU58..G,M |
1 | ||
| 63251H - WEATHERSTRIP, SLIDING ROOF | ||||
| 63251-0E020 |
ASU50,GSU5#,GVU58..N MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 63251-0E050 |
GSU5#,GVU58..G MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63251-0E051 |
GSU5#,GVU58..G MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63251-0E020 |
GSU5#,GVU58..G,M |
1 | ||
| 63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63260-0E070 |
GSU5#,GVU58..G,M |
1 | ||
| 63260-0E070 |
ASU50,GSU5#,GVU58..N MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 63669B - GROMMET, SLIDING ROOF DRAIN | ||||
| 63669-34010 |
GSU5#,GVU58..G,M |
2 | ||
| 63669-30040 |
GSU5#,GVU58..G,M |
2 | ||
| 63669-30040 |
ASU50,GSU5#,GVU58..N MOON ROOF-WITH(TILT & SLIDE) |
2 | ||
| 63669-34010 |
ASU50,GSU5#,GVU58..N MOON ROOF-WITH(TILT & SLIDE) |
2 | ||
| 63669B - GROMMET, SLIDING ROOF DRAIN | ||||
| 63669-34010 |
GSU5#,GVU58..G,M |
2 | ||
| 63669-30040 |
GSU5#,GVU58..G,M |
2 | ||
| 63669-30040 |
ASU50,GSU5#,GVU58..N MOON ROOF-WITH(TILT & SLIDE) |
2 | ||
| 63669-34010 |
ASU50,GSU5#,GVU58..N MOON ROOF-WITH(TILT & SLIDE) |
2 | ||
| Common parts | ||||
| 90080-17244 | ||||
| 90084-11049 | ||||
| 90105-A0235 | ||||
| 90159-50336 | ||||
| 90466-A0008 | ||||
| 90959-01592 | ||||
| Linked diagrams | ||||
| 6402 | ||||
ILLUST NO. 2 OF 3(1312- )G
SLIDING ROOF(PANORAMA)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63201G - GLASS SUB-ASSY, SLIDING ROOF | ||||
| 63201-0E040 |
GSU5#,GVU58..G,M *TEM,T=4.0,DK.GRAY |
1 | ||
| 63201-0E050 |
GSU5#,GVU58..G *TEM,T=4.0,DK.GRAY,MOON ROOF-WITH(PANORAMA ROOF),NO.1 |
1 | ||
| 63201-0E040 |
ASU50,GSU5#,GVU58..N *TEM,T=4.0,DK.GRAY,MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 63201-0E060 |
GSU5#,GVU58..G *TEM,T=4.0,DK.GRAY,MOON ROOF-WITH(PANORAMA ROOF),NO.2 |
1 | ||
| 63201G - GLASS SUB-ASSY, SLIDING ROOF | ||||
| 63201-0E040 |
GSU5#,GVU58..G,M *TEM,T=4.0,DK.GRAY |
1 | ||
| 63201-0E050 |
GSU5#,GVU58..G *TEM,T=4.0,DK.GRAY,MOON ROOF-WITH(PANORAMA ROOF),NO.1 |
1 | ||
| 63201-0E040 |
ASU50,GSU5#,GVU58..N *TEM,T=4.0,DK.GRAY,MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 63201-0E060 |
GSU5#,GVU58..G *TEM,T=4.0,DK.GRAY,MOON ROOF-WITH(PANORAMA ROOF),NO.2 |
1 | ||
| 63203F - HOUSING SUB-ASSY, SLIDING ROOF | ||||
| 63203-0E070 |
ASU50,GSU5#,GVU58..N MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 63203-0E080 |
GSU5#,GVU58..G,M TELEVISION & DVD PLAYER-WITH |
1 | ||
| 63203-0E090 |
GSU5#,GVU58..G MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63203-0E070 |
GSU5#,GVU58..G,M |
1 | ||
| 63209 - PANEL SUB-ASSY, ROOF WIND DEFLECTOR | ||||
| 63209-0E050 |
GSU5#,GVU58..G MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63217G - GARNISH, SLIDING ROOF SIDE, RH | ||||
| 63217-06040 |
GSU5#,GVU58..G,M |
1 | ||
| 63217-06180 |
ASU50,GSU5#,GVU58..N MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 63217-06040 |
ASU50,GSU5#,GVU58..N MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 63217-06180 |
GSU5#,GVU58..G,M |
1 | ||
| 63217-0E030 |
GSU5#,GVU58..G MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63218G - GARNISH, SLIDING ROOF SIDE, LH | ||||
| 63217-06040 |
GSU5#,GVU58..G,M |
1 | ||
| 63217-06180 |
GSU5#,GVU58..G,M |
1 | ||
| 63218-0E030 |
GSU5#,GVU58..G MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63217-06180 |
ASU50,GSU5#,GVU58..N MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 63217-06040 |
ASU50,GSU5#,GVU58..N MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 63236 - CLAMP, SLIDING ROOF OR REMOVABLE ROOF DRAIN HOSE | ||||
| 63236-0E020 |
ASU50,GSU5#,GVU58..N MOON ROOF-WITH(TILT & SLIDE) |
6 | ||
| 63236-0E020 |
GSU5#,GVU58..G,M |
6 | ||
| 63236 - CLAMP, SLIDING ROOF OR REMOVABLE ROOF DRAIN HOSE | ||||
| 63236-0E020 |
ASU50,GSU5#,GVU58..N MOON ROOF-WITH(TILT & SLIDE) |
6 | ||
| 63236-0E020 |
GSU5#,GVU58..G,M |
6 | ||
| 63236D - CLAMP, SLIDING ROOF DRAIN HOSE | ||||
| 63236-08040 |
ASU50,GSU5#,GVU58..N MOON ROOF-WITH(TILT & SLIDE) |
4 | ||
| 63236-08040 |
GSU5#,GVU58..G,M |
4 | ||
| 63236D - CLAMP, SLIDING ROOF DRAIN HOSE | ||||
| 63236-08040 |
ASU50,GSU5#,GVU58..N MOON ROOF-WITH(TILT & SLIDE) |
4 | ||
| 63236-08040 |
GSU5#,GVU58..G,M |
4 | ||
| 63236E - CLAMP, SLIDING ROOF DRAIN HOSE | ||||
| 63236-48020 |
GSU5#,GVU58..G,M |
5 | ||
| 63236-48020 |
ASU50,GSU5#,GVU58..N MOON ROOF-WITH(TILT & SLIDE) |
5 | ||
| 63236E - CLAMP, SLIDING ROOF DRAIN HOSE | ||||
| 63236-48020 |
GSU5#,GVU58..G,M |
5 | ||
| 63236-48020 |
ASU50,GSU5#,GVU58..N MOON ROOF-WITH(TILT & SLIDE) |
5 | ||
| 63236E - CLAMP, SLIDING ROOF DRAIN HOSE | ||||
| 63236-48020 |
GSU5#,GVU58..G,M |
5 | ||
| 63236-48020 |
ASU50,GSU5#,GVU58..N MOON ROOF-WITH(TILT & SLIDE) |
5 | ||
| 63241A - BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, RH | ||||
| 63241-0E060 |
GSU5#,GVU58..G MOON ROOF-WITH(PANORAMA ROOF) |
2 | ||
| 63242A - BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, LH | ||||
| 63241-0E060 |
GSU5#,GVU58..G MOON ROOF-WITH(PANORAMA ROOF) |
2 | ||
| 63243C - BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, RH | ||||
| 63243-0E050 |
GSU5#,GVU58..G MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63244C - BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, LH | ||||
| 63244-0E020 |
GSU5#,GVU58..G MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63245D - BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, RH | ||||
| 63245-0E050 |
GSU5#,GVU58..G MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63246D - BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, LH | ||||
| 63246-0E020 |
GSU5#,GVU58..G MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63247E - HOSE, SLIDING ROOF DRAIN, REAR RH | ||||
| 63247-0E070 |
GSU5#,GVU58..G,M |
1 | ||
| 63247-0E081 |
GSU5#,GVU58..G MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63247-0E080 |
GSU5#,GVU58..G MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63247-0E070 |
ASU50,GSU5#,GVU58..N MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 63247-0E071 |
GSU5#,GVU58..G,M |
1 | ||
| 63247-0E071 |
ASU50,GSU5#,GVU58..N MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 63248E - HOSE, SLIDING ROOF DRAIN, REAR LH | ||||
| 63248-0E030 |
ASU50,GSU5#,GVU58..N MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 63248-0E031 |
ASU50,GSU5#,GVU58..N MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 63248-0E040 |
GSU5#,GVU58..G MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63248-0E041 |
GSU5#,GVU58..G MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63248-0E030 |
GSU5#,GVU58..G,M |
1 | ||
| 63248-0E031 |
GSU5#,GVU58..G,M |
1 | ||
| 63249E - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-0E060 |
GSU5#,GVU58..G MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63249-0E050 |
GSU5#,GVU58..G,M |
1 | ||
| 63249-0E050 |
ASU50,GSU5#,GVU58..N MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 63249F - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-0E060 |
GSU5#,GVU58..G MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63249-0E050 |
ASU50,GSU5#,GVU58..N MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 63249-0E050 |
GSU5#,GVU58..G,M |
1 | ||
| 63251H - WEATHERSTRIP, SLIDING ROOF | ||||
| 63251-0E020 |
ASU50,GSU5#,GVU58..N MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 63251-0E050 |
GSU5#,GVU58..G MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63251-0E051 |
GSU5#,GVU58..G MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63251-0E020 |
GSU5#,GVU58..G,M |
1 | ||
| 63260H - GEAR ASSY, SLIDING ROOF DRIVE | ||||
| 63260-0E050 |
GSU5#,GVU58..G MOON ROOF-WITH(PANORAMA ROOF),FOR SLIDING ROOF |
1 | ||
| 63260J - GEAR ASSY, SLIDING ROOF DRIVE | ||||
| 63260-0E060 |
GSU5#,GVU58..G MOON ROOF-WITH(PANORAMA ROOF),FOR ROOF SUNSHADE |
1 | ||
| 63669B - GROMMET, SLIDING ROOF DRAIN | ||||
| 63669-34010 |
GSU5#,GVU58..G,M |
2 | ||
| 63669-30040 |
GSU5#,GVU58..G,M |
2 | ||
| 63669-30040 |
ASU50,GSU5#,GVU58..N MOON ROOF-WITH(TILT & SLIDE) |
2 | ||
| 63669-34010 |
ASU50,GSU5#,GVU58..N MOON ROOF-WITH(TILT & SLIDE) |
2 | ||
| 63669B - GROMMET, SLIDING ROOF DRAIN | ||||
| 63669-34010 |
GSU5#,GVU58..G,M |
2 | ||
| 63669-30040 |
GSU5#,GVU58..G,M |
2 | ||
| 63669-30040 |
ASU50,GSU5#,GVU58..N MOON ROOF-WITH(TILT & SLIDE) |
2 | ||
| 63669-34010 |
ASU50,GSU5#,GVU58..N MOON ROOF-WITH(TILT & SLIDE) |
2 | ||
| 63669C - GROMMET, SLIDING ROOF DRAIN | ||||
| 63669-0E010 |
GSU5#,GVU58..G MOON ROOF-WITH(PANORAMA ROOF) |
2 | ||
| 63669C - GROMMET, SLIDING ROOF DRAIN | ||||
| 63669-0E010 |
GSU5#,GVU58..G MOON ROOF-WITH(PANORAMA ROOF) |
2 | ||
| 85618 - SCREW, SLIDE ROOF MOTOR THRUST | ||||
| 85618-21010 |
GSU5#,GVU58..G MOON ROOF-WITH(PANORAMA ROOF) |
10 | ||
| 85618 - SCREW, SLIDE ROOF MOTOR THRUST | ||||
| 85618-21010 |
GSU5#,GVU58..G MOON ROOF-WITH(PANORAMA ROOF) |
10 | ||
| 85618 - SCREW, SLIDE ROOF MOTOR THRUST | ||||
| 85618-21010 |
GSU5#,GVU58..G MOON ROOF-WITH(PANORAMA ROOF) |
10 | ||
| 85618 - SCREW, SLIDE ROOF MOTOR THRUST | ||||
| 85618-21010 |
GSU5#,GVU58..G MOON ROOF-WITH(PANORAMA ROOF) |
10 | ||
| Common parts | ||||
| 90080-11605 | ||||
| 90080-17244 | ||||
| 90084-11049 | ||||
| 90105-A0235 | ||||
| 90466-A0008 | ||||
| 90959-01592 | ||||
| Linked diagrams | ||||
| 6402 | ||||
ILLUST NO. 3 OF 3(1312- )
ROOF RACK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63230A - BOLT ASSY, REMOVABLE ROOF | ||||
| 63230-48020 |
GSU5#,GVU58..G,M |
12 | ||
| 63230A - BOLT ASSY, REMOVABLE ROOF | ||||
| 63230-48020 |
GSU5#,GVU58..G,M |
12 | ||
| 63230A - BOLT ASSY, REMOVABLE ROOF | ||||
| 63230-48020 |
GSU5#,GVU58..G,M |
12 | ||
| 63230A - BOLT ASSY, REMOVABLE ROOF | ||||
| 63230-48020 |
GSU5#,GVU58..G,M |
12 | ||
| 63437A - SEAL, ROOF CARRIER, NO.2 | ||||
| 63437-0E040 |
GSU5#,GVU58..G,M |
12 | ||
| 63437A - SEAL, ROOF CARRIER, NO.2 | ||||
| 63437-0E040 |
GSU5#,GVU58..G,M |
12 | ||
| 63437A - SEAL, ROOF CARRIER, NO.2 | ||||
| 63437-0E040 |
GSU5#,GVU58..G,M |
12 | ||
| 63437A - SEAL, ROOF CARRIER, NO.2 | ||||
| 63437-0E040 |
GSU5#,GVU58..G,M |
12 | ||
| 63460B - RACK ASSY, ROOF, RH | ||||
| 63460-0E160 |
GSU5#,GVU58..G ROOF RAIL-WITH(PLATING) |
1 | ||
| 63460-0E121 |
GSU5#,GVU58..G,M |
1 | ||
| 63460-0E160 |
GSU5#,GVU58..M ROOF RAIL-WITH(PLATING) |
1 | ||
| 63460-0E160 |
GSU5#,GVU58..G TIRE & DISK WHEEL-245/55R19 CHROME PAINTED&MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63460-0E160 |
GSU5#,GVU58..G TIRE & DISK WHEEL-245/55R19 CHROME PAINTED |
1 | ||
| 63460-0E160 |
GSU5#,GVU58..G ROOF RAIL-WITH(PLATING)&MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63460-0E120 |
GSU5#,GVU58..G,M |
1 | ||
| 63470B - RACK ASSY, ROOF, LH | ||||
| 63470-0E160 |
GSU5#,GVU58..G TIRE & DISK WHEEL-245/55R19 CHROME PAINTED |
1 | ||
| 63470-0E120 |
GSU5#,GVU58..G,M |
1 | ||
| 63470-0E121 |
GSU5#,GVU58..G,M |
1 | ||
| 63470-0E160 |
GSU5#,GVU58..M ROOF RAIL-WITH(PLATING) |
1 | ||
| 63470-0E160 |
GSU5#,GVU58..G ROOF RAIL-WITH(PLATING) |
1 | ||
| 63470-0E160 |
GSU5#,GVU58..G ROOF RAIL-WITH(PLATING)&MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63470-0E160 |
GSU5#,GVU58..G TIRE & DISK WHEEL-245/55R19 CHROME PAINTED&MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63486A - CUSHION, ROOF RACK LEG, FRONT RH | ||||
| 63486-0E051 |
GSU5#,GVU58..G,M |
1 | ||
| 63487A - CUSHION, ROOF RACK LEG, FRONT LH | ||||
| 63487-0E051 |
GSU5#,GVU58..G,M |
1 | ||
| 63488 - CUSHION, ROOF RACK LEG, REAR RH | ||||
| 63488-0E051 |
GSU5#,GVU58..G,M |
1 | ||
| 63489 - CUSHION, ROOF RACK LEG, REAR LH | ||||
| 63489-0E051 |
GSU5#,GVU58..G,M |
1 | ||
| 75631J - LID, ROOF SIDE GARNISH, NO.1 RH | ||||
| 75632-0E030 |
GSU5#,GVU58..M ROOF RAIL-WITH(PLATING) |
2 | ||
| 75632-0E030 |
GSU5#,GVU58..G TIRE & DISK WHEEL-245/55R19 CHROME PAINTED |
2 | ||
| 75632-0E030 |
GSU5#,GVU58..G ROOF RAIL-WITH(PLATING) |
2 | ||
| 75632-0E030 |
GSU5#,GVU58..G ROOF RAIL-WITH(PLATING)&MOON ROOF-WITH(PANORAMA ROOF) |
2 | ||
| 75632-0E010 |
GSU5#,GVU58..G,M |
2 | ||
| 75632-0E030 |
GSU5#,GVU58..G TIRE & DISK WHEEL-245/55R19 CHROME PAINTED&MOON ROOF-WITH(PANORAMA ROOF) |
2 | ||
| 75631J - LID, ROOF SIDE GARNISH, NO.1 RH | ||||
| 75632-0E030 |
GSU5#,GVU58..M ROOF RAIL-WITH(PLATING) |
2 | ||
| 75632-0E030 |
GSU5#,GVU58..G TIRE & DISK WHEEL-245/55R19 CHROME PAINTED |
2 | ||
| 75632-0E030 |
GSU5#,GVU58..G ROOF RAIL-WITH(PLATING) |
2 | ||
| 75632-0E030 |
GSU5#,GVU58..G ROOF RAIL-WITH(PLATING)&MOON ROOF-WITH(PANORAMA ROOF) |
2 | ||
| 75632-0E010 |
GSU5#,GVU58..G,M |
2 | ||
| 75632-0E030 |
GSU5#,GVU58..G TIRE & DISK WHEEL-245/55R19 CHROME PAINTED&MOON ROOF-WITH(PANORAMA ROOF) |
2 | ||
| 75631K - LID, ROOF SIDE GARNISH, NO.1 LH | ||||
| 75632-0E030 |
GSU5#,GVU58..G TIRE & DISK WHEEL-245/55R19 CHROME PAINTED |
2 | ||
| 75632-0E030 |
GSU5#,GVU58..G TIRE & DISK WHEEL-245/55R19 CHROME PAINTED&MOON ROOF-WITH(PANORAMA ROOF) |
2 | ||
| 75632-0E030 |
GSU5#,GVU58..M ROOF RAIL-WITH(PLATING) |
2 | ||
| 75632-0E010 |
GSU5#,GVU58..G,M |
2 | ||
| 75632-0E030 |
GSU5#,GVU58..G ROOF RAIL-WITH(PLATING) |
2 | ||
| 75632-0E030 |
GSU5#,GVU58..G ROOF RAIL-WITH(PLATING)&MOON ROOF-WITH(PANORAMA ROOF) |
2 | ||
| 75631K - LID, ROOF SIDE GARNISH, NO.1 LH | ||||
| 75632-0E030 |
GSU5#,GVU58..G TIRE & DISK WHEEL-245/55R19 CHROME PAINTED |
2 | ||
| 75632-0E030 |
GSU5#,GVU58..G TIRE & DISK WHEEL-245/55R19 CHROME PAINTED&MOON ROOF-WITH(PANORAMA ROOF) |
2 | ||
| 75632-0E030 |
GSU5#,GVU58..M ROOF RAIL-WITH(PLATING) |
2 | ||
| 75632-0E010 |
GSU5#,GVU58..G,M |
2 | ||
| 75632-0E030 |
GSU5#,GVU58..G ROOF RAIL-WITH(PLATING) |
2 | ||
| 75632-0E030 |
GSU5#,GVU58..G ROOF RAIL-WITH(PLATING)&MOON ROOF-WITH(PANORAMA ROOF) |
2 | ||
| 75633C - LID, ROOF SIDE GARNISH, NO.2 RH | ||||
| 75633-0E010 |
GSU5#,GVU58..G,M |
2 | ||
| 75633-0E030 |
GSU5#,GVU58..M ROOF RAIL-WITH(PLATING) |
2 | ||
| 75633-0E030 |
GSU5#,GVU58..G ROOF RAIL-WITH(PLATING) |
2 | ||
| 75633-0E030 |
GSU5#,GVU58..G TIRE & DISK WHEEL-245/55R19 CHROME PAINTED |
2 | ||
| 75633-0E030 |
GSU5#,GVU58..G ROOF RAIL-WITH(PLATING)&MOON ROOF-WITH(PANORAMA ROOF) |
2 | ||
| 75633-0E030 |
GSU5#,GVU58..G TIRE & DISK WHEEL-245/55R19 CHROME PAINTED&MOON ROOF-WITH(PANORAMA ROOF) |
2 | ||
| 75633C - LID, ROOF SIDE GARNISH, NO.2 RH | ||||
| 75633-0E010 |
GSU5#,GVU58..G,M |
2 | ||
| 75633-0E030 |
GSU5#,GVU58..M ROOF RAIL-WITH(PLATING) |
2 | ||
| 75633-0E030 |
GSU5#,GVU58..G ROOF RAIL-WITH(PLATING) |
2 | ||
| 75633-0E030 |
GSU5#,GVU58..G TIRE & DISK WHEEL-245/55R19 CHROME PAINTED |
2 | ||
| 75633-0E030 |
GSU5#,GVU58..G ROOF RAIL-WITH(PLATING)&MOON ROOF-WITH(PANORAMA ROOF) |
2 | ||
| 75633-0E030 |
GSU5#,GVU58..G TIRE & DISK WHEEL-245/55R19 CHROME PAINTED&MOON ROOF-WITH(PANORAMA ROOF) |
2 | ||
| 75633F - LID, ROOF SIDE GARNISH, NO.2 LH | ||||
| 75633-0E030 |
GSU5#,GVU58..G ROOF RAIL-WITH(PLATING) |
2 | ||
| 75633-0E030 |
GSU5#,GVU58..G ROOF RAIL-WITH(PLATING)&MOON ROOF-WITH(PANORAMA ROOF) |
2 | ||
| 75633-0E010 |
GSU5#,GVU58..G,M |
2 | ||
| 75633-0E030 |
GSU5#,GVU58..M ROOF RAIL-WITH(PLATING) |
2 | ||
| 75633-0E030 |
GSU5#,GVU58..G TIRE & DISK WHEEL-245/55R19 CHROME PAINTED |
2 | ||
| 75633-0E030 |
GSU5#,GVU58..G TIRE & DISK WHEEL-245/55R19 CHROME PAINTED&MOON ROOF-WITH(PANORAMA ROOF) |
2 | ||
| 75633F - LID, ROOF SIDE GARNISH, NO.2 LH | ||||
| 75633-0E030 |
GSU5#,GVU58..G ROOF RAIL-WITH(PLATING) |
2 | ||
| 75633-0E030 |
GSU5#,GVU58..G ROOF RAIL-WITH(PLATING)&MOON ROOF-WITH(PANORAMA ROOF) |
2 | ||
| 75633-0E010 |
GSU5#,GVU58..G,M |
2 | ||
| 75633-0E030 |
GSU5#,GVU58..M ROOF RAIL-WITH(PLATING) |
2 | ||
| 75633-0E030 |
GSU5#,GVU58..G TIRE & DISK WHEEL-245/55R19 CHROME PAINTED |
2 | ||
| 75633-0E030 |
GSU5#,GVU58..G TIRE & DISK WHEEL-245/55R19 CHROME PAINTED&MOON ROOF-WITH(PANORAMA ROOF) |
2 | ||
Part Price Details
Loading price information...
Part Number:
Price:
