GSU50L-ARTNKA (2013)
Toyota Highlander (Nap)

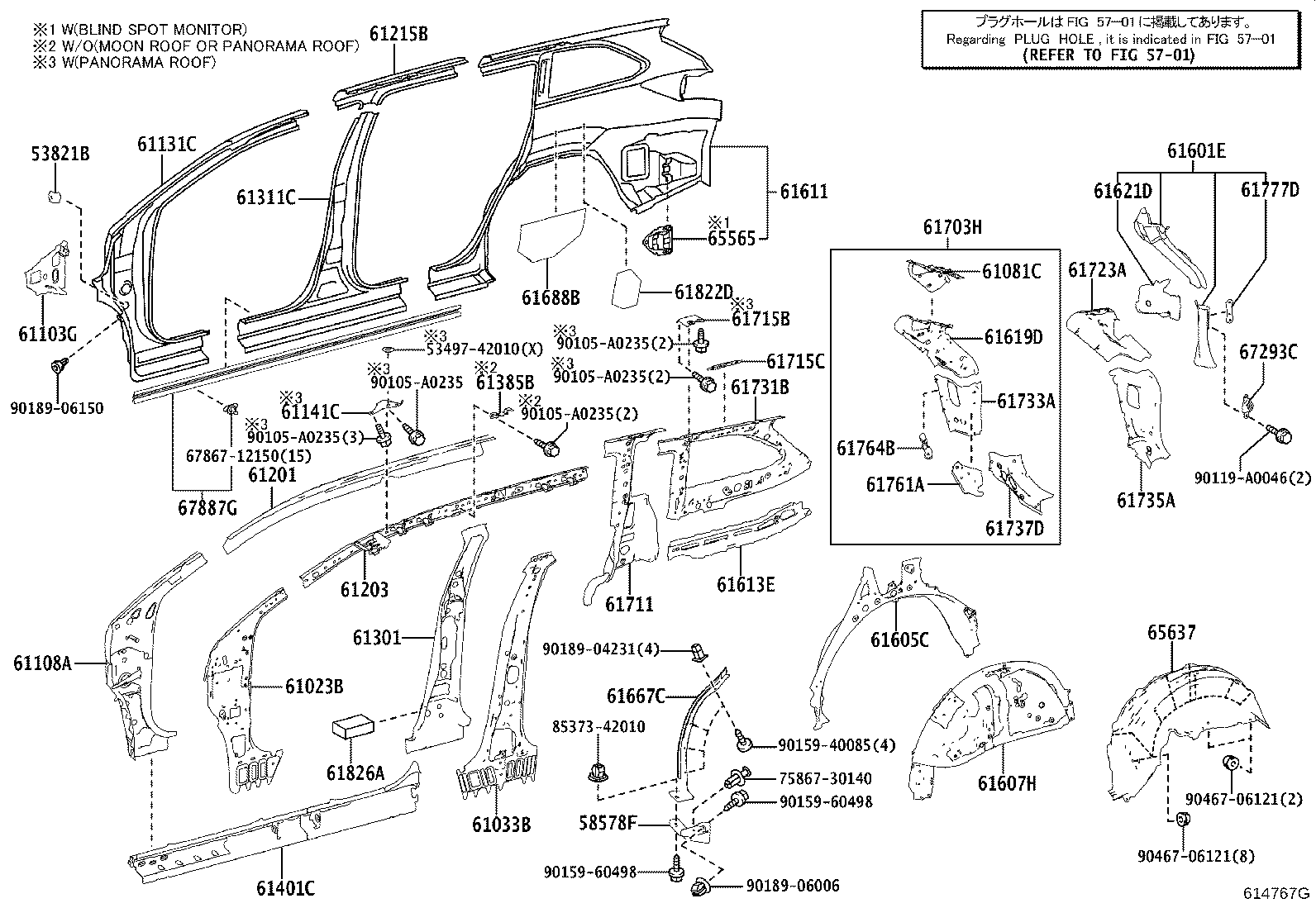

ILLUST NO. 1 OF 2(1312- )
RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53821B - BRACKET, FRONT FENDER, REAR RH | ||||
| 53821-0E040 |
ASU50,GSU5#,GVU58 |
1 | ||
| 58578F - PAD, REAR WHEEL HOUSE, RH | ||||
| 58578-0E030 |
ASU50,GSU5#,GVU58 |
1 | ||
| 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||||
| 61023-0E050 |
ASU50,GSU5#,GVU58 |
1 | ||
| 61033B - PILLAR SUB-ASSY, NO.2 INNER, RH | ||||
| 61033-0E030 |
ASU50,GSU5#,GVU58 |
1 | ||
| 61081C - REINFORCE, ROOF SIDE, INNER RH | ||||
| 61081-0E030 |
ASU50,GSU5#,GVU58 |
1 | ||
| 61103G - GUSSET SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61103-0E040 |
ASU50,GSU5#,GVU58 |
1 | ||
| 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61108-0E904 |
ASU50,GSU5#,GVU58 |
1 | ||
| 61131C - PILLAR, FRONT BODY, OUTER RH | ||||
| 61131-0E060 |
ASU50,GSU5#,GVU58 |
1 | ||
| 61141C - EXTENSION, FRONT PILLAR, UPPER INNER RH | ||||
| 61141-0E030 |
GSU5#,GVU58..G MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 61141-0E030 |
GSU5#,GVU58..G MOON ROOF-WITH(PANORAMA ROOF)&SATELLITE RADIO-WITHOUT |
1 | ||
| 61201 - RAIL SUB-ASSY, ROOF SIDE, RH | ||||
| 61201-0E020 |
ASU50,GSU5#,GVU58 |
1 | ||
| 61203 - RAIL SUB-ASSY, ROOF SIDE, INNER RH | ||||
| 61203-0E040 |
ASU50,GSU5#,GVU58 |
1 | ||
| 61215B - RAIL, ROOF SIDE, OUTER NO.3 RH | ||||
| 61215-0E030 |
ASU50,GSU5#,GVU58 |
1 | ||
| 61301 - PILLAR SUB-ASSY, CENTER BODY, RH | ||||
| 61301-0E903 |
ASU50,GSU5#,GVU58 |
1 | ||
| 61311C - PANEL, REAR BODY FRONT OUTSIDE, RH | ||||
| 61311-0E050 |
ASU50,GSU5#,GVU58 |
1 | ||
| 61385B - EXTENSION, CENTER BODY PILLAR, INNER RH | ||||
| 61385-0E030 |
ASU50,GSU5#,GVU58..N |
1 | ||
| 61401C - PANEL SUB-ASSY, ROCKER, OUTER RH | ||||
| 61401-0E903 |
ASU50,GSU5#,GVU58 |
1 | ||
| 61601E - PANEL SUB-ASSY, QUARTER, OUTER RH | ||||
| 61601-0E030 |
ASU50,GSU5#,GVU58 |
1 | ||
| 61605C - PANEL SUB-ASSY, QUATER, REAR INNER RH | ||||
| 61605-0E010 |
ASU50,GSU5#,GVU58 |
1 | ||
| 61607H - PANEL SUB-ASSY, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61607-0E050 |
ASU50,GSU5#,GVU58 |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61611-0E080 |
ASU50,GSU5#,GVU58..M,N |
1 | ||
| 61611-0E090 |
GSU5#,GVU58..G |
1 | ||
| 61613E - PANEL, QUARTER, INNER RH | ||||
| 61613-0E050 |
ASU50,GSU5#,GVU58 |
1 | ||
| 61619D - REINFORCEMENT, QUARTER PANEL, RH | ||||
| 61619-0E030 |
ASU50,GSU5#,GVU58 |
1 | ||
| 61621D - TROUGH, BACK DOOR OPENING, RH | ||||
| 61621-0E050 |
ASU50,GSU5#,GVU58 |
1 | ||
| 61667C - SEAL, QAURTER PANEL, NO.1 | ||||
| 61667-0E050 |
ASU50,GSU5#,GVU58 |
1 | ||
| 61688B - LINING, QUARTER PANEL REINFORCEMENT, RH | ||||
| 61688-0E020 |
ASU50,GSU5#,GVU58 |
1 | ||
| 61703H - REINFORCEMENT SUB-ASSY, ROOF SIDE, INNER RH | ||||
| 61703-0E030 |
ASU50,GSU5#,GVU58 |
1 | ||
| 61711 - PANEL, ROOF SIDE, OUTER RH | ||||
| 61711-0E903 |
ASU50,GSU5#,GVU58 |
1 | ||
| 61715B - EXTENSION, ROOF SIDE, INNER FRONT RH | ||||
| 61715-0E060 |
GSU5#,GVU58..G MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 61715-0E060 |
GSU5#,GVU58..G MOON ROOF-WITH(PANORAMA ROOF)&SATELLITE RADIO-WITHOUT |
1 | ||
| 61715C - BRACKET, ROOF SIDE, RH | ||||
| 61715-0E050 |
ASU50,GSU5#,GVU58 |
1 | ||
| 61723A - REINFORCEMENT, QUARTER WINDOW OPENING, RH NO.1 | ||||
| 61723-0E050 |
ASU50,GSU5#,GVU58 |
1 | ||
| 61731B - PANEL, ROOF SIDE, INNER RH | ||||
| 61731-0E050 |
ASU50,GSU5#,GVU58 |
1 | ||
| 61733A - PANEL, ROOF SIDE, INNER FRONT RH | ||||
| 61733-0E050 |
ASU50,GSU5#,GVU58 |
1 | ||
| 61735A - PANEL, ROOF SIDE, INNER REAR RH | ||||
| 61735-0E050 |
ASU50,GSU5#,GVU58 |
1 | ||
| 61737D - REINFORCEMENT, ROOF SIDE, INNER RH | ||||
| 61737-0E010 |
ASU50,GSU5#,GVU58 |
1 | ||
| 61761A - REINFORCE, SEAT BELT ANCHOR, NO.1 UPPER RH | ||||
| 61761-0E030 |
ASU50,GSU5#,GVU58 |
1 | ||
| 61764B - REINFORCEMENT, SEAT BELT ANCHOR, NO.2 RH | ||||
| 61764-0E030 |
ASU50,GSU5#,GVU58 |
1 | ||
| 61777D - RETAINER, BACK DOOR SIDE STOPPER, RH | ||||
| 61777-0E010 |
ASU50,GSU5#,GVU58 |
1 | ||
| 61822D - PLATE, NOISE CONTROL, LH | ||||
| 61822-0E020 |
ASU50,GSU5#,GVU58 |
2 | ||
| 61826A - PLATE, NOISE CONTROL, NO.3 | ||||
| 61826-0E060 |
ASU50,GSU5#,GVU58 |
2 | ||
| 65565 - PATCH, SIDE PANEL REAR END, RH | ||||
| 65565-0E020 |
GSU5#,GVU58..G |
1 | ||
| 65637 - LINER, REAR WHEEL HOUSE, RH | ||||
| 65637-0E040 |
ASU50,GSU5#,GVU58 |
1 | ||
| 67293C - CUSHION, BACK DOOR STOPPER | ||||
| 67293-0E020 |
ASU50,GSU5#,GVU58 |
1 | ||
| 67887G - WEATHERSTRIP, ROCKER OUTER, RH | ||||
| 67863-0E030 |
ASU50,GSU5#,GVU58 |
1 | ||
| Common parts | ||||
| 53497-42010 | ||||
| 67867-12150 | ||||
| 75867-30140 | ||||
| 85373-42010 | ||||
| 90105-A0235 | ||||
| 90119-A0046 | ||||
| 90159-40085 | ||||
| 90159-60498 | ||||
| 90189-04231 | ||||
| 90189-06006 | ||||
| 90189-06150 | ||||
| 90467-06121 | ||||
| Linked diagrams | ||||
| 5701 | ||||

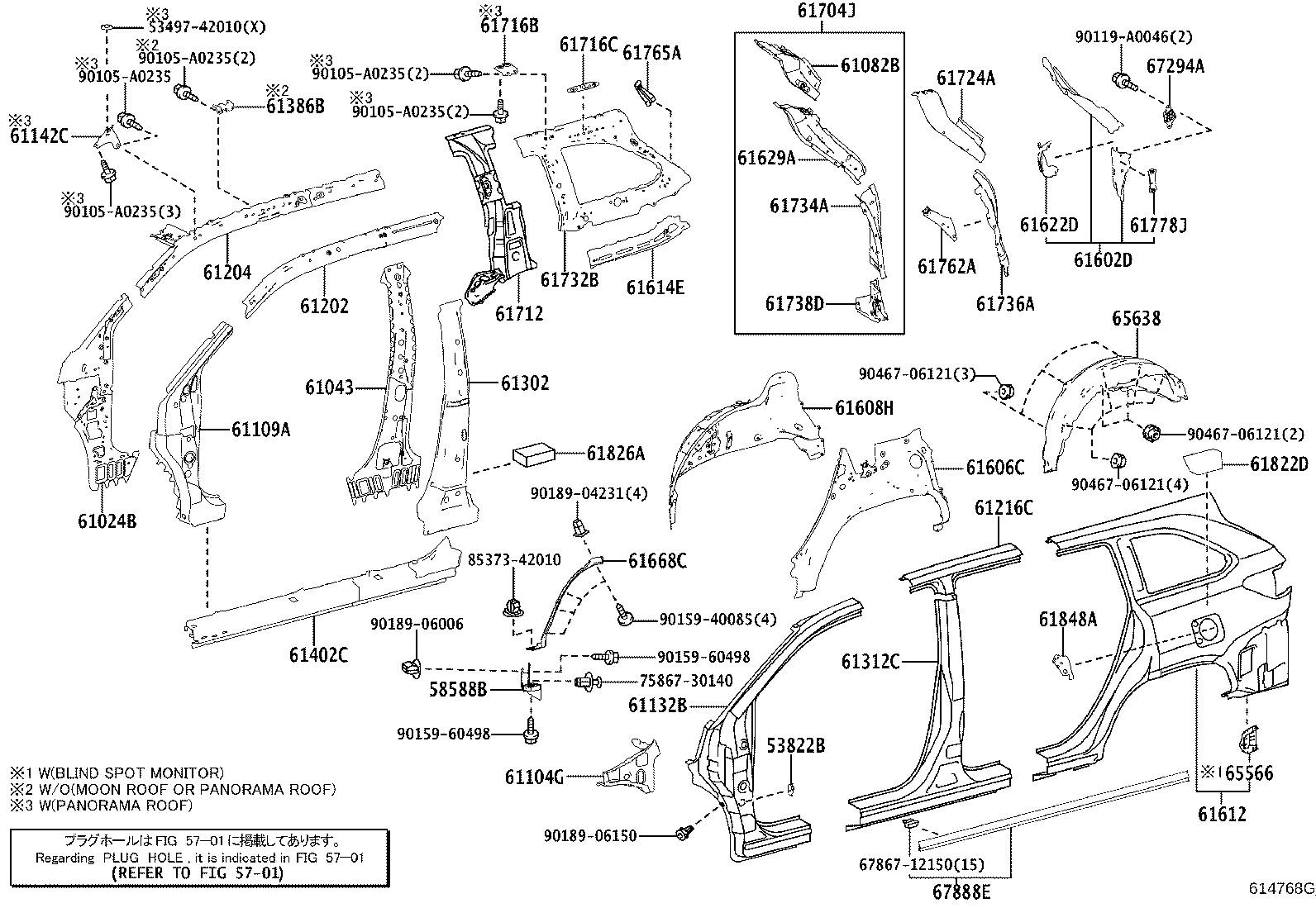

ILLUST NO. 2 OF 2(1312- )
LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53822B - BRACKET, FRONT FENDER, REAR LH | ||||
| 53821-0E040 |
ASU50,GSU5#,GVU58 |
1 | ||
| 58588B - PAD, REAR WHEEL HOUSE, LH | ||||
| 58588-0E030 |
ASU50,GSU5#,GVU58 |
1 | ||
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-0E040 |
ASU50,GSU5#,GVU58 |
1 | ||
| 61024-0E041 |
ASU50,GSU5#,GVU58 |
1 | ||
| 61043 - PILLAR SUB-ASSY, NO.2 INNER, LH | ||||
| 61043-0E030 |
ASU50,GSU5#,GVU58 |
1 | ||
| 61082B - REINFORCE, ROOF SIDE, INNER LH | ||||
| 61082-0E030 |
ASU50,GSU5#,GVU58 |
1 | ||
| 61104G - GUSSET SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61104-0E040 |
ASU50,GSU5#,GVU58 |
1 | ||
| 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61109-0E907 |
ASU50,GSU5#,GVU58 |
1 | ||
| 61109-0E904 |
ASU50,GSU5#,GVU58 |
1 | ||
| 61132B - PILLAR, FRONT BODY, OUTER LH | ||||
| 61132-0E060 |
ASU50,GSU5#,GVU58 |
1 | ||
| 61142C - EXTENSION, FRONT PILLAR, UPPER INNER LH | ||||
| 61142-0E030 |
GSU5#,GVU58..G MOON ROOF-WITH(PANORAMA ROOF)&SATELLITE RADIO-WITHOUT |
1 | ||
| 61142-0E030 |
GSU5#,GVU58..G MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 61202 - RAIL SUB-ASSY, ROOF SIDE, LH | ||||
| 61202-0E041 |
ASU50,GSU5#,GVU58 |
1 | ||
| 61202-0E040 |
ASU50,GSU5#,GVU58 |
1 | ||
| 61204 - RAIL SUB-ASSY, ROOF SIDE, INNER LH | ||||
| 61204-0E040 |
ASU50,GSU5#,GVU58 |
1 | ||
| 61204-0E041 |
ASU50,GSU5#,GVU58 |
1 | ||
| 61216C - RAIL, ROOF SIDE, OUTER NO.3 LH | ||||
| 61216-0E030 |
ASU50,GSU5#,GVU58 |
1 | ||
| 61302 - PILLAR SUB-ASSY, CENTER BODY, LH | ||||
| 61302-0E903 |
ASU50,GSU5#,GVU58 |
1 | ||
| 61312C - PANEL, REAR BODY FRONT OUTSIDE, LH | ||||
| 61312-0E050 |
ASU50,GSU5#,GVU58 |
1 | ||
| 61386B - EXTENSION, CENTER BODY PILLAR, INNER LH | ||||
| 61385-0E030 |
ASU50,GSU5#,GVU58..N |
1 | ||
| 61402C - PANEL SUB-ASSY, ROCKER, OUTER LH | ||||
| 61402-0E906 |
ASU50,GSU5#,GVU58 |
1 | ||
| 61402-0E903 |
ASU50,GSU5#,GVU58 |
1 | ||
| 61602D - PANEL SUB-ASSY, QUARTER, OUTER LH | ||||
| 61602-0E030 |
ASU50,GSU5#,GVU58 |
1 | ||
| 61606C - PANEL SUB-ASSY, QUATER, REAR INNER LH | ||||
| 61606-0E010 |
ASU50,GSU5#,GVU58 |
1 | ||
| 61608H - PANEL SUB-ASSY, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61608-0E050 |
ASU50,GSU5#,GVU58 |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61612-0E080 |
ASU50,GSU5#,GVU58..M,N |
1 | ||
| 61612-0E090 |
GSU5#,GVU58..G |
1 | ||
| 61614E - PANEL, QUARTER, INNER LH | ||||
| 61614-0E050 |
ASU50,GSU5#,GVU58 |
1 | ||
| 61622D - TROUGH, BACK DOOR OPENING, LH | ||||
| 61622-0E050 |
ASU50,GSU5#,GVU58 |
1 | ||
| 61629A - REINFORCEMENT, QUARTER PANEL, LH | ||||
| 61629-0E030 |
ASU50,GSU5#,GVU58 |
1 | ||
| 61668C - SEAL, QUARTER PANEL, NO.2 | ||||
| 61668-0E030 |
ASU50,GSU5#,GVU58 |
1 | ||
| 61704J - REINFORCEMENT SUB-ASSY, ROOF SIDE, INNER LH | ||||
| 61704-0E030 |
ASU50,GSU5#,GVU58 |
1 | ||
| 61712 - PANEL, ROOF SIDE, OUTER LH | ||||
| 61712-0E903 |
ASU50,GSU5#,GVU58 |
1 | ||
| 61716B - EXTENSION, ROOF SIDE, INNER FRONT LH | ||||
| 61716-0E030 |
GSU5#,GVU58..G MOON ROOF-WITH(PANORAMA ROOF)&SATELLITE RADIO-WITHOUT |
1 | ||
| 61716-0E030 |
GSU5#,GVU58..G MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 61716C - BRACKET, ROOF SIDE, LH | ||||
| 61715-0E050 |
ASU50,GSU5#,GVU58 |
1 | ||
| 61724A - REINFORCEMENT, QUARTER WINDOW OPENING, LH NO.1 | ||||
| 61724-0E050 |
ASU50,GSU5#,GVU58 |
1 | ||
| 61732B - PANEL, ROOF SIDE, INNER LH | ||||
| 61732-0E050 |
ASU50,GSU5#,GVU58 |
1 | ||
| 61734A - PANEL, ROOF SIDE, INNER FRONT LH | ||||
| 61734-0E050 |
ASU50,GSU5#,GVU58 |
1 | ||
| 61736A - PANEL, ROOF SIDE, INNER REAR LH | ||||
| 61736-0E050 |
ASU50,GSU5#,GVU58 |
1 | ||
| 61738D - REINFORCEMENT, ROOF SIDE, INNER LH | ||||
| 61738-0E010 |
ASU50,GSU5#,GVU58 |
1 | ||
| 61762A - REINFORCE, SEAT BELT ANCHOR, NO.1 UPPER LH | ||||
| 61762-0E030 |
ASU50,GSU5#,GVU58 |
1 | ||
| 61765A - REINFORCEMENT, SEAT BELT ANCHOR, NO.2 LH | ||||
| 61765-0E030 |
ASU50,GSU5#,GVU58 |
1 | ||
| 61778J - RETAINER, BACK DOOR SIDE STOPPER, LH | ||||
| 61777-0E010 |
ASU50,GSU5#,GVU58 |
1 | ||
| 61822D - PLATE, NOISE CONTROL, LH | ||||
| 61822-0E020 |
ASU50,GSU5#,GVU58 |
2 | ||
| 61826A - PLATE, NOISE CONTROL, NO.3 | ||||
| 61826-0E060 |
ASU50,GSU5#,GVU58 |
2 | ||
| 61848A - RETAINER, QUARTER PANEL, LH | ||||
| 61848-0E040 |
ASU50,GSU5#,GVU58 |
1 | ||
| 65566 - PATCH, SIDE PANEL REAR END, LH | ||||
| 65565-0E020 |
GSU5#,GVU58..G |
1 | ||
| 65638 - LINER, REAR WHEEL HOUSE, LH | ||||
| 65638-0E040 |
ASU50,GSU5#,GVU58 |
1 | ||
| 67294A - BRACKET, BACK DOOR STOPPER, LH | ||||
| 67294-0E010 |
ASU50,GSU5#,GVU58 |
1 | ||
| 67888E - WEATHERSTRIP, ROCKER OUTER, LH | ||||
| 67864-0E030 |
ASU50,GSU5#,GVU58 |
1 | ||
| Common parts | ||||
| 53497-42010 | ||||
| 67867-12150 | ||||
| 75867-30140 | ||||
| 85373-42010 | ||||
| 90105-A0235 | ||||
| 90119-A0046 | ||||
| 90159-40085 | ||||
| 90159-60498 | ||||
| 90189-04231 | ||||
| 90189-06006 | ||||
| 90189-06150 | ||||
| 90467-06121 | ||||
| Linked diagrams | ||||
| 5701 | ||||
