GSU50L-ARTNKA (2013)

Toyota Highlander (Nap)

Production Dec 2013 - Nov 2016
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

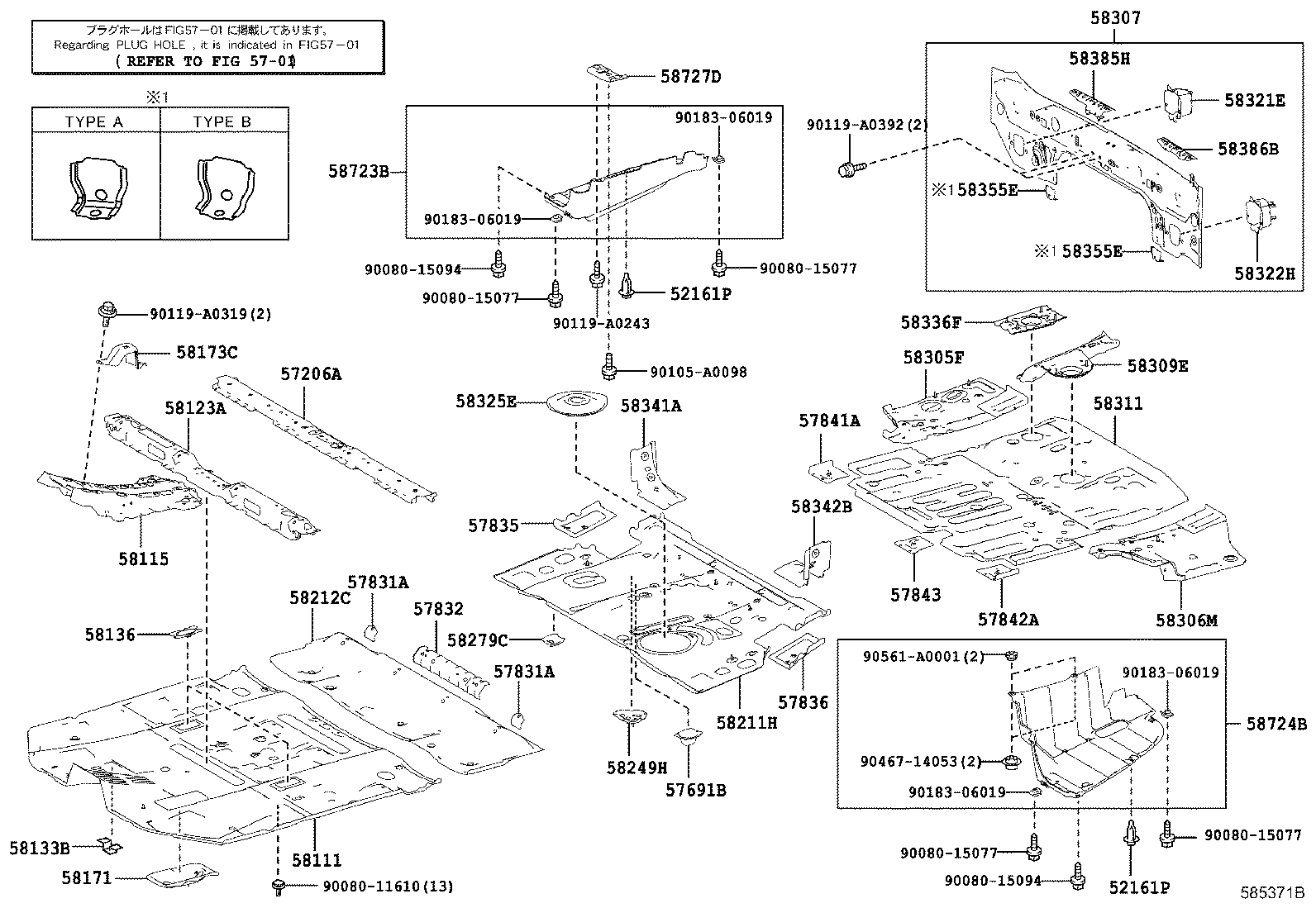

ILLUST NO. 1 OF 2(1312- )ASU50,GSU5#

Click highlighted areas on diagram

diagram 52161P 52161P 5701 57206A 57691B 57831A 57831A 57832 57835 57836 57841A 57842A 57843 58111 58115 58123A 58133B 58136 58171 58173C 58211H 58212C 58249H 58279C 58305F 58306M 58307 58309E 58311 58321E 58322H 58325E 58336F 58341A 58342B 58355E 58355E 58385H 58386B 58723B 58724B 58727D 9008011610 9008015077 9008015077 9008015077 9008015077 9008015094 9008015094 90105A0098 90119A0243 90119A0319 90119A0392 9018306019 9018306019 9018306019 9018306019 9046714053 90561A0001
Part # Description Qty Price
52161P - PIECE, REAR BUMPER
52161-02020

ASU50,GSU5#,GVU58

 3
52161P - PIECE, REAR BUMPER
52161-02020

ASU50,GSU5#,GVU58

 3
57206A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, NO.2
57206-0E040

ASU50,GSU5#,GVU58

 1
57691B - BRACKET, FUEL TANK MOUNTING, FRONT CENTER
57691-0E020

ASU50,GSU5#

 1
57831A - REINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.1
57831-0E010

ASU50,GSU5#,GVU58

 2
57831A - REINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.1
57831-0E010

ASU50,GSU5#,GVU58

 2
57832 - REINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.2
57832-0E020

ASU50,GSU5#

 1
57835 - REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.1
57835-0E020

ASU50,GSU5#,GVU58

 1
57836 - REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.2
57836-0E020

ASU50,GSU5#,GVU58

 1
57841A - REINFORCEMENT, REAR NO.2 SEAT LEG, FRONT RH
57841-0E010

ASU50,GSU5#,GVU58

 1
57842A - REINFORCEMENT, REAR NO.2 SEAT LEG, FRONT LH
57842-0E010

ASU50,GSU5#,GVU58

 1
57843 - REINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.5
57843-0E010

ASU50,GSU5#,GVU58

 1
58111 - PAN, FRONT FLOOR
58111-0E915

ASU50,GSU5#

 1
58111-0E917

ASU50,GSU5#

 1
58111-0E911

ASU50,GSU5#

 1
58115 - REINFORCEMENT, FRONT FLOOR PANEL, FRONT
58115-0E040

ASU50,GSU5#,GVU58

 1
58123A - SUPPORT, SHIFT & SELECT LEVER
58013-0E050

ASU50,GSU5#,GVU58

 1
58133B - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.3
58133-0E060

ASU50,GSU5#,GVU58

 1
58136 - COVER, FRONT FLOOR HOLE
58136-0E030

ASU50,GSU5#,GVU58

 2
58171 - REINFORCEMENT, PARKING BRAKE BASE
58171-0E030

ASU50,GSU5#,GVU58

 1
58173C - BRACKET, WIRING HARNESS PROTECTOR
58173-0E030

ASU50,GSU5#,GVU58

 1
58211H - PAN, CENTER FLOOR
58211-0E906

ASU50,GSU5#

 1
58212C - PAN, CENTER FLOOR, FRONT
58212-0E050

ASU50,GSU5#

 1
58249H - BRACKET, CENTER FLOOR BOARD SUPPORT
58249-0E050

ASU50,GSU5#

 1
58279C - PROTECTOR, FUEL TANK, UPPER NO.2
58279-0E040

ASU50,GSU5#

 1
58305F - PANEL SUB-ASSY, REAR FLOOR SIDE, RH
58305-0E051

ASU50,GSU5#,GVU58

 1
58305-0E050

ASU50,GSU5#,GVU58

 1
58306M - PANEL SUB-ASSY, REAR FLOOR SIDE
58306-0E050

ASU50,GSU5#

 1
58306-0E051

ASU50,GSU5#

 1
58307 - PANEL SUB-ASSY, BODY LOWER BACK
58307-0E050

ASU50,GSU5#,GVU58

 1
58309E - PLATE SUB-ASSY, REAR FLOOR
58309-0E030

ASU50,GSU5#,GVU58

 1
58311 - PAN, REAR FLOOR
58311-0E050

ASU50,GSU5#,GVU58

 1
58321E - PLATE, REAR BUMPER ARM SUPPORT, RH
58321-0E030

ASU50,GSU5#,GVU58

 1
58322H - PLATE, REAR BUMPER ARM SUPPORT, LH
58322-0E030

ASU50,GSU5#,GVU58

 1
58325E - COVER, REAR FLOOR SERVICE HOLE
58325-0E030

ASU50,GSU5#

 1
58336F - REINFORCEMENT, REAR FLOOR PAN, RH
58336-0E060

ASU50,GSU5#,GVU58

 1
58341A - BRACKET, REAR ABSORBER MOUNTING, RH
58341-0E010

ASU50,GSU5#,GVU58

 1
58342B - BRACKET, REAR ABSORBER MOUNTING, LH
58342-0E010

ASU50,GSU5#,GVU58

 1
58355E - BRACKET, REAR BUMPER ARM, RH
58355-0E030

ASU50,GSU5#,GVU58

TYPE B

 2
58355-0E020

ASU50,GSU5#,GVU58

TYPE A

 2
58355E - BRACKET, REAR BUMPER ARM, RH
58355-0E030

ASU50,GSU5#,GVU58

TYPE B

 2
58355-0E020

ASU50,GSU5#,GVU58

TYPE A

 2
58385H - BRACKET, REAR BUMPER COVER, NO.1
58385-0E040

ASU50,GSU5#,GVU58

 1
58386B - BRACKET, REAR BUMPER COVER, NO.2
58386-0E040

ASU50,GSU5#,GVU58

 1
58723B - PROTECTOR, LUGGAGE COMPARTMENT SIDE COVER, NO.1
58723-0E050

ASU50,GSU5#,GVU58

 1
58724B - PROTECTOR, LUGGAGE COMPARTMENT SIDE COVER, NO.2
58724-0E060

ASU50,GSU5#,GVU58

 1
58727D - PLATE, ENGINE SERVICE COVER, NO.1
58727-0E010

ASU50,GSU5#,GVU58

 1
Common parts
90080-11610
90080-15077
90080-15094
90105-A0098
90119-A0243
90119-A0319
90119-A0392
90183-06019
90467-14053
90561-A0001
Linked diagrams
5701

ILLUST NO. 2 OF 2(1312-1811)ASU50,GSU5#

Click highlighted areas on diagram

FLOOR UNDER COVER

diagram 514550E020 514550E020 514550E020 57303A 57304A 58165B 58166 58167A 58169H 58399E 58399E 58399E 58399F 58399F 58399F 58725A 58726D 58730 58737B 9008010343 9008010343 9008010343 9008015094 9008015094 9008015094 9008017186 90105A0069 90105A0069 90105A0069 90105A0069 90182A0022 91674L1028 91674L1028 91674L1028 91674L1028
Part # Description Qty Price
57303A - OUTRIGGER SUB-ASSY, NO.2 RH
57303-0E010

ASU50,GSU5#,GVU58

 1
57304A - OUTRIGGER SUB-ASSY, NO.2 LH
57304-0E010

ASU50,GSU5#,GVU58

 1
58165B - COVER, FRONT FLOOR, RH
58165-0E040

ASU50,GSU5#,GVU58

 1
58166 - COVER, FRONT FLOOR, LH
58166-0E050

ASU50,GSU5#,GVU58

 1
58167A - COVER, FRONT FLOOR, CENTER
58167-0E040

ASU50,GSU5#

 1
58167-0E041

ASU50,GSU5#

 1
58169H - PATCH, FRONT FLOOR, REAR
58169-0E010

ASU50,GSU5#,GVU58

 1
58399E - CLIP, NO.1(FOR FLOOR UNDER COVER)
90467-A0029A0

ASU50,GSU5#

SUPER WHITE 2

 9
58399E - CLIP, NO.1(FOR FLOOR UNDER COVER)
90467-A0029A0

ASU50,GSU5#

SUPER WHITE 2

 9
58399E - CLIP, NO.1(FOR FLOOR UNDER COVER)
90467-A0029A0

ASU50,GSU5#

SUPER WHITE 2

 9
58399F - CLIP, NO.2(FOR FLOOR UNDER COVER)
90467-A0030C0

ASU50,GSU5#

BLACK

 9
58399F - CLIP, NO.2(FOR FLOOR UNDER COVER)
90467-A0030C0

ASU50,GSU5#

BLACK

 9
58399F - CLIP, NO.2(FOR FLOOR UNDER COVER)
90467-A0030C0

ASU50,GSU5#

BLACK

 9
58725A - STAY, ENGINE SERVICE COVER
58720-0E030

ASU50,GSU5#,GVU58

 1
58726D - STAY, ENGINE SERVICE COVER CATCH, REAR LH
58726-0E030

ASU50,GSU5#,GVU58

 1
58730 - COVER ASSY, ENGINE SERVICE, REAR
58730-0E030

ASU50,GSU5#,GVU58

 1
58738-0E010

ASU50,GSU5#,GVU58

 1
58737B - BRACKET, ENGINE SERVICE COVER
58737-0E030

ASU50,GSU5#,GVU58

 1
Common parts
51455-0E020
90080-10343
90080-15094
90080-17186
90105-A0069
90182-A0022
91674-L1028
