GSU50L-ARTNKA (2013)
Toyota Highlander (Nap)

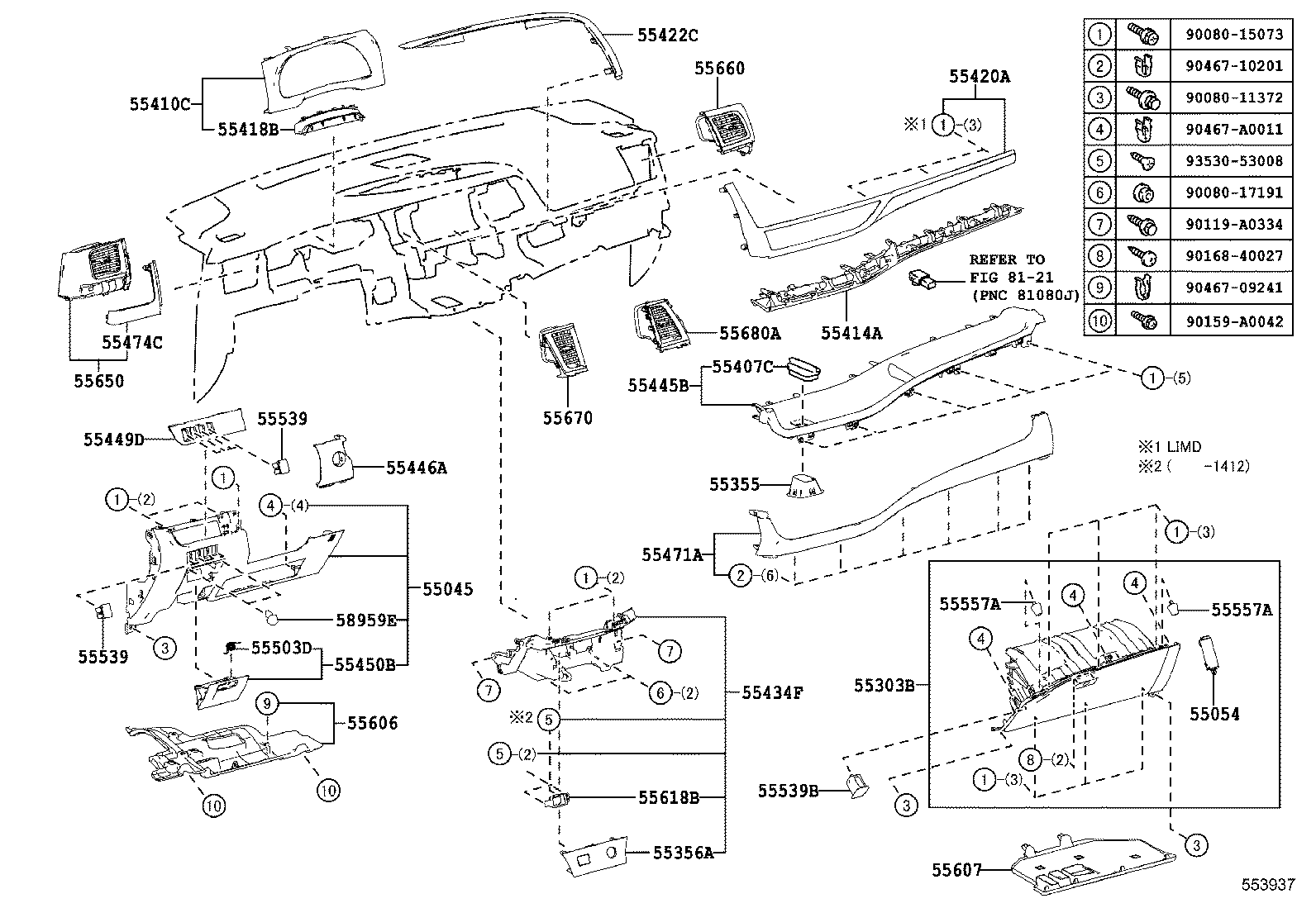

ILLUST NO. 1 OF 2(1312- )ASU50,GSU5#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-0E060 |
ASU50,GSU5#,GVU58 |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-0E060 |
ASU50,GSU5#,GVU58 |
1 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 52161-02020 |
ASU50,GSU5#,GVU58 |
2 | ||
| 52161-16010 |
ASU50,GSU5#,GVU58 |
2 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 52161-02020 |
ASU50,GSU5#,GVU58 |
2 | ||
| 52161-16010 |
ASU50,GSU5#,GVU58 |
2 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-0E060 |
ASU50,GSU5#,GVU58 |
2 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-0E060 |
ASU50,GSU5#,GVU58 |
2 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-0E060 |
ASU50,GSU5#,GVU58 |
1 | ||
| 55345A - CLIP, INSTRUMENT PANEL, NO.1 | ||||
| 90467-13082A0 |
ASU50,GSU5#,GVU58 MELLOW WHITE |
4 | ||
| 90467-13082A0 |
GSU5#,GVU58..G AUDIO-6.1INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM),MELLOW WHITE |
4 | ||
| 90467-13082A0 |
GSU5#,GVU58..G AUDIO-8INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM),MELLOW WHITE |
4 | ||
| 55345A - CLIP, INSTRUMENT PANEL, NO.1 | ||||
| 90467-13082A0 |
ASU50,GSU5#,GVU58 MELLOW WHITE |
4 | ||
| 90467-13082A0 |
GSU5#,GVU58..G AUDIO-6.1INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM),MELLOW WHITE |
4 | ||
| 90467-13082A0 |
GSU5#,GVU58..G AUDIO-8INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM),MELLOW WHITE |
4 | ||
| 55345A - CLIP, INSTRUMENT PANEL, NO.1 | ||||
| 90467-13082A0 |
ASU50,GSU5#,GVU58 MELLOW WHITE |
4 | ||
| 90467-13082A0 |
GSU5#,GVU58..G AUDIO-6.1INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM),MELLOW WHITE |
4 | ||
| 90467-13082A0 |
GSU5#,GVU58..G AUDIO-8INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM),MELLOW WHITE |
4 | ||
| 55349A - CUSHION, INSTRUMENT PANEL | ||||
| 55349-0E020 |
ASU50,GSU5#,GVU58 |
1 | ||
| 55394B - BOLT, INSTRUMENT PANEL | ||||
| 55394-08060 |
ASU50,GSU5#,GVU58 |
1 | ||
| 55394C - BOLT, INSTRUMENT PANEL | ||||
| 55394-08070 |
ASU50,GSU5#,GVU58 |
1 | ||
| 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55401-0E040C0 |
ASU50,GSU5#,GVU58..M,N BLACK,TRIM0#,1#,2# |
1 | ||
| 55401-0E040C0 |
GSU5#,GVU58..G AUDIO-6.1INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM),BLACK,TRIM0#,1#,2# |
1 | ||
| 55401-0E040C0 |
GSU5#,GVU58..G AUDIO-8INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM),BLACK,TRIM0#,1#,2# |
1 | ||
| 55401-0E050C0 |
GSU5#,GVU58..G BLACK,TRIM0#,1#,2# |
1 | ||
| 55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| 55472-0E050C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM0#,1#,2# |
1 | ||
| 55409F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55473-0E050C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM0#,1#,2# |
1 | ||
| 55416A - RETAINER, METER HOOD, NO.1 | ||||
| 55416-0E030 |
ASU50,GSU5#,GVU58 |
2 | ||
| 55435A - PANEL, INSTRUMENT PANEL FINISH, END RH | ||||
| 55435-0E050B0 |
ASU50,GSU5#,GVU58 GRAY,TRIM1# |
1 | ||
| 55435-0E050A0 |
ASU50,GSU5#,GVU58 FLAXEN,TRIM0# |
1 | ||
| 55435-0E050C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM2# |
1 | ||
| 55435A - PANEL, INSTRUMENT PANEL FINISH, END RH | ||||
| 55435-0E050B0 |
ASU50,GSU5#,GVU58 GRAY,TRIM1# |
1 | ||
| 55435-0E050A0 |
ASU50,GSU5#,GVU58 FLAXEN,TRIM0# |
1 | ||
| 55435-0E050C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM2# |
1 | ||
| 55436A - PANEL, INSTRUMENT PANEL FINISH, END LH | ||||
| 55436-0E070A0 |
ASU50,GSU5#,GVU58 FLAXEN,TRIM0# |
1 | ||
| 55436-0E070C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM2# |
1 | ||
| 55436-0E070B0 |
ASU50,GSU5#,GVU58 GRAY,TRIM1# |
1 | ||
| 55458A - CAP, INSTRUMENT PANEL SAFETY PAD | ||||
| 55458-22110 |
ASU50,GSU5#,GVU58 |
4 | ||
| 55458A - CAP, INSTRUMENT PANEL SAFETY PAD | ||||
| 55458-22110 |
ASU50,GSU5#,GVU58 |
4 | ||
| 55510F - COVER ASSY, SPEAKER OPENING, NO.1 | ||||
| 55475-0E050C0 |
GSU5#,GVU58..G AUDIO-6.1INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM),BLACK,TRIM0#,1#,2# |
1 | ||
| 55475-0E050C0 |
GSU5#,GVU58..G BLACK,TRIM0#,1#,2# |
1 | ||
| 55475-0E050C0 |
GSU5#,GVU58..G AUDIO-8INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM),BLACK,TRIM0#,1#,2# |
1 | ||
| 55961B - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-0E030C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM0#,1#,2# |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55962-0E030C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM0#,1#,2# |
1 | ||
| 55981 - GARNISH, DEFROSTER NOZZLE, NO.1 | ||||
| 55981-0E040C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM0#,1#,2# |
1 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-0E050A0 |
ASU50,GSU5#,GVU58 FLAXEN,TRIM0# |
1 | ||
| 73900-0E050B0 |
ASU50,GSU5#,GVU58 GRAY,TRIM1# |
1 | ||
| 73900-0E050C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM2# |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-0E060 |
ASU50,GSU5#,GVU58 |
1 | ||
| Common parts | ||||
| 55315-53040 | ||||
| 90080-11353 | ||||
| 90080-11658 | ||||
| 90080-15073 | ||||
| 90080-17191 | ||||
| 90080-18062 | ||||
| 90105-A0164 | ||||
| 90119-A0001 | ||||
| 90119-A0011 | ||||
| 90119-A0105 | ||||
| 90119-A0305 | ||||
| 90119-A0306 | ||||
| 90178-A0024 | ||||
| 90183-A0002 | ||||
| 90467-13082A0 | ||||
| 91631-60825 | ||||
| 91673-80816 | ||||
| Linked diagrams | ||||
| 8202 | ||||

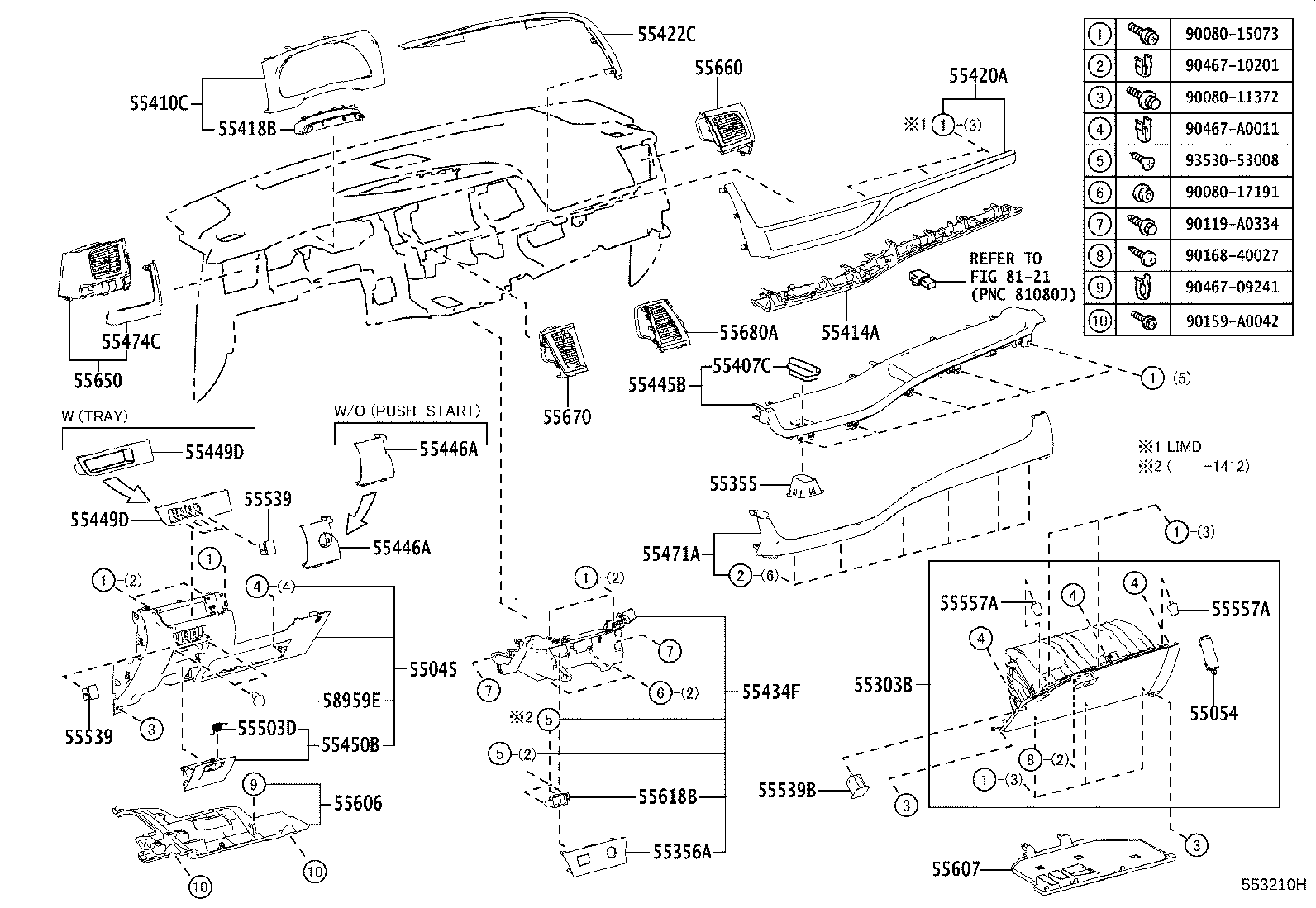

ILLUST NO. 2 OF 2(1312-1611)M,N
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55045 - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55045-0E060C1 |
ASU50,GSU5#,GVU58 BLACK,TRIM2# |
1 | ||
| 55045-0E060A1 |
GSU5#..N LE PACKAGE,FLAXEN,TRIM0# |
1 | ||
| 55045-0E060B1 |
ASU50,GSU5#,GVU58 GRAY,TRIM1# |
1 | ||
| 55045-0E060A1 |
GVU58;GSU5#..G,M FLAXEN,TRIM0# |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-75020 |
ASU50,GSU5#,GVU58 |
1 | ||
| 55054-47010 |
ASU50,GSU5#,GVU58 |
1 | ||
| 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55303-0E051B0 |
ASU50,GSU5#,GVU58 GRAY,TRIM1# |
1 | ||
| 55303-0E050A0 |
ASU50,GSU5#,GVU58 FLAXEN,TRIM0# |
1 | ||
| 55303-0E050B0 |
ASU50,GSU5#,GVU58 GRAY,TRIM1# |
1 | ||
| 55303-0E050C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM2# |
1 | ||
| 55303-0E051C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM2# |
1 | ||
| 55303-0E051A0 |
GSU5#,GVU58 FLAXEN,TRIM0# |
1 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-0E030B0 |
ASU50,GSU5#,GVU58 GRAY,TRIM1# |
1 | ||
| 55355-0E030A0 |
ASU50,GSU5#,GVU58 FLAXEN,TRIM0# |
1 | ||
| 55355-0E030C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM2# |
1 | ||
| 55356A - PLATE, INSTRUMENT PANEL, LOWER | ||||
| 55356-0E020C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM0#,1#,2# |
1 | ||
| 55407C - COVER SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55407-0E010J0 |
ASU50,GSU5#,GVU58 DARK NAVY,TRIM1# |
1 | ||
| 55407-0E010E0 |
GSU5#,GVU58 DARK CLOVE,TRIM0#,2# |
1 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-0E030 |
ASU50,GSU5#,GVU58 |
1 | ||
| 55414A - PANEL, INSTRUMENT CLUSTER FINISH, END | ||||
| 55414-0E050 |
GSU5#,GVU58..G |
1 | ||
| 55414-0E100 |
ASU50,GSU5#,GVU58..M,N |
1 | ||
| 55418B - SPACER,METER HOOD | ||||
| 55418-0E030 |
ASU50,GSU5#,GVU58 |
1 | ||
| 55420A - PANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55420-0E160 |
ASU50,GSU5#,GVU58..M,N |
1 | ||
| 55420-0E170 |
GSU5#,GVU58..G |
1 | ||
| 55422C - PANEL, INSTRUMENT CLUSTER FINISH, CENTER UPPER | ||||
| 55422-0E020E0 |
GSU5#,GVU58 DARK CLOVE,TRIM0#,2# |
1 | ||
| 55422-0E020J0 |
ASU50,GSU5#,GVU58 DARK NAVY,TRIM1# |
1 | ||
| 55434F - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 55434-0E020B0 |
ASU50,GSU5#,GVU58 GRAY,TRIM1# |
1 | ||
| 55434-0E020A0 |
ASU50,GSU5#,GVU58 FLAXEN,TRIM0# |
1 | ||
| 55434-0E020C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM2# |
1 | ||
| 55445B - PLATE, INSTRUMENT PANEL FINISH | ||||
| 55445-0E020E0 |
GSU5#,GVU58 DARK CLOVE,TRIM0#,2# |
1 | ||
| 55445-0E020J0 |
ASU50,GSU5#,GVU58 DARK NAVY,TRIM1# |
1 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-0E040C0 |
GVU58;GSU5#..G,M BLACK,TRIM2# |
1 | ||
| 55446-0E040A0 |
GVU58;GSU5#..G,M FLAXEN,TRIM0# |
1 | ||
| 55446-0E040B0 |
GVU58;GSU5#..G,M GRAY,TRIM1# |
1 | ||
| 55446-0E030A0 |
ASU50,GSU5#..N FLAXEN,TRIM0# |
1 | ||
| 55446-0E030B0 |
ASU50,GSU5#..N GRAY,TRIM1# |
1 | ||
| 55446-0E030C0 |
ASU50,GSU5#..N BLACK,TRIM2# |
1 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-0E040C0 |
GVU58;GSU5#..G,M BLACK,TRIM2# |
1 | ||
| 55446-0E040A0 |
GVU58;GSU5#..G,M FLAXEN,TRIM0# |
1 | ||
| 55446-0E040B0 |
GVU58;GSU5#..G,M GRAY,TRIM1# |
1 | ||
| 55446-0E030A0 |
ASU50,GSU5#..N FLAXEN,TRIM0# |
1 | ||
| 55446-0E030B0 |
ASU50,GSU5#..N GRAY,TRIM1# |
1 | ||
| 55446-0E030C0 |
ASU50,GSU5#..N BLACK,TRIM2# |
1 | ||
| 55449D - BASE, SWITCH | ||||
| 55449-0E120C0 |
GVU58;GSU5#..G,M BLACK,TRIM0#,1#,2# |
1 | ||
| 55449-0E120C0 |
GSU5#..N LE PACKAGE,BLACK,TRIM0#,1#,2# |
1 | ||
| 55449-0E110C0 |
ASU50,GSU5#..N BLACK,TRIM0#,1#,2# |
1 | ||
| 55449D - BASE, SWITCH | ||||
| 55449-0E120C0 |
GVU58;GSU5#..G,M BLACK,TRIM0#,1#,2# |
1 | ||
| 55449-0E120C0 |
GSU5#..N LE PACKAGE,BLACK,TRIM0#,1#,2# |
1 | ||
| 55449-0E110C0 |
ASU50,GSU5#..N BLACK,TRIM0#,1#,2# |
1 | ||
| 55450B - BOX ASSY, COIN | ||||
| 55450-0E030A0 |
GVU58;GSU5#..G,M FLAXEN,TRIM0# |
1 | ||
| 55450-0E030B0 |
ASU50,GSU5#,GVU58 GRAY,TRIM1# |
1 | ||
| 55450-0E030A0 |
GSU5#..N LE PACKAGE,FLAXEN,TRIM0# |
1 | ||
| 55450-0E030C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM2# |
1 | ||
| 55471A - ORNAMENT, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55471-0E020A0 |
ASU50,GSU5#,GVU58 FLAXEN,TRIM0# |
1 | ||
| 55471-0E020C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM2# |
1 | ||
| 55471-0E020B0 |
ASU50,GSU5#,GVU58 GRAY,TRIM1# |
1 | ||
| 55474C - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.1 | ||||
| 55474-0E050 |
ASU50,GSU5#,GVU58 |
1 | ||
| 55503D - SPRING(FOR GLOVE COMPARTMENT) | ||||
| 55518-0E020 |
ASU50,GSU5#,GVU58 |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-0E070 |
GSU5#,GVU58..G LANE KEEPING SYSTEM-WITH |
1 | ||
| 55539-0E070 |
ASU50,GSU5#,GVU58 |
1 | ||
| 55539-0E070 |
GSU5#,GVU58..G HEADLAMP-HALOGEN,WITH(*AHB)&LANE KEEPING SYSTEM-WITH |
1 | ||
| 55539-0E070 |
GSU5#,GVU58..G SEAT HEATER-WITH(*DRP & REAR NO.1 SEAT=CAPTAIN TYPE) |
1 | ||
| 55539-0E070 |
GSU5#,GVU58..G HEADLAMP-HALOGEN(SMOKE),WITH(*AHB)&LANE KEEPING SYSTEM-WITH |
1 | ||
| 55539-0E070 |
ASU50,GSU5#,GVU58..N WINDSHIELD DEICER-WITH(WIPER DEICER) |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-0E070 |
GSU5#,GVU58..G LANE KEEPING SYSTEM-WITH |
1 | ||
| 55539-0E070 |
ASU50,GSU5#,GVU58 |
1 | ||
| 55539-0E070 |
GSU5#,GVU58..G HEADLAMP-HALOGEN,WITH(*AHB)&LANE KEEPING SYSTEM-WITH |
1 | ||
| 55539-0E070 |
GSU5#,GVU58..G SEAT HEATER-WITH(*DRP & REAR NO.1 SEAT=CAPTAIN TYPE) |
1 | ||
| 55539-0E070 |
GSU5#,GVU58..G HEADLAMP-HALOGEN(SMOKE),WITH(*AHB)&LANE KEEPING SYSTEM-WITH |
1 | ||
| 55539-0E070 |
ASU50,GSU5#,GVU58..N WINDSHIELD DEICER-WITH(WIPER DEICER) |
1 | ||
| 55539B - COVER, SPARE SWITCH HOLE, NO.2 | ||||
| 55539-0E010 |
GSU5#..N LE PACKAGE |
1 | ||
| 55539-0E010 |
ASU50,GSU5#..N |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-60050 |
ASU50,GSU5#,GVU58 |
2 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-60050 |
ASU50,GSU5#,GVU58 |
2 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-0E020 |
ASU50,GSU5#,GVU58 |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-0E070 |
ASU50,GSU5#,GVU58 |
1 | ||
| 55618B - BASE, SWITCH HOLE, NO.3 | ||||
| 55618-0E140C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM0#,1#,2# |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-0E050C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM0#,1#,2# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-0E050C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM0#,1#,2# |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-0E070 |
ASU50,GSU5#,GVU58 |
1 | ||
| 55680A - REGISTER ASSY, INSTRUMENT PANEL, NO.4 | ||||
| 55680-0E040 |
ASU50,GSU5#,GVU58 |
1 | ||
| 58959E - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-60060 |
ASU50,GSU5#,GVU58 |
2 | ||
| Common parts | ||||
| 90080-11372 | ||||
| 90080-15073 | ||||
| 90080-17191 | ||||
| 90119-A0334 | ||||
| 90159-A0042 | ||||
| 90168-40027 | ||||
| 90467-09241 | ||||
| 90467-10201 | ||||
| 90467-A0011 | ||||
| 93530-53008 | ||||
| Linked diagrams | ||||
| 8121 | ||||
ILLUST NO. 2 OF 2(1312-1611)G
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55045 - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55045-0E060C1 |
ASU50,GSU5#,GVU58 BLACK,TRIM2# |
1 | ||
| 55045-0E060A1 |
GSU5#..N LE PACKAGE,FLAXEN,TRIM0# |
1 | ||
| 55045-0E060B1 |
ASU50,GSU5#,GVU58 GRAY,TRIM1# |
1 | ||
| 55045-0E060A1 |
GVU58;GSU5#..G,M FLAXEN,TRIM0# |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-75020 |
ASU50,GSU5#,GVU58 |
1 | ||
| 55054-47010 |
ASU50,GSU5#,GVU58 |
1 | ||
| 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55303-0E051B0 |
ASU50,GSU5#,GVU58 GRAY,TRIM1# |
1 | ||
| 55303-0E050A0 |
ASU50,GSU5#,GVU58 FLAXEN,TRIM0# |
1 | ||
| 55303-0E050B0 |
ASU50,GSU5#,GVU58 GRAY,TRIM1# |
1 | ||
| 55303-0E050C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM2# |
1 | ||
| 55303-0E051C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM2# |
1 | ||
| 55303-0E051A0 |
GSU5#,GVU58 FLAXEN,TRIM0# |
1 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-0E030B0 |
ASU50,GSU5#,GVU58 GRAY,TRIM1# |
1 | ||
| 55355-0E030A0 |
ASU50,GSU5#,GVU58 FLAXEN,TRIM0# |
1 | ||
| 55355-0E030C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM2# |
1 | ||
| 55356A - PLATE, INSTRUMENT PANEL, LOWER | ||||
| 55356-0E020C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM0#,1#,2# |
1 | ||
| 55407C - COVER SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55407-0E010J0 |
ASU50,GSU5#,GVU58 DARK NAVY,TRIM1# |
1 | ||
| 55407-0E010E0 |
GSU5#,GVU58 DARK CLOVE,TRIM0#,2# |
1 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-0E030 |
ASU50,GSU5#,GVU58 |
1 | ||
| 55414A - PANEL, INSTRUMENT CLUSTER FINISH, END | ||||
| 55414-0E050 |
GSU5#,GVU58..G |
1 | ||
| 55414-0E100 |
ASU50,GSU5#,GVU58..M,N |
1 | ||
| 55418B - SPACER,METER HOOD | ||||
| 55418-0E030 |
ASU50,GSU5#,GVU58 |
1 | ||
| 55420A - PANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55420-0E160 |
ASU50,GSU5#,GVU58..M,N |
1 | ||
| 55420-0E170 |
GSU5#,GVU58..G |
1 | ||
| 55422C - PANEL, INSTRUMENT CLUSTER FINISH, CENTER UPPER | ||||
| 55422-0E020E0 |
GSU5#,GVU58 DARK CLOVE,TRIM0#,2# |
1 | ||
| 55422-0E020J0 |
ASU50,GSU5#,GVU58 DARK NAVY,TRIM1# |
1 | ||
| 55434F - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 55434-0E020B0 |
ASU50,GSU5#,GVU58 GRAY,TRIM1# |
1 | ||
| 55434-0E020A0 |
ASU50,GSU5#,GVU58 FLAXEN,TRIM0# |
1 | ||
| 55434-0E020C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM2# |
1 | ||
| 55445B - PLATE, INSTRUMENT PANEL FINISH | ||||
| 55445-0E020E0 |
GSU5#,GVU58 DARK CLOVE,TRIM0#,2# |
1 | ||
| 55445-0E020J0 |
ASU50,GSU5#,GVU58 DARK NAVY,TRIM1# |
1 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-0E040C0 |
GVU58;GSU5#..G,M BLACK,TRIM2# |
1 | ||
| 55446-0E040A0 |
GVU58;GSU5#..G,M FLAXEN,TRIM0# |
1 | ||
| 55446-0E040B0 |
GVU58;GSU5#..G,M GRAY,TRIM1# |
1 | ||
| 55446-0E030A0 |
ASU50,GSU5#..N FLAXEN,TRIM0# |
1 | ||
| 55446-0E030B0 |
ASU50,GSU5#..N GRAY,TRIM1# |
1 | ||
| 55446-0E030C0 |
ASU50,GSU5#..N BLACK,TRIM2# |
1 | ||
| 55449D - BASE, SWITCH | ||||
| 55449-0E120C0 |
GVU58;GSU5#..G,M BLACK,TRIM0#,1#,2# |
1 | ||
| 55449-0E120C0 |
GSU5#..N LE PACKAGE,BLACK,TRIM0#,1#,2# |
1 | ||
| 55449-0E110C0 |
ASU50,GSU5#..N BLACK,TRIM0#,1#,2# |
1 | ||
| 55450B - BOX ASSY, COIN | ||||
| 55450-0E030A0 |
GVU58;GSU5#..G,M FLAXEN,TRIM0# |
1 | ||
| 55450-0E030B0 |
ASU50,GSU5#,GVU58 GRAY,TRIM1# |
1 | ||
| 55450-0E030A0 |
GSU5#..N LE PACKAGE,FLAXEN,TRIM0# |
1 | ||
| 55450-0E030C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM2# |
1 | ||
| 55471A - ORNAMENT, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55471-0E020A0 |
ASU50,GSU5#,GVU58 FLAXEN,TRIM0# |
1 | ||
| 55471-0E020C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM2# |
1 | ||
| 55471-0E020B0 |
ASU50,GSU5#,GVU58 GRAY,TRIM1# |
1 | ||
| 55474C - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.1 | ||||
| 55474-0E050 |
ASU50,GSU5#,GVU58 |
1 | ||
| 55503D - SPRING(FOR GLOVE COMPARTMENT) | ||||
| 55518-0E020 |
ASU50,GSU5#,GVU58 |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-0E070 |
GSU5#,GVU58..G LANE KEEPING SYSTEM-WITH |
1 | ||
| 55539-0E070 |
ASU50,GSU5#,GVU58 |
1 | ||
| 55539-0E070 |
GSU5#,GVU58..G HEADLAMP-HALOGEN,WITH(*AHB)&LANE KEEPING SYSTEM-WITH |
1 | ||
| 55539-0E070 |
GSU5#,GVU58..G SEAT HEATER-WITH(*DRP & REAR NO.1 SEAT=CAPTAIN TYPE) |
1 | ||
| 55539-0E070 |
GSU5#,GVU58..G HEADLAMP-HALOGEN(SMOKE),WITH(*AHB)&LANE KEEPING SYSTEM-WITH |
1 | ||
| 55539-0E070 |
ASU50,GSU5#,GVU58..N WINDSHIELD DEICER-WITH(WIPER DEICER) |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-0E070 |
GSU5#,GVU58..G LANE KEEPING SYSTEM-WITH |
1 | ||
| 55539-0E070 |
ASU50,GSU5#,GVU58 |
1 | ||
| 55539-0E070 |
GSU5#,GVU58..G HEADLAMP-HALOGEN,WITH(*AHB)&LANE KEEPING SYSTEM-WITH |
1 | ||
| 55539-0E070 |
GSU5#,GVU58..G SEAT HEATER-WITH(*DRP & REAR NO.1 SEAT=CAPTAIN TYPE) |
1 | ||
| 55539-0E070 |
GSU5#,GVU58..G HEADLAMP-HALOGEN(SMOKE),WITH(*AHB)&LANE KEEPING SYSTEM-WITH |
1 | ||
| 55539-0E070 |
ASU50,GSU5#,GVU58..N WINDSHIELD DEICER-WITH(WIPER DEICER) |
1 | ||
| 55539B - COVER, SPARE SWITCH HOLE, NO.2 | ||||
| 55539-0E010 |
GSU5#..N LE PACKAGE |
1 | ||
| 55539-0E010 |
ASU50,GSU5#..N |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-60050 |
ASU50,GSU5#,GVU58 |
2 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-60050 |
ASU50,GSU5#,GVU58 |
2 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-0E020 |
ASU50,GSU5#,GVU58 |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-0E070 |
ASU50,GSU5#,GVU58 |
1 | ||
| 55618B - BASE, SWITCH HOLE, NO.3 | ||||
| 55618-0E140C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM0#,1#,2# |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-0E050C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM0#,1#,2# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-0E050C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM0#,1#,2# |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-0E070 |
ASU50,GSU5#,GVU58 |
1 | ||
| 55680A - REGISTER ASSY, INSTRUMENT PANEL, NO.4 | ||||
| 55680-0E040 |
ASU50,GSU5#,GVU58 |
1 | ||
| 58959E - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-60060 |
ASU50,GSU5#,GVU58 |
2 | ||
| Common parts | ||||
| 90080-11372 | ||||
| 90080-15073 | ||||
| 90080-17191 | ||||
| 90119-A0334 | ||||
| 90159-A0042 | ||||
| 90168-40027 | ||||
| 90467-09241 | ||||
| 90467-10201 | ||||
| 90467-A0011 | ||||
| 93530-53008 | ||||
| Linked diagrams | ||||
| 8121 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
