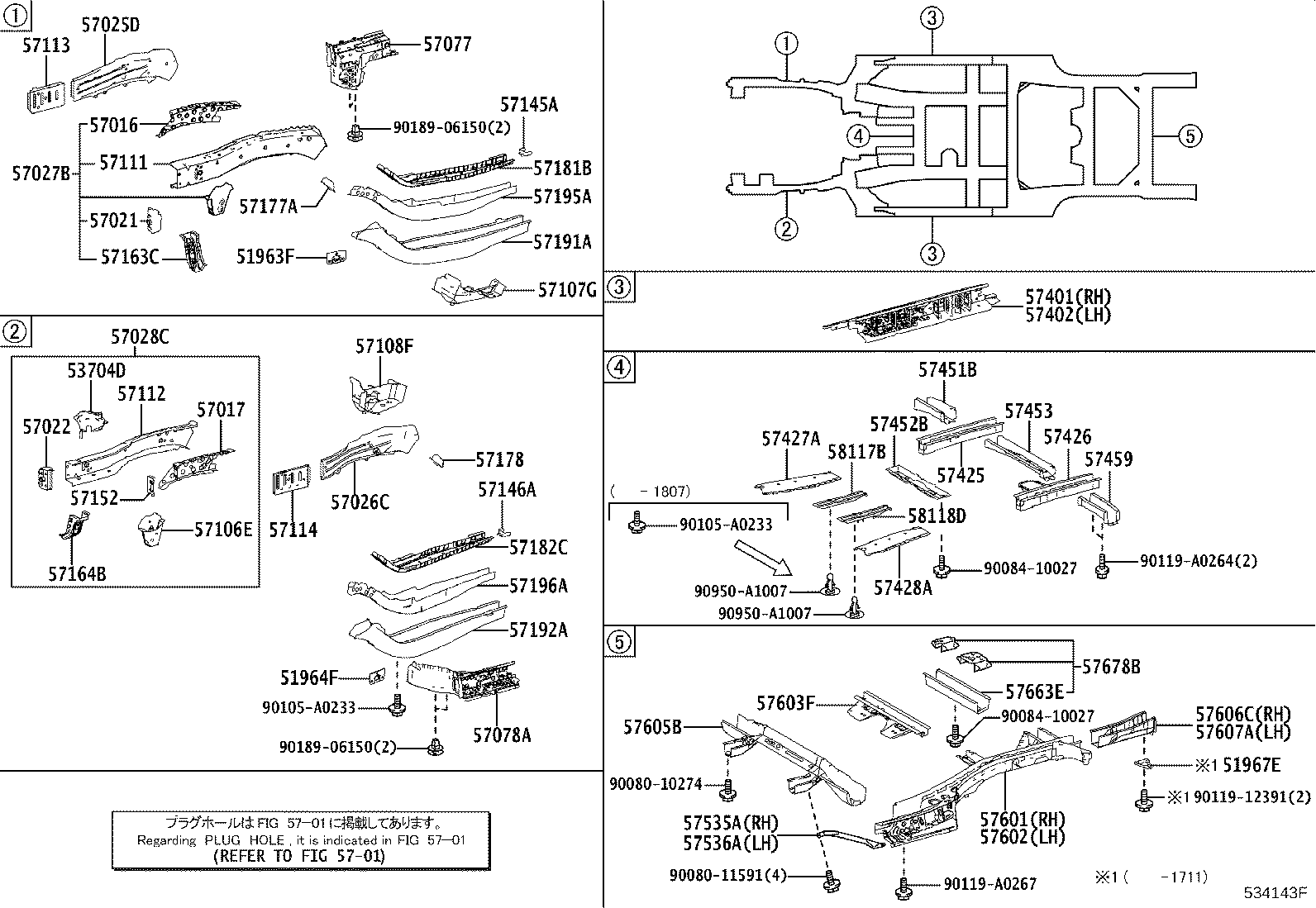

GSU50L-ARTNKA (2013)
Toyota Highlander (Nap)
(1312- )GSU50
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51963F - HOOK, TRANSPORT | ||||
| 51961-0E090 |
ASU50,GSU5#,GVU58 |
1 | ||
| 51964F - HOOK, TRANSPORT, LH | ||||
| 51961-0E090 |
ASU50,GSU5#,GVU58 |
1 | ||
| 51967E - HOOK, TRANSPORT, REAR RH | ||||
| 51967-0E060 |
ASU50,GSU5#,GVU58 |
1 | ||
| 53704D - SUPPORT SUB-ASSY, BATTERY, LH | ||||
| 53704-0E030 |
ASU50,GSU5# |
1 | ||
| 57016 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH | ||||
| 57016-0E030 |
ASU50,GSU5#,GVU58 |
1 | ||
| 57017 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH | ||||
| 57017-0E030 |
ASU50,GSU5#,GVU58 |
1 | ||
| 57021 - BRACKET SUB-ASSY, BODY MOUNTING, NO.1 RH | ||||
| 57021-0E011 |
ASU50,GSU5#,GVU58 |
1 | ||
| 57022 - BRACKET SUB-ASSY, BODY MOUNTING, NO.1 LH | ||||
| 57022-0E011 |
ASU50,GSU5#,GVU58 |
1 | ||
| 57025D - MEMBER SUB-ASSY, FRONT SIDE, OUTER RH | ||||
| 57025-0E010 |
ASU50,GSU5#,GVU58 |
1 | ||
| 57026C - MEMBER SUB-ASSY, FRONT SIDE, OUTER LH | ||||
| 57026-0E011 |
ASU50,GSU5#,GVU58 |
1 | ||
| 57027B - MEMBER SUB-ASSY, FRONT SIDE, INNER RH | ||||
| 57027-0E041 |
ASU50,GSU5#,GVU58 |
1 | ||
| 57028C - MEMBER SUB-ASSY, FRONT SIDE, INNER LH | ||||
| 57028-0E041 |
ASU50,GSU5# |
1 | ||
| 57077 - BOX SUB-ASSY, TORQUE, FRONT RH | ||||
| 57077-0E050 |
ASU50,GSU5#,GVU58 |
1 | ||
| 57078A - BOX SUB-ASSY, TORQUE, FRONT LH | ||||
| 57078-0E050 |
ASU50,GSU5#,GVU58 |
1 | ||
| 57106E - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRO | ||||
| 57106-0E010 |
ASU50,GSU5#,GVU58 |
1 | ||
| 57107G - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REA | ||||
| 57107-0E031 |
ASU50,GSU5#,GVU58 |
1 | ||
| 57107-0E030 |
ASU50,GSU5#,GVU58 |
1 | ||
| 57108F - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REA | ||||
| 57108-0E031 |
ASU50,GSU5#,GVU58 |
1 | ||
| 57108-0E030 |
ASU50,GSU5#,GVU58 |
1 | ||
| 57111 - MEMBER, FRONT SIDE, RH | ||||
| 57111-0E010 |
ASU50,GSU5#,GVU58 |
1 | ||
| 57112 - MEMBER, FRONT SIDE, LH | ||||
| 57112-0E010 |
ASU50,GSU5#,GVU58 |
1 | ||
| 57113 - EXTENSION, FRONT SIDE MEMBER, RH | ||||
| 57113-0E010 |
ASU50,GSU5#,GVU58 |
1 | ||
| 57114 - EXTENSION, FRONT SIDE MEMBER, LH | ||||
| 57114-0E010 |
ASU50,GSU5#,GVU58 |
1 | ||
| 57145A - REINFORCEMENT, FRONT SIDE MEMBER, REAR RH | ||||
| 57145-0E030 |
ASU50,GSU5#,GVU58 |
1 | ||
| 57146A - REINFORCEMENT, FRONT SIDE MEMBER, REAR LH | ||||
| 57146-0E030 |
ASU50,GSU5#,GVU58 |
1 | ||
| 57152 - REINFORCEMENT, FRONT SIDE MEMBER, NO.1 LH | ||||
| 57152-0E030 |
ASU50,GSU5#,GVU58 |
1 | ||
| 57163C - REINFORCEMENT, FRONT CROSSMEMBER, NO.1 RH | ||||
| 57163-0E040 |
ASU50,GSU5#,GVU58 |
1 | ||
| 57164B - REINFORCEMENT, FRONT CROSSMEMBER, NO.1 LH | ||||
| 57164-0E040 |
ASU50,GSU5#,GVU58 |
1 | ||
| 57177A - PLATE, FRONT SIDE MEMBER, NO.7 RH | ||||
| 57177-0E030 |
ASU50,GSU5#,GVU58 |
1 | ||
| 57178 - PLATE, FRONT SIDE MEMBER, NO.7 LH | ||||
| 57178-0E030 |
ASU50,GSU5#,GVU58 |
1 | ||
| 57181B - PLATE, FRONT SIDE MEMBER, NO.3 RH | ||||
| 57181-0E010 |
ASU50,GSU5#,GVU58 |
1 | ||
| 57182C - REINFORCEMENT, FRONT SIDE MEMBER, REAR NO.1 LH | ||||
| 57182-0E010 |
ASU50,GSU5#,GVU58 |
1 | ||
| 57191A - MEMBER, FRONT SIDE, INNER REAR RH | ||||
| 57191-0E030 |
ASU50,GSU5#,GVU58 |
1 | ||
| 57192A - MEMBER, FRONT SIDE, INNER REAR LH | ||||
| 57192-0E030 |
ASU50,GSU5#,GVU58 |
1 | ||
| 57195A - REINFORCEMENT, FRONT SIDE MEMBER, FRONT RH | ||||
| 57195-0E010 |
ASU50,GSU5#,GVU58 |
1 | ||
| 57196A - REINFORCEMENT, FRONT SIDE MEMBER, FRONT LH | ||||
| 57196-0E010 |
ASU50,GSU5#,GVU58 |
1 | ||
| 57401 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH | ||||
| 57401-0E050 |
ASU50,GSU5#,GVU58 |
1 | ||
| 57402 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH | ||||
| 57402-0E050 |
ASU50,GSU5#,GVU58 |
1 | ||
| 57425 - REINFORCEMENT, FRONT FLOOR, NO.2 RH | ||||
| 58107-0E040 |
ASU50,GSU5#,GVU58 |
1 | ||
| 57426 - REINFORCEMENT, FRONT FLOOR, NO.2 LH | ||||
| 58108-0E040 |
ASU50,GSU5#,GVU58 |
1 | ||
| 57427A - REINFORCEMENT, FRONT FLOOR, NO.3 RH | ||||
| 57427-0E050 |
ASU50,GSU5#,GVU58 |
1 | ||
| 57428A - REINFORCEMENT, FRONT FLOOR, NO.3 LH | ||||
| 57428-0E050 |
ASU50,GSU5#,GVU58 |
1 | ||
| 57451B - MEMBER, FRONT FLOOR CROSS, RH | ||||
| 57458-0E040 |
ASU50,GSU5#,GVU58 |
1 | ||
| 57452B - MEMBER, FRONT FLOOR CROSS, NO.2 | ||||
| 57452-0E030 |
ASU50,GSU50,GVU58 |
1 | ||
| 57453 - MEMBER, FRONT FLOOR CROSS, NO.3 | ||||
| 57453-0E050 |
ASU50,GSU5#,GVU58 |
1 | ||
| 57459 - MEMBER, FRONT FLOOR CROSS, NO.2 | ||||
| 57459-0E040 |
ASU50,GSU5#,GVU58 |
1 | ||
| 57535A - BRACE, FRONT FLOOR, RH | ||||
| 57535-0E020 |
ASU50,GSU5# |
1 | ||
| 57536A - BRACE, FRONT FLOOR, LH | ||||
| 57536-0E010 |
ASU50,GSU5# |
1 | ||
| 57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 57041-0E030 |
ASU50,GSU5#,GVU58 |
1 | ||
| 57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 57042-0E030 |
ASU50,GSU5#,GVU58 |
1 | ||
| 57603F - GUSSET SUB-ASSY, REAR FLOOR CROSSEMEMBER | ||||
| 57603-0E070 |
ASU50,GSU5# |
1 | ||
| 57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1 | ||||
| 57605-0E050 |
ASU50,GSU5# |
1 | ||
| 57605-0E051 |
ASU50,GSU5# |
1 | ||
| 57606C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2 | ||||
| 57606-0E050 |
ASU50,GSU5#,GVU58 |
1 | ||
| 57607A - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3 | ||||
| 57607-0E050 |
ASU50,GSU5# |
1 | ||
| 57663E - MEMBER, REAR FLOOR CROSS, CENTER | ||||
| 57663-0E021 |
ASU50,GSU5#,GVU58 |
1 | ||
| 57678B - REINFORCEMENT, REAR FLOOR CROSS MEMBER, NO.6 LH | ||||
| 57089-0E010 |
ASU50,GSU5#,GVU58 |
1 | ||
| 58117B - REINFORCEMENT, FRONT FLOOR SIDE, RH | ||||
| 58117-0E010 |
ASU50,GSU5#,GVU58 |
1 | ||
| 58118D - REINFORCEMENT, FRONT FLOOR SIDE, LH | ||||
| 58118-0E010 |
ASU50,GSU5#,GVU58 |
1 | ||
| Common parts | ||||
| 90080-10274 | ||||
| 90080-11591 | ||||
| 90084-10027 | ||||
| 90105-A0233 | ||||
| 90119-12391 | ||||
| 90119-A0264 | ||||
| 90119-A0267 | ||||
| 90189-06150 | ||||
| 90950-A1007 | ||||
| Linked diagrams | ||||
| 5701 | ||||
