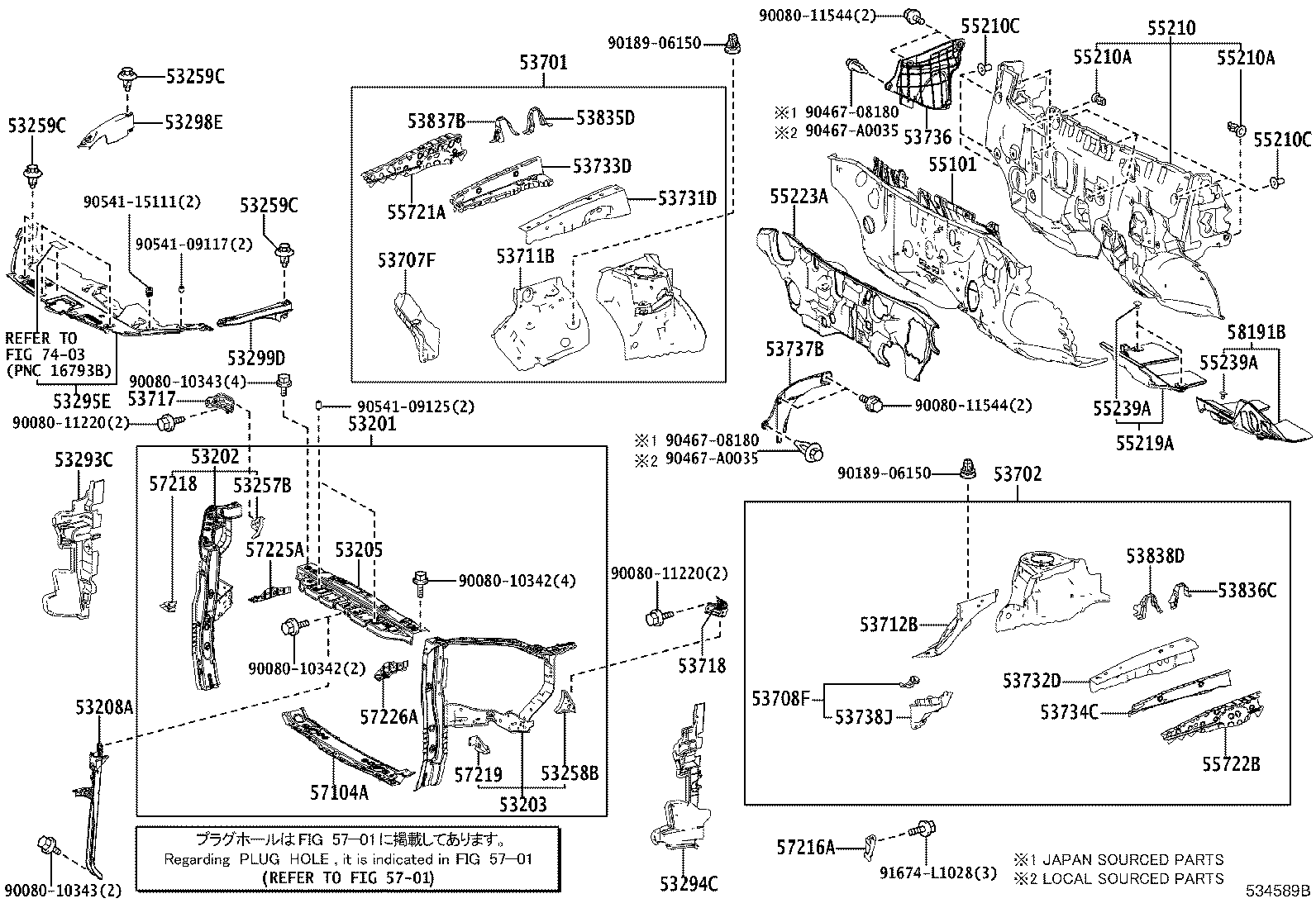

GSU50L-ARTNKA (2013)
Toyota Highlander (Nap)
(1312-1611)ASU50,GSU5#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53201 - SUPPORT SUB-ASSY, RADIATOR | ||||
| 53201-0E904 |
ASU50,GSU5# |
1 | ||
| 53202 - SUPPORT SUB-ASSY, RADIATOR, RH | ||||
| 53202-0E070 |
ASU50,GSU5#,GVU58 |
1 | ||
| 53203 - SUPPORT SUB-ASSY, RADIATOR, LH | ||||
| 53203-0E070 |
ASU50,GSU5# |
1 | ||
| 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER | ||||
| 53216-0E050 |
ASU50,GSU5#,GVU58 |
1 | ||
| 53208A - SUPPORT SUB-ASSY, HOOD LOCK | ||||
| 53208-0E070 |
ASU50,GSU5#,GVU58 |
1 | ||
| 53257B - BRACKET, RADIATOR SUPPORT TO FRONT FENDER | ||||
| 53257-0E050 |
ASU50,GSU5#,GVU58 |
1 | ||
| 53258B - BRACKET, RADIATOR SUPPORT TO FRONT FENDER, LH | ||||
| 53258-0E050 |
ASU50,GSU5#,GVU58 |
1 | ||
| 53259C - CLIP, RADIATOR SUPPORT TO FRAME SEAL | ||||
| 90467-07217 |
ASU50,GSU5#,GVU58 |
11 | ||
| 53259C - CLIP, RADIATOR SUPPORT TO FRAME SEAL | ||||
| 90467-07217 |
ASU50,GSU5#,GVU58 |
11 | ||
| 53259C - CLIP, RADIATOR SUPPORT TO FRAME SEAL | ||||
| 90467-07217 |
ASU50,GSU5#,GVU58 |
11 | ||
| 53293C - DEFLECTOR, RADIATOR SIDE, RH | ||||
| 53293-0E090 |
ASU50,GSU5# |
1 | ||
| 53293-0E091 |
ASU50,GSU5# |
1 | ||
| 53294C - DEFLECTOR, RADIATOR SIDE, LH | ||||
| 53294-0E090 |
ASU50,GSU5# |
1 | ||
| 53295E - SEAL, COOL AIR INTAKE DUCT | ||||
| 53295-0E070 |
ASU50,GSU5#,GVU58 |
1 | ||
| 53298E - SEAL, RADIATOR SIDE, RH | ||||
| 53298-0E010 |
ASU50,GSU5#,GVU58 |
1 | ||
| 53299D - SEAL, RADIATOR SIDE DEFLECTOR, LH | ||||
| 53299-0E010 |
ASU50,GSU5#,GVU58 |
1 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-0E051 |
ASU50,GSU5#,GVU58 |
1 | ||
| 53701-0E050 |
ASU50,GSU5#,GVU58 |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-0E050 |
ASU50,GSU5#,GVU58 |
1 | ||
| 53702-0E051 |
ASU50,GSU5#,GVU58 |
1 | ||
| 53707F - GUSSET SUB-ASSY, FRONT FENDER APRON, LOWER RH | ||||
| 53707-0T010 |
ASU50,GSU5#,GVU58 |
1 | ||
| 53708F - GUSSET SUB-ASSY, FRONT FENDER APRON, LOWER LH | ||||
| 53708-0E010 |
ASU50,GSU5#,GVU58 |
1 | ||
| 53711B - APRON, FRONT FENDER, FRONT RH | ||||
| 53711-0E040 |
ASU50,GSU5#,GVU58 |
1 | ||
| 53712B - APRON, FRONT FENDER, FRONT LH | ||||
| 53712-0E040 |
ASU50,GSU5#,GVU58 |
1 | ||
| 53717 - PLATE, FENDER APRON, RH | ||||
| 53717-0E070 |
ASU50,GSU5#,GVU58 |
1 | ||
| 53718 - PLATE, FENDER APRON, LH | ||||
| 53718-0E070 |
ASU50,GSU5#,GVU58 |
1 | ||
| 53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH | ||||
| 53731-0E050 |
ASU50,GSU5#,GVU58 |
1 | ||
| 53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH | ||||
| 53732-0E050 |
ASU50,GSU5#,GVU58 |
1 | ||
| 53733D - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH | ||||
| 53733-0E050 |
ASU50,GSU5#,GVU58 |
1 | ||
| 53734C - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH | ||||
| 53734-0E050 |
ASU50,GSU5#,GVU58 |
1 | ||
| 53736 - SEAL, FRONT FENDER APRON, RH | ||||
| 53736-0E010 |
ASU50,GSU5#,GVU58 |
1 | ||
| 53737B - SEAL, FRONT FENDER APRON, LH | ||||
| 53737-0E050 |
ASU50,GSU5# |
1 | ||
| 53738J - GUSSET, FRONT FENDER APRON WIND GUIDE, LH | ||||
| 53738-0T011 |
ASU50,GSU5#,GVU58 |
1 | ||
| 53835D - BRACKET, FRONT SIDE PANEL, RH | ||||
| 53835-0E050 |
ASU50,GSU5#,GVU58 |
1 | ||
| 53836C - BRACKET, FRONT SIDE PANEL, LH | ||||
| 53836-0E050 |
ASU50,GSU5#,GVU58 |
1 | ||
| 53837B - BRACKET, FRONT SIDE PANEL, NO.2 | ||||
| 53837-0E050 |
ASU50,GSU5#,GVU58 |
1 | ||
| 53838D - BRACKET, FRONT SIDE PANEL, NO.2 LH | ||||
| 53838-0E050 |
ASU50,GSU5#,GVU58 |
1 | ||
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55101-0E050 |
ASU50,GSU5# |
1 | ||
| 55101-0E051 |
ASU50,GSU5# |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-0E061 |
ASU50,GSU5#,GVU58 |
1 | ||
| 55210-0E060 |
ASU50,GSU5#,GVU58 |
1 | ||
| 55210A - CLIP | ||||
| 90467-13079 |
ASU50,GSU5#,GVU58 |
5 | ||
| 55210A - CLIP | ||||
| 90467-13079 |
ASU50,GSU5#,GVU58 |
5 | ||
| 55210C - CLIP | ||||
| 90467-06197 |
ASU50,GSU5#,GVU58 |
7 | ||
| 55210C - CLIP | ||||
| 90467-06197 |
ASU50,GSU5#,GVU58 |
7 | ||
| 55219A - PACKING, DASH PANEL HOLE COVER | ||||
| 55219-0E050 |
ASU50,GSU5#,GVU58 |
1 | ||
| 55223A - INSULATOR, DASH PANEL, OUTER | ||||
| 55223-0E020 |
ASU50,GSU5#,GVU58 |
1 | ||
| 55239A - PLATE, DASH PANEL INSULATOR, NO.3 | ||||
| 55239-48020 |
ASU50,GSU5#,GVU58 |
3 | ||
| 55239A - PLATE, DASH PANEL INSULATOR, NO.3 | ||||
| 55239-48020 |
ASU50,GSU5#,GVU58 |
3 | ||
| 55721A - BRACE, COWL TOP TO COWL, INNER NO.1 | ||||
| 55721-0E050 |
ASU50,GSU5#,GVU58 |
1 | ||
| 55722B - BRACE, COWL TOP TO COWL, INNER NO.2 | ||||
| 55722-0E050 |
ASU50,GSU5#,GVU58 |
1 | ||
| 57104A - MEMBER SUB-ASSY, FRONT CROSS | ||||
| 57104-0E050 |
ASU50,GSU5#,GVU58 |
1 | ||
| 57216A - EXTENSION, FRONT SIDE MEMBER, NO.3 LH | ||||
| 57216-0E010 |
ASU50,GSU5#,GVU58 |
1 | ||
| 57218 - GUSSET, FRONT SIDE MEMBER, NO.1 | ||||
| 57218-0E040 |
ASU50,GSU5#,GVU58 |
1 | ||
| 57219 - GUSSET, FRONT SIDE MEMBER, NO.2 | ||||
| 57219-0E040 |
ASU50,GSU5#,GVU58 |
1 | ||
| 57225A - BRACE, FRONT MOUNTING BRACKET, RH | ||||
| 57225-0E070 |
ASU50,GSU5#,GVU58 |
1 | ||
| 57226A - BRACE, FRONT MOUNTING BRACKET, LH | ||||
| 57226-0E060 |
ASU50,GSU5#,GVU58 |
1 | ||
| 58191B - FOOTREST, FRONT FLOOR | ||||
| 58191-0E060 |
ASU50,GSU5#,GVU58 |
1 | ||
| Common parts | ||||
| 90080-10342 | ||||
| 90080-10343 | ||||
| 90080-11220 | ||||
| 90080-11544 | ||||
| 90189-06150 | ||||
| 90467-08180 | ||||
| 90467-A0035 | ||||
| 90541-09117 | ||||
| 90541-09125 | ||||
| 90541-15111 | ||||
| 91674-L1028 | ||||
| Linked diagrams | ||||
| 5701 | ||||
| 7403 | ||||
