GSU50L-ARTNKA (2013)
Toyota Highlander (Nap)
Production
Dec 2013
-
Nov 2016
Engine
2GRFE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1312-1611)

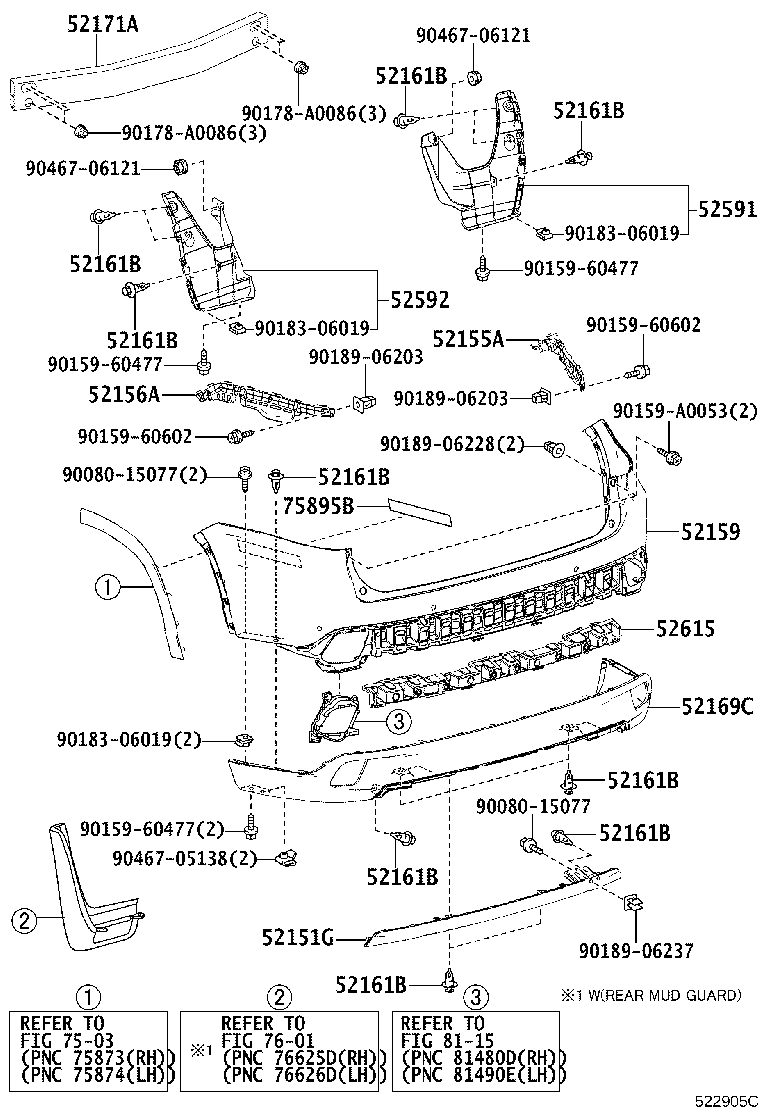

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52151G - EXTENSION, REAR BUMPER | ||||
| 52151-0E040 |
ASU50,GSU5#,GVU58 |
1 | ||
| 52155A - SUPPORT, REAR BUMPER SIDE, RH | ||||
| 52155-0E070 |
ASU50,GSU5#,GVU58 |
1 | ||
| 52156A - SUPPORT, REAR BUMPER SIDE, LH | ||||
| 52156-0E070 |
ASU50,GSU5#,GVU58 |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-0E911 |
ASU50,GSU5#,GVU58..M,N PAINT REQ. |
1 | ||
| 52159-0E912 |
GSU5#,GVU58..G PAINT REQ. |
1 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-02020 |
ASU50,GSU5#,GVU58 |
15 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-02020 |
ASU50,GSU5#,GVU58 |
15 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-02020 |
ASU50,GSU5#,GVU58 |
15 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-02020 |
ASU50,GSU5#,GVU58 |
15 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-02020 |
ASU50,GSU5#,GVU58 |
15 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-02020 |
ASU50,GSU5#,GVU58 |
15 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-02020 |
ASU50,GSU5#,GVU58 |
15 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-02020 |
ASU50,GSU5#,GVU58 |
15 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-02020 |
ASU50,GSU5#,GVU58 |
15 | ||
| 52169C - COVER, REAR BUMPER, LOWER | ||||
| 52169-0E070 |
ASU50,GSU5#,GVU58 NO PAINT REQ. |
1 | ||
| 52171A - REINFORCEMENT, REAR BUMPER, NO.1 | ||||
| 52171-0E090 |
ASU50,GSU5# CANADA SPEC |
1 | ||
| 52171-0E080 |
ASU50,GSU5#,GVU58 |
1 | ||
| 52171-0E090 |
ASU50,GSU5#,GVU58 |
1 | ||
| 52591 - SEAL, REAR BUMPER SIDE, RH | ||||
| 52591-0E060 |
ASU50,GSU5#,GVU58 |
1 | ||
| 52592 - SEAL, REAR BUMPER SIDE, LH | ||||
| 52592-0E060 |
ASU50,GSU5#,GVU58 |
1 | ||
| 52615 - ABSORBER, REAR BUMPER ENERGY | ||||
| 52615-0E080 |
ASU50,GSU5#,GVU58 |
1 | ||
| 75895B - TAPE, MOULDING, NO.2 | ||||
| 75895-0E010 |
ASU50,GSU5#,GVU58 |
2 | ||
| Common parts | ||||
| 90080-15077 | ||||
| 90159-60477 | ||||
| 90159-60602 | ||||
| 90159-A0053 | ||||
| 90178-A0086 | ||||
| 90183-06019 | ||||
| 90189-06203 | ||||
| 90189-06228 | ||||
| 90189-06237 | ||||
| 90467-05138 | ||||
| 90467-06121 | ||||
| Linked diagrams | ||||
| 7503 | ||||
| 7601 | ||||
| 8115 | ||||
