GSU50L-ARTNKA (2013)
Toyota Highlander (Nap)

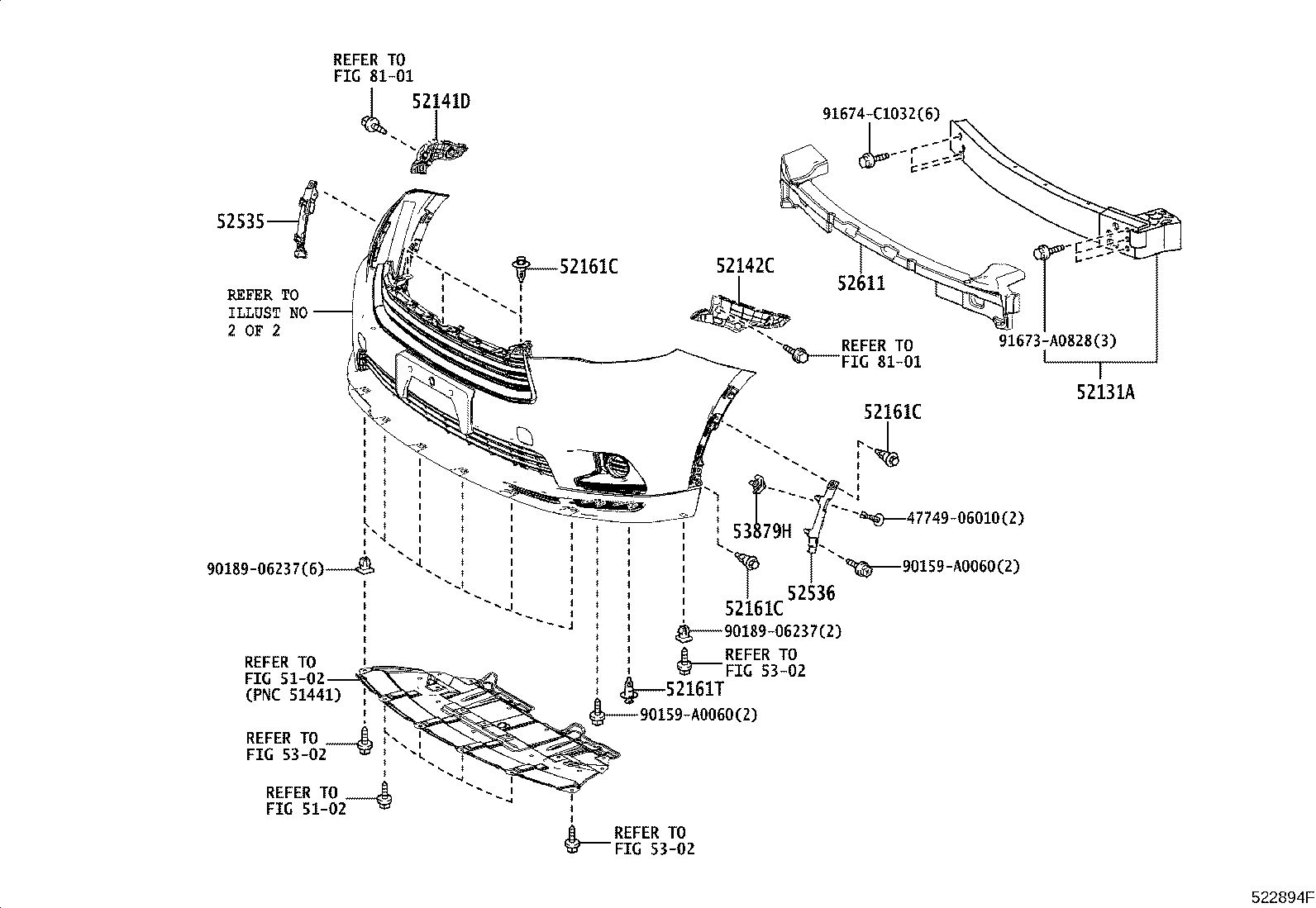

ILLUST NO. 1 OF 2(1312-1611)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52131A - REINFORCEMENT, FRONT BUMPER | ||||
| 52021-0E050 |
ASU50,GSU5#,GVU58 CANADA SPEC |
1 | ||
| 52021-0E050 |
ASU50,GSU5#,GVU58 |
1 | ||
| 52021-0E040 |
ASU50,GSU5#,GVU58 |
1 | ||
| 52141D - STAY, FRONT BUMPER, RH | ||||
| 52145-0E060 |
ASU50,GSU5#,GVU58 |
1 | ||
| 52142C - STAY, FRONT BUMPER, LH | ||||
| 52146-0E060 |
ASU50,GSU5#,GVU58 |
1 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-02020 |
ASU50,GSU5#,GVU58 |
9 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-02020 |
ASU50,GSU5#,GVU58 |
9 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-02020 |
ASU50,GSU5#,GVU58 |
9 | ||
| 52161T - PIECE, FRONT BUMPER | ||||
| 52161-02020 |
GSU5#,GVU58..G CANADA SPEC |
6 | ||
| 52161-02020 |
ASU50,GSU5#,GVU58..M,N |
6 | ||
| 52161-02020 |
GSU5#,GVU58..G |
4 | ||
| 52535 - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 52535-0E050 |
ASU50,GSU5#,GVU58 |
1 | ||
| 52536 - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 52536-0E030 |
ASU50,GSU5#,GVU58 |
1 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-0E091 |
ASU50,GSU5#,GVU58 |
1 | ||
| 53879H - RETAINER, FRONT FENDER LINER | ||||
| 53879-50020 |
ASU50,GSU5#,GVU58 |
2 | ||
| Common parts | ||||
| 47749-06010 | ||||
| 90159-A0060 | ||||
| 90189-06237 | ||||
| 91673-A0828 | ||||
| 91674-C1032 | ||||
| Linked diagrams | ||||
| 5102 | ||||
| 5302 | ||||
| 8101 | ||||

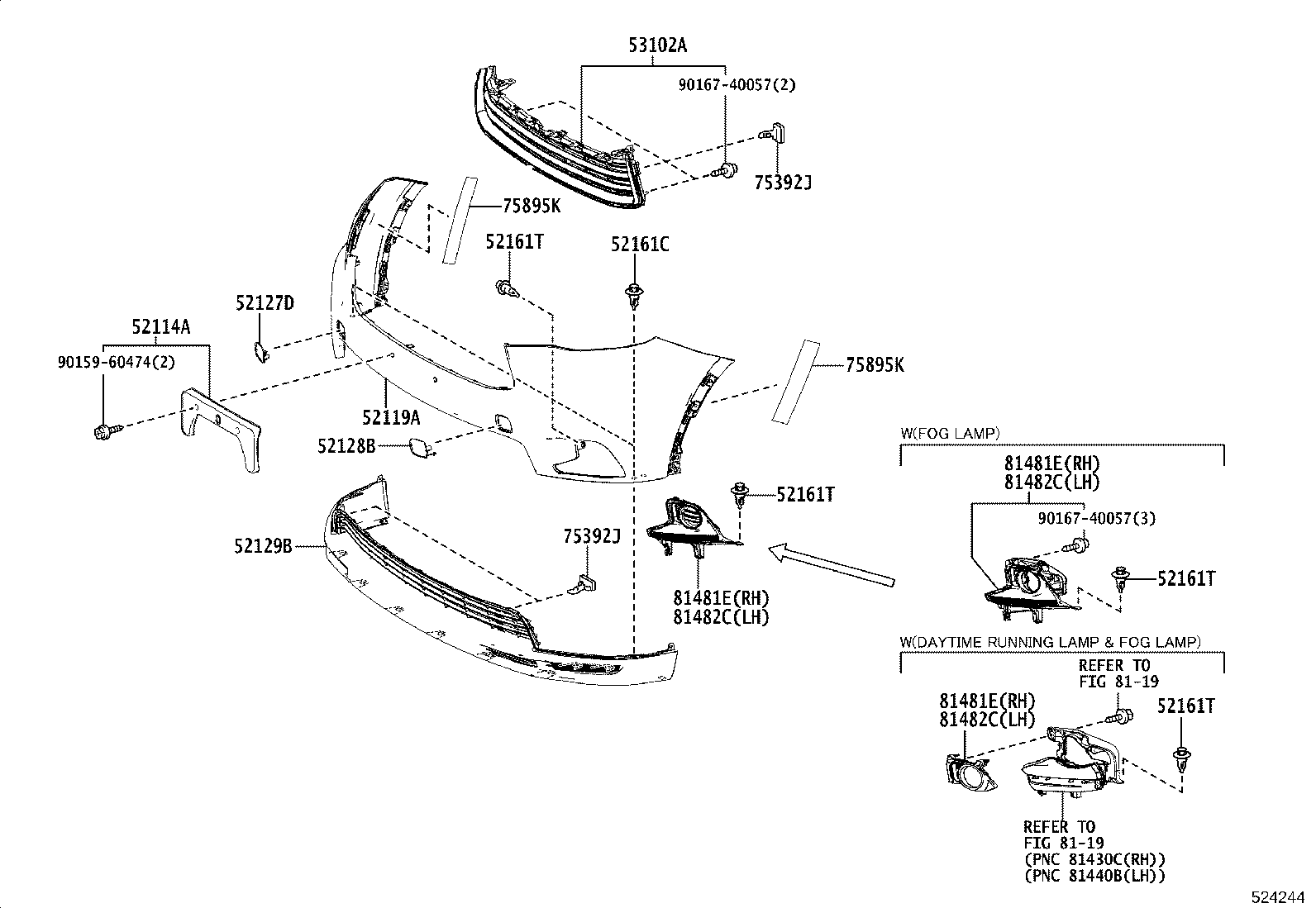

ILLUST NO. 2 OF 2(1312-1611)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING | ||||
| 52114-0E080 |
ASU50,GSU5#,GVU58 |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-0E925 |
ASU50,GSU5#,GVU58 PAINT REQ. |
1 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52127-0E925 |
ASU50,GSU5#,GVU58 |
1 | ||
| 52128B - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-0E926 |
ASU50,GSU5#,GVU58 |
1 | ||
| 52129B - COVER, FRONT BUMPER, LOWER | ||||
| 52129-0E010 |
ASU50,GSU5#,GVU58 |
1 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-02020 |
ASU50,GSU5#,GVU58 |
9 | ||
| 52161T - PIECE, FRONT BUMPER | ||||
| 52161-02020 |
GSU5#,GVU58..G CANADA SPEC |
6 | ||
| 52161-02020 |
ASU50,GSU5#,GVU58..M,N |
6 | ||
| 52161-02020 |
GSU5#,GVU58..G |
4 | ||
| 52161T - PIECE, FRONT BUMPER | ||||
| 52161-02020 |
GSU5#,GVU58..G CANADA SPEC |
6 | ||
| 52161-02020 |
ASU50,GSU5#,GVU58..M,N |
6 | ||
| 52161-02020 |
GSU5#,GVU58..G |
4 | ||
| 52161T - PIECE, FRONT BUMPER | ||||
| 52161-02020 |
GSU5#,GVU58..G CANADA SPEC |
6 | ||
| 52161-02020 |
ASU50,GSU5#,GVU58..M,N |
6 | ||
| 52161-02020 |
GSU5#,GVU58..G |
4 | ||
| 52161T - PIECE, FRONT BUMPER | ||||
| 52161-02020 |
GSU5#,GVU58..G CANADA SPEC |
6 | ||
| 52161-02020 |
ASU50,GSU5#,GVU58..M,N |
6 | ||
| 52161-02020 |
GSU5#,GVU58..G |
4 | ||
| 53102A - GRILLE SUB-ASSY, RADIATOR, LWR | ||||
| 53102-0E040 |
ASU50,GSU5#,GVU58 |
1 | ||
| 75392J - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35200 |
ASU50,GSU5#,GVU58 |
4 | ||
| 75392J - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35200 |
ASU50,GSU5#,GVU58 |
4 | ||
| 75895K - TAPE, MOULDING, NO.1 | ||||
| 75895-0E010 |
ASU50,GSU5#,GVU58 |
2 | ||
| 75895K - TAPE, MOULDING, NO.1 | ||||
| 75895-0E010 |
ASU50,GSU5#,GVU58 |
2 | ||
| 81481E - COVER, FOG LAMP, RH | ||||
| 52030-0E020 |
GSU5#..N LE PACKAGE |
1 | ||
| 52030-0E020 |
GSU5#,GVU58..G CANADA SPEC |
1 | ||
| 81481-0E160 |
GSU5#,GVU58..G |
1 | ||
| 81481-0E140 |
ASU50,GSU5#..N |
1 | ||
| 52030-0E020 |
GSU5#..M;GVU58..M,N |
1 | ||
| 81481E - COVER, FOG LAMP, RH | ||||
| 52030-0E020 |
GSU5#..N LE PACKAGE |
1 | ||
| 52030-0E020 |
GSU5#,GVU58..G CANADA SPEC |
1 | ||
| 81481-0E160 |
GSU5#,GVU58..G |
1 | ||
| 81481-0E140 |
ASU50,GSU5#..N |
1 | ||
| 52030-0E020 |
GSU5#..M;GVU58..M,N |
1 | ||
| 81481E - COVER, FOG LAMP, RH | ||||
| 52030-0E020 |
GSU5#..N LE PACKAGE |
1 | ||
| 52030-0E020 |
GSU5#,GVU58..G CANADA SPEC |
1 | ||
| 81481-0E160 |
GSU5#,GVU58..G |
1 | ||
| 81481-0E140 |
ASU50,GSU5#..N |
1 | ||
| 52030-0E020 |
GSU5#..M;GVU58..M,N |
1 | ||
| 81482C - COVER, FOG LAMP, LH | ||||
| 81482-0E160 |
GSU5#,GVU58..G |
1 | ||
| 81482-0E140 |
ASU50,GSU5#..N |
1 | ||
| 52040-0E020 |
GSU5#,GVU58..G CANADA SPEC |
1 | ||
| 52040-0E020 |
GSU5#..N LE PACKAGE |
1 | ||
| 52040-0E020 |
GSU5#..M;GVU58..M,N |
1 | ||
| 81482C - COVER, FOG LAMP, LH | ||||
| 81482-0E160 |
GSU5#,GVU58..G |
1 | ||
| 81482-0E140 |
ASU50,GSU5#..N |
1 | ||
| 52040-0E020 |
GSU5#,GVU58..G CANADA SPEC |
1 | ||
| 52040-0E020 |
GSU5#..N LE PACKAGE |
1 | ||
| 52040-0E020 |
GSU5#..M;GVU58..M,N |
1 | ||
| 81482C - COVER, FOG LAMP, LH | ||||
| 81482-0E160 |
GSU5#,GVU58..G |
1 | ||
| 81482-0E140 |
ASU50,GSU5#..N |
1 | ||
| 52040-0E020 |
GSU5#,GVU58..G CANADA SPEC |
1 | ||
| 52040-0E020 |
GSU5#..N LE PACKAGE |
1 | ||
| 52040-0E020 |
GSU5#..M;GVU58..M,N |
1 | ||
| Common parts | ||||
| 90159-60474 | ||||
| 90167-40057 | ||||
| Linked diagrams | ||||
| 8119 | ||||
