GSU50L-ARTNKA (2013)
Toyota Highlander (Nap)

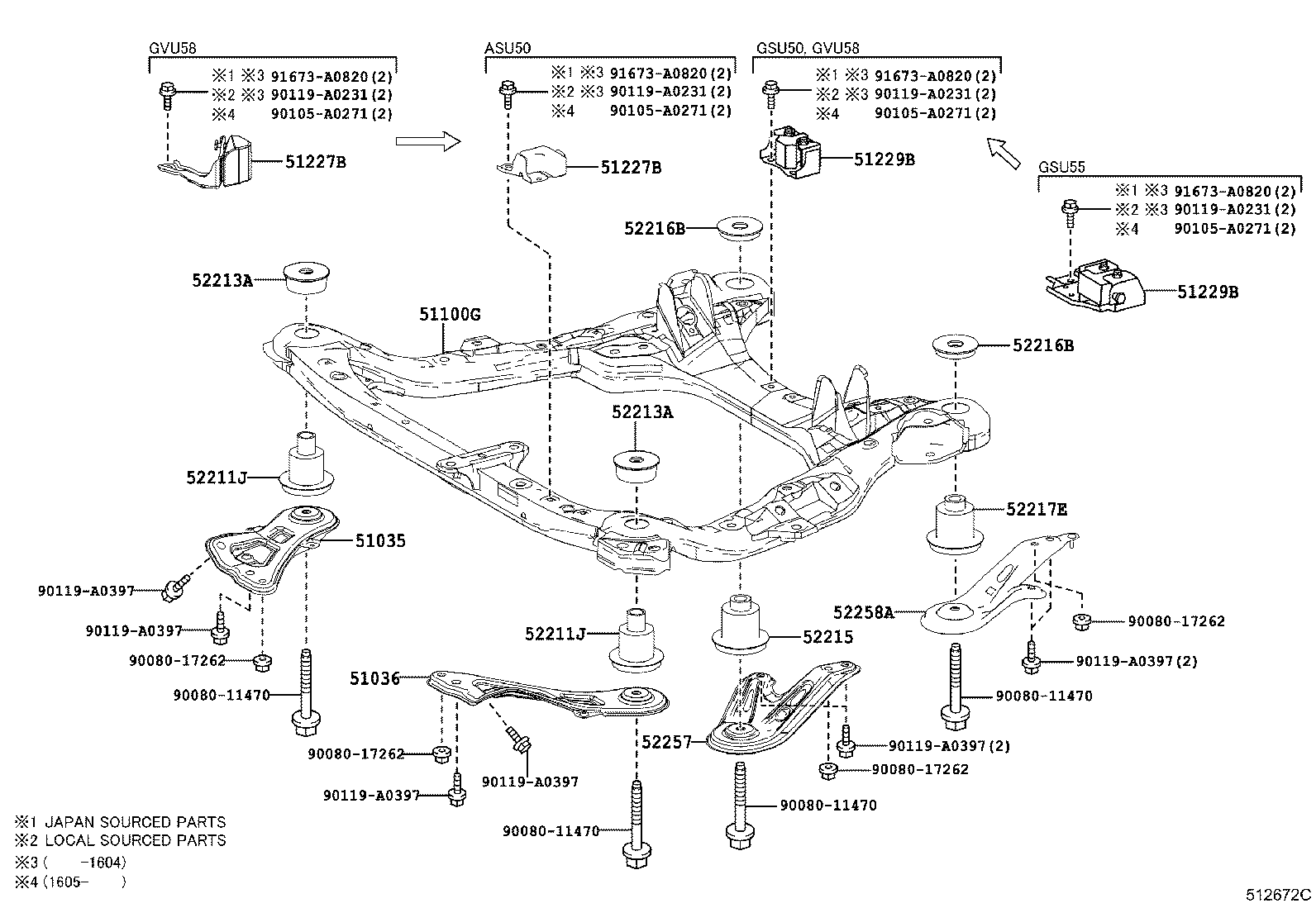

ILLUST NO. 1 OF 3(1312- )
FRONT SUSPENSION MEMBER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51035 - PLATE SUB-ASSY, FRAME SIDE RAIL, RH | ||||
| 51035-0E050 |
ASU50,GSU5#,GVU58 |
1 | ||
| 51036 - PLATE SUB-ASSY, FRAME SIDE RAIL, LH | ||||
| 51036-0E050 |
ASU50,GSU5#,GVU58 |
1 | ||
| 51100G - FRAME ASSY, FRONT | ||||
| 51100-0E061 |
ASU50,GSU5#,GVU58 |
1 | ||
| 51100-0E063 |
ASU50,GSU5#,GVU58 |
1 | ||
| 51100-0E062 |
ASU50,GSU5#,GVU58 |
1 | ||
| 51229B - DUMPER, NO.2 FRAME CROSSMEMBER DYNAMIC | ||||
| 51227-0E080 |
GSU50,GVU58 |
1 | ||
| 51229B - DUMPER, NO.2 FRAME CROSSMEMBER DYNAMIC | ||||
| 51227-0E080 |
GSU50,GVU58 |
1 | ||
| 52211J - CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT | ||||
| 52211-0E010 |
ASU50,GSU5#,GVU58 |
2 | ||
| 52211J - CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT | ||||
| 52211-0E010 |
ASU50,GSU5#,GVU58 |
2 | ||
| 52213A - STOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT | ||||
| 52213-0E010 |
ASU50,GSU5#,GVU58 |
2 | ||
| 52213A - STOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT | ||||
| 52213-0E010 |
ASU50,GSU5#,GVU58 |
2 | ||
| 52215 - CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR | ||||
| 52215-06030 |
ASU50,GSU5#,GVU58 |
1 | ||
| 52216B - STOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR | ||||
| 52216-06030 |
ASU50,GSU5#,GVU58 |
2 | ||
| 52216B - STOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR | ||||
| 52216-06030 |
ASU50,GSU5#,GVU58 |
2 | ||
| 52217E - CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR LH | ||||
| 52217-06010 |
ASU50,GSU5#,GVU58 |
1 | ||
| 52257 - BRACE, FRONT SUSPENSION MEMBER, REAR RH | ||||
| 51023-0E010 |
ASU50,GSU5#,GVU58 |
1 | ||
| 52258A - BRACE, FRONT SUSPENSION MEMBER, REAR LH | ||||
| 51024-0E011 |
ASU50,GSU5#,GVU58 |
1 | ||
| Common parts | ||||
| 90080-11470 | ||||
| 90080-17262 | ||||
| 90105-A0271 | ||||
| 90119-A0231 | ||||
| 90119-A0397 | ||||
| 91673-A0820 | ||||
ILLUST NO. 2 OF 3(1312- )ASU50,GSU5#
REAR SUSPENSION MEMBER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51206A - MEMBER SUB-ASSY, REAR SUSPENSION | ||||
| 51206-0E042 |
ASU50,GSU5# |
1 | ||
| 52271D - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT | ||||
| 52271-0E030 |
ASU50,GSU5#,GVU58 |
2 | ||
| 52271D - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT | ||||
| 52271-0E030 |
ASU50,GSU5#,GVU58 |
2 | ||
| 52272 - STOPPER, REAR SUSPENSION MEMBER, UPPER | ||||
| 52272-0E030 |
ASU50,GSU5#,GVU58 |
2 | ||
| 52273A - STOPPER, REAR SUSPENSION MEMBER, LOWER RH | ||||
| 52273-0E010 |
ASU50,GSU5#,GVU58 |
1 | ||
| 52274A - STOPPER, REAR SUSPENSION MEMBER, LOWER LH | ||||
| 52274-0E010 |
ASU50,GSU5# |
1 | ||
| 52275B - CUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR RH | ||||
| 52275-0E021 |
ASU50,GSU5#,GVU58 |
1 | ||
| 52276A - CUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR LH | ||||
| 52276-0E011 |
ASU50,GSU5#,GVU58 |
1 | ||
| 52277B - STOPPER, REAR SUSPENSION MEMBER, REAR UPPER | ||||
| 52277-0E030 |
ASU50,GSU5#,GVU58 |
2 | ||
| 53653B - BRACE, REAR SUSPENSION, LOWER | ||||
| 53653-0E010 |
ASU50,GSU5#,GVU58 |
2 | ||
| Common parts | ||||
| 90080-11470 | ||||
| 90080-17262 | ||||
ILLUST NO. 3 OF 3(1312- )
ENGINE UNDER COVER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51441 - COVER, ENGINE UNDER, NO.1 | ||||
| 51441-0E090 |
ASU50,GSU5#,GVU58 |
1 | ||
| 51441-0E091 |
ASU50,GSU5#,GVU58 |
1 | ||
| 51442 - COVER, ENGINE UNDER, NO.2 | ||||
| 51442-0E020 |
ASU50,GSU5#,GVU58 |
1 | ||
| 51454C - SILENCER, ENGINE UNDER COVER, REAR | ||||
| 51454-0E010 |
ASU50,GSU5#,GVU58 |
1 | ||
| 51455A - SEAL, ENGINE UNDER COVER, NO.1 | ||||
| 51455-0E010 |
ASU50,GSU5#,GVU58 |
2 | ||
| 51455A - SEAL, ENGINE UNDER COVER, NO.1 | ||||
| 51455-0E010 |
ASU50,GSU5#,GVU58 |
2 | ||
| Common parts | ||||
| 90080-15094 | ||||
| 90119-A0156 | ||||
| 90159-60590 | ||||
| 90159-A0059 | ||||
| 90467-07216 | ||||
| Linked diagrams | ||||
| 5201 | ||||
| 5302 | ||||
