GSU50L-ARTNKA (2013)
Toyota Highlander (Nap)
(1312-1511)

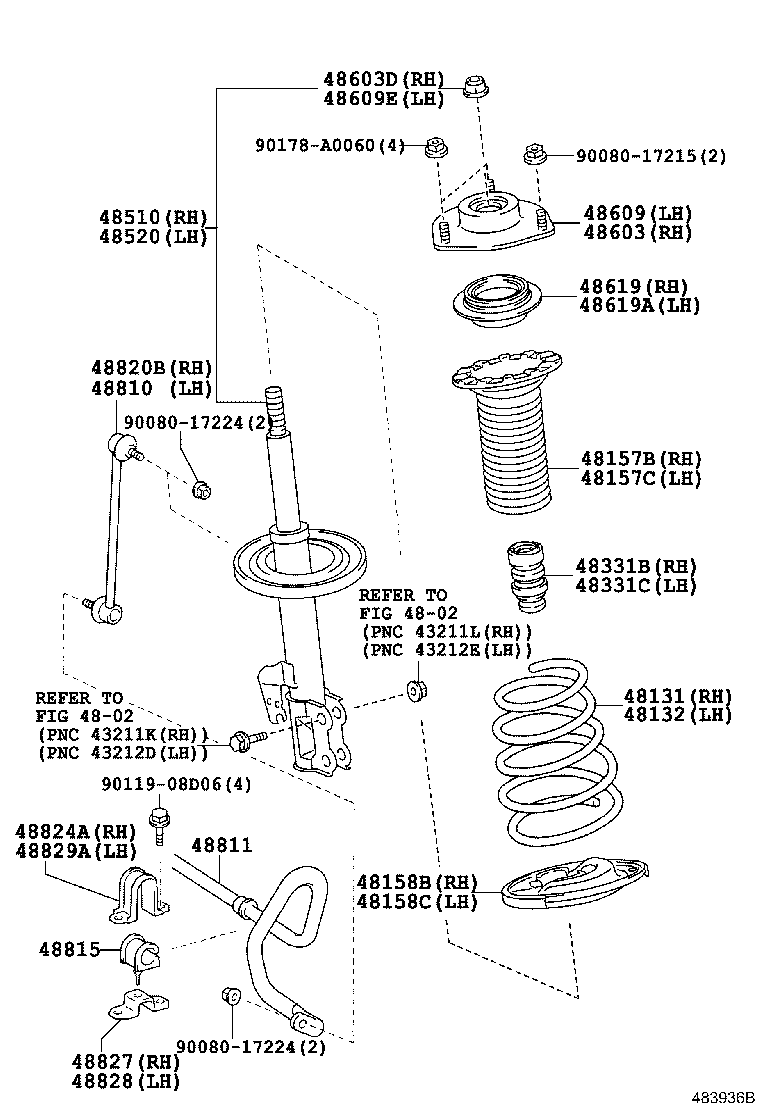

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-0E190 |
GSU50 |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48132-0E080 |
GSU50 |
1 | ||
| 48157B - INSULATOR, FRONT COIL SPRING, UPPER RH | ||||
| 48157-0E040 |
ASU50,GSU5#,GVU58 |
1 | ||
| 48157C - INSULATOR, FRONT COIL SPRING, UPPER LH | ||||
| 48157-0E040 |
ASU50,GSU5#,GVU58 |
1 | ||
| 48158B - INSULATOR, FRONT COIL SPRING, LOWER RH | ||||
| 48158-0E100 |
ASU50,GSU5#,GVU58 CANADA SPEC |
1 | ||
| 48158-0E100 |
ASU50,GSU5#,GVU58 |
1 | ||
| 48158-0E060 |
ASU50,GSU5#,GVU58 |
1 | ||
| 48158C - INSULATOR, FRONT COIL SPRING, LOWER LH | ||||
| 48158-0E110 |
ASU50,GSU5#,GVU58 CANADA SPEC |
1 | ||
| 48158-0E110 |
ASU50,GSU5#,GVU58 |
1 | ||
| 48158-0E070 |
ASU50,GSU5#,GVU58 |
1 | ||
| 48331B - BUMPER, FRONT SPRING, RH | ||||
| 48331-0E070 |
ASU50,GSU5#,GVU58 |
1 | ||
| 48331-0E040 |
ASU50,GSU5#,GVU58 |
1 | ||
| 48331-0E060 |
GSU5#,GVU58 CANADA SPEC |
1 | ||
| 48331C - BUMPER, FRONT SPRING, LH | ||||
| 48331-0E060 |
GSU5#,GVU58 CANADA SPEC |
1 | ||
| 48331-0E070 |
ASU50,GSU5#,GVU58 |
1 | ||
| 48331-0E040 |
ASU50,GSU5#,GVU58 |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-8Z103 |
GSU5# MARK 48510-0E150 |
1 | ||
| 48510-8Z278 |
GSU5# MARK 48510-0E151,CANADA SPEC |
1 | ||
| 48510-8Z278 |
GSU5# MARK 48510-0E151 |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48520-8Z136 |
GSU5# MARK 48520-0E151,CANADA SPEC |
1 | ||
| 48520-8Z013 |
GSU5# MARK 48520-0E150 |
1 | ||
| 48520-8Z136 |
GSU5# MARK 48520-0E151 |
1 | ||
| 48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH | ||||
| 48609-0E060 |
ASU50,GSU5#,GVU58 |
1 | ||
| 48603D - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH) | ||||
| 90080-17217 |
ASU50,GSU5#,GVU58 |
1 | ||
| 48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH | ||||
| 48609-0E060 |
ASU50,GSU5#,GVU58 |
1 | ||
| 48609E - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH) | ||||
| 90080-17217 |
ASU50,GSU5#,GVU58 |
1 | ||
| 48619 - BEARING, STRUT MOUNTING, RH | ||||
| 48619-42010 |
ASU50,GSU5#,GVU58 |
1 | ||
| 48619A - BEARING, STRUT MOUNTING, LH | ||||
| 48619-42010 |
ASU50,GSU5#,GVU58 |
1 | ||
| 48810 - LINK ASSY, FRONT STABILIZER, LH | ||||
| 48820-06040 |
ASU50,GSU5#,GVU58 |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-0E030 |
ASU50,GSU50,GVU58 |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-AE030 |
ASU50,GSU5#,GVU58 |
2 | ||
| 48820B - LINK ASSY, FRONT STABILIZER, RH | ||||
| 48820-06040 |
ASU50,GSU5#,GVU58 |
1 | ||
| 48824A - BRACKET, FRONT STABILIZER, NO.1 RH | ||||
| 48824-0E020 |
ASU50,GSU5#,GVU58 |
1 | ||
| 48827 - BRACKET, FRONT STABILIZER, NO.2 RH | ||||
| 48827-08010 |
ASU50,GSU5#,GVU58 |
1 | ||
| 48828 - BRACKET, FRONT STABILIZER, NO.2 LH | ||||
| 48827-08010 |
ASU50,GSU5#,GVU58 |
1 | ||
| 48829A - BRACKET, FRONT STABILIZER, NO.1 LH | ||||
| 48824-0E020 |
ASU50,GSU5#,GVU58 |
1 | ||
| Common parts | ||||
| 90080-17215 | ||||
| 90080-17224 | ||||
| 90119-08D06 | ||||
| 90178-A0060 | ||||
| Linked diagrams | ||||
| 4802 | ||||
(1511-1611)GSU5# ; (1511- )ASU50,GVU58
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48045 - SEAT SUB-ASSY, FRONT SPRING RH, W/INSULATOR | ||||
| 48045-0E020 |
ASU50,GSU5#,GVU58 |
1 | ||
| 48045-0E020 |
ASU50,GSU5#,GVU58 CANADA SPEC |
1 | ||
| 48045A - SEAT SUB-ASSY, FRONT SPRING LH, W/INSULATOR | ||||
| 48045-0E020 |
ASU50,GSU5#,GVU58 |
1 | ||
| 48045-0E020 |
ASU50,GSU5#,GVU58 CANADA SPEC |
1 | ||
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-0E190 |
GSU50 |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48132-0E080 |
GSU50 |
1 | ||
| 48158B - INSULATOR, FRONT COIL SPRING, LOWER RH | ||||
| 48158-0E100 |
ASU50,GSU5#,GVU58 CANADA SPEC |
1 | ||
| 48158-0E100 |
ASU50,GSU5#,GVU58 |
1 | ||
| 48158-0E060 |
ASU50,GSU5#,GVU58 |
1 | ||
| 48158C - INSULATOR, FRONT COIL SPRING, LOWER LH | ||||
| 48158-0E110 |
ASU50,GSU5#,GVU58 CANADA SPEC |
1 | ||
| 48158-0E110 |
ASU50,GSU5#,GVU58 |
1 | ||
| 48158-0E070 |
ASU50,GSU5#,GVU58 |
1 | ||
| 48331B - BUMPER, FRONT SPRING, RH | ||||
| 48331-0E070 |
ASU50,GSU5#,GVU58 |
1 | ||
| 48331-0E040 |
ASU50,GSU5#,GVU58 |
1 | ||
| 48331-0E060 |
GSU5#,GVU58 CANADA SPEC |
1 | ||
| 48331C - BUMPER, FRONT SPRING, LH | ||||
| 48331-0E060 |
GSU5#,GVU58 CANADA SPEC |
1 | ||
| 48331-0E070 |
ASU50,GSU5#,GVU58 |
1 | ||
| 48331-0E040 |
ASU50,GSU5#,GVU58 |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-8Z103 |
GSU5# MARK 48510-0E150 |
1 | ||
| 48510-8Z278 |
GSU5# MARK 48510-0E151,CANADA SPEC |
1 | ||
| 48510-8Z278 |
GSU5# MARK 48510-0E151 |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48520-8Z136 |
GSU5# MARK 48520-0E151,CANADA SPEC |
1 | ||
| 48520-8Z013 |
GSU5# MARK 48520-0E150 |
1 | ||
| 48520-8Z136 |
GSU5# MARK 48520-0E151 |
1 | ||
| 48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH | ||||
| 48609-0E060 |
ASU50,GSU5#,GVU58 |
1 | ||
| 48603D - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH) | ||||
| 90080-17217 |
ASU50,GSU5#,GVU58 |
1 | ||
| 48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH | ||||
| 48609-0E060 |
ASU50,GSU5#,GVU58 |
1 | ||
| 48609E - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH) | ||||
| 90080-17217 |
ASU50,GSU5#,GVU58 |
1 | ||
| 48810 - LINK ASSY, FRONT STABILIZER, LH | ||||
| 48820-06040 |
ASU50,GSU5#,GVU58 |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-0E030 |
ASU50,GSU50,GVU58 |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-AE030 |
ASU50,GSU5#,GVU58 |
2 | ||
| 48820B - LINK ASSY, FRONT STABILIZER, RH | ||||
| 48820-06040 |
ASU50,GSU5#,GVU58 |
1 | ||
| 48824A - BRACKET, FRONT STABILIZER, NO.1 RH | ||||
| 48824-0E020 |
ASU50,GSU5#,GVU58 |
1 | ||
| 48827 - BRACKET, FRONT STABILIZER, NO.2 RH | ||||
| 48827-08010 |
ASU50,GSU5#,GVU58 |
1 | ||
| 48828 - BRACKET, FRONT STABILIZER, NO.2 LH | ||||
| 48827-08010 |
ASU50,GSU5#,GVU58 |
1 | ||
| 48829A - BRACKET, FRONT STABILIZER, NO.1 LH | ||||
| 48824-0E020 |
ASU50,GSU5#,GVU58 |
1 | ||
| Common parts | ||||
| 90080-17215 | ||||
| 90080-17224 | ||||
| 90119-08D06 | ||||
| 90178-A0060 | ||||
| Linked diagrams | ||||
| 4802 | ||||
