GSU50L-ARTNKA (2013)

Toyota Highlander (Nap)

Production Dec 2013 - Nov 2016
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1312-1611)GSU5#

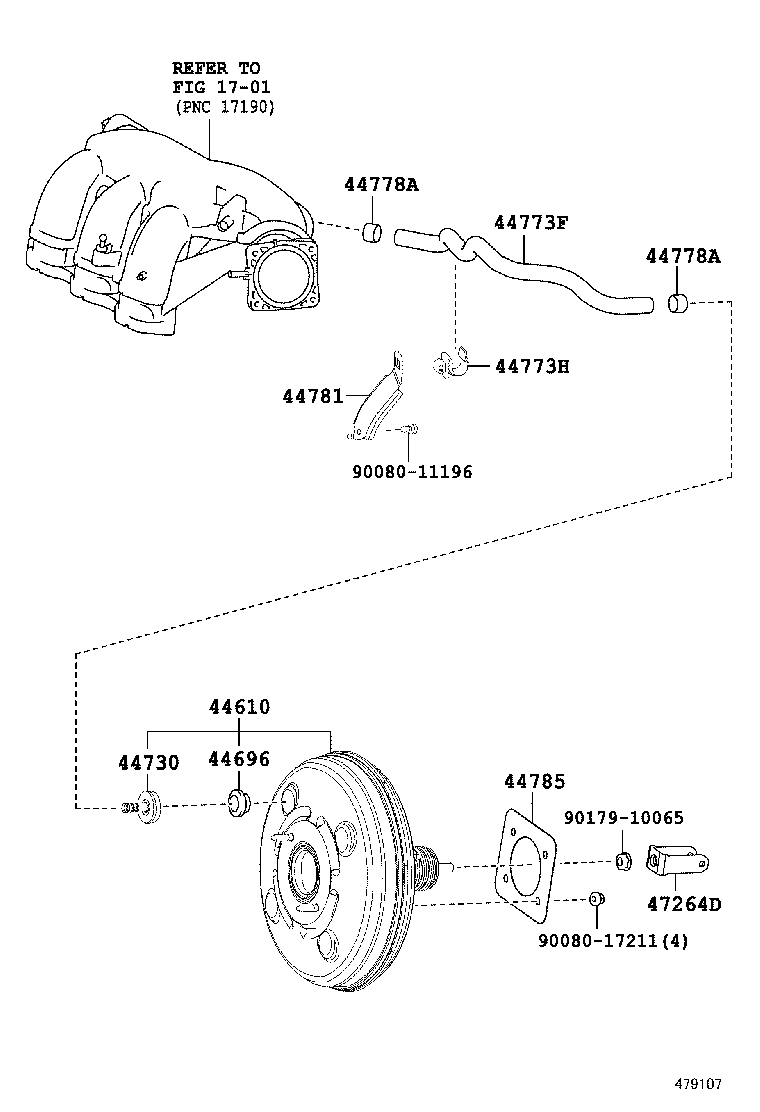

Click highlighted areas on diagram

diagram 1701 44610 44696 44730 44773F 44773H 44778A 44778A 44781 44785 47264D 9008011196 9008017211 9017910065
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-0E080

GSU5#

 1
44696 - GROMMET, CHECK VALVE
90080-48071

GSU5#

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-60070

GSU5#

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-0E040

GSU5#

 1
44773H - CLAMP(FOR UNION TO CHECK VALVE HOSE)
90469-17002

ASU50,GSU5#

 1
44778A - CLIP(FOR CONNECTOR TO CHECK VALVE HOSE)
90467-16014

GSU5#

 2
90466-A0003

GSU5#

 2
44778A - CLIP(FOR CONNECTOR TO CHECK VALVE HOSE)
90467-16014

GSU5#

 2
90466-A0003

GSU5#

 2
44781 - BRACKET, HOSE
44447-0E030

GSU5#

 1
44785 - GASKET, BRAKE BOOSTER
44785-07010

ASU50,GSU5#

 1
47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47264-06040

ASU50,GSU5#

 1
Common parts
90080-11196
90080-17211
90179-10065
Linked diagrams
1701
