GSU50L-ARTNKA (2013)

Toyota Highlander (Nap)

Production Dec 2013 - Nov 2016
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1312- )ASU50,GSU5#

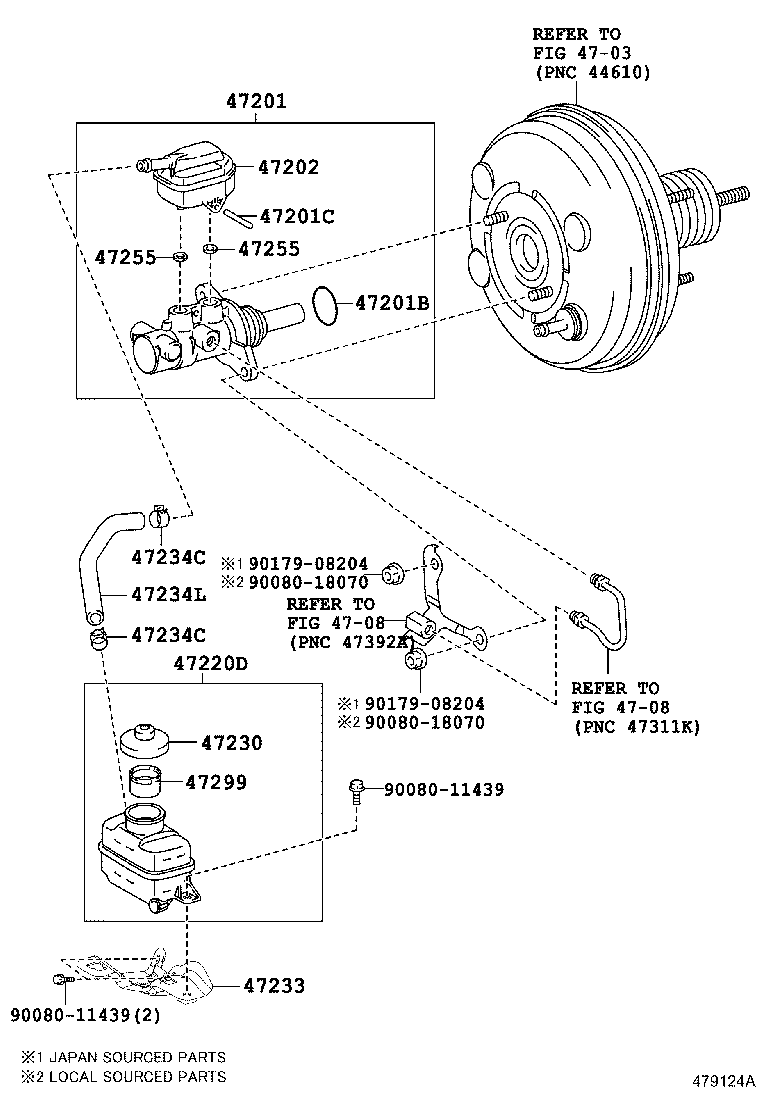

Click highlighted areas on diagram

diagram 4703 4708 4708 47201 47201B 47201C 47202 47220D 47230 47233 47234C 47234C 47234L 47255 47255 47299 9008011439 9008011439 9008018070 9008018070 9017908204 9017908204
Part # Description Qty Price
47201 - CYLINDER SUB-ASSY, BRAKE MASTER
47201-48202

ASU50,GSU5#

 1
47201B - RING, O(FOR BRAKE MASTER CYLINDER)
90015-AH002

ASU50,GSU5#

 1
47201C - RING PIN, BRAKE MASTER CYLINDER
90029-15803

ASU50,GSU5#

 1
47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
47220-48200

ASU50,GSU5#

 1
47220D - RESERVOIR ASSY, BRAKE MASTER CYLINDER
47220-0E070

ASU50,GSU5#

 1
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47230-01031

ASU50,GSU5#

 1
47230-01030

ASU50,GSU5#

 1
47233 - BRACKET, RESERVOIR
47233-0E040

ASU50,GSU5#

 1
47234C - CLIP(FOR RESERVOIR TUBE NO.1)
90466-A0013

ASU50,GSU5#

 2
47234C - CLIP(FOR RESERVOIR TUBE NO.1)
90466-A0013

ASU50,GSU5#

 2
47234L - HOSE, RESERVOIR, NO.1
47234-48210

ASU50,GSU5#

 1
47255 - GROMMET, MASTER CYLINDER RESERVOIR
90029-48001

ASU50,GSU5#

 2
47255 - GROMMET, MASTER CYLINDER RESERVOIR
90029-48001

ASU50,GSU5#

 2
47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR
47299-20060

ASU50,GSU5#

 1
Common parts
90080-11439
90080-18070
90179-08204
Linked diagrams
4703
4708
