GSU50L-ARTNKA (2013)
Toyota Highlander (Nap)

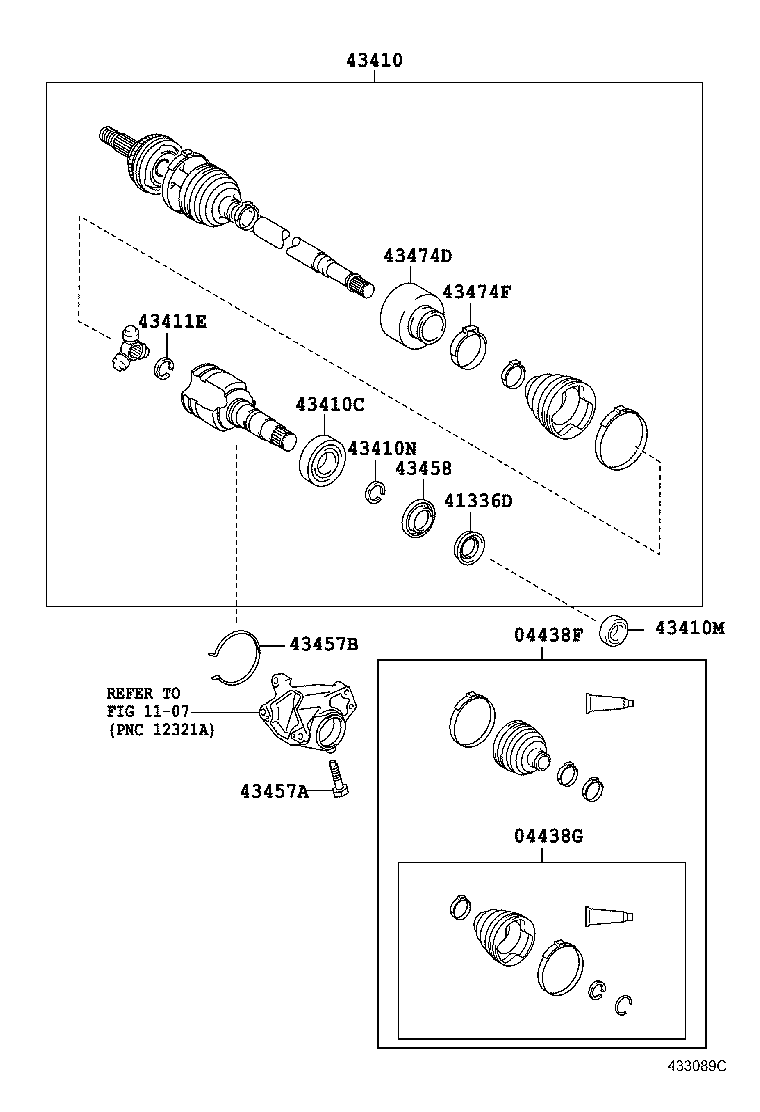

ILLUST NO. 1 OF 2(1312-1407)GSU50,GVU58
RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH | ||||
| 04428-0W070 |
GSU50,GVU58 |
1 | ||
| 04427-06540 |
GSU50,GVU58 |
1 | ||
| 04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH | ||||
| 04438-08130 |
GSU50,GVU58 |
1 | ||
| 04437-08050 |
GSU50,GVU58 |
1 | ||
| 41336D - COVER, FRONT DRIVE SHAFT DUST, RH | ||||
| 41336-06020 |
ASU50,GSU50,GVU58 |
1 | ||
| 43410 - SHAFT ASSY, FRONT DRIVE, RH | ||||
| 43410-0E140 |
GSU50 |
1 | ||
| 43410C - BEARING (FOR FRONT DRIVE SHAFT) | ||||
| 90080-36133 |
ASU50,GSU50,GVU58 |
1 | ||
| 43410M - OIL SEAL, FRONT DRIVE SHAFT, RH | ||||
| 90311-A0029 |
GSU50 TRANSAXLE NO.=3XXXXX |
1 | ||
| 90311-40038 |
GSU50 |
1 | ||
| 43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH) | ||||
| 90080-52013 |
ASU50,GSU50,GVU58 |
1 | ||
| 43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH) | ||||
| 43425-08040 |
ASU50,GSU5#,GVU58 |
1 | ||
| 43457A - BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1) | ||||
| 90119-10461 |
ASU50,GSU50,GVU58 *10-1.25PX19.8-8.3 |
1 | ||
| 43457B - RING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET) | ||||
| 90521-78002 |
ASU50,GSU50,GVU58 |
1 | ||
| 43458 - COVER, FRONT DRIVE SHAFT DUST | ||||
| 43458-06020 |
ASU50,GSU50,GVU58 |
1 | ||
| 43474D - DAMPER, FRONT DRIVE SHAFT, RH | ||||
| 43474-0W030 |
GSU50,GVU58 |
1 | ||
| 43474-06300 |
GSU50,GVU58 |
1 | ||
| 43474F - CLAMP (FOR FRONT DRIVE SHAFT DAMPER RH) | ||||
| 42345-06100 |
GSU50,GVU58 |
1 | ||
| 42345-06790 |
GSU50,GVU58 |
2 | ||

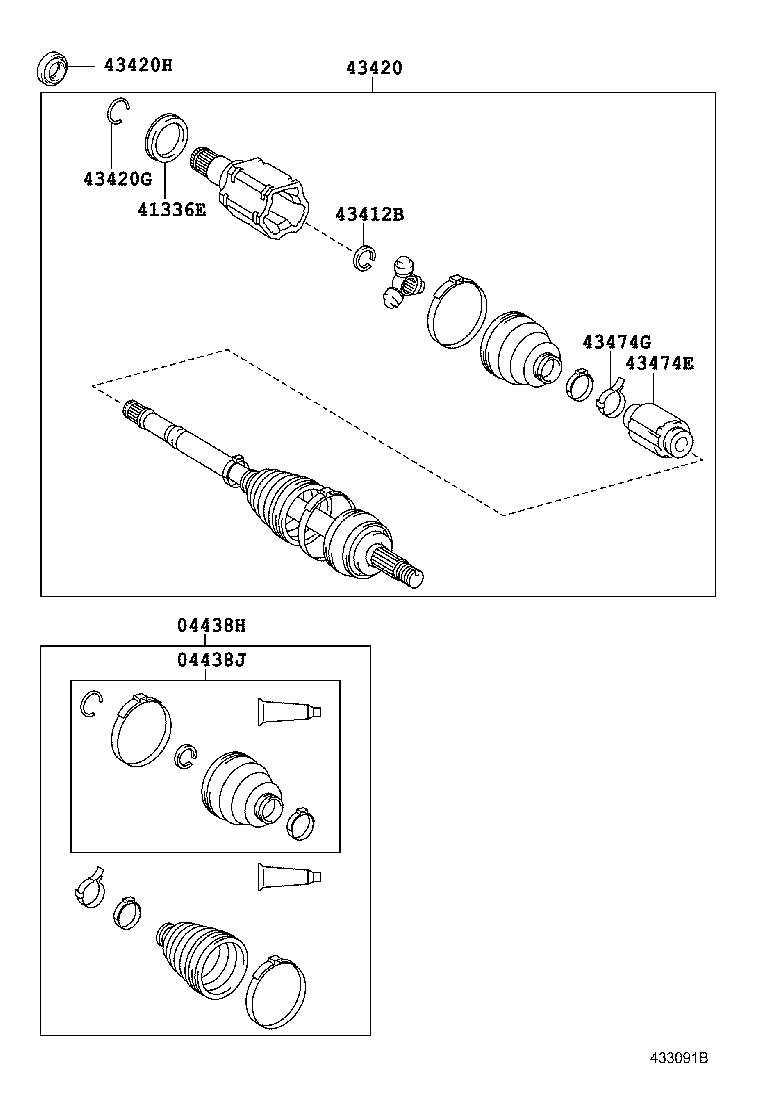

ILLUST NO. 2 OF 2(1312-1407)GSU5#,GVU58 ; (1312-1611)GSU50..G,M ;(1312- )ASU50
LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH | ||||
| 04428-06570 |
GSU5#,GVU58 |
1 | ||
| 04428-0W070 |
GSU5#,GVU58 |
1 | ||
| 04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH | ||||
| 04438-08130 |
GSU5#,GVU58 |
1 | ||
| 41336E - COVER, FRONT DRIVE SHAFT DUST, LH | ||||
| 41336-06060 |
GSU5# |
1 | ||
| 43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH) | ||||
| 43425-08040 |
ASU50,GSU5#,GVU58 |
1 | ||
| 43420 - SHAFT ASSY, FRONT DRIVE, LH | ||||
| 43420-0E100 |
GSU5# |
1 | ||
| 43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH) | ||||
| 90080-52017 |
ASU50,GSU5#,GVU58 |
1 | ||
| 43420H - OIL SEAL, FRONT DRIVE SHAFT, LH | ||||
| 90311-A0021 |
GSU5# TRANSAXLE NO.=3XXXXX |
1 | ||
| 90311-50045 |
GSU5# |
1 | ||
| 43474E - DAMPER, FRONT DRIVE SHAFT, LH | ||||
| 43474-06090 |
GSU5# |
1 | ||
| 43474-06310 |
GSU5# |
1 | ||
| 43474G - CLAMP (FOR FRONT DRIVE SHAFT DAMPER LH) | ||||
| 42345-06100 |
GSU5#,GVU58 |
1 | ||
| 42345-06790 |
GSU5#,GVU58 |
2 | ||
ILLUST NO. 1 OF 2(1407-1611)GSU50,GVU58
RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH | ||||
| 04428-0W070 |
GSU50,GVU58 |
1 | ||
| 04427-06540 |
GSU50,GVU58 |
1 | ||
| 04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH | ||||
| 04438-08130 |
GSU50,GVU58 |
1 | ||
| 04437-08050 |
GSU50,GVU58 |
1 | ||
| 41336D - COVER, FRONT DRIVE SHAFT DUST, RH | ||||
| 41336-06020 |
ASU50,GSU50,GVU58 |
1 | ||
| 43410 - SHAFT ASSY, FRONT DRIVE, RH | ||||
| 43410-0E140 |
GSU50 |
1 | ||
| 43410C - BEARING (FOR FRONT DRIVE SHAFT) | ||||
| 90080-36133 |
ASU50,GSU50,GVU58 |
1 | ||
| 43410M - OIL SEAL, FRONT DRIVE SHAFT, RH | ||||
| 90311-A0029 |
GSU50 TRANSAXLE NO.=3XXXXX |
1 | ||
| 90311-40038 |
GSU50 |
1 | ||
| 43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH) | ||||
| 90080-52013 |
ASU50,GSU50,GVU58 |
1 | ||
| 43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH) | ||||
| 43425-08040 |
ASU50,GSU5#,GVU58 |
1 | ||
| 43457A - BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1) | ||||
| 90119-10461 |
ASU50,GSU50,GVU58 *10-1.25PX19.8-8.3 |
1 | ||
| 43457B - RING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET) | ||||
| 90521-78002 |
ASU50,GSU50,GVU58 |
1 | ||
| 43458 - COVER, FRONT DRIVE SHAFT DUST | ||||
| 43458-06020 |
ASU50,GSU50,GVU58 |
1 | ||
| 43474D - DAMPER, FRONT DRIVE SHAFT, RH | ||||
| 43474-0W030 |
GSU50,GVU58 |
1 | ||
| 43474-06300 |
GSU50,GVU58 |
1 | ||
| 43474F - CLAMP (FOR FRONT DRIVE SHAFT DAMPER RH) | ||||
| 42345-06100 |
GSU50,GVU58 |
1 | ||
| 42345-06790 |
GSU50,GVU58 |
2 | ||
| 43474F - CLAMP (FOR FRONT DRIVE SHAFT DAMPER RH) | ||||
| 42345-06100 |
GSU50,GVU58 |
1 | ||
| 42345-06790 |
GSU50,GVU58 |
2 | ||

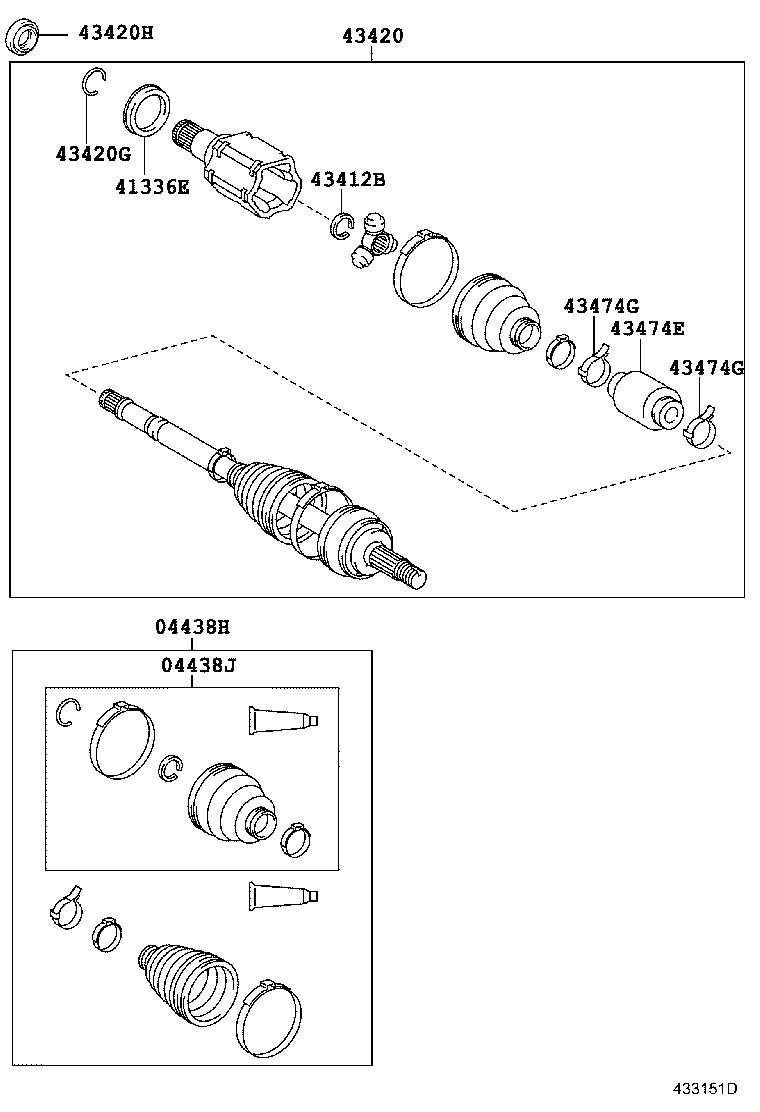

ILLUST NO. 2 OF 2(1407-1611)GSU5#,GVU58
LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH | ||||
| 04428-06570 |
GSU5#,GVU58 |
1 | ||
| 04428-0W070 |
GSU5#,GVU58 |
1 | ||
| 04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH | ||||
| 04438-08130 |
GSU5#,GVU58 |
1 | ||
| 41336E - COVER, FRONT DRIVE SHAFT DUST, LH | ||||
| 41336-06060 |
GSU5# |
1 | ||
| 43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH) | ||||
| 43425-08040 |
ASU50,GSU5#,GVU58 |
1 | ||
| 43420 - SHAFT ASSY, FRONT DRIVE, LH | ||||
| 43420-0E100 |
GSU5# |
1 | ||
| 43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH) | ||||
| 90080-52017 |
ASU50,GSU5#,GVU58 |
1 | ||
| 43420H - OIL SEAL, FRONT DRIVE SHAFT, LH | ||||
| 90311-A0021 |
GSU5# TRANSAXLE NO.=3XXXXX |
1 | ||
| 90311-50045 |
GSU5# |
1 | ||
| 43474E - DAMPER, FRONT DRIVE SHAFT, LH | ||||
| 43474-06090 |
GSU5# |
1 | ||
| 43474-06310 |
GSU5# |
1 | ||
| 43474G - CLAMP (FOR FRONT DRIVE SHAFT DAMPER LH) | ||||
| 42345-06100 |
GSU5#,GVU58 |
1 | ||
| 42345-06790 |
GSU5#,GVU58 |
2 | ||
| 43474G - CLAMP (FOR FRONT DRIVE SHAFT DAMPER LH) | ||||
| 42345-06100 |
GSU5#,GVU58 |
1 | ||
| 42345-06790 |
GSU5#,GVU58 |
2 | ||
