GSU50L-ARTNKA (2013)
Toyota Highlander (Nap)
ILLUST NO. 2 OF 3(1312- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42603 - ORNAMENT SUB-ASSY, WHEEL HUB | ||||
| 42603-48130 |
GVU58;GSU5#..G,M *ALU,TYPE A:REFER ILLUST. |
4 | ||
| 42603-08030 |
ASU50,GSU5#..N *ALU,TYPE A:REFER ILLUST. |
4 | ||
| 42603-48130 |
GSU5#..N *ALU,TIRE & DISK WHEEL-245/60R18 ALUMI,TYPE A:REFER ILLUST. |
4 | ||
| 42603-06150 |
ASU50,GSU5#,GVU58 *ALU,TYPE B:REFER ILLUST. |
4 | ||
| 42603-06160 |
ASU50,GSU5#,GVU58 *ALU,TYPE A:REFER ILLUST. |
4 | ||

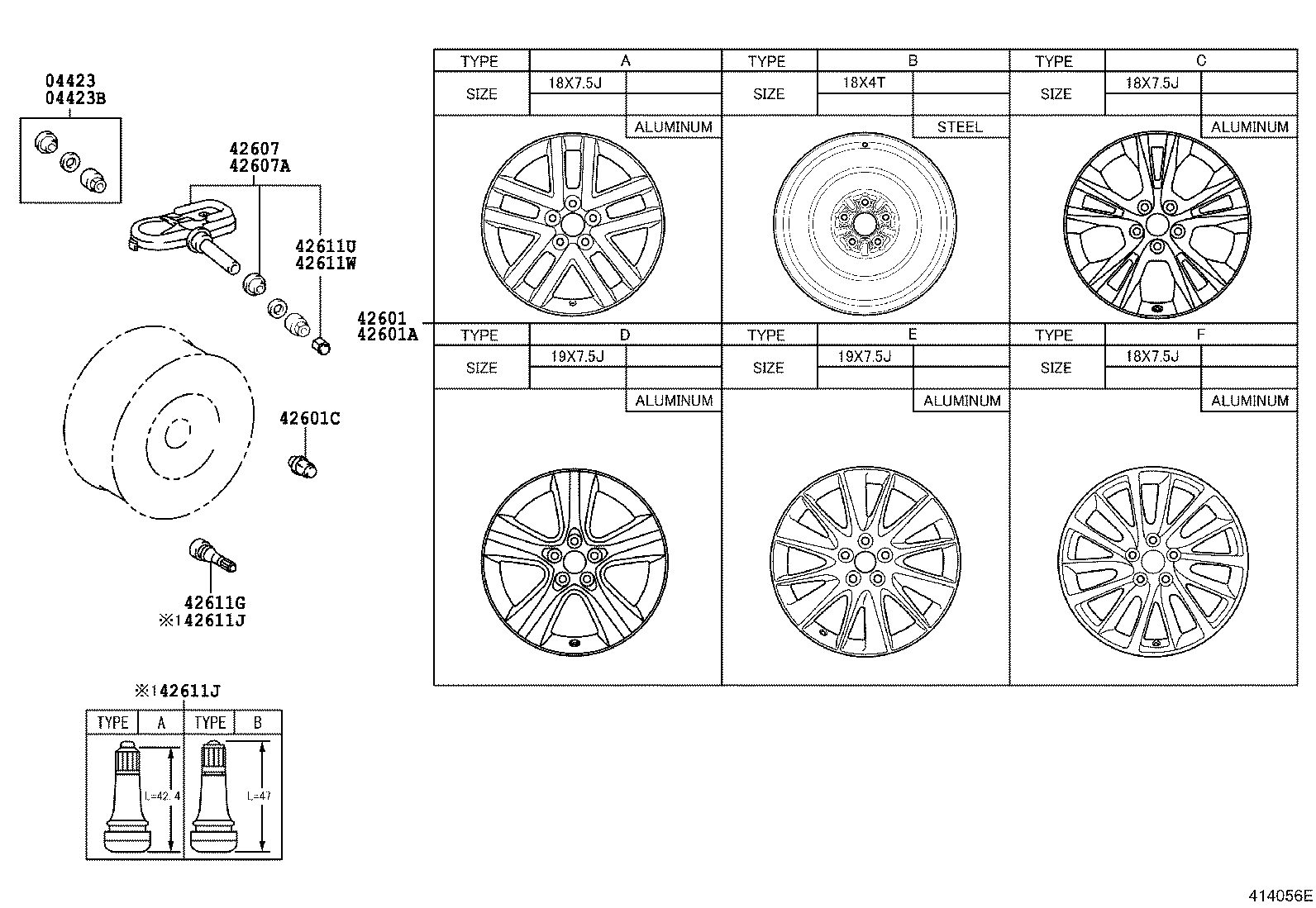

ILLUST NO. 1 OF 3(1312- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04423 - FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE | ||||
| 04423-0E010 |
GSU5#..G;GVU58..G,N |
4 | ||
| 04423-0E010 |
GSU5#,GVU58..M |
4 | ||
| 04423-0C170 |
ASU50,GSU5#..N |
4 | ||
| 04423B - FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE(SP | ||||
| 04423-0C170 |
GSU5#..N USA POSSESSION SPEC&LE PACKAGE |
1 | ||
| 42601 - WHEEL, DISC | ||||
| 42611-0E180 |
ASU50,GSU5#..N 18X7.5J,#,TYPE A:REFER ILLUST. |
4 | ||
| 4260D-0E010 |
GSU50..G 19X7.5J,#,MEXICO SPEC&TIRE & DISK WHEEL-245/55R19 CHROME PAINTED,TYPE D:REFER ILLUST. |
4 | ||
| 42611-0E260 |
GSU5#..N 18X7.5J,#,USA POSSESSION SPEC&LE PACKAGE,TYPE C:REFER ILLUST. |
4 | ||
| 4260D-0E010 |
GSU5#,GVU58..G 19X7.5J,#,TIRE & DISK WHEEL-245/55R19 CHROME PAINTED,TYPE D:REFER ILLUST. |
4 | ||
| 42611-0E260 |
GSU5#,GVU58..M 18X7.5J,#,TYPE C:REFER ILLUST. |
4 | ||
| 42611-0E290 |
GSU5#,GVU58..M 19X7.5J,#,USA POSSESSION SPEC&TIRE & DISK WHEEL-245/55R19 ALUMI,TYPE E:REFER ILLUST. |
4 | ||
| 42611-0E290 |
GSU5#,GVU58..M 19X7.5J,#,TIRE & DISK WHEEL-245/55R19 ALUMI,TYPE E:REFER ILLUST. |
4 | ||
| 42611-0E260 |
GSU5#..N 18X7.5J,#,LE PACKAGE,TYPE C:REFER ILLUST. |
4 | ||
| 4260D-0E010 |
GSU5#,GVU58..G 19X7.5J,#,USA POSSESSION SPEC&TIRE & DISK WHEEL-245/55R19 CHROME PAINTED,TYPE D:REFER ILLUST. |
4 | ||
| 42611-0E290 |
GSU5#,GVU58..G 19X7.5J,#,TYPE E:REFER ILLUST. |
4 | ||
| 42611-0E290 |
GSU50..M 19X7.5J,#,MEXICO SPEC&TIRE & DISK WHEEL-245/55R19 ALUMI,TYPE E:REFER ILLUST. |
4 | ||
| 42611-0E440 |
GSU5#,GVU58..M 18X7.5J,#,TYPE C:REFER ILLUST. |
4 | ||
| 42601A - WHEEL, DISC (FOR SPARE) | ||||
| 42611-0E260 |
GSU5#,GVU58..M 18X7.5J,#,USA POSSESSION SPEC,TYPE C:REFER ILLUST. |
1 | ||
| 4260D-0E010 |
GSU5#,GVU58..G 19X7.5J,#,USA POSSESSION SPEC&TIRE & DISK WHEEL-245/55R19 CHROME PAINTED,TYPE D:REFER ILLUST. |
1 | ||
| 42611-0E260 |
GSU50..M 18X7.5J,#,MEXICO SPEC,TYPE C:REFER ILLUST. |
1 | ||
| 42611-0E180 |
ASU50,GSU5#..N 18X7.5J,#,USA POSSESSION SPEC,TYPE A:REFER ILLUST. |
1 | ||
| 42611-0E260 |
GSU5#..N 18X7.5J,#,USA POSSESSION SPEC&LE PACKAGE,TYPE C:REFER ILLUST. |
1 | ||
| 42611-0E180 |
GSU50..N 18X7.5J,#,MEXICO SPEC,TYPE A:REFER ILLUST. |
1 | ||
| 42611-0E440 |
GSU5#,GVU58..M 18X7.5J,#,USA POSSESSION SPEC,TYPE C:REFER ILLUST. |
1 | ||
| 42611-0E290 |
GSU5#,GVU58..M 19X7.5J,#,USA POSSESSION SPEC&TIRE & DISK WHEEL-245/55R19 ALUMI,TYPE E:REFER ILLUST. |
1 | ||
| 42611-0E290 |
GSU50..M 19X7.5J,#,MEXICO SPEC&TIRE & DISK WHEEL-245/55R19 ALUMI,TYPE E:REFER ILLUST. |
1 | ||
| 4260D-0E010 |
GSU50..G 19X7.5J,#,MEXICO SPEC&TIRE & DISK WHEEL-245/55R19 CHROME PAINTED,TYPE D:REFER ILLUST. |
1 | ||
| 42611-0T030 |
ASU50,GSU5#,GVU58 18X4T,TYPE B:REFER ILLUST. |
1 | ||
| 42611-0E290 |
GSU50..G 19X7.5J,#,MEXICO SPEC,TYPE E:REFER ILLUST. |
1 | ||
| 42611-0E290 |
GSU5#,GVU58..G 19X7.5J,#,USA POSSESSION SPEC,TYPE E:REFER ILLUST. |
1 | ||
| 42611-0E440 |
GSU50..M 18X7.5J,#,MEXICO SPEC,TYPE C:REFER ILLUST. |
1 | ||
| 42601C - NUT, HUB (FOR AXLE) | ||||
| 90084-94001 |
ASU50,GSU5#,GVU58 |
20 | ||
| 42607 - VALVE SUB-ASSY, TIRE PRESSURE MONITOR | ||||
| 42607-06020 |
GSU5#,GVU58..M USA POSSESSION SPEC |
4 | ||
| 42607-06020 |
GSU5#..G;GVU58..G,N USA POSSESSION SPEC |
4 | ||
| 42607-0R010 |
ASU50,GSU5#..N |
4 | ||
| 42607-06020 |
GSU5#,GVU58..G USA POSSESSION SPEC&TIRE & DISK WHEEL-245/55R19 CHROME PAINTED |
4 | ||
| 42607-06020 |
GSU5#,GVU58..M USA POSSESSION SPEC&TIRE & DISK WHEEL-245/55R19 ALUMI |
4 | ||
| 42607-06020 |
GVU58;GSU5#..G,M |
4 | ||
| 42607A - VALVE SUB-ASSY, TIRE PRESSURE MONITOR (FOR SPARE) | ||||
| 42607-06020 |
GSU5#..M;GVU58..M,N USA POSSESSION SPEC |
1 | ||
| 42607-0R010 |
ASU50,GSU5#..N USA POSSESSION SPEC |
1 | ||
| 42607-0R010 |
GSU5#..N USA POSSESSION SPEC&LE PACKAGE |
1 | ||
| 42611G - VALVE (FOR TUBELESS TIRE) | ||||
| 90080-45006 |
GSU50..M MEXICO SPEC&TIRE & DISK WHEEL-245/55R19 ALUMI |
4 | ||
| 90080-45006 |
GSU50 MEXICO SPEC |
4 | ||
| 90080-45006 |
GSU50..G MEXICO SPEC&TIRE & DISK WHEEL-245/55R19 CHROME PAINTED |
4 | ||
| 42611J - VALVE (FOR TUBELESS TIRE SPARE) | ||||
| 90080-45001 |
ASU50,GSU5#,GVU58 TYPE A:REFER ILLUST. |
1 | ||
| 90080-45006 |
GSU50..M MEXICO SPEC&TIRE & DISK WHEEL-245/55R19 ALUMI |
1 | ||
| 90080-45006 |
GSU50..G MEXICO SPEC&TIRE & DISK WHEEL-245/55R19 CHROME PAINTED |
1 | ||
| 90080-45006 |
ASU50,GSU5#,GVU58 TYPE B:REFER ILLUST. |
1 | ||
| 90080-45006 |
GSU50 MEXICO SPEC |
1 | ||
| 42611J - VALVE (FOR TUBELESS TIRE SPARE) | ||||
| 90080-45001 |
ASU50,GSU5#,GVU58 TYPE A:REFER ILLUST. |
1 | ||
| 90080-45006 |
GSU50..M MEXICO SPEC&TIRE & DISK WHEEL-245/55R19 ALUMI |
1 | ||
| 90080-45006 |
GSU50..G MEXICO SPEC&TIRE & DISK WHEEL-245/55R19 CHROME PAINTED |
1 | ||
| 90080-45006 |
ASU50,GSU5#,GVU58 TYPE B:REFER ILLUST. |
1 | ||
| 90080-45006 |
GSU50 MEXICO SPEC |
1 | ||
| 42611U - CAP, TIRE VALVE | ||||
| 90942-A5004 |
ASU50,GSU5#..N |
4 | ||
| 90942-A5002 |
GSU5#,GVU58..M USA POSSESSION SPEC |
4 | ||
| 90942-A5002 |
GVU58;GSU5#..G,M |
4 | ||
| 90942-A5002 |
GSU5#,GVU58..M USA POSSESSION SPEC&TIRE & DISK WHEEL-245/55R19 ALUMI |
4 | ||
| 90942-A5002 |
GSU5#..G;GVU58..G,N USA POSSESSION SPEC |
4 | ||
| 90942-A5002 |
GSU5#,GVU58..G USA POSSESSION SPEC&TIRE & DISK WHEEL-245/55R19 CHROME PAINTED |
4 | ||
| 42611W - CAP, TIRE VALVE (FOR SPARE) | ||||
| 90942-A5004 |
GSU5#..N USA POSSESSION SPEC&LE PACKAGE |
1 | ||
| 90942-A5002 |
GSU5#..M;GVU58..M,N USA POSSESSION SPEC |
1 | ||
| 90942-A5004 |
ASU50,GSU5#..N USA POSSESSION SPEC |
1 | ||

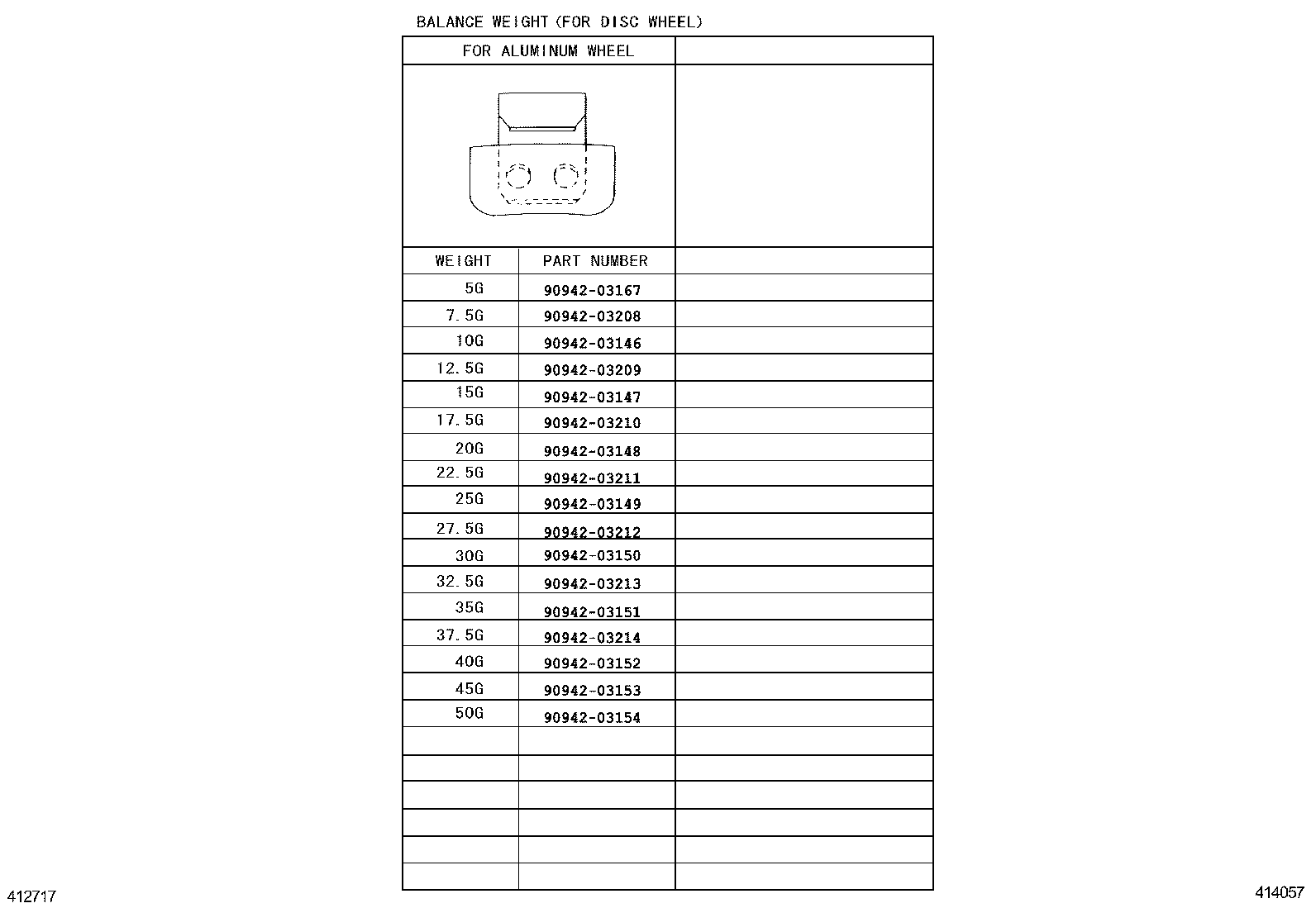

ILLUST NO. 3 OF 3(1312- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90942-03146 | ||||
| 90942-03147 | ||||
| 90942-03148 | ||||
| 90942-03149 | ||||
| 90942-03150 | ||||
| 90942-03151 | ||||
| 90942-03152 | ||||
| 90942-03153 | ||||
| 90942-03154 | ||||
| 90942-03167 | ||||
| 90942-03208 | ||||
| 90942-03209 | ||||
| 90942-03210 | ||||
| 90942-03211 | ||||
| 90942-03212 | ||||
| 90942-03213 | ||||
| 90942-03214 | ||||
