GSU50L-ARTNKA (2013)

Toyota Highlander (Nap)

Production Dec 2013 - Nov 2016
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1312-1611)GSU5#

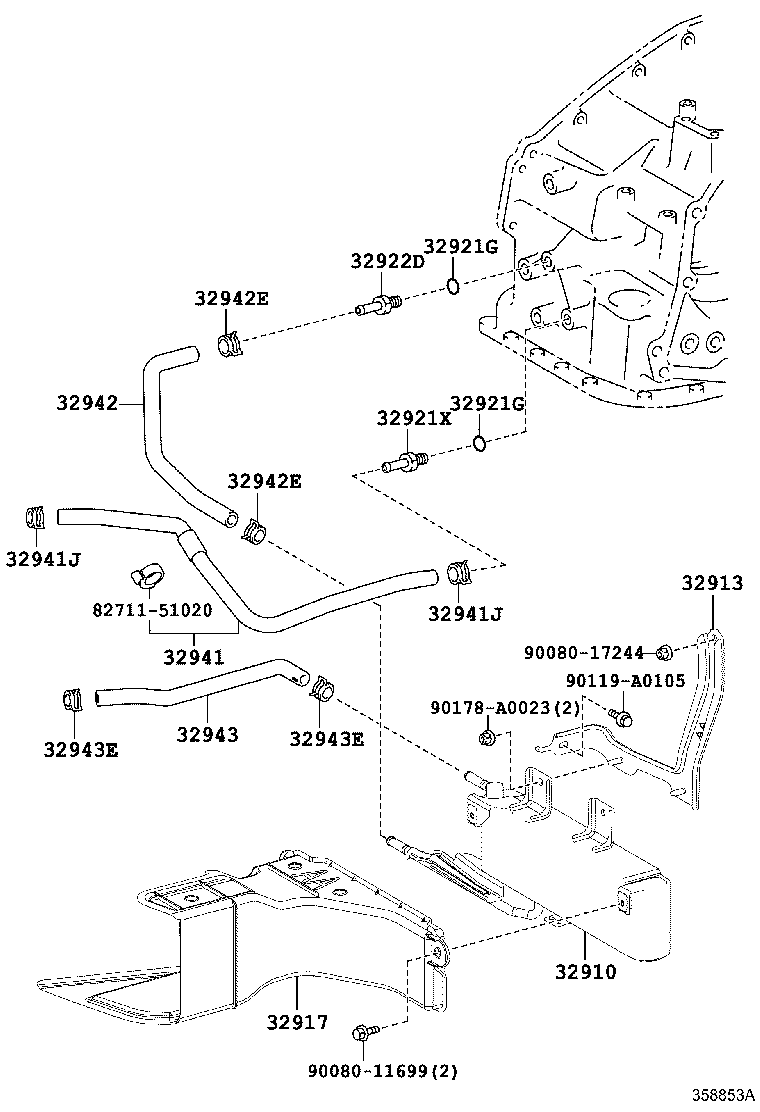

Click highlighted areas on diagram

U660E,U660F,TOWING PACKAGE-5000LBS

diagram 32910 32913 32917 32921G 32921G 32921X 32922D 32941 32941J 32941J 32942 32942E 32942E 32943 32943E 32943E 8271151020 9008011699 9008017244 90119A0105 90178A0023
Part # Description Qty Price
32910 - COOLER ASSY, OIL
32910-48190

GSU5#

TOWING PACKAGE-5000LBS

 1
32913 - BRACKET, OIL COOLER
32913-48030

GSU5#

TOWING PACKAGE-5000LBS

 1
32917 - DUCT, TRANSMISSION OIL COOLER AIR
32917-0E010

GSU5#

TOWING PACKAGE-5000LBS

 1
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-A0022

GSU5#

 2
90301-11031

GSU5#

 2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-A0022

GSU5#

 2
90301-11031

GSU5#

 2
32921X - UNION OR ELBOW, OIL COOLER INLET
90404-14027

ASU50,GSU5#

 1
90404-A0002

ASU50,GSU5#

 1
90404-14027

ASU50,GSU5#

 1
32922D - UNION OR ELBOW, OIL COOLER OUTLET
90404-14027

ASU50,GSU5#

 1
90404-14027

ASU50,GSU5#

 1
90404-A0002

ASU50,GSU5#

 1
32941 - HOSE, OIL COOLER INLET, NO.1
32930-0E050

GSU5#

 1
32941J - CLIP, NO.1(FOR OIL COOLER HOSE)
90466-A0014

ASU50,GSU5#

 2
32941J - CLIP, NO.1(FOR OIL COOLER HOSE)
90466-A0014

ASU50,GSU5#

 2
32942 - HOSE, OIL COOLER OUTLET, NO.1
32942-0E110

GSU5#

TOWING PACKAGE-5000LBS

 1
32942-0E080

GSU5#

 1
32942E - CLIP, NO.2(FOR OIL COOLER HOSE)
90466-A0014

ASU50,GSU5#

 2
32942E - CLIP, NO.2(FOR OIL COOLER HOSE)
90466-A0014

ASU50,GSU5#

 2
32943 - HOSE, TRANSMISSION OIL COOLER, NO.1
32943-0E100

GSU5#

TOWING PACKAGE-5000LBS

 1
32943E - CLIP, NO.3(FOR OIL COOLER HOSE)
90466-A0014

GSU5#

TOWING PACKAGE-5000LBS

 2
32943E - CLIP, NO.3(FOR OIL COOLER HOSE)
90466-A0014

GSU5#

TOWING PACKAGE-5000LBS

 2
Common parts
82711-51020
90080-11699
90080-17244
90119-A0105
90178-A0023

(1312-1611)GSU5#

Click highlighted areas on diagram

U660E,U660F

diagram 32921G 32921G 32921X 32922D 32941 32941J 32941J 32942 32942E 32942E 8271151020
Part # Description Qty Price
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-A0022

GSU5#

 2
90301-11031

GSU5#

 2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-A0022

GSU5#

 2
90301-11031

GSU5#

 2
32921X - UNION OR ELBOW, OIL COOLER INLET
90404-14027

ASU50,GSU5#

 1
90404-A0002

ASU50,GSU5#

 1
90404-14027

ASU50,GSU5#

 1
32922D - UNION OR ELBOW, OIL COOLER OUTLET
90404-14027

ASU50,GSU5#

 1
90404-14027

ASU50,GSU5#

 1
90404-A0002

ASU50,GSU5#

 1
32941 - HOSE, OIL COOLER INLET, NO.1
32930-0E050

GSU5#

 1
32941J - CLIP, NO.1(FOR OIL COOLER HOSE)
90466-A0014

ASU50,GSU5#

 2
32941J - CLIP, NO.1(FOR OIL COOLER HOSE)
90466-A0014

ASU50,GSU5#

 2
32942 - HOSE, OIL COOLER OUTLET, NO.1
32942-0E110

GSU5#

TOWING PACKAGE-5000LBS

 1
32942-0E080

GSU5#

 1
32942E - CLIP, NO.2(FOR OIL COOLER HOSE)
90466-A0014

ASU50,GSU5#

 2
32942E - CLIP, NO.2(FOR OIL COOLER HOSE)
90466-A0014

ASU50,GSU5#

 2
Common parts
82711-51020
