GSU50L-ARTNKA (2013)

Toyota Highlander (Nap)

Production Dec 2013 - Nov 2016
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

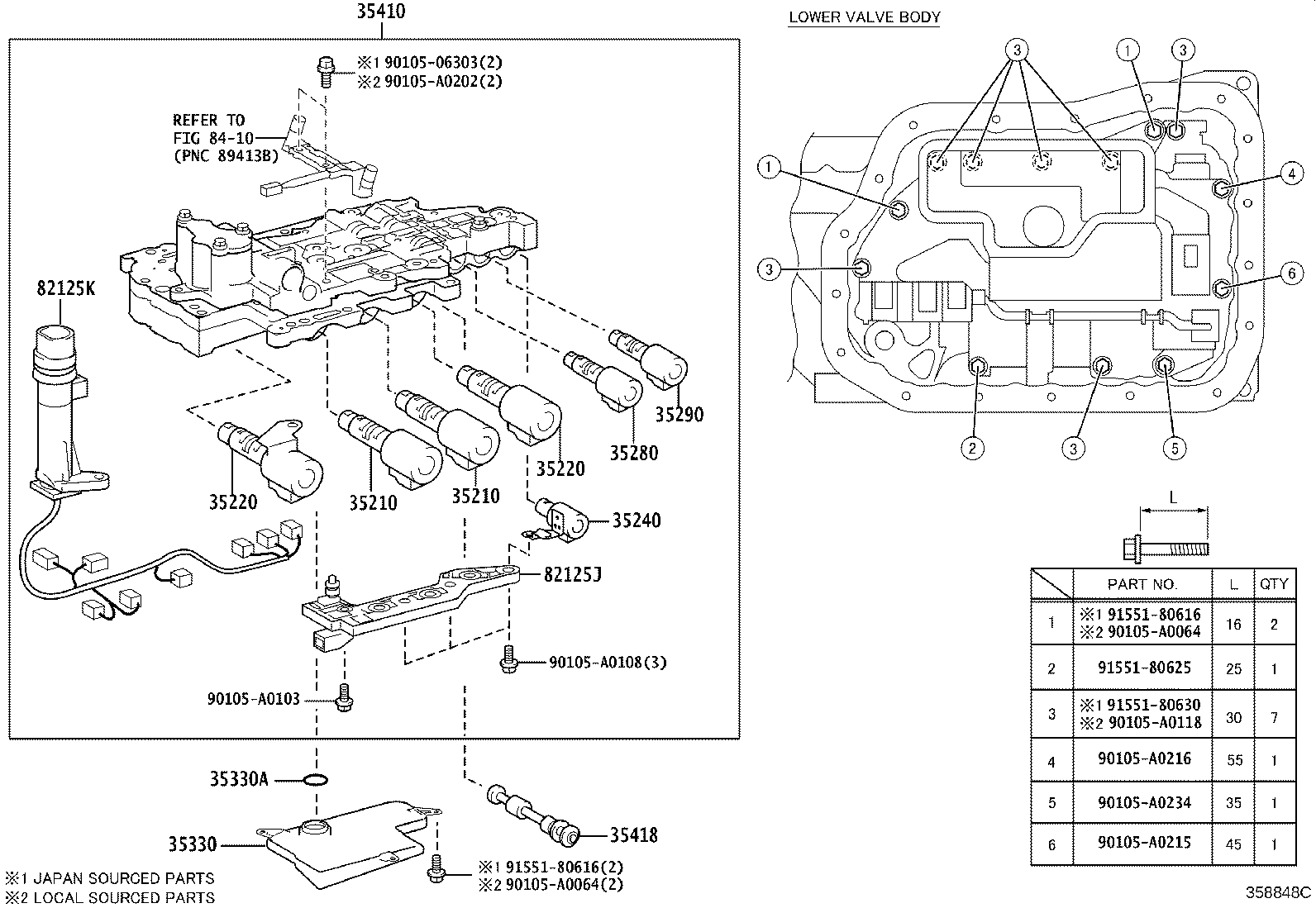

ILLUST NO. 1 OF 2(1312-1611)GSU5#

Click highlighted areas on diagram

U660E,U660F

diagram 35210 35210 35220 35220 35240 35280 35290 35330 35330A 35410 35418 82125J 82125K 8410 9010506303 90105A0064 90105A0064 90105A0103 90105A0108 90105A0118 90105A0202 90105A0215 90105A0216 90105A0234 9155180616 9155180616 9155180625 9155180630
Part # Description Qty Price
35210 - SOLENOID ASSY, CLUTCH CONTROL, NO.1
35210-33030

GSU5#

 2
35210 - SOLENOID ASSY, CLUTCH CONTROL, NO.1
35210-33030

GSU5#

 2
35220 - SOLENOID ASSY, CLUTCH CONTROL, NO.2
35220-33040

GSU5#

 2
35220 - SOLENOID ASSY, CLUTCH CONTROL, NO.2
35220-33040

GSU5#

 2
35240 - SOLENOID ASSY, AUTOMATIC TRANSMISSION 3WAY
35240-73010

ASU50,GSU5#

 1
35280 - SOLENOID ASSY, LOCK UP CONTROL
35280-52040

GSU5#

 1
35290 - SOLENOID ASSY, LINE PRESSURE CONTROL
35290-33040

ASU50,GSU5#

 1
35330 - STRAINER ASSY, VALVE BODY OIL
35330-48020

GSU5#

 1
35330A - RING, O (FOR OIL STRAINER)
90301-27015

GSU5#

*322

 1
90301-A0026

GSU5#

*323

 1
35410 - BODY ASSY, TRANSMISSION VALVE
35410-33240

GSU5#

 1
35410-08021

GSU5#

 1
35418 - VALVE, MANUAL
35418-73010

ASU50,GSU5#

 1
82125J - WIRE, TRANSMISSION
82125-33150

GSU5#

 1
82125K - WIRE, TRANSMISSION
82125-33160

GSU5#

 1
Common parts
90105-06303
90105-A0064
90105-A0103
90105-A0108
90105-A0118
90105-A0202
90105-A0215
90105-A0216
90105-A0234
91551-80616
91551-80625
91551-80630
Linked diagrams
8410

ILLUST NO. 2 OF 2(1312-1611)GSU5# ; (1312- )ASU50

Click highlighted areas on diagram

U660E,U660F,U760E

diagram 35196 35409 35599 35882A 9008010400 9008010400 9155180816
Part # Description Qty Price
35196 - CLAMP, TRANSAXLE APPLY TUBE, NO.2
35196-33010

ASU50,GSU5#

 1
35409 - SPRING SUB-ASSY, MANUAL DETENT
35409-33010

ASU50,GSU5#

 1
35599 - COVER, MANUAL DETENT SPRING
35599-33010

ASU50,GSU5#

 1
35882A - TUBE, DIFFERENTIAL GEAR LUBE APPLY
35882-07010

GSU5#

 1
35882-33040

GSU5#

 1
Common parts
90080-10400
91551-80816
