GSU50L-ARTNKA (2013)

Toyota Highlander (Nap)

Production Dec 2013 - Nov 2016
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1312-1611)GSU5#

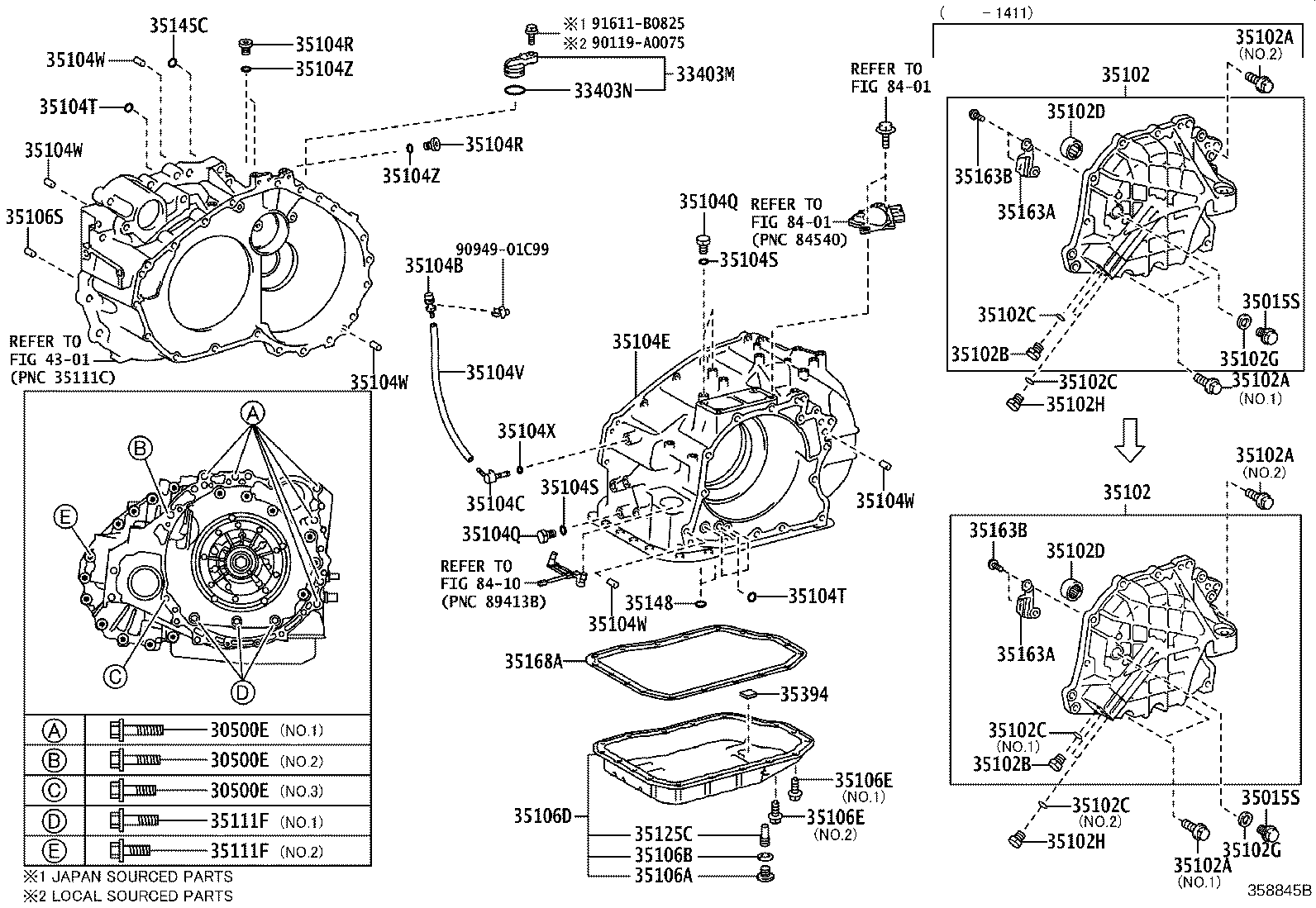

Click highlighted areas on diagram

U660E.U660F

diagram 30500E 30500E 30500E 33403M 33403N 35015S 35015S 35102 35102 35102A 35102A 35102A 35102A 35102B 35102B 35102C 35102C 35102C 35102C 35102D 35102D 35102G 35102G 35102H 35102H 35104B 35104C 35104E 35104Q 35104Q 35104R 35104R 35104S 35104S 35104T 35104T 35104V 35104W 35104W 35104W 35104W 35104W 35104X 35104Z 35104Z 35106A 35106B 35106D 35106E 35106E 35106S 35111F 35111F 35125C 35145C 35148 35163A 35163A 35163B 35163B 35168A 35394 4301 8401 8401 8410 90119A0075 9094901C99 91611B0825
Part # Description Qty Price
30500E - BOLT(FOR TRANSAXLE & ENGINE SETTING)
90080-11310

GSU5#

*12-1.25PX55-30,NO.1

 6
90080-10338

GSU5#

*10-1.25PX41-30,NO.3

 1
90080-11604

GSU5#

*12-1.25PX50-30,NO.2

 1
30500E - BOLT(FOR TRANSAXLE & ENGINE SETTING)
90080-11310

GSU5#

*12-1.25PX55-30,NO.1

 6
90080-10338

GSU5#

*10-1.25PX41-30,NO.3

 1
90080-11604

GSU5#

*12-1.25PX50-30,NO.2

 1
30500E - BOLT(FOR TRANSAXLE & ENGINE SETTING)
90080-11310

GSU5#

*12-1.25PX55-30,NO.1

 6
90080-10338

GSU5#

*10-1.25PX41-30,NO.3

 1
90080-11604

GSU5#

*12-1.25PX50-30,NO.2

 1
33403M - COVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE (ATM)
33403-35230

GSU5#

 1
33403N - RING, O (FOR ATM SPEEDOMETER DRIVEN HOLE COVER)
96711-24030

GSU5#

 1
35015S - PLUG, STRAIGHT(FOR TRANSMISSION CASE ADAPTER)
90341-18064

GSU5#

 1
90341-A0003

GSU5#

 1
35015S - PLUG, STRAIGHT(FOR TRANSMISSION CASE ADAPTER)
90341-18064

GSU5#

 1
90341-A0003

GSU5#

 1
35102 - COVER SUB-ASSY, TRANSAXLE REAR
35102-33061

GSU5#

 1
35102-07012

GSU5#

 1
35102 - COVER SUB-ASSY, TRANSAXLE REAR
35102-33061

GSU5#

 1
35102-07012

GSU5#

 1
35102A - BOLT (FOR TRANSAXLE REAR COVER SETTING)
91551-00828

GSU5#

*8-1.25PX28-22,NO.2

 12
90105-08431

GSU5#

*8-1.25PX28-22,NO.1

 2
90105-A0213

GSU5#

*8-1.25PX28-22,NO.2

 12
90105-A0109

GSU5#

*8-1.25PX28-22,NO.1

 2
35102A - BOLT (FOR TRANSAXLE REAR COVER SETTING)
91551-00828

GSU5#

*8-1.25PX28-22,NO.2

 12
90105-08431

GSU5#

*8-1.25PX28-22,NO.1

 2
90105-A0213

GSU5#

*8-1.25PX28-22,NO.2

 12
90105-A0109

GSU5#

*8-1.25PX28-22,NO.1

 2
35102A - BOLT (FOR TRANSAXLE REAR COVER SETTING)
91551-00828

GSU5#

*8-1.25PX28-22,NO.2

 12
90105-08431

GSU5#

*8-1.25PX28-22,NO.1

 2
90105-A0213

GSU5#

*8-1.25PX28-22,NO.2

 12
90105-A0109

GSU5#

*8-1.25PX28-22,NO.1

 2
35102A - BOLT (FOR TRANSAXLE REAR COVER SETTING)
91551-00828

GSU5#

*8-1.25PX28-22,NO.2

 12
90105-08431

GSU5#

*8-1.25PX28-22,NO.1

 2
90105-A0213

GSU5#

*8-1.25PX28-22,NO.2

 12
90105-A0109

GSU5#

*8-1.25PX28-22,NO.1

 2
35102B - PLUG(FOR TRANSAXLE REAR COVER)
90080-34016

GSU5#

 1
90341-08001

GSU5#

 1
35102B - PLUG(FOR TRANSAXLE REAR COVER)
90341-08001

GSU5#

 1
90080-34016

GSU5#

 1
35102C - RING, O(FOR TRANSAXLE REAR COVER PULG)
90080-30105

GSU5#

NO.2

 2
90301-06196

GSU5#

 3
90080-30075

GSU5#

NO.1

 1
35102C - RING, O(FOR TRANSAXLE REAR COVER PULG)
90080-30105

GSU5#

NO.2

 2
90301-06196

GSU5#

 3
90080-30075

GSU5#

NO.1

 1
35102C - RING, O(FOR TRANSAXLE REAR COVER PULG)
90080-30105

GSU5#

NO.2

 2
90301-06196

GSU5#

 3
90080-30075

GSU5#

NO.1

 1
35102C - RING, O(FOR TRANSAXLE REAR COVER PULG)
90080-30105

GSU5#

NO.2

 2
90301-06196

GSU5#

 3
90080-30075

GSU5#

NO.1

 1
35102D - BEARING, NEEDLE ROLLER(FOR TRANSAXLE REAR COVER)
90080-36120

GSU5#

 1
90364-18010

GSU5#

 1
35102D - BEARING, NEEDLE ROLLER(FOR TRANSAXLE REAR COVER)
90080-36120

GSU5#

 1
90364-18010

GSU5#

 1
35102G - GASKET (FOR TRANSAXLE REAR COVER )
90430-A0003

GSU5#

 1
90430-18008

GSU5#

 1
35102G - GASKET (FOR TRANSAXLE REAR COVER )
90430-A0003

GSU5#

 1
90430-18008

GSU5#

 1
35102H - PLUG, NO.2 (FOR TRANSAXLE REAR COVER)
90341-A0001

GSU5#

 2
90341-08001

GSU5#

 2
35102H - PLUG, NO.2 (FOR TRANSAXLE REAR COVER)
90341-A0001

GSU5#

 2
90341-08001

GSU5#

 2
35104B - PLUG, BREATHER, NO.1 (ATM)
90930-03149

ASU50,GSU5#

 1
35104C - PLUG, BREATHER, NO.2 (ATM)
90930-03187

ASU50,GSU5#

 1
35104E - CASE SUB-ASSY, AUTOMATIC TRANSAXLE
35141-33072

GSU5#

 1
35141-07014

GSU5#

 1
35141-07015

GSU5#

 1
35141-33073

GSU5#

 1
35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE)
90341-08001

GSU5#

 3
90341-A0001

GSU5#

 3
35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE)
90341-08001

GSU5#

 3
90341-A0001

GSU5#

 3
35104R - PLUG, NO.2 (FOR TRANSAXLE CASE)
90341-14015

GSU5#

 3
90341-A0005

GSU5#

 3
35104R - PLUG, NO.2 (FOR TRANSAXLE CASE)
90341-14015

GSU5#

 3
90341-A0005

GSU5#

 3
35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1)
90080-30105

GSU5#

 3
90301-06196

GSU5#

 3
35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1)
90080-30105

GSU5#

 3
90301-06196

GSU5#

 3
35104T - RING, O (FOR TRANSAXLE CASE PLUG NO.2)
90301-A0016

GSU5#

 4
90301-10018

GSU5#

 4
35104T - RING, O (FOR TRANSAXLE CASE PLUG NO.2)
90301-A0016

GSU5#

 4
90301-10018

GSU5#

 4
35104V - HOSE (FOR BREATHER PLUG)
35121-73011

ASU50,GSU5#

 1
35104W - PIN, STRAIGHT (FOR TRANSAXLE CASE)
90250-10017

ASU50,GSU5#

 5
35104W - PIN, STRAIGHT (FOR TRANSAXLE CASE)
90250-10017

ASU50,GSU5#

 5
35104W - PIN, STRAIGHT (FOR TRANSAXLE CASE)
90250-10017

ASU50,GSU5#

 5
35104W - PIN, STRAIGHT (FOR TRANSAXLE CASE)
90250-10017

ASU50,GSU5#

 5
35104W - PIN, STRAIGHT (FOR TRANSAXLE CASE)
90250-10017

ASU50,GSU5#

 5
35104X - RING, O (FOR BREATHER PLUG)
90301-06021

ASU50,GSU5#

 1
35104Z - GASKET (FOR TRANSAXLE CASE)
90430-14008

ASU50,GSU5#

 3
35104Z - GASKET (FOR TRANSAXLE CASE)
90430-14008

ASU50,GSU5#

 3
35106A - PLUG SUB-ASSY, DRAIN (ATM)
90341-12034

ASU50,GSU5#

 1
35106B - GASKET, DRAIN PLUG (ATM)
90430-A0002

GSU5#

 1
90430-12008

GSU5#

 1
35106D - PAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL
35106-48010

GSU5#

 1
35106-07010

GSU5#

 1
35106E - BOLT (FOR TRANSAXLE OIL PAN)
90080-11496

GSU5#

NO.2

 1
90119-06173

GSU5#

 18
90119-A0298

GSU5#

NO.1

 17
35106E - BOLT (FOR TRANSAXLE OIL PAN)
90080-11496

GSU5#

NO.2

 1
90119-06173

GSU5#

 18
90119-A0298

GSU5#

NO.1

 17
35106S - PIN, RING (FOR TRANSAXLE CASE)
90253-11007

GSU5#

 1
90253-A0012

GSU5#

 1
35111F - BOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)
90105-A0110

GSU5#

*8-1.25PX45-22,NO.1

 3
90105-08432

GSU5#

*8-1.25PX45-22,NO.1

 3
90105-A0111

GSU5#

*8-1.25PX45-22,NO.2

 17
91551-10845

GSU5#

*8-1.25PX45-22,NO.2

 17
35111F - BOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)
90105-A0110

GSU5#

*8-1.25PX45-22,NO.1

 3
90105-08432

GSU5#

*8-1.25PX45-22,NO.1

 3
90105-A0111

GSU5#

*8-1.25PX45-22,NO.2

 17
91551-10845

GSU5#

*8-1.25PX45-22,NO.2

 17
35125C - TUBE, TRANSMISSION OIL FILLER, NO.1
35125-33130

GSU5#

 1
35125-07020

GSU5#

 1
35145C - GASKET, TRANSAXLE CASE
35145-33010

GSU5#

 1
35145-07010

GSU5#

 1
35148 - GASKET, GOVERNOR APPLY, NO.1
35145-07010

GSU5#

 2
35145-33010

GSU5#

 2
35163A - PLATE, TRANSAXLE REAR COVER
35163-33010

GSU5#

 1
35163-07010

GSU5#

 1
35163A - PLATE, TRANSAXLE REAR COVER
35163-33010

GSU5#

 1
35163-07010

GSU5#

 1
35163B - SCREW, HEX LOBULAR(FOR TRANSAXLE REAR COVER PLATE)
90080-14046

GSU5#

 2
90148-60055

GSU5#

 2
35163B - SCREW, HEX LOBULAR(FOR TRANSAXLE REAR COVER PLATE)
90080-14046

GSU5#

 2
90148-60055

GSU5#

 2
35168A - GASKET, AUTOMATIC TRANSAXLE OIL PAN
35168-33080

GSU5#

 1
35168-08010

GSU5#

 1
35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION)
35394-30011

GSU5#

 2
35394-08010

GSU5#

 2
Common parts
90119-A0075
90949-01C99
91611-B0825
Linked diagrams
4301
8401
8410
