GSU50L-ARTNKA (2013)

Toyota Highlander (Nap)

Production Dec 2013 - Nov 2016
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1312-1611)2GRFE

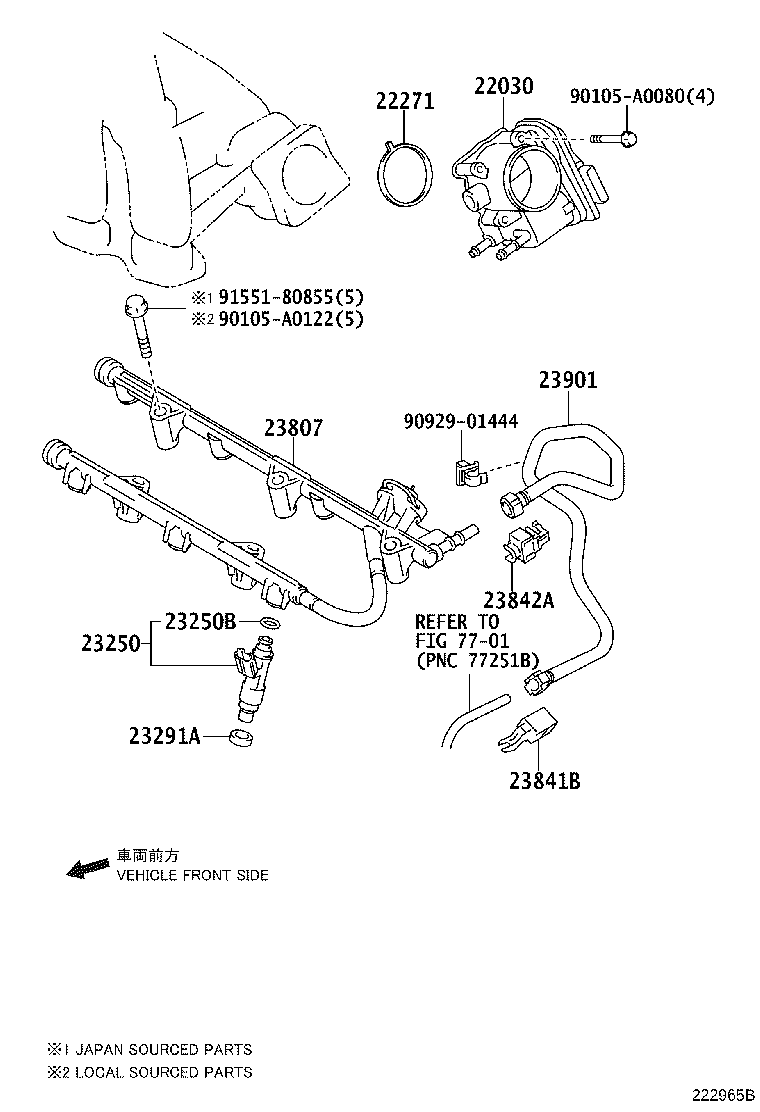

Click highlighted areas on diagram

diagram 22030 22271 23250 23250B 23291A 23807 23841B 23842A 23901 7701 90105A0080 90105A0122 9092901444 9155180855
Part # Description Qty Price
22030 - BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22030-0P050

2GR#..GSU5#,GVU58

 1
22271 - GASKET, THROTTLE BODY
22271-0P020

2GRFE..GSU5#

 1
23250 - INJECTOR ASSY, FUEL
23209-31090

2GRFE..GSU5#

(J)

 6
23209-0P010

2GRFE..GSU5#

(L)

 6
23250B - RING, O(FOR FUEL INJECTOR)
90301-07033

2GR#..GSU5#,GVU58

 6
90301-A0037

2GRFE..GSU5#

(L)

 6
90301-07033

2GRFE..GSU5#

(J)

 6
23291A - INSULATOR, INJECTOR VIBRATION
23291-23010

2GRFE..GSU5#

 6
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23870-0P011

2GRFE..GSU5#

(L)

 1
23870-31010

2GR#..GSU5#,GVU58

(J)

 1
23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI)
23841-21050

2GR#..GSU5#,GVU58

 1
23842A - CLAMP, FUEL PIPE, NO.2(FOR EFI)
23842-31040

2GR#..GSU5#,GVU58

 1
23901 - TUBE SUB-ASSY, FUEL
23901-0P050

2GRFE..GSU5#

 1
Common parts
90105-A0080
90105-A0122
90929-01444
91551-80855
Linked diagrams
7701
