GSU50L-ARTNKA (2013)

Toyota Highlander (Nap)

Production Dec 2013 - Nov 2016
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1312-1611)2GRFE

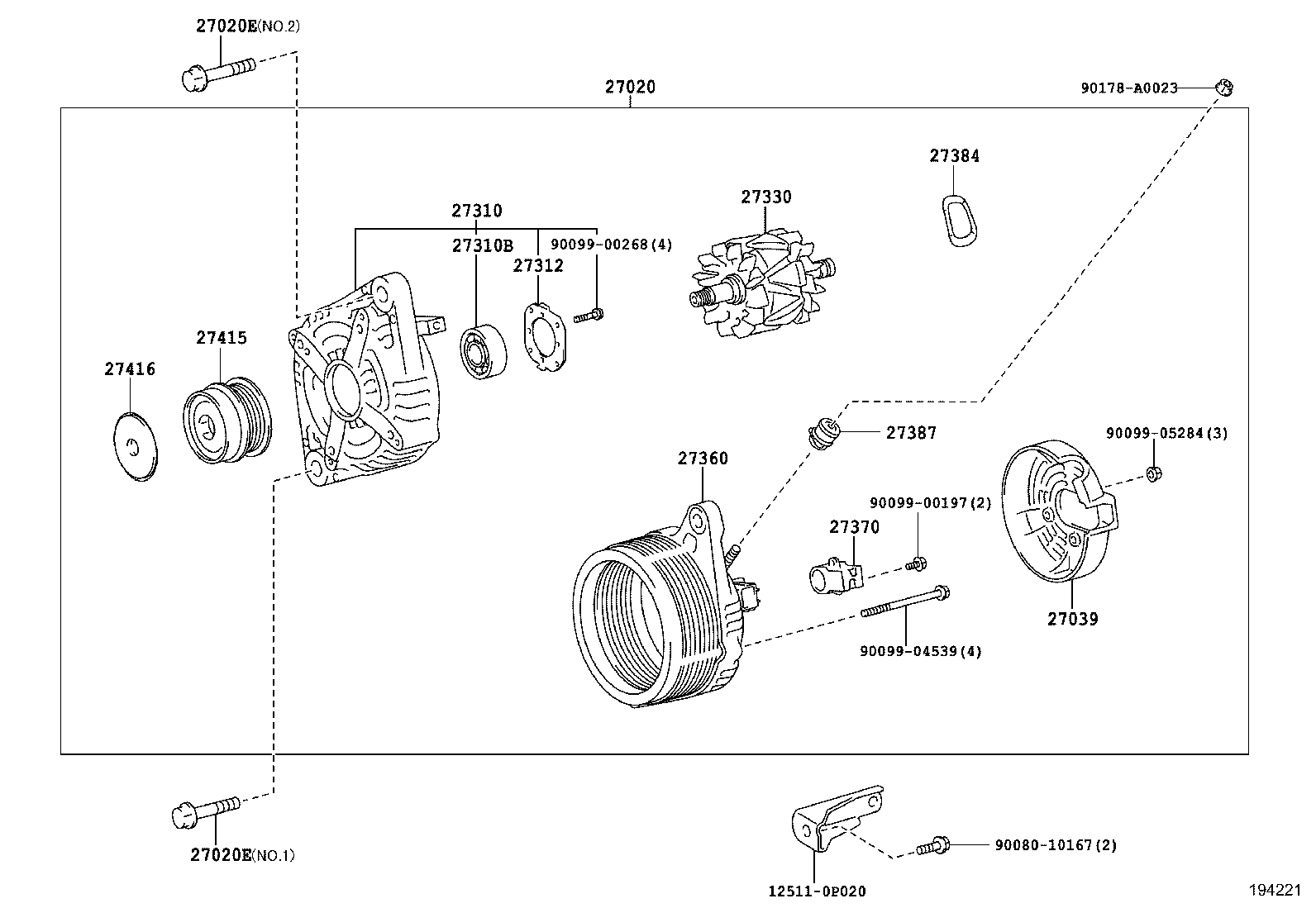

Click highlighted areas on diagram

12V 130A

diagram 125110P020 27020 27020E 27020E 27039 27310 27310B 27312 27330 27360 27370 27384 27387 27415 27416 9008010167 9009900197 9009900268 9009904539 9009905284 90178A0023
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-0P241

2GRFE..GSU5#

12V 150A

 1
27020E - BOLT(FOR ALTERNATOR)
90105-A0107

1ARFE,2GRFE..ASU50,GSU5#

NO.1

 1
90105-A0129

2GRFE..GSU5#

NO.2

 1
27020E - BOLT(FOR ALTERNATOR)
90105-A0107

1ARFE,2GRFE..ASU50,GSU5#

NO.1

 1
90105-A0129

2GRFE..GSU5#

NO.2

 1
27039 - COVER, ALTERNATOR REAR END
27039-0T040

1ARFE,2GRFE..ASU50,GSU5#

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-0P140

2GRFE..GSU5#

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90068-10033

1ARFE,2GRFE..ASU50,GSU5#

 1
27312 - PLATE, RETAINER
27312-72100

1ARFE,2GRFE..ASU50,GSU5#

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-0A110

1ARFE,2GRFE..ASU50,GSU5#

 1
27360 - COIL ASSY, ALTERNATOR
27360-0P240

2GRFE..GSU5#

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-0P020

1ARFE,2GRFE..ASU50,GSU5#

 1
27384 - WASHER
27384-0A020

1ARFE,2GRFE..ASU50,GSU5#

 1
27387 - INSULATOR, TERMINAL
27387-0V060

1ARFE,2GRFE..ASU50,GSU5#

 1
27415 - PULLEY, ALTERNATOR W/CLUTCH
27415-0W131

2GRFE..GSU5#

 1
27416 - CAP, ALTERNATOR PULLEY
27416-0W050

1ARFE,2GRFE..ASU50,GSU5#

 1
Common parts
12511-0P020
90080-10167
90099-00197
90099-00268
90099-04539
90099-05284
90178-A0023
