GSU50L-ARTNKA (2013)

Toyota Highlander (Nap)

Production Dec 2013 - Nov 2016
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1312-1611)2GR#

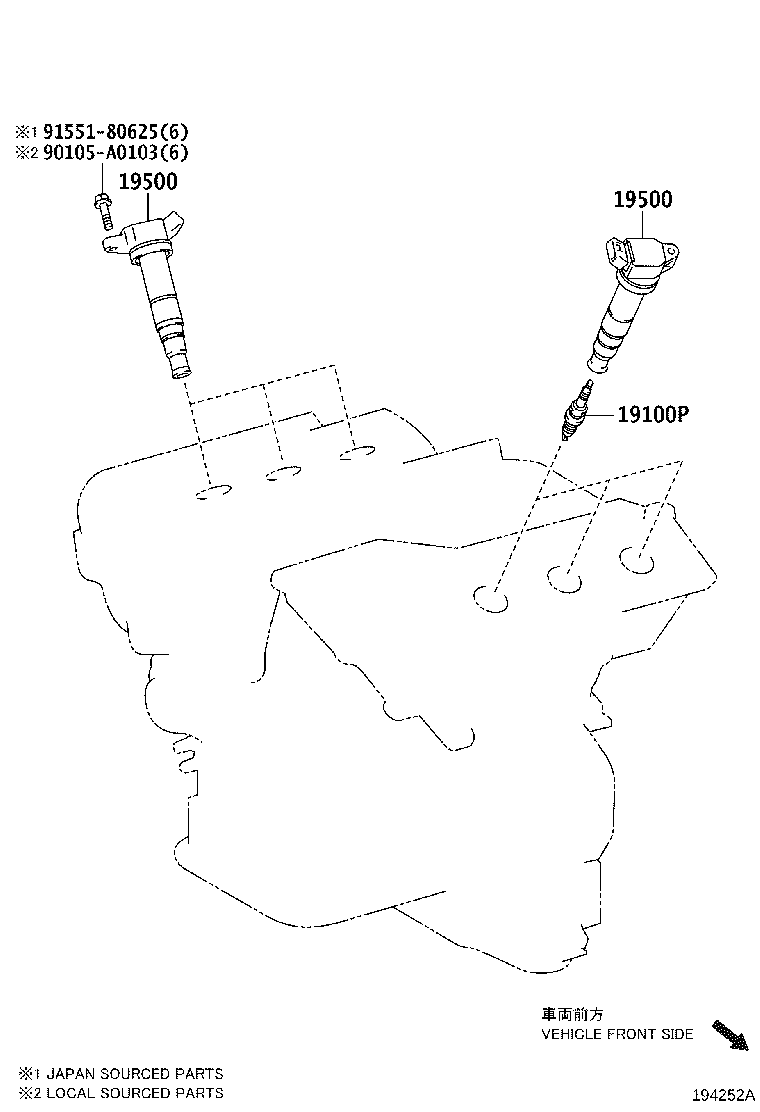

Click highlighted areas on diagram

diagram 19100P 19500 19500 90105A0103 9155180625
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01247

2GR#..GSU5#,GVU58

FK20HR11

 6
19500 - COIL ASSY, IGNITION
90919-A2007

2GRFE..GSU5#

(L)

 6
90919-02255

2GR#..GSU5#,GVU58

(J)

 6
19500 - COIL ASSY, IGNITION
90919-A2007

2GRFE..GSU5#

(L)

 6
90919-02255

2GR#..GSU5#,GVU58

(J)

 6
Common parts
90105-A0103
91551-80625
