GSU50L-ARTNKA (2013)

Toyota Highlander (Nap)

Production Dec 2013 - Nov 2016
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1312-1611)2GRFE

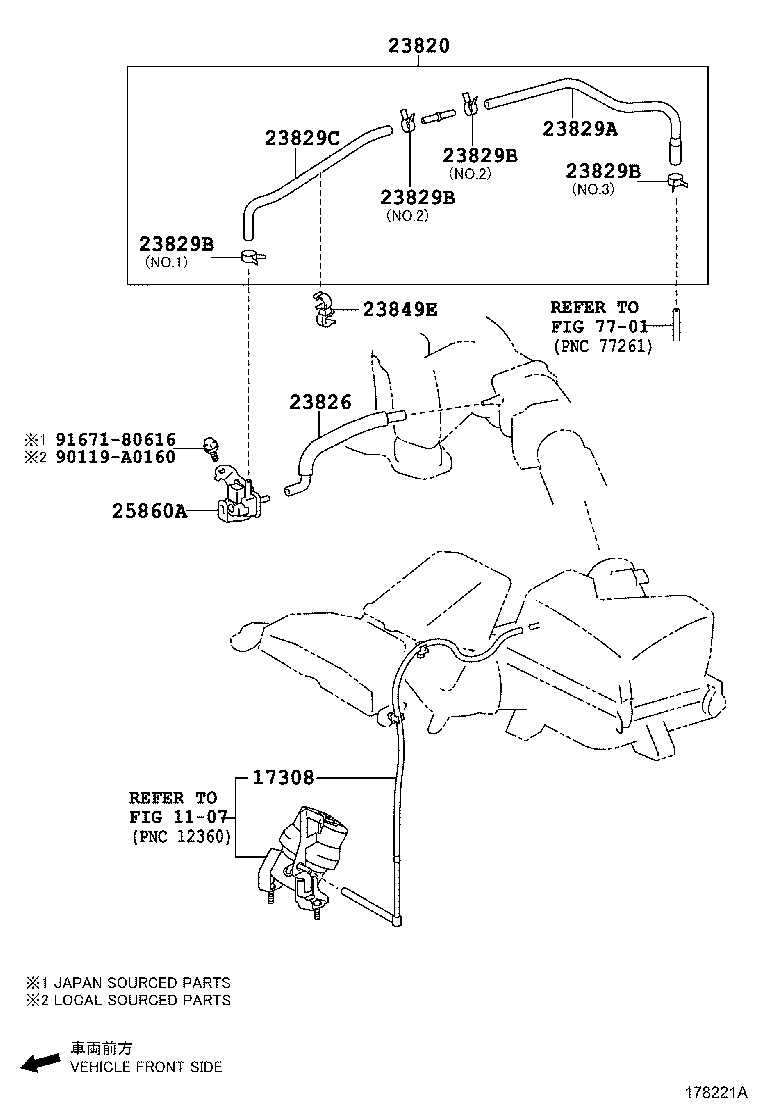

Click highlighted areas on diagram

diagram 1107 17308 23820 23826 23829A 23829B 23829B 23829B 23829B 23829C 23849E 25860A 7701 90119A0160 9167180616
Part # Description Qty Price
17308 - HOSE SUB-ASSY, VACUUM(FOR IDLE-UP)
17308-0P150

2GRFE..GSU5#

 1
23820 - HOSE ASSY, FUEL VAPOR FEED
23820-0P240

2GRFE..GSU5#

 1
23826 - HOSE, FUEL VAPOR FEED, NO.1
23826-0P040

2GRFE..GSU5#

 1
23829A - HOSE, FUEL VAPOR FEED
23829-0P150

2GRFE..GSU5#

 1
23829B - CLIP(FOR FUEL VAPOR FEED HOSE)
90466-11003

2GR#..GSU5#,GVU58

NO.1

 1
96132-51100

2GR#..GSU5#,GVU58

NO.2

 2
96133-41300

2GR#..GSU5#,GVU58

NO.3

 1
23829B - CLIP(FOR FUEL VAPOR FEED HOSE)
90466-11003

2GR#..GSU5#,GVU58

NO.1

 1
96132-51100

2GR#..GSU5#,GVU58

NO.2

 2
96133-41300

2GR#..GSU5#,GVU58

NO.3

 1
23829B - CLIP(FOR FUEL VAPOR FEED HOSE)
90466-11003

2GR#..GSU5#,GVU58

NO.1

 1
96132-51100

2GR#..GSU5#,GVU58

NO.2

 2
96133-41300

2GR#..GSU5#,GVU58

NO.3

 1
23829B - CLIP(FOR FUEL VAPOR FEED HOSE)
90466-11003

2GR#..GSU5#,GVU58

NO.1

 1
96132-51100

2GR#..GSU5#,GVU58

NO.2

 2
96133-41300

2GR#..GSU5#,GVU58

NO.3

 1
23829C - HOSE, FUEL VAPOR FEED, NO.2
23829-0P160

2GRFE..GSU5#

 1
23849E - SUPPORT, FUEL HOSE CLAMP
23849-31010

2GR#..GSU5#,GVU58

 1
25860A - VALVE, VACUUM SWITCHING, NO.1
25860-31070

2GR#..GSU5#,GVU58

 1
Common parts
90119-A0160
91671-80616
Linked diagrams
1107
7701
