GSU50L-ARTNKA (2013)

Toyota Highlander (Nap)

Production Dec 2013 - Nov 2016
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1312-1611)2GRFE

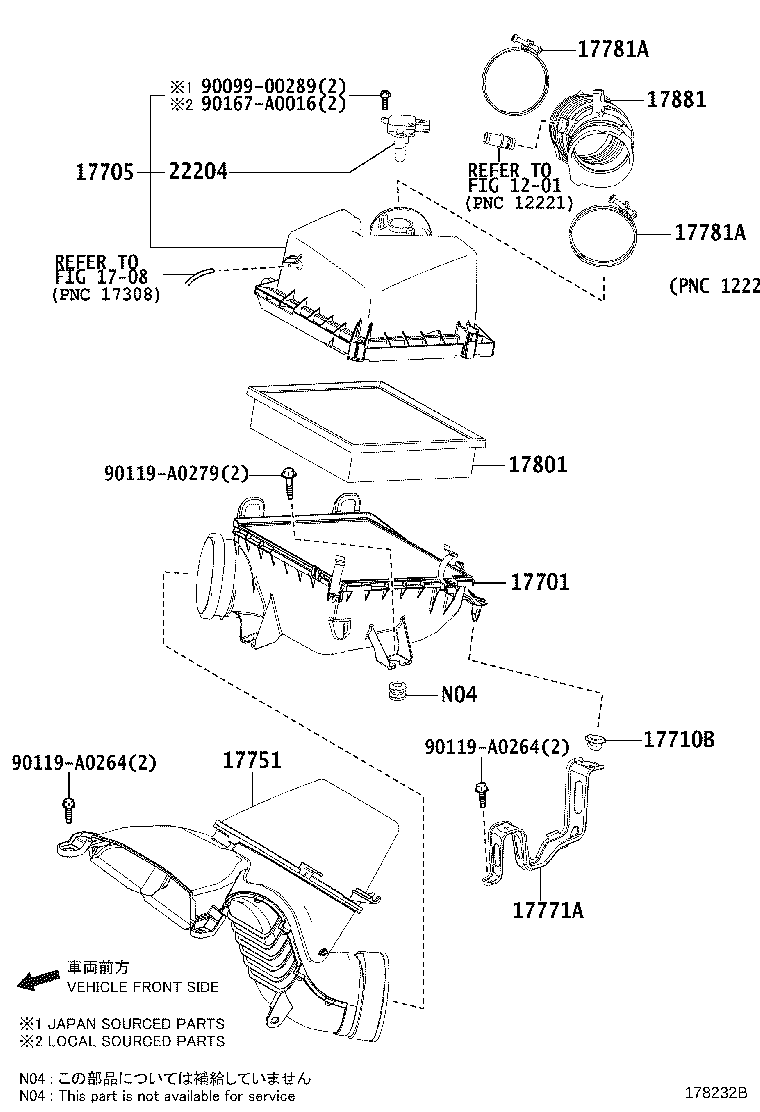

Click highlighted areas on diagram

diagram 1201 1708 17701 17705 17710B 17751 17771A 17781A 17781A 17801 17881 22204 9009900289 90119A0264 90119A0264 90119A0279 90167A0016
Part # Description Qty Price
17701 - CASE SUB-ASSY, AIR CLEANER
17701-0P120

2GRFE..GSU5#

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-0P190

2GRFE..GSU5#

 1
17710B - GROMMET
90480-18006

2GRFE..GSU5#

 1
17751 - INLET, AIR CLEANER, NO.1
17750-0P020

2GRFE..GSU5#

 1
17771A - BRACKET, AIR CLEANER
17771-0P020

2GRFE..GSU5#

 1
17781A - CLAMP, HOSE
96111-10900

2GRFE..GSU5#

 2
17781A - CLAMP, HOSE
96111-10900

2GRFE..GSU5#

 2
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-0P051

2GRFE..GSU5#

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-0P110

2GRFE..GSU5#

 1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-0V020

2GR#..GSU5#,GVU58

MARK 22204-0V020

 1
22204-0V010

2GR#..GSU5#,GVU58

MARK 22204-0V010

 1
22204-28010

2GR#..GSU5#,GVU58

MARK 22204-28010

 1
Common parts
90099-00289
90119-A0264
90119-A0279
90167-A0016
Linked diagrams
1201
1708
