GSU50L-ARTNKA (2013)

Toyota Highlander (Nap)

Production Dec 2013 - Nov 2016
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1312-1611)2GRFE

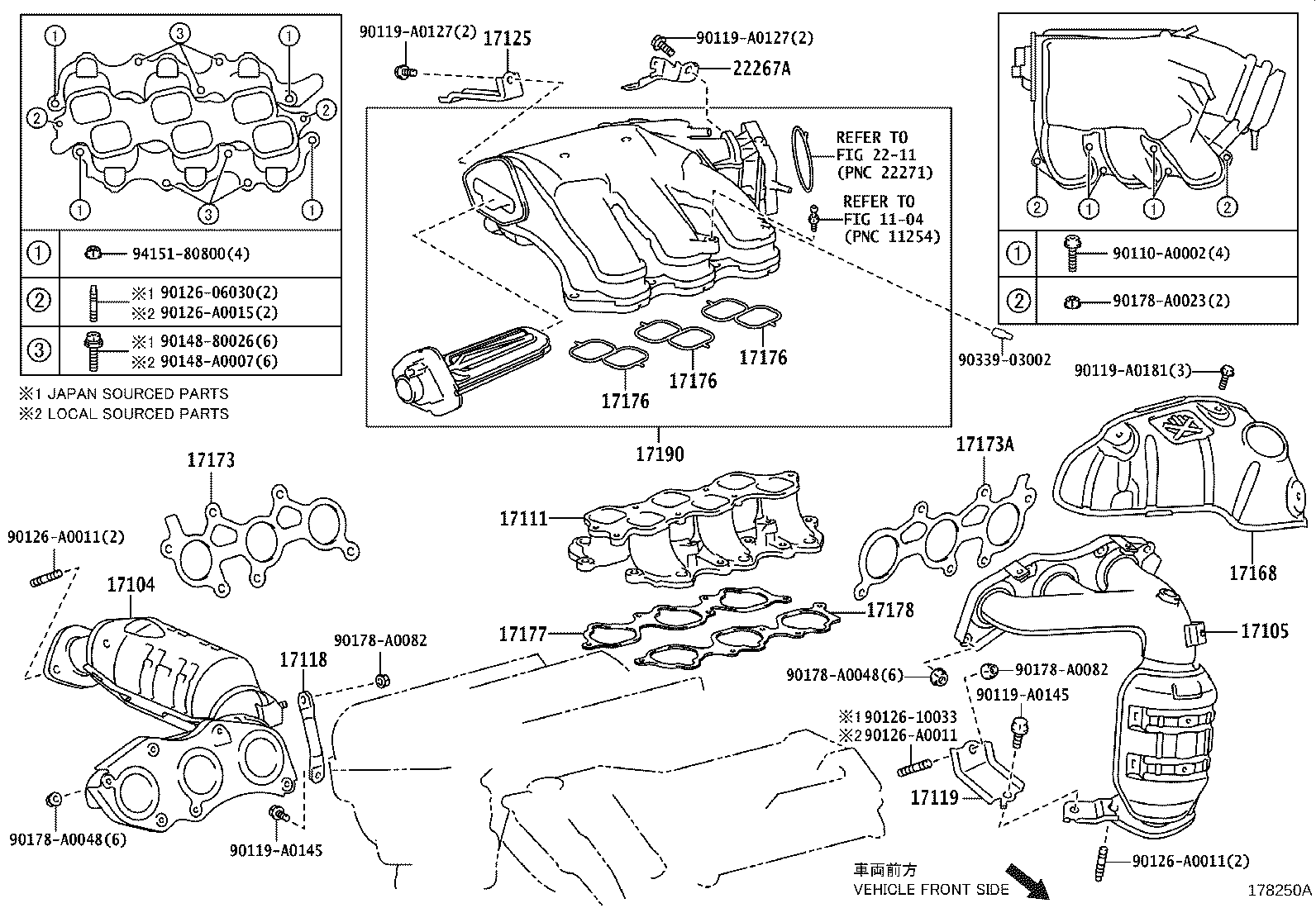

Click highlighted areas on diagram

diagram 1104 17104 17105 17111 17118 17119 17125 17168 17173 17173A 17176 17176 17176 17177 17178 17190 2211 22267A 90110A0002 90119A0127 90119A0127 90119A0145 90119A0145 90119A0181 9012606030 9012610033 90126A0011 90126A0011 90126A0011 90126A0015 9014880026 90148A0007 90178A0023 90178A0048 90178A0048 90178A0082 90178A0082 9033903002 9415180800
Part # Description Qty Price
17104 - MANIFOLD SUB-ASSY, EXHAUST, RH
17140-0P250

2GRFE..GSU5#

 1
17105 - MANIFOLD SUB-ASSY, EXHAUST, LH
17150-0P250

2GRFE..GSU5#

 1
17111 - MANIFOLD, INTAKE
17111-0P040

2GRFE..GSU5#

(L)

 1
17111-31220

2GRFE..GSU5#

(J)

 1
17118 - STAY, MANIFOLD
17118-31100

2GRFE..GSU50

 1
17119 - STAY, MANIFOLD, NO.2
17119-0P030

2GR#..GSU5#,GVU58

 1
17125 - STAY, SURGE TANK, NO.1
17125-0P020

2GRFE..GSU5#

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-31050

2GR#..GSU5#,GVU58

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-0P020

2GR#..GSU5#,GVU58

 1
17173A - GASKET, EXHAUST MANIFOLD TO HEAD, LH
17173-0P020

2GR#..GSU5#,GVU58

 1
17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
17176-0P021

2GRFE..GSU5#

 3
17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
17176-0P021

2GRFE..GSU5#

 3
17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
17176-0P021

2GRFE..GSU5#

 3
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-0P021

2GRFE..GSU5#

(L)

 1
17177-31040

2GR#..GSU5#,GVU58

(J)

 1
17178 - GASKET, INTAKE MANIFOLD TO HEAD, NO.2
17178-0P021

2GRFE..GSU5#

(L)

 1
17178-31030

2GR#..GSU5#,GVU58

(J)

 1
17190 - TANK ASSY, INTAKE AIR SURGE
17190-0P032

2GRFE..GSU5#

 1
22267A - BRACKET, THROTTLE BODY
22267-0P080

2GRFE..GSU5#

 1
Common parts
90110-A0002
90119-A0127
90119-A0145
90119-A0181
90126-06030
90126-10033
90126-A0011
90126-A0015
90148-80026
90148-A0007
90178-A0023
90178-A0048
90178-A0082
90339-03002
94151-80800
Linked diagrams
1104
2211
