GSU50L-ARTNKA (2013)
Toyota Highlander (Nap)

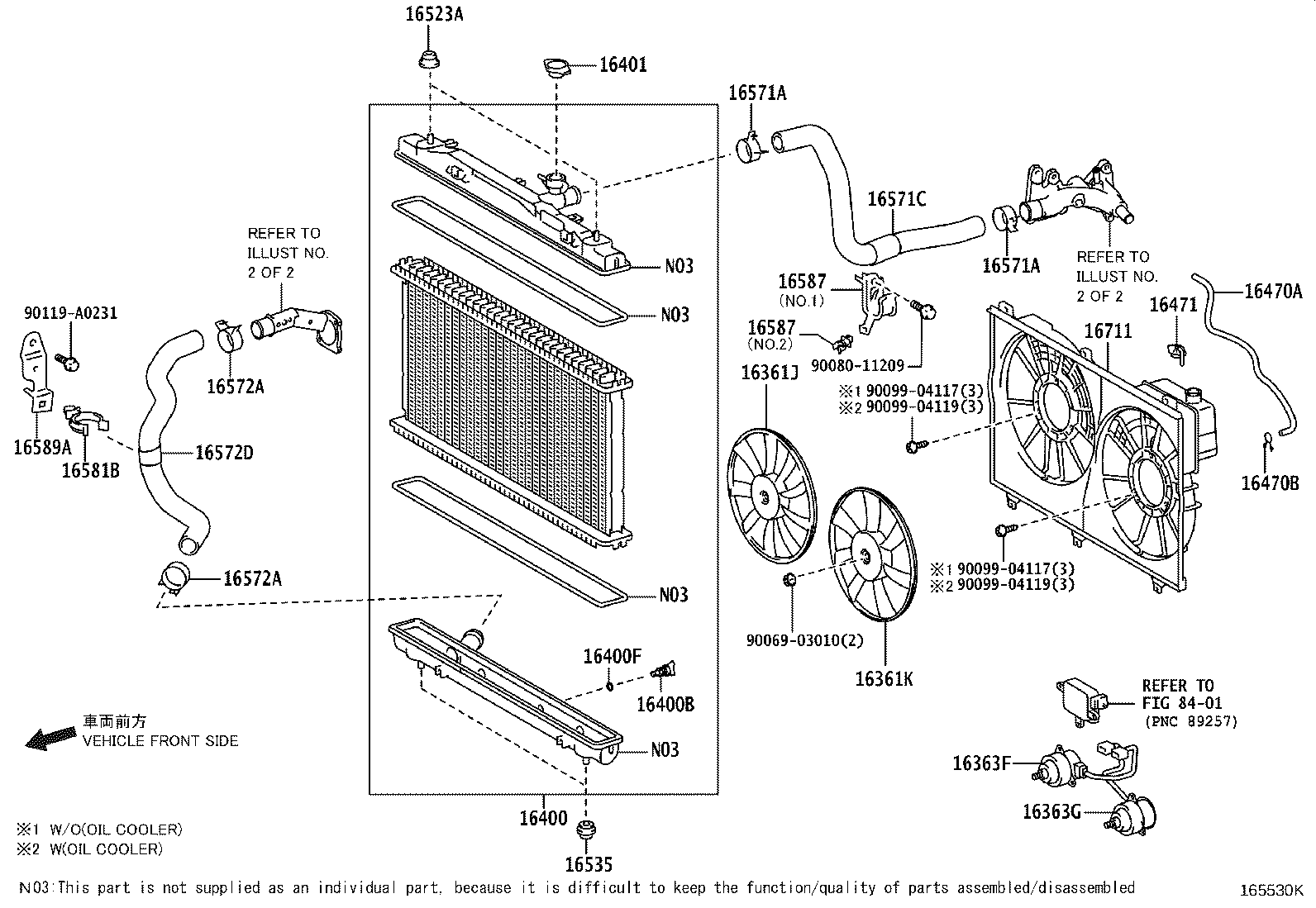

ILLUST NO. 1 OF 2(1312-1611)2GRFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361J - FAN, RH | ||||
| 16361-0P320 |
2GRFE..GSU5# TOWING PACKAGE-5000LBS |
1 | ||
| 16361-0P310 |
2GRFE..GSU5# |
1 | ||
| 16361-0P460 |
2GRFE..GSU5# TOWING PACKAGE-5000LBS |
1 | ||
| 16361K - FAN, LH | ||||
| 16361-0P180 |
2GRFE..GSU5# TOWING PACKAGE-5000LBS |
1 | ||
| 16361-0P210 |
2GRFE..GSU5# |
1 | ||
| 16361-0P420 |
2GRFE..GSU5# TOWING PACKAGE-5000LBS |
1 | ||
| 16363F - MOTOR, COOLING FAN, RH | ||||
| 16363-0P180 |
2GRFE..GSU5# TOWING PACKAGE-5000LBS |
1 | ||
| 16363-0P330 |
2GRFE..GSU5# |
1 | ||
| 16363G - MOTOR, COOLING FAN, LH | ||||
| 16363-0P190 |
2GRFE..GSU5# TOWING PACKAGE-5000LBS |
1 | ||
| 16363-0P230 |
2GRFE..GSU5# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-0P420 |
2GRFE..GSU5# TOWING PACKAGE-5000LBS |
1 | ||
| 16400-0P410 |
2GRFE..GSU5# |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-0C180 |
2GR#..GSU5#,GVU58 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
2GR#..GSU5#,GVU58 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-31520 |
2GR#..GSU5#,GVU58 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16377-0P190 |
2GRFE..GSU5# TOWING PACKAGE-5000LBS |
1 | ||
| 16377-0P190 |
2GR#..GSU5#,GVU58 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2GR#..GSU5#,GVU58 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-0P140 |
2GR#..GSU5#,GVU58 |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-AD010 |
2GR#..GSU5#,GVU58 |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-0A090 |
2GR#..GSU5#,GVU58 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90466-A0020 |
2GR#..GSU5#,GVU58 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90466-A0020 |
2GR#..GSU5#,GVU58 |
2 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-0P280 |
2GR#..GSU5#,GVU58 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-A0020 |
2GR#..GSU5#,GVU58 |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-A0020 |
2GR#..GSU5#,GVU58 |
2 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-0P281 |
2GR#..GSU5#,GVU58 |
1 | ||
| 16572-0P282 |
2GR#..GSU5#,GVU58 |
1 | ||
| 16581B - CLAMP, HOSE(FOR RADIATOR HOSE) | ||||
| 90469-45001 |
2GR#..GSU5#,GVU58 |
1 | ||
| 16581-31040 |
2GR#..GSU5#,GVU58 |
1 | ||
| 16587 - CLAMP, RADIATOR PIPE | ||||
| 16587-0P010 |
2GRFE..GSU5# NO.1 |
1 | ||
| 90949-01C99 |
2GRFE..GSU5# NO.2 |
1 | ||
| 16587 - CLAMP, RADIATOR PIPE | ||||
| 16587-0P010 |
2GRFE..GSU5# NO.1 |
1 | ||
| 90949-01C99 |
2GRFE..GSU5# NO.2 |
1 | ||
| 16589A - BRACKET, RADIATOR HOSE CLAMP | ||||
| 16589-31020 |
2GR#..GSU5#,GVU58 |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-0P240 |
2GRFE..GSU5# TOWING PACKAGE-5000LBS |
1 | ||
| 16711-0P230 |
2GRFE..GSU5# |
1 | ||
| Common parts | ||||
| 90069-03010 | ||||
| 90080-11209 | ||||
| 90099-04117 | ||||
| 90099-04119 | ||||
| 90119-A0231 | ||||
| Linked diagrams | ||||
| 8401 | ||||

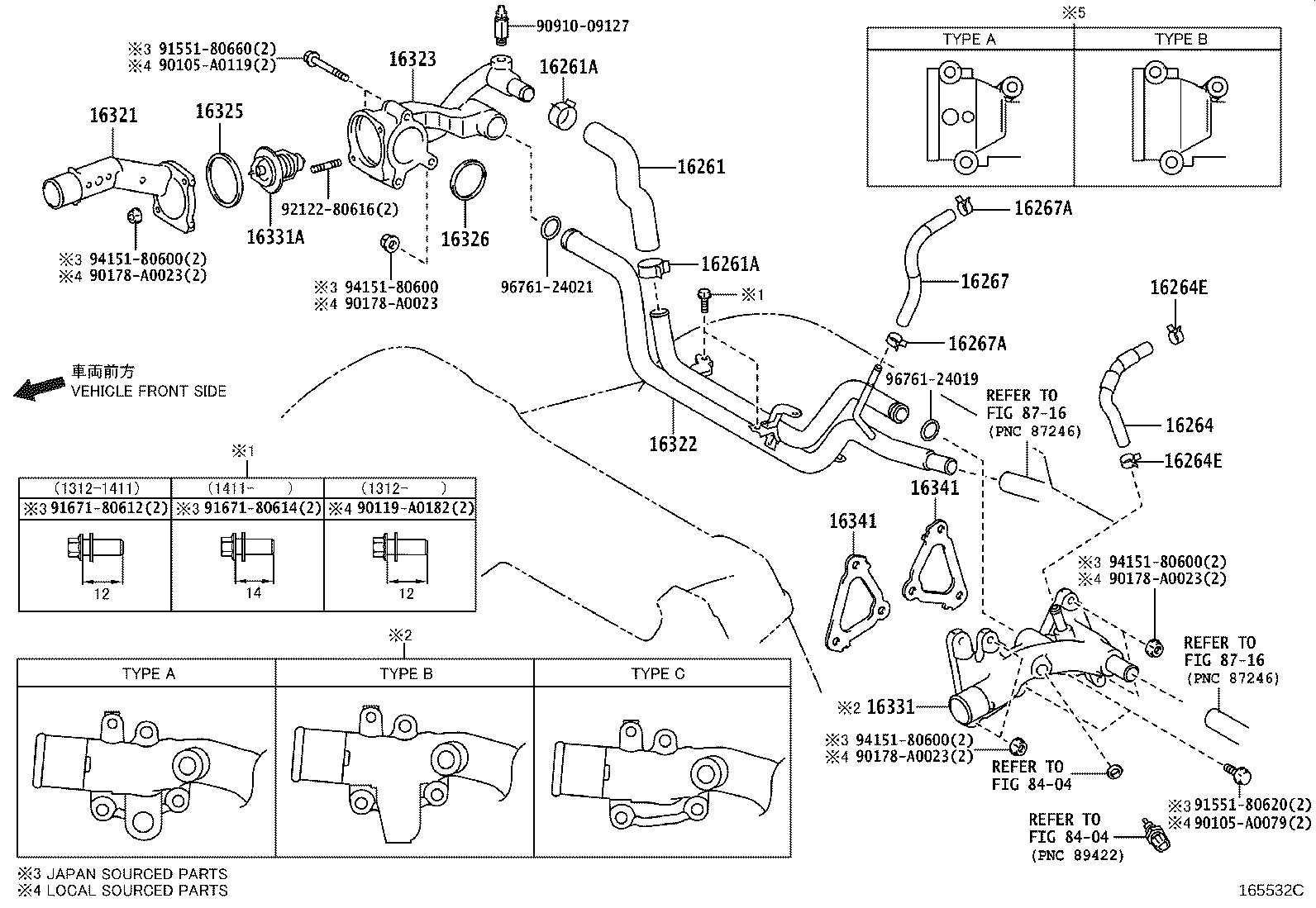

ILLUST NO. 2 OF 2(1312-1611)2GRFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-0P030 |
2GRFE..GSU5# *371 |
1 | ||
| 16261-0P030 |
2GRFE..GSU5# TOWING PACKAGE-5000LBS,*371 |
1 | ||
| 16261-31050 |
2GRFE..GSU5# TOWING PACKAGE-5000LBS,*427 |
1 | ||
| 16261-31050 |
2GR#..GSU5#,GVU58 *427 |
1 | ||
| 16261-0P030 |
2GRFE..GSU50 MEXICO SPEC,*371 |
1 | ||
| 16261-31050 |
2GRFE..GSU50 MEXICO SPEC,*427 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90466-A0015 |
2GRFE..GSU5# (L) |
2 | ||
| 96136-42701 |
2GR#..GSU5#,GVU58 (J) |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90466-A0015 |
2GRFE..GSU5# (L) |
2 | ||
| 96136-42701 |
2GR#..GSU5#,GVU58 (J) |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-0P031 |
2GR#..GSU5#,GVU58 |
1 | ||
| 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96137-41501 |
2GR#..GSU5#,GVU58 |
2 | ||
| 90466-A0017 |
2GR#..GSU5#,GVU58 (L) |
2 | ||
| 96137-41501 |
2GR#..GSU5#,GVU58 (J) |
2 | ||
| 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96137-41501 |
2GR#..GSU5#,GVU58 |
2 | ||
| 90466-A0017 |
2GR#..GSU5#,GVU58 (L) |
2 | ||
| 96137-41501 |
2GR#..GSU5#,GVU58 (J) |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-0P020 |
2GRFE..GSU50 MEXICO SPEC,*371 |
1 | ||
| 16267-0P020 |
2GRFE..GSU5# TOWING PACKAGE-5000LBS,*371 |
1 | ||
| 16267-31040 |
2GR#..GSU5#,GVU58 *427 |
1 | ||
| 16267-31040 |
2GRFE..GSU50 MEXICO SPEC,*427 |
1 | ||
| 16267-0P020 |
2GRFE..GSU5# *371 |
1 | ||
| 16267-31040 |
2GRFE..GSU5# TOWING PACKAGE-5000LBS,*427 |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90466-A0017 |
2GRFE..GSU5# (L) |
1 | ||
| 96137-41501 |
2GR#..GSU5#,GVU58 (J) |
1 | ||
| 96137-41501 |
2GR#..GSU5#,GVU58 |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90466-A0017 |
2GRFE..GSU5# (L) |
1 | ||
| 96137-41501 |
2GR#..GSU5#,GVU58 (J) |
1 | ||
| 96137-41501 |
2GR#..GSU5#,GVU58 |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-0P010 |
2GRFE..GSU5# *371 |
1 | ||
| 16321-31030 |
2GRFE..GSU5# *427 |
1 | ||
| 16322 - PIPE, WATER INLET | ||||
| 16322-0P020 |
2GRFE..GSU5# TOWING PACKAGE-5000LBS,*371 |
1 | ||
| 16322-31070 |
2GRFE..GSU5# TOWING PACKAGE-5000LBS,*427 |
1 | ||
| 16322-0P010 |
2GRFE..GSU5# (L) |
1 | ||
| 16322-31020 |
2GRFE..GSU50 MEXICO SPEC |
1 | ||
| 16322-31010 |
2GRFE..GSU5# (J) |
1 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16323-31040 |
2GRFE..GSU5# *371 TYPE B:REF ILL.,*427 |
1 | ||
| 16323-0P030 |
2GRFE..GSU5# *371 TYPE A:REF ILL. |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-62010 |
2GR#..GSU5#,GVU58 |
1 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16325-0P020 |
2GRFE..GSU5# *371 |
1 | ||
| 16325-31010 |
2GRFE..GSU5# *427 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-31140 |
2GRFE..GSU5# |
1 | ||
| 16331-31200 |
2GRFE..GSU5# TOWING PACKAGE-5000LBS,TYPE B:REFER ILLUST. |
1 | ||
| 16331-31150 |
2GRFE..GSU5# TOWING PACKAGE-5000LBS,TYPE A:REFER ILLUST. |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03140 |
2GR#..GSU5#,GVU58 *WAX 82-95,(J) |
1 | ||
| 90916-A3002 |
2GRFE..GSU5# *WAX 82-95,(L) |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-31010 |
2GR#..GSU5#,GVU58 (J) |
2 | ||
| 16341-AD010 |
2GRFE..GSU5# (L) |
2 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-31010 |
2GR#..GSU5#,GVU58 (J) |
2 | ||
| 16341-AD010 |
2GRFE..GSU5# (L) |
2 | ||
| Common parts | ||||
| 90105-A0079 | ||||
| 90105-A0119 | ||||
| 90119-A0182 | ||||
| 90178-A0023 | ||||
| 90910-09127 | ||||
| 91551-80620 | ||||
| 91551-80660 | ||||
| 91671-80612 | ||||
| 91671-80614 | ||||
| 92122-80616 | ||||
| 94151-80600 | ||||
| 96761-24019 | ||||
| 96761-24021 | ||||
| Linked diagrams | ||||
| 8404 | ||||
| 8716 | ||||
