GSU50L-ARTNKA (2013)

Toyota Highlander (Nap)

Production Dec 2013 - Nov 2016
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1312-1611)2GRFE

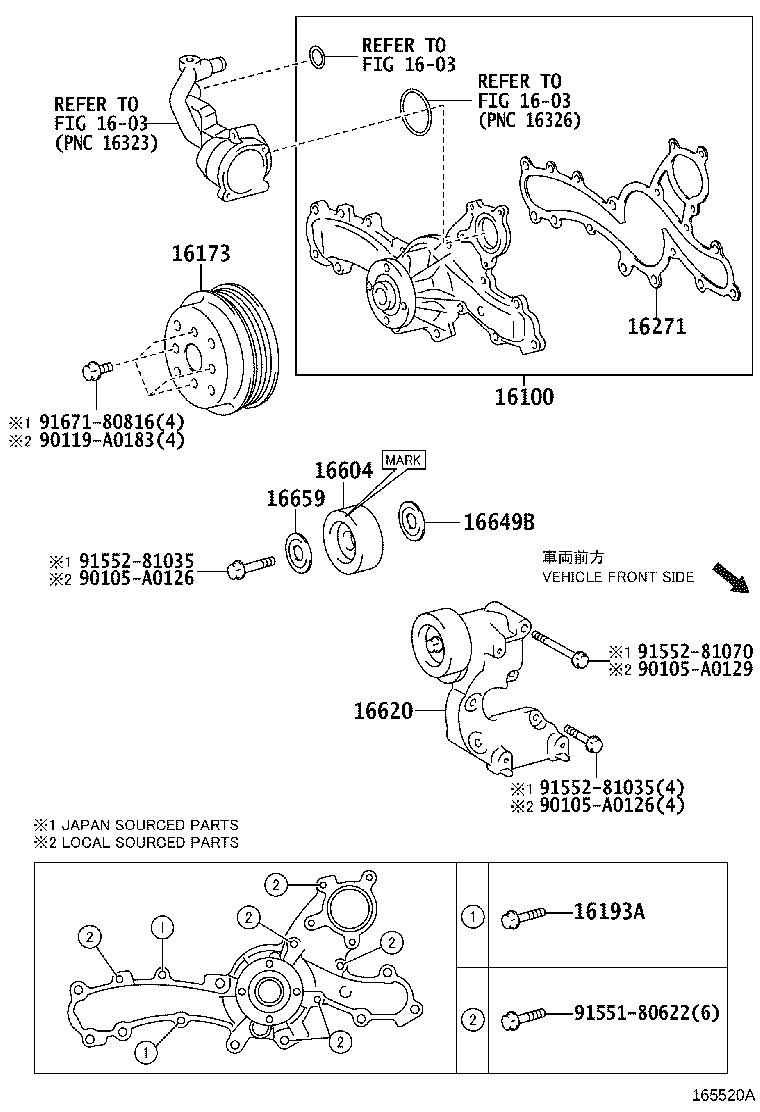

Click highlighted areas on diagram

diagram 1603 1603 1603 16100 16173 16193A 16271 16604 16620 16649B 16659 90105A0126 90105A0126 90105A0129 90119A0183 9155180622 9155281035 9155281035 9155281070 9167180816
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-09441

2GRFE..GSU5#

(L)

 1
16100-09442

2GRFE..GSU5#

(L)

 1
16100-39456

2GR#..GSU5#,GVU58

(J)

 1
16173 - PULLEY, WATER PUMP
16173-31010

2GR#..GSU5#,GVU58

 1
16193A - BOLT(FOR WATER PUMP COVER)
16193-31080

2GR#..GSU5#,GVU58

 2
16193-0P040

2GRFE..GSU5#

(L)

 2
16193-31080

2GRFE..GSU5#

(J)

 2
16271 - GASKET, WATER PUMP
16271-31030

2GR#..GSU5#,GVU58

(J)

 1
16271-0P010

2GRFE..GSU5#

(L)

 1
16604 - PULLEY SUB-ASSY, IDLER, NO.2
16604-31020

2GRFE..GSU5#

MARK=PU107013ARMXY3

 1
16604-31030

2GRFE..GSU5#

MARK=PU107016RMXY

 1
16620 - TENSIONER ASSY, V-RIBBED BELT
16620-31040

2GRFE..GSU5#

 1
16649B - PLATE, IDLER PULLEY COVER
16649-31020

2GRFE..GSU5#

 1
16659 - PLATE, IDLER PULLEY COVER, NO.2
16659-AD010

2GRFE..GSU5#

(L)

 1
16659-31011

2GRFE..GSU5#

(J)

 1
Common parts
90105-A0126
90105-A0129
90119-A0183
91551-80622
91552-81035
91552-81070
91671-80816
Linked diagrams
1603
