GSU50L-ARTNKA (2013)

Toyota Highlander (Nap)

Production Dec 2013 - Nov 2016
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1312-1611)2GRFE

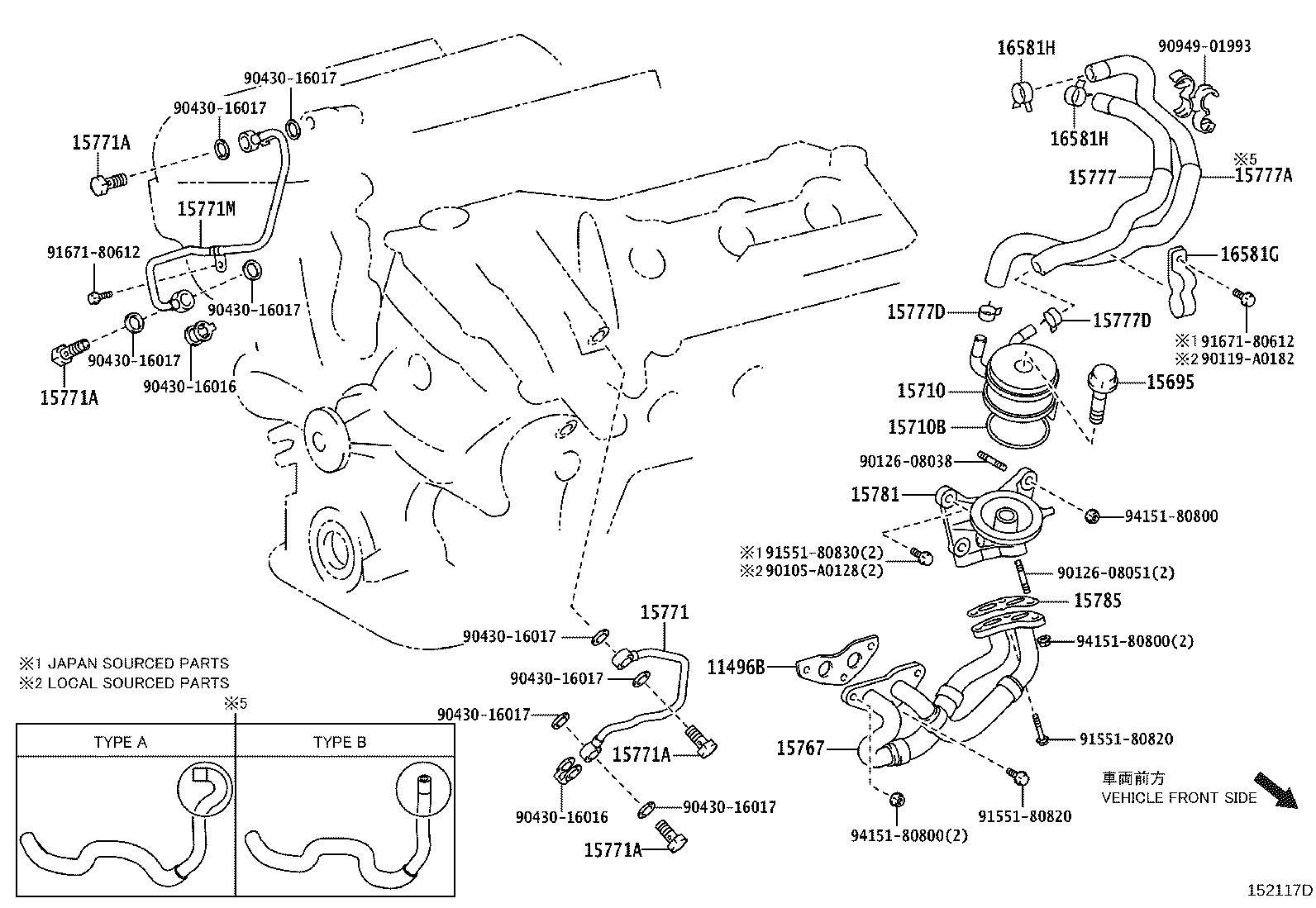

Click highlighted areas on diagram

diagram 11496B 15695 15710 15710B 15767 15771 15771A 15771A 15771A 15771A 15771M 15777 15777A 15777D 15777D 15781 15785 16581G 16581H 16581H 90105A0128 90119A0182 9012608038 9012608051 9043016016 9043016016 9043016017 9043016017 9043016017 9043016017 9043016017 9043016017 9043016017 9043016017 9094901993 9155180820 9155180820 9155180830 9167180612 9167180612 9415180800 9415180800 9415180800
Part # Description Qty Price
11496B - GASKET, OIL HOLE COVER
11496-31010

2GRFE..GSU5#

TOWING PACKAGE-5000LBS

 1
15695 - BOLT, OIL COOLER UNION
15695-31010

2GRFE..GSU5#

TOWING PACKAGE-5000LBS

 1
15710 - COOLER ASSY, OIL
15710-31021

2GRFE..GSU5#

TOWING PACKAGE-5000LBS

 1
15710B - RING, O(FOR OIL COOLER)
90301-67004

2GRFE..GSU5#

TOWING PACKAGE-5000LBS

 1
15767 - PIPE, OIL COOLER
15767-31020

2GRFE..GSU5#

TOWING PACKAGE-5000LBS

 1
15771 - PIPE, OIL, NO.1
15771-31010

2GR#..GSU5#,GVU58

 1
15771A - UNION(FOR OIL PIPE)
90401-16043

2GR#..GSU5#,GVU58

 4
15771A - UNION(FOR OIL PIPE)
90401-16043

2GR#..GSU5#,GVU58

 4
15771A - UNION(FOR OIL PIPE)
90401-16043

2GR#..GSU5#,GVU58

 4
15771A - UNION(FOR OIL PIPE)
90401-16043

2GR#..GSU5#,GVU58

 4
15771M - PIPE, OIL
15772-31030

2GR#..GSU5#,GVU58

 1
15777 - HOSE, OIL COOLER
16281-31030

2GRFE..GSU5#

TOWING PACKAGE-5000LBS

 1
15777A - HOSE, OIL COOLER
16282-31020

2GRFE..GSU5#

TYPE A:REFER ILLUST.,TOWING PACKAGE-5000LBS,TYPE A:REFER ILLUST.

 1
16282-31050

2GRFE..GSU5#

TYPE B:REFER ILLUST.,TOWING PACKAGE-5000LBS,TYPE B:REFER ILLUST.

 1
15777D - CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE)
96136-42101

2GRFE..GSU5#

TOWING PACKAGE-5000LBS

 2
15777D - CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE)
96136-42101

2GRFE..GSU5#

TOWING PACKAGE-5000LBS

 2
15781 - BRACKET, OIL COOLER, NO.1
15781-31010

2GRFE..GSU5#

TOWING PACKAGE-5000LBS

 1
15785 - GASKET, OIL COOLER
15785-31010

2GRFE..GSU5#

TOWING PACKAGE-5000LBS

 1
16581G - CLAMP, HOSE(FOR OIL COOLER HOSE)
16581-31020

2GRFE..GSU5#

TOWING PACKAGE-5000LBS

 1
16581H - CLIP, HOSE(FOR OIL COOLER HOSE)
96136-42101

2GRFE..GSU5#

TOWING PACKAGE-5000LBS

 2
16581H - CLIP, HOSE(FOR OIL COOLER HOSE)
96136-42101

2GRFE..GSU5#

TOWING PACKAGE-5000LBS

 2
Common parts
90105-A0128
90119-A0182
90126-08038
90126-08051
90430-16016
90430-16017
90949-01993
91551-80820
91551-80830
91671-80612
94151-80800
