GSU50L-ARTNKA (2013)

Toyota Highlander (Nap)

Production Dec 2013 - Nov 2016
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1312-1611)2GR#

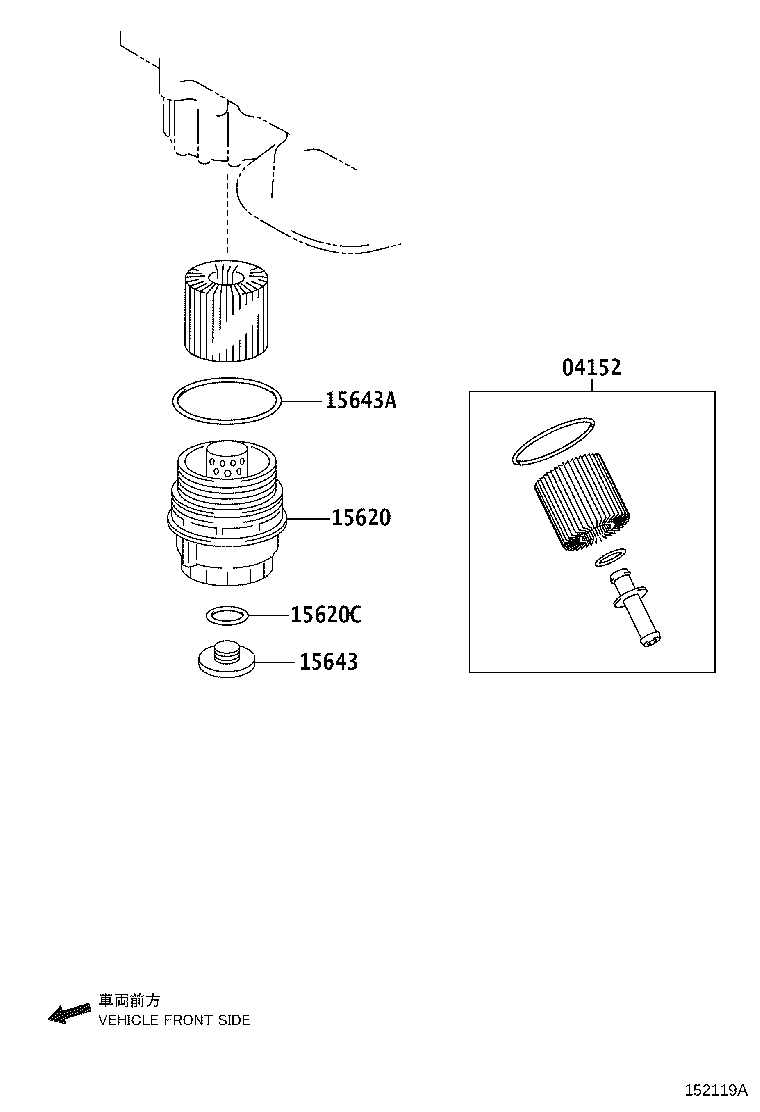

Click highlighted areas on diagram

diagram 04152 15620 15620C 15643 15643A
Part # Description Qty Price
04152 - ELEMENT KIT, OIL FILTER
04152-31090

2GR#..GSU5#,GVU58

 1
15620 - CAP ASSY, OIL FILTER
15620-31060

2GR#..GSU5#,GVU58

 1
15620C - GASKET(FOR OIL FILTER CAP)
96723-35028

2GR#..GSU5#,GVU58

 1
15643 - PLUG, OIL FILTER DRAIN
15643-31050

2GR#..GSU5#,GVU58

 1
15643A - RING, O(FOR OIL FILTER DRAIN PLUG)
90301-79006

2GR#..GSU5#,GVU58

 1
