GSU50L-ARTNKA (2013)

Toyota Highlander (Nap)

Production Dec 2013 - Nov 2016
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1312-1611)2GR#

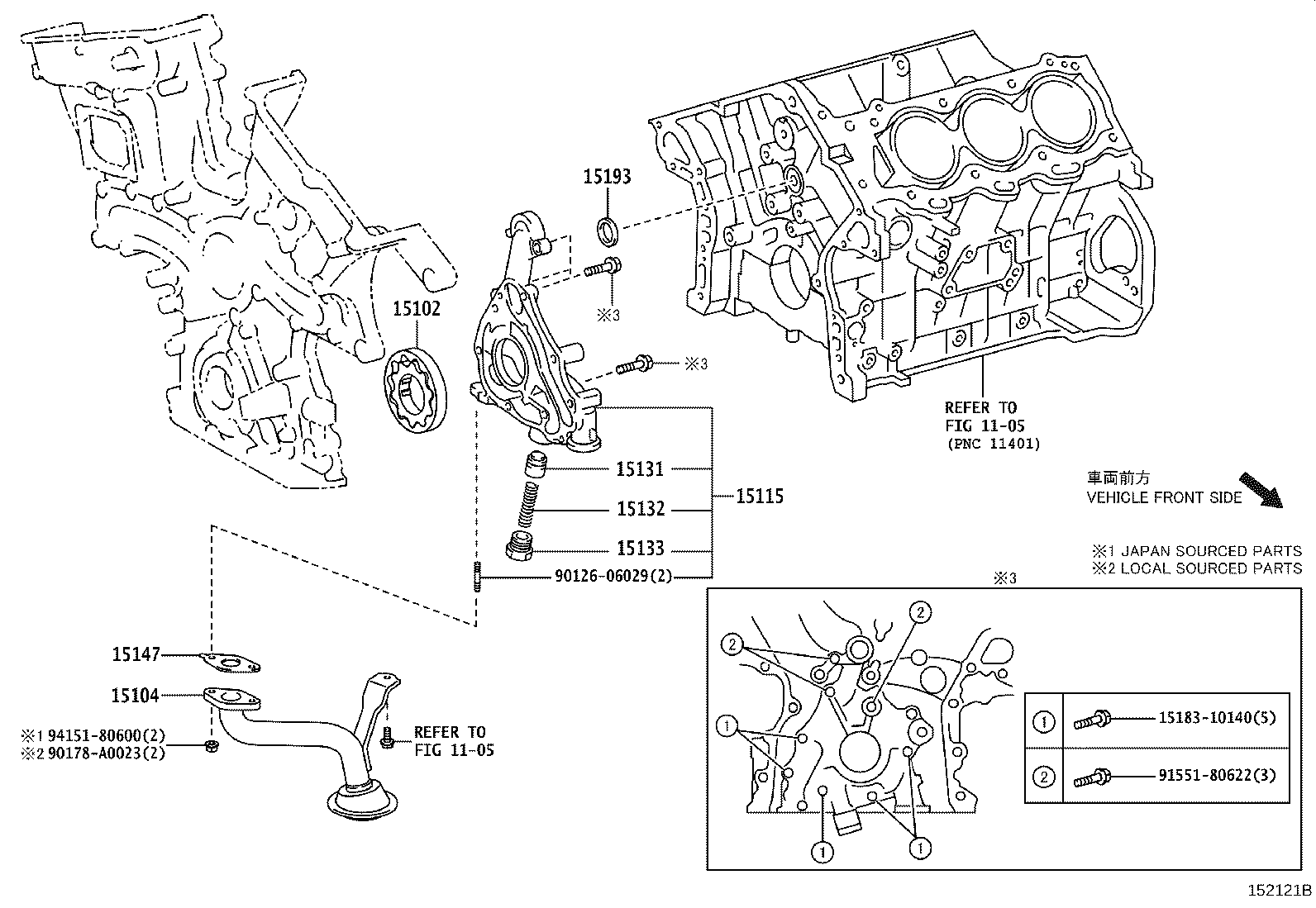

Click highlighted areas on diagram

diagram 1105 1105 15102 15104 15115 15131 15132 15133 15147 1518310140 15193 9012606029 90178A0023 9155180622 9415180600
Part # Description Qty Price
15102 - ROTOR SET, OIL PUMP
15103-0P010

2GRFE..GSU5#

(L)

 1
15103-31050

2GR#..GSU5#,GVU58

(J)

 1
15104 - STRAINER SUB-ASSY, OIL
15104-31120

2GR#..GSU5#,GVU58

*427

 1
15104-31190

2GRFE..GSU5#

*371

 1
15104-31120

2GRFE..GSU5#

*371

 1
15104-31190

2GR#..GSU5#,GVU58

*427

 1
15115 - COVER, OIL PUMP
15115-31040

2GR#..GSU5#,GVU58

(J)

 1
15115-0P030

2GRFE..GSU5#

(L)

 1
15131 - VALVE, OIL PUMP RELIEF
15131-17010

2GR#..GSU5#,GVU58

 1
15132 - SPRING, OIL PUMP RELIEF VALVE
15132-46020

2GR#..GSU5#,GVU58

*427

 1
15132-0A020

2GRFE..GSU5#

*371

 1
15133 - PLUG, OIL PUMP RELIEF VALVE
15133-28020

2GR#..GSU5#,GVU58

 1
15147 - GASKET, OIL STRAINER
15147-31060

2GR#..GSU5#,GVU58

(J)

 1
15147-0P020

2GRFE..GSU5#

(L)

 1
15193 - GASKET, OIL PUMP
15193-0P010

2GRFE..GSU5#

(L)

 1
15193-31020

2GR#..GSU5#,GVU58

(J)

 1
Common parts
15183-10140
90126-06029
90178-A0023
91551-80622
94151-80600
Linked diagrams
1105
