GSU50L-ARTNKA (2013)
Toyota Highlander (Nap)
(1407-1507)2GRFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 13050 - GEAR ASSY, CAMSHAFT TIMING | ||||
| 13050-0P071 |
2GRFE..GSU5# |
2 | ||
| 13050-31170 |
2GRFE..GSU5# (J) |
2 | ||
| 13050 - GEAR ASSY, CAMSHAFT TIMING | ||||
| 13050-0P071 |
2GRFE..GSU5# |
2 | ||
| 13050-31170 |
2GRFE..GSU5# (J) |
2 | ||
| 13053 - CAMSHAFT SUB-ASSY, NO.3 | ||||
| 13053-0P021 |
2GRFE..GSU5# *250 |
1 | ||
| 13053-31061 |
2GRFE..GSU5# *250 |
1 | ||
| 13053-31080 |
2GRFE..GSU5# *251,*427 |
1 | ||
| 13054 - CAMSHAFT SUB-ASSY, NO.4 | ||||
| 13054-0P021 |
2GRFE..GSU5# *250 |
1 | ||
| 13054-31061 |
2GRFE..GSU5# *250 |
1 | ||
| 13054-31080 |
2GRFE..GSU5# *251,*427 |
1 | ||
| 13070 - GEAR ASSY, CAMSHAFT TIMING EXHAUST, RH | ||||
| 13080-0P040 |
2GRFE..GSU5# (L) |
1 | ||
| 13080-31050 |
2GRFE..GSU5# (J) |
1 | ||
| 13080 - GEAR ASSY, CAMSHAFT TIMING EXHAUST, LH | ||||
| 13080-31050 |
2GRFE..GSU5# (J) |
1 | ||
| 13080-0P040 |
2GRFE..GSU5# (L) |
1 | ||
| 13506 - CHAIN SUB-ASSY | ||||
| 13506-31031 |
2GR#..GSU5#,GVU58 (J) |
1 | ||
| 13506-0P011 |
2GRFE..GSU5# (L) |
1 | ||
| 13507 - CHAIN SUB-ASSY, NO.2 | ||||
| 13507-0P010 |
2GRFE..GSU5# (L) |
2 | ||
| 13507-31020 |
2GR#..GSU5#,GVU58 (J) |
2 | ||
| 13507 - CHAIN SUB-ASSY, NO.2 | ||||
| 13507-0P010 |
2GRFE..GSU5# (L) |
2 | ||
| 13507-31020 |
2GR#..GSU5#,GVU58 (J) |
2 | ||
| 13511 - CAMSHAFT | ||||
| 13501-0P021 |
2GRFE..GSU5# *250 |
1 | ||
| 13501-31091 |
2GRFE..GSU5# *250 |
1 | ||
| 13501-31100 |
2GRFE..GSU5# *251,*427 |
1 | ||
| 13512 - CAMSHAFT, NO.2 | ||||
| 13502-0P021 |
2GRFE..GSU5# *250 |
1 | ||
| 13502-31080 |
2GRFE..GSU5# *251,*427 |
1 | ||
| 13502-31061 |
2GRFE..GSU5# *250 |
1 | ||
| 13530 - SPROCKET ASSY, IDLE | ||||
| 13530-31021 |
2GR#..GSU5#,GVU58 |
1 | ||
| 13540 - TENSIONER ASSY, CHAIN, NO.1 | ||||
| 13540-31060 |
2GR#..GSU5#,GVU58 (J) |
1 | ||
| 13540-0P010 |
2GRFE..GSU5# (L) |
1 | ||
| 13540-31021 |
2GR#..GSU5#,GVU58 (J) |
1 | ||
| 13540-0P011 |
2GRFE..GSU5# (L) |
1 | ||
| 13550 - TENSIONER ASSY, CHAIN, NO.2 | ||||
| 13550-31020 |
2GR#..GSU5#,GVU58 (J) |
1 | ||
| 13550-0P010 |
2GRFE..GSU5# (L) |
1 | ||
| 13559 - SLIPPER, CHAIN TENSIONER | ||||
| 13559-31020 |
2GR#..GSU5#,GVU58 (J) |
1 | ||
| 13559-0P010 |
2GRFE..GSU5# (L) |
1 | ||
| 13560A - TENSIONER ASSY, CHAIN, NO.3 | ||||
| 13560-0P010 |
2GRFE..GSU5# (L) |
1 | ||
| 13560-31020 |
2GR#..GSU5#,GVU58 (J) |
1 | ||
| 13561 - DAMPER, CHAIN VIBRATION, NO.1 | ||||
| 13561-0P010 |
2GRFE..GSU5# (L) |
1 | ||
| 13561-31021 |
2GR#..GSU5#,GVU58 (J) |
1 | ||
| 13562 - DAMPER, CHAIN VIBRATION, NO.2 | ||||
| 13562-0P010 |
2GRFE..GSU5# (L) |
2 | ||
| 13562-31020 |
2GR#..GSU5#,GVU58 (J) |
2 | ||
| 13562 - DAMPER, CHAIN VIBRATION, NO.2 | ||||
| 13562-0P010 |
2GRFE..GSU5# (L) |
2 | ||
| 13562-31020 |
2GR#..GSU5#,GVU58 (J) |
2 | ||
| 13711 - VALVE, INTAKE | ||||
| 13711-31101 |
2GR#..GSU5#,GVU58 (J) |
12 | ||
| 13711-0P010 |
2GRFE..GSU5# (L) |
12 | ||
| 13711 - VALVE, INTAKE | ||||
| 13711-31101 |
2GR#..GSU5#,GVU58 (J) |
12 | ||
| 13711-0P010 |
2GRFE..GSU5# (L) |
12 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-36007 |
2GR#..GSU5#,GVU58 (J) |
24 | ||
| 90501-33027 |
2GRFE..GSU5# (J),PNC 13801=TYPE B |
24 | ||
| 90501-A0128 |
2GRFE..GSU5# (L),PNC 13801=TYPE B |
24 | ||
| 90501-36007 |
2GRFE..GSU5# *371,(J) |
24 | ||
| 90501-A0050 |
2GRFE..GSU5# *371,(L) |
24 | ||
| 90501-A0128 |
2GRFE..GSU5# (L) |
24 | ||
| 90501-33027 |
2GR#..GSU5#,GVU58 (J) |
24 | ||
| 90501-36007 |
2GRFE..GSU5# (J),PNC 13801=TYPE A |
24 | ||
| 90501-A0050 |
2GRFE..GSU5# (L),PNC 13801=TYPE A |
24 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-36007 |
2GR#..GSU5#,GVU58 (J) |
24 | ||
| 90501-33027 |
2GRFE..GSU5# (J),PNC 13801=TYPE B |
24 | ||
| 90501-A0128 |
2GRFE..GSU5# (L),PNC 13801=TYPE B |
24 | ||
| 90501-36007 |
2GRFE..GSU5# *371,(J) |
24 | ||
| 90501-A0050 |
2GRFE..GSU5# *371,(L) |
24 | ||
| 90501-A0128 |
2GRFE..GSU5# (L) |
24 | ||
| 90501-33027 |
2GR#..GSU5#,GVU58 (J) |
24 | ||
| 90501-36007 |
2GRFE..GSU5# (J),PNC 13801=TYPE A |
24 | ||
| 90501-A0050 |
2GRFE..GSU5# (L),PNC 13801=TYPE A |
24 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-36007 |
2GR#..GSU5#,GVU58 (J) |
24 | ||
| 90501-33027 |
2GRFE..GSU5# (J),PNC 13801=TYPE B |
24 | ||
| 90501-A0128 |
2GRFE..GSU5# (L),PNC 13801=TYPE B |
24 | ||
| 90501-36007 |
2GRFE..GSU5# *371,(J) |
24 | ||
| 90501-A0050 |
2GRFE..GSU5# *371,(L) |
24 | ||
| 90501-A0128 |
2GRFE..GSU5# (L) |
24 | ||
| 90501-33027 |
2GR#..GSU5#,GVU58 (J) |
24 | ||
| 90501-36007 |
2GRFE..GSU5# (J),PNC 13801=TYPE A |
24 | ||
| 90501-A0050 |
2GRFE..GSU5# (L),PNC 13801=TYPE A |
24 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-36007 |
2GR#..GSU5#,GVU58 (J) |
24 | ||
| 90501-33027 |
2GRFE..GSU5# (J),PNC 13801=TYPE B |
24 | ||
| 90501-A0128 |
2GRFE..GSU5# (L),PNC 13801=TYPE B |
24 | ||
| 90501-36007 |
2GRFE..GSU5# *371,(J) |
24 | ||
| 90501-A0050 |
2GRFE..GSU5# *371,(L) |
24 | ||
| 90501-A0128 |
2GRFE..GSU5# (L) |
24 | ||
| 90501-33027 |
2GR#..GSU5#,GVU58 (J) |
24 | ||
| 90501-36007 |
2GRFE..GSU5# (J),PNC 13801=TYPE A |
24 | ||
| 90501-A0050 |
2GRFE..GSU5# (L),PNC 13801=TYPE A |
24 | ||
| 13711E - SEAL, INTAKE VALVE STEM OIL | ||||
| 90913-02101 |
2GR#..GSU5#,GVU58 (J) |
12 | ||
| 90080-31043 |
2GRFE..GSU5# (L) |
12 | ||
| 13711E - SEAL, INTAKE VALVE STEM OIL | ||||
| 90913-02101 |
2GR#..GSU5#,GVU58 (J) |
12 | ||
| 90080-31043 |
2GRFE..GSU5# (L) |
12 | ||
| 13715 - VALVE, EXHAUST | ||||
| 13715-0P030 |
2GRFE..GSU5# (L) |
12 | ||
| 13715-31150 |
2GR#..GSU5#,GVU58 (J) |
12 | ||
| 13715 - VALVE, EXHAUST | ||||
| 13715-0P030 |
2GRFE..GSU5# (L) |
12 | ||
| 13715-31150 |
2GR#..GSU5#,GVU58 (J) |
12 | ||
| 13715A - SEAL, EXHAUST VALVE STEM OIL | ||||
| 90913-02112 |
2GR#..GSU5#,GVU58 (J) |
12 | ||
| 90080-31101 |
2GRFE..GSU5# (L) |
12 | ||
| 13715A - SEAL, EXHAUST VALVE STEM OIL | ||||
| 90913-02112 |
2GR#..GSU5#,GVU58 (J) |
12 | ||
| 90080-31101 |
2GRFE..GSU5# (L) |
12 | ||
| 13716 - CAP, VALVE STEM | ||||
| 13716-0S010 |
2GRFE..GSU5# (L) |
24 | ||
| 13716-75020 |
2GRFE..GSU5# (J) |
24 | ||
| 13716-75020 |
2GR#..GSU5#,GVU58 |
24 | ||
| 13716 - CAP, VALVE STEM | ||||
| 13716-0S010 |
2GRFE..GSU5# (L) |
24 | ||
| 13716-75020 |
2GRFE..GSU5# (J) |
24 | ||
| 13716-75020 |
2GR#..GSU5#,GVU58 |
24 | ||
| 13716 - CAP, VALVE STEM | ||||
| 13716-0S010 |
2GRFE..GSU5# (L) |
24 | ||
| 13716-75020 |
2GRFE..GSU5# (J) |
24 | ||
| 13716-75020 |
2GR#..GSU5#,GVU58 |
24 | ||
| 13716 - CAP, VALVE STEM | ||||
| 13716-0S010 |
2GRFE..GSU5# (L) |
24 | ||
| 13716-75020 |
2GRFE..GSU5# (J) |
24 | ||
| 13716-75020 |
2GR#..GSU5#,GVU58 |
24 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-62020 |
2GR#..GSU5#,GVU58 (J) |
24 | ||
| 13734-0P010 |
2GRFE..GSU5# (L) |
24 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-62020 |
2GR#..GSU5#,GVU58 (J) |
24 | ||
| 13734-0P010 |
2GRFE..GSU5# (L) |
24 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-62020 |
2GR#..GSU5#,GVU58 (J) |
24 | ||
| 13734-0P010 |
2GRFE..GSU5# (L) |
24 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-62020 |
2GR#..GSU5#,GVU58 (J) |
24 | ||
| 13734-0P010 |
2GRFE..GSU5# (L) |
24 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-0P010 |
2GRFE..GSU5# (L),PNC 13801=TYPE A |
24 | ||
| 13741-0P010 |
2GRFE..GSU5# (L) |
24 | ||
| 13741-31020 |
2GR#..GSU5#,GVU58 (J) |
24 | ||
| 13741-0P020 |
2GRFE..GSU5# (L) |
24 | ||
| 13741-36010 |
2GR#..GSU5#,GVU58 (J) |
24 | ||
| 13741-0P020 |
2GRFE..GSU5# (L),PNC 13801=TYPE B |
24 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-0P010 |
2GRFE..GSU5# (L),PNC 13801=TYPE A |
24 | ||
| 13741-0P010 |
2GRFE..GSU5# (L) |
24 | ||
| 13741-31020 |
2GR#..GSU5#,GVU58 (J) |
24 | ||
| 13741-0P020 |
2GRFE..GSU5# (L) |
24 | ||
| 13741-36010 |
2GR#..GSU5#,GVU58 (J) |
24 | ||
| 13741-0P020 |
2GRFE..GSU5# (L),PNC 13801=TYPE B |
24 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-0P010 |
2GRFE..GSU5# (L),PNC 13801=TYPE A |
24 | ||
| 13741-0P010 |
2GRFE..GSU5# (L) |
24 | ||
| 13741-31020 |
2GR#..GSU5#,GVU58 (J) |
24 | ||
| 13741-0P020 |
2GRFE..GSU5# (L) |
24 | ||
| 13741-36010 |
2GR#..GSU5#,GVU58 (J) |
24 | ||
| 13741-0P020 |
2GRFE..GSU5# (L),PNC 13801=TYPE B |
24 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-0P010 |
2GRFE..GSU5# (L),PNC 13801=TYPE A |
24 | ||
| 13741-0P010 |
2GRFE..GSU5# (L) |
24 | ||
| 13741-31020 |
2GR#..GSU5#,GVU58 (J) |
24 | ||
| 13741-0P020 |
2GRFE..GSU5# (L) |
24 | ||
| 13741-36010 |
2GR#..GSU5#,GVU58 (J) |
24 | ||
| 13741-0P020 |
2GRFE..GSU5# (L),PNC 13801=TYPE B |
24 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
2GR#..GSU5#,GVU58 (J) |
48 | ||
| 90913-A3001 |
2GRFE..GSU5# (L) |
48 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
2GR#..GSU5#,GVU58 (J) |
48 | ||
| 90913-A3001 |
2GRFE..GSU5# (L) |
48 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
2GR#..GSU5#,GVU58 (J) |
48 | ||
| 90913-A3001 |
2GRFE..GSU5# (L) |
48 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
2GR#..GSU5#,GVU58 (J) |
48 | ||
| 90913-A3001 |
2GRFE..GSU5# (L) |
48 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
2GR#..GSU5#,GVU58 (J) |
48 | ||
| 90913-A3001 |
2GRFE..GSU5# (L) |
48 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
2GR#..GSU5#,GVU58 (J) |
48 | ||
| 90913-A3001 |
2GRFE..GSU5# (L) |
48 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
2GR#..GSU5#,GVU58 (J) |
48 | ||
| 90913-A3001 |
2GRFE..GSU5# (L) |
48 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
2GR#..GSU5#,GVU58 (J) |
48 | ||
| 90913-A3001 |
2GRFE..GSU5# (L) |
48 | ||
| 13750 - ADJUSTER ASSY, VALVE LASH | ||||
| 13750-0P020 |
2GRFE..GSU5# (L) |
24 | ||
| 13750-31030 |
2GR#..GSU5#,GVU58 (J) |
24 | ||
| 13750 - ADJUSTER ASSY, VALVE LASH | ||||
| 13750-0P020 |
2GRFE..GSU5# (L) |
24 | ||
| 13750-31030 |
2GR#..GSU5#,GVU58 (J) |
24 | ||
| 13750 - ADJUSTER ASSY, VALVE LASH | ||||
| 13750-0P020 |
2GRFE..GSU5# (L) |
24 | ||
| 13750-31030 |
2GR#..GSU5#,GVU58 (J) |
24 | ||
| 13750 - ADJUSTER ASSY, VALVE LASH | ||||
| 13750-0P020 |
2GRFE..GSU5# (L) |
24 | ||
| 13750-31030 |
2GR#..GSU5#,GVU58 (J) |
24 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13801-36020 |
2GR#..GSU5#,GVU58 (J) |
24 | ||
| 13801-0P030 |
2GRFE..GSU5# (L),TYPE B:REF ILL. |
24 | ||
| 13801-23011 |
2GR#..GSU5#,GVU58 (J) |
24 | ||
| 13801-0P010 |
2GRFE..GSU5# (L) |
24 | ||
| 13801-0P010 |
2GRFE..GSU5# (L),TYPE A:REF ILL. |
24 | ||
| 13801-0P030 |
2GRFE..GSU5# (L) |
24 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13801-36020 |
2GR#..GSU5#,GVU58 (J) |
24 | ||
| 13801-0P030 |
2GRFE..GSU5# (L),TYPE B:REF ILL. |
24 | ||
| 13801-23011 |
2GR#..GSU5#,GVU58 (J) |
24 | ||
| 13801-0P010 |
2GRFE..GSU5# (L) |
24 | ||
| 13801-0P010 |
2GRFE..GSU5# (L),TYPE A:REF ILL. |
24 | ||
| 13801-0P030 |
2GRFE..GSU5# (L) |
24 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13801-36020 |
2GR#..GSU5#,GVU58 (J) |
24 | ||
| 13801-0P030 |
2GRFE..GSU5# (L),TYPE B:REF ILL. |
24 | ||
| 13801-23011 |
2GR#..GSU5#,GVU58 (J) |
24 | ||
| 13801-0P010 |
2GRFE..GSU5# (L) |
24 | ||
| 13801-0P010 |
2GRFE..GSU5# (L),TYPE A:REF ILL. |
24 | ||
| 13801-0P030 |
2GRFE..GSU5# (L) |
24 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13801-36020 |
2GR#..GSU5#,GVU58 (J) |
24 | ||
| 13801-0P030 |
2GRFE..GSU5# (L),TYPE B:REF ILL. |
24 | ||
| 13801-23011 |
2GR#..GSU5#,GVU58 (J) |
24 | ||
| 13801-0P010 |
2GRFE..GSU5# (L) |
24 | ||
| 13801-0P010 |
2GRFE..GSU5# (L),TYPE A:REF ILL. |
24 | ||
| 13801-0P030 |
2GRFE..GSU5# (L) |
24 | ||
| Common parts | ||||
| 90105-A0118 | ||||
| 90105-A0128 | ||||
| 90119-12370 | ||||
| 91551-80630 | ||||
| 91551-80635 | ||||
| 91551-80830 | ||||
| 91671-G0825 | ||||

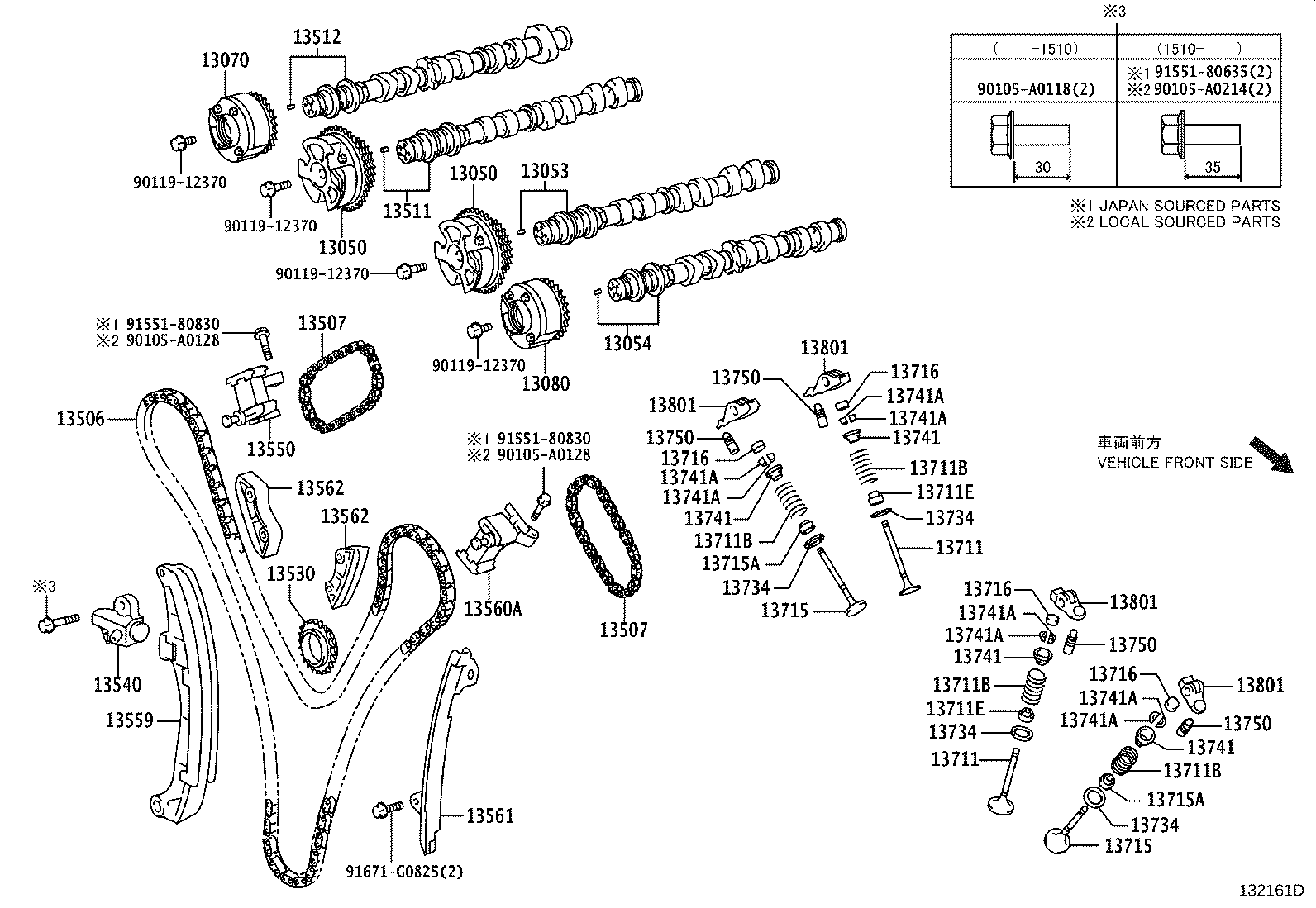

(1507-1611)2GRFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 13050 - GEAR ASSY, CAMSHAFT TIMING | ||||
| 13050-0P071 |
2GRFE..GSU5# |
2 | ||
| 13050-31170 |
2GRFE..GSU5# (J) |
2 | ||
| 13050 - GEAR ASSY, CAMSHAFT TIMING | ||||
| 13050-0P071 |
2GRFE..GSU5# |
2 | ||
| 13050-31170 |
2GRFE..GSU5# (J) |
2 | ||
| 13053 - CAMSHAFT SUB-ASSY, NO.3 | ||||
| 13053-0P021 |
2GRFE..GSU5# *250 |
1 | ||
| 13053-31061 |
2GRFE..GSU5# *250 |
1 | ||
| 13053-31080 |
2GRFE..GSU5# *251,*427 |
1 | ||
| 13054 - CAMSHAFT SUB-ASSY, NO.4 | ||||
| 13054-0P021 |
2GRFE..GSU5# *250 |
1 | ||
| 13054-31061 |
2GRFE..GSU5# *250 |
1 | ||
| 13054-31080 |
2GRFE..GSU5# *251,*427 |
1 | ||
| 13070 - GEAR ASSY, CAMSHAFT TIMING EXHAUST, RH | ||||
| 13080-0P040 |
2GRFE..GSU5# (L) |
1 | ||
| 13080-31050 |
2GRFE..GSU5# (J) |
1 | ||
| 13080 - GEAR ASSY, CAMSHAFT TIMING EXHAUST, LH | ||||
| 13080-31050 |
2GRFE..GSU5# (J) |
1 | ||
| 13080-0P040 |
2GRFE..GSU5# (L) |
1 | ||
| 13506 - CHAIN SUB-ASSY | ||||
| 13506-31031 |
2GR#..GSU5#,GVU58 (J) |
1 | ||
| 13506-0P011 |
2GRFE..GSU5# (L) |
1 | ||
| 13507 - CHAIN SUB-ASSY, NO.2 | ||||
| 13507-0P010 |
2GRFE..GSU5# (L) |
2 | ||
| 13507-31020 |
2GR#..GSU5#,GVU58 (J) |
2 | ||
| 13507 - CHAIN SUB-ASSY, NO.2 | ||||
| 13507-0P010 |
2GRFE..GSU5# (L) |
2 | ||
| 13507-31020 |
2GR#..GSU5#,GVU58 (J) |
2 | ||
| 13511 - CAMSHAFT | ||||
| 13501-0P021 |
2GRFE..GSU5# *250 |
1 | ||
| 13501-31091 |
2GRFE..GSU5# *250 |
1 | ||
| 13501-31100 |
2GRFE..GSU5# *251,*427 |
1 | ||
| 13512 - CAMSHAFT, NO.2 | ||||
| 13502-0P021 |
2GRFE..GSU5# *250 |
1 | ||
| 13502-31080 |
2GRFE..GSU5# *251,*427 |
1 | ||
| 13502-31061 |
2GRFE..GSU5# *250 |
1 | ||
| 13530 - SPROCKET ASSY, IDLE | ||||
| 13530-31021 |
2GR#..GSU5#,GVU58 |
1 | ||
| 13540 - TENSIONER ASSY, CHAIN, NO.1 | ||||
| 13540-31060 |
2GR#..GSU5#,GVU58 (J) |
1 | ||
| 13540-0P010 |
2GRFE..GSU5# (L) |
1 | ||
| 13540-31021 |
2GR#..GSU5#,GVU58 (J) |
1 | ||
| 13540-0P011 |
2GRFE..GSU5# (L) |
1 | ||
| 13550 - TENSIONER ASSY, CHAIN, NO.2 | ||||
| 13550-31020 |
2GR#..GSU5#,GVU58 (J) |
1 | ||
| 13550-0P010 |
2GRFE..GSU5# (L) |
1 | ||
| 13559 - SLIPPER, CHAIN TENSIONER | ||||
| 13559-31020 |
2GR#..GSU5#,GVU58 (J) |
1 | ||
| 13559-0P010 |
2GRFE..GSU5# (L) |
1 | ||
| 13560A - TENSIONER ASSY, CHAIN, NO.3 | ||||
| 13560-0P010 |
2GRFE..GSU5# (L) |
1 | ||
| 13560-31020 |
2GR#..GSU5#,GVU58 (J) |
1 | ||
| 13561 - DAMPER, CHAIN VIBRATION, NO.1 | ||||
| 13561-0P010 |
2GRFE..GSU5# (L) |
1 | ||
| 13561-31021 |
2GR#..GSU5#,GVU58 (J) |
1 | ||
| 13562 - DAMPER, CHAIN VIBRATION, NO.2 | ||||
| 13562-0P010 |
2GRFE..GSU5# (L) |
2 | ||
| 13562-31020 |
2GR#..GSU5#,GVU58 (J) |
2 | ||
| 13562 - DAMPER, CHAIN VIBRATION, NO.2 | ||||
| 13562-0P010 |
2GRFE..GSU5# (L) |
2 | ||
| 13562-31020 |
2GR#..GSU5#,GVU58 (J) |
2 | ||
| 13711 - VALVE, INTAKE | ||||
| 13711-31101 |
2GR#..GSU5#,GVU58 (J) |
12 | ||
| 13711-0P010 |
2GRFE..GSU5# (L) |
12 | ||
| 13711 - VALVE, INTAKE | ||||
| 13711-31101 |
2GR#..GSU5#,GVU58 (J) |
12 | ||
| 13711-0P010 |
2GRFE..GSU5# (L) |
12 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-36007 |
2GR#..GSU5#,GVU58 (J) |
24 | ||
| 90501-33027 |
2GRFE..GSU5# (J),PNC 13801=TYPE B |
24 | ||
| 90501-A0128 |
2GRFE..GSU5# (L),PNC 13801=TYPE B |
24 | ||
| 90501-36007 |
2GRFE..GSU5# *371,(J) |
24 | ||
| 90501-A0050 |
2GRFE..GSU5# *371,(L) |
24 | ||
| 90501-A0128 |
2GRFE..GSU5# (L) |
24 | ||
| 90501-33027 |
2GR#..GSU5#,GVU58 (J) |
24 | ||
| 90501-36007 |
2GRFE..GSU5# (J),PNC 13801=TYPE A |
24 | ||
| 90501-A0050 |
2GRFE..GSU5# (L),PNC 13801=TYPE A |
24 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-36007 |
2GR#..GSU5#,GVU58 (J) |
24 | ||
| 90501-33027 |
2GRFE..GSU5# (J),PNC 13801=TYPE B |
24 | ||
| 90501-A0128 |
2GRFE..GSU5# (L),PNC 13801=TYPE B |
24 | ||
| 90501-36007 |
2GRFE..GSU5# *371,(J) |
24 | ||
| 90501-A0050 |
2GRFE..GSU5# *371,(L) |
24 | ||
| 90501-A0128 |
2GRFE..GSU5# (L) |
24 | ||
| 90501-33027 |
2GR#..GSU5#,GVU58 (J) |
24 | ||
| 90501-36007 |
2GRFE..GSU5# (J),PNC 13801=TYPE A |
24 | ||
| 90501-A0050 |
2GRFE..GSU5# (L),PNC 13801=TYPE A |
24 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-36007 |
2GR#..GSU5#,GVU58 (J) |
24 | ||
| 90501-33027 |
2GRFE..GSU5# (J),PNC 13801=TYPE B |
24 | ||
| 90501-A0128 |
2GRFE..GSU5# (L),PNC 13801=TYPE B |
24 | ||
| 90501-36007 |
2GRFE..GSU5# *371,(J) |
24 | ||
| 90501-A0050 |
2GRFE..GSU5# *371,(L) |
24 | ||
| 90501-A0128 |
2GRFE..GSU5# (L) |
24 | ||
| 90501-33027 |
2GR#..GSU5#,GVU58 (J) |
24 | ||
| 90501-36007 |
2GRFE..GSU5# (J),PNC 13801=TYPE A |
24 | ||
| 90501-A0050 |
2GRFE..GSU5# (L),PNC 13801=TYPE A |
24 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-36007 |
2GR#..GSU5#,GVU58 (J) |
24 | ||
| 90501-33027 |
2GRFE..GSU5# (J),PNC 13801=TYPE B |
24 | ||
| 90501-A0128 |
2GRFE..GSU5# (L),PNC 13801=TYPE B |
24 | ||
| 90501-36007 |
2GRFE..GSU5# *371,(J) |
24 | ||
| 90501-A0050 |
2GRFE..GSU5# *371,(L) |
24 | ||
| 90501-A0128 |
2GRFE..GSU5# (L) |
24 | ||
| 90501-33027 |
2GR#..GSU5#,GVU58 (J) |
24 | ||
| 90501-36007 |
2GRFE..GSU5# (J),PNC 13801=TYPE A |
24 | ||
| 90501-A0050 |
2GRFE..GSU5# (L),PNC 13801=TYPE A |
24 | ||
| 13711E - SEAL, INTAKE VALVE STEM OIL | ||||
| 90913-02101 |
2GR#..GSU5#,GVU58 (J) |
12 | ||
| 90080-31043 |
2GRFE..GSU5# (L) |
12 | ||
| 13711E - SEAL, INTAKE VALVE STEM OIL | ||||
| 90913-02101 |
2GR#..GSU5#,GVU58 (J) |
12 | ||
| 90080-31043 |
2GRFE..GSU5# (L) |
12 | ||
| 13715 - VALVE, EXHAUST | ||||
| 13715-0P030 |
2GRFE..GSU5# (L) |
12 | ||
| 13715-31150 |
2GR#..GSU5#,GVU58 (J) |
12 | ||
| 13715 - VALVE, EXHAUST | ||||
| 13715-0P030 |
2GRFE..GSU5# (L) |
12 | ||
| 13715-31150 |
2GR#..GSU5#,GVU58 (J) |
12 | ||
| 13715A - SEAL, EXHAUST VALVE STEM OIL | ||||
| 90913-02112 |
2GR#..GSU5#,GVU58 (J) |
12 | ||
| 90080-31101 |
2GRFE..GSU5# (L) |
12 | ||
| 13715A - SEAL, EXHAUST VALVE STEM OIL | ||||
| 90913-02112 |
2GR#..GSU5#,GVU58 (J) |
12 | ||
| 90080-31101 |
2GRFE..GSU5# (L) |
12 | ||
| 13716 - CAP, VALVE STEM | ||||
| 13716-0S010 |
2GRFE..GSU5# (L) |
24 | ||
| 13716-75020 |
2GRFE..GSU5# (J) |
24 | ||
| 13716-75020 |
2GR#..GSU5#,GVU58 |
24 | ||
| 13716 - CAP, VALVE STEM | ||||
| 13716-0S010 |
2GRFE..GSU5# (L) |
24 | ||
| 13716-75020 |
2GRFE..GSU5# (J) |
24 | ||
| 13716-75020 |
2GR#..GSU5#,GVU58 |
24 | ||
| 13716 - CAP, VALVE STEM | ||||
| 13716-0S010 |
2GRFE..GSU5# (L) |
24 | ||
| 13716-75020 |
2GRFE..GSU5# (J) |
24 | ||
| 13716-75020 |
2GR#..GSU5#,GVU58 |
24 | ||
| 13716 - CAP, VALVE STEM | ||||
| 13716-0S010 |
2GRFE..GSU5# (L) |
24 | ||
| 13716-75020 |
2GRFE..GSU5# (J) |
24 | ||
| 13716-75020 |
2GR#..GSU5#,GVU58 |
24 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-62020 |
2GR#..GSU5#,GVU58 (J) |
24 | ||
| 13734-0P010 |
2GRFE..GSU5# (L) |
24 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-62020 |
2GR#..GSU5#,GVU58 (J) |
24 | ||
| 13734-0P010 |
2GRFE..GSU5# (L) |
24 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-62020 |
2GR#..GSU5#,GVU58 (J) |
24 | ||
| 13734-0P010 |
2GRFE..GSU5# (L) |
24 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-62020 |
2GR#..GSU5#,GVU58 (J) |
24 | ||
| 13734-0P010 |
2GRFE..GSU5# (L) |
24 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-0P010 |
2GRFE..GSU5# (L),PNC 13801=TYPE A |
24 | ||
| 13741-0P010 |
2GRFE..GSU5# (L) |
24 | ||
| 13741-31020 |
2GR#..GSU5#,GVU58 (J) |
24 | ||
| 13741-0P020 |
2GRFE..GSU5# (L) |
24 | ||
| 13741-36010 |
2GR#..GSU5#,GVU58 (J) |
24 | ||
| 13741-0P020 |
2GRFE..GSU5# (L),PNC 13801=TYPE B |
24 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-0P010 |
2GRFE..GSU5# (L),PNC 13801=TYPE A |
24 | ||
| 13741-0P010 |
2GRFE..GSU5# (L) |
24 | ||
| 13741-31020 |
2GR#..GSU5#,GVU58 (J) |
24 | ||
| 13741-0P020 |
2GRFE..GSU5# (L) |
24 | ||
| 13741-36010 |
2GR#..GSU5#,GVU58 (J) |
24 | ||
| 13741-0P020 |
2GRFE..GSU5# (L),PNC 13801=TYPE B |
24 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-0P010 |
2GRFE..GSU5# (L),PNC 13801=TYPE A |
24 | ||
| 13741-0P010 |
2GRFE..GSU5# (L) |
24 | ||
| 13741-31020 |
2GR#..GSU5#,GVU58 (J) |
24 | ||
| 13741-0P020 |
2GRFE..GSU5# (L) |
24 | ||
| 13741-36010 |
2GR#..GSU5#,GVU58 (J) |
24 | ||
| 13741-0P020 |
2GRFE..GSU5# (L),PNC 13801=TYPE B |
24 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-0P010 |
2GRFE..GSU5# (L),PNC 13801=TYPE A |
24 | ||
| 13741-0P010 |
2GRFE..GSU5# (L) |
24 | ||
| 13741-31020 |
2GR#..GSU5#,GVU58 (J) |
24 | ||
| 13741-0P020 |
2GRFE..GSU5# (L) |
24 | ||
| 13741-36010 |
2GR#..GSU5#,GVU58 (J) |
24 | ||
| 13741-0P020 |
2GRFE..GSU5# (L),PNC 13801=TYPE B |
24 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
2GR#..GSU5#,GVU58 (J) |
48 | ||
| 90913-A3001 |
2GRFE..GSU5# (L) |
48 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
2GR#..GSU5#,GVU58 (J) |
48 | ||
| 90913-A3001 |
2GRFE..GSU5# (L) |
48 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
2GR#..GSU5#,GVU58 (J) |
48 | ||
| 90913-A3001 |
2GRFE..GSU5# (L) |
48 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
2GR#..GSU5#,GVU58 (J) |
48 | ||
| 90913-A3001 |
2GRFE..GSU5# (L) |
48 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
2GR#..GSU5#,GVU58 (J) |
48 | ||
| 90913-A3001 |
2GRFE..GSU5# (L) |
48 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
2GR#..GSU5#,GVU58 (J) |
48 | ||
| 90913-A3001 |
2GRFE..GSU5# (L) |
48 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
2GR#..GSU5#,GVU58 (J) |
48 | ||
| 90913-A3001 |
2GRFE..GSU5# (L) |
48 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
2GR#..GSU5#,GVU58 (J) |
48 | ||
| 90913-A3001 |
2GRFE..GSU5# (L) |
48 | ||
| 13750 - ADJUSTER ASSY, VALVE LASH | ||||
| 13750-0P020 |
2GRFE..GSU5# (L) |
24 | ||
| 13750-31030 |
2GR#..GSU5#,GVU58 (J) |
24 | ||
| 13750 - ADJUSTER ASSY, VALVE LASH | ||||
| 13750-0P020 |
2GRFE..GSU5# (L) |
24 | ||
| 13750-31030 |
2GR#..GSU5#,GVU58 (J) |
24 | ||
| 13750 - ADJUSTER ASSY, VALVE LASH | ||||
| 13750-0P020 |
2GRFE..GSU5# (L) |
24 | ||
| 13750-31030 |
2GR#..GSU5#,GVU58 (J) |
24 | ||
| 13750 - ADJUSTER ASSY, VALVE LASH | ||||
| 13750-0P020 |
2GRFE..GSU5# (L) |
24 | ||
| 13750-31030 |
2GR#..GSU5#,GVU58 (J) |
24 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13801-36020 |
2GR#..GSU5#,GVU58 (J) |
24 | ||
| 13801-0P030 |
2GRFE..GSU5# (L),TYPE B:REF ILL. |
24 | ||
| 13801-23011 |
2GR#..GSU5#,GVU58 (J) |
24 | ||
| 13801-0P010 |
2GRFE..GSU5# (L) |
24 | ||
| 13801-0P010 |
2GRFE..GSU5# (L),TYPE A:REF ILL. |
24 | ||
| 13801-0P030 |
2GRFE..GSU5# (L) |
24 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13801-36020 |
2GR#..GSU5#,GVU58 (J) |
24 | ||
| 13801-0P030 |
2GRFE..GSU5# (L),TYPE B:REF ILL. |
24 | ||
| 13801-23011 |
2GR#..GSU5#,GVU58 (J) |
24 | ||
| 13801-0P010 |
2GRFE..GSU5# (L) |
24 | ||
| 13801-0P010 |
2GRFE..GSU5# (L),TYPE A:REF ILL. |
24 | ||
| 13801-0P030 |
2GRFE..GSU5# (L) |
24 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13801-36020 |
2GR#..GSU5#,GVU58 (J) |
24 | ||
| 13801-0P030 |
2GRFE..GSU5# (L),TYPE B:REF ILL. |
24 | ||
| 13801-23011 |
2GR#..GSU5#,GVU58 (J) |
24 | ||
| 13801-0P010 |
2GRFE..GSU5# (L) |
24 | ||
| 13801-0P010 |
2GRFE..GSU5# (L),TYPE A:REF ILL. |
24 | ||
| 13801-0P030 |
2GRFE..GSU5# (L) |
24 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13801-36020 |
2GR#..GSU5#,GVU58 (J) |
24 | ||
| 13801-0P030 |
2GRFE..GSU5# (L),TYPE B:REF ILL. |
24 | ||
| 13801-23011 |
2GR#..GSU5#,GVU58 (J) |
24 | ||
| 13801-0P010 |
2GRFE..GSU5# (L) |
24 | ||
| 13801-0P010 |
2GRFE..GSU5# (L),TYPE A:REF ILL. |
24 | ||
| 13801-0P030 |
2GRFE..GSU5# (L) |
24 | ||
| Common parts | ||||
| 90105-A0118 | ||||
| 90105-A0128 | ||||
| 90105-A0214 | ||||
| 90119-12370 | ||||
| 91551-80635 | ||||
| 91551-80830 | ||||
| 91671-G0825 | ||||
(1312-1407)2GRFE

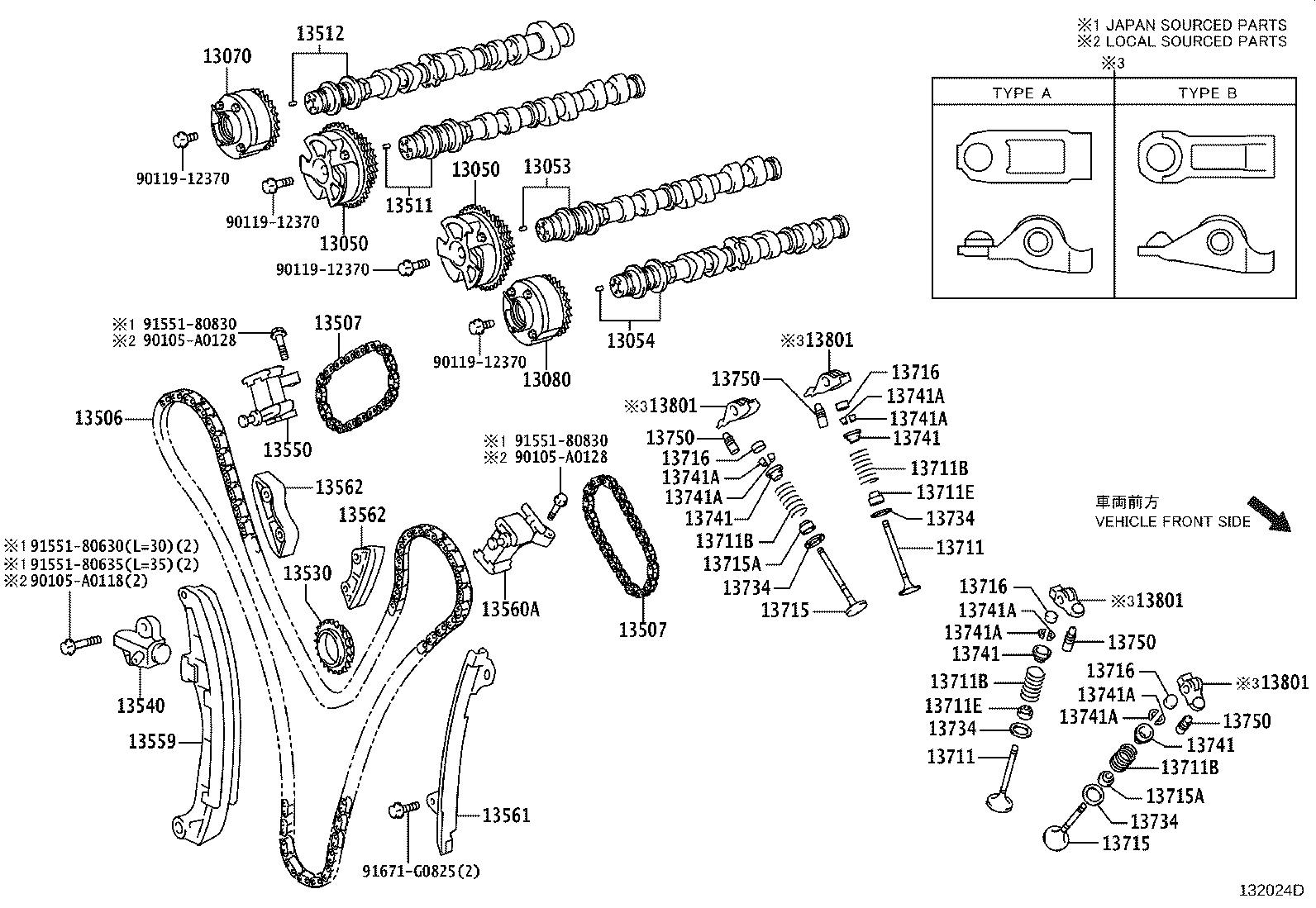

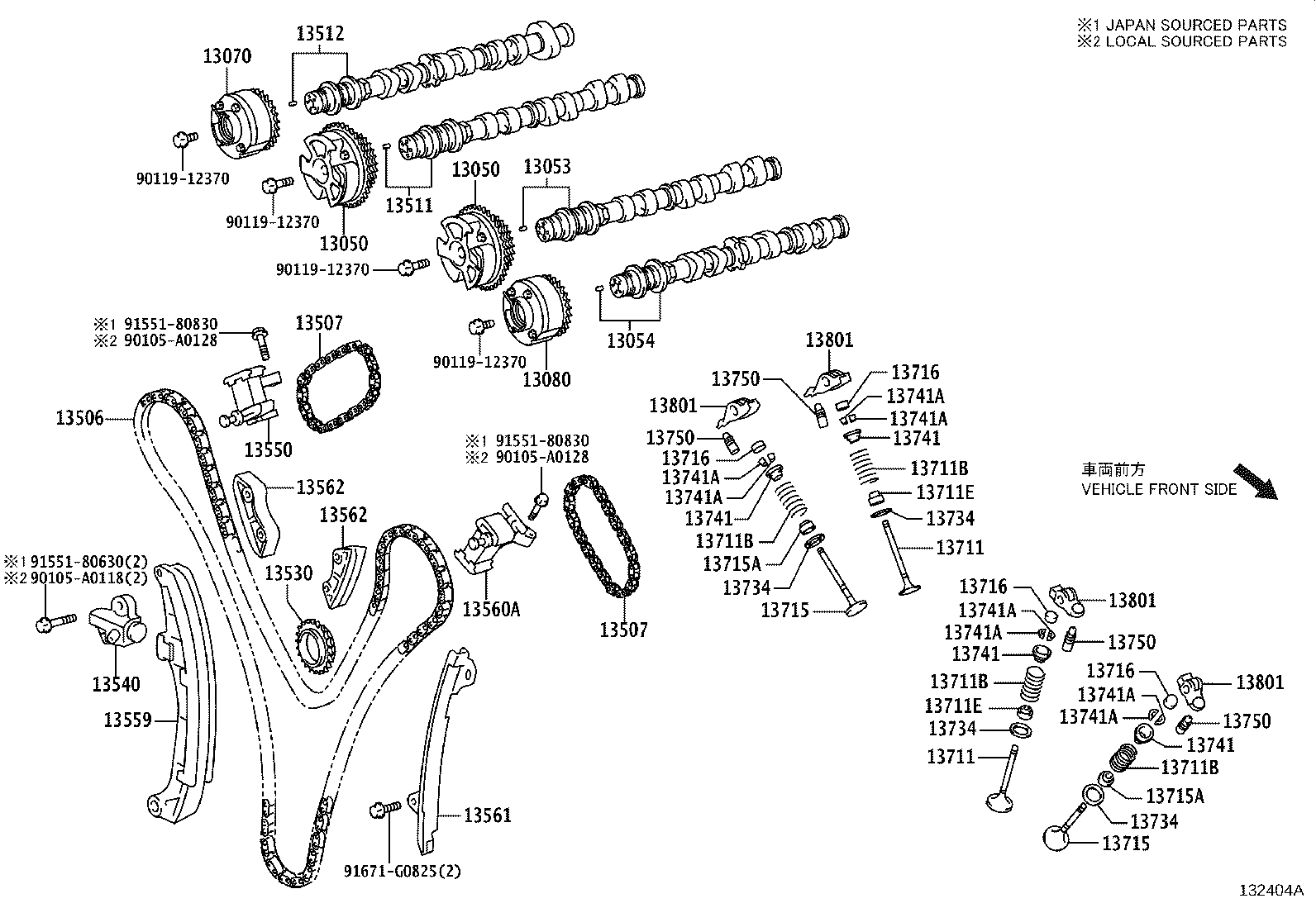

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 13050 - GEAR ASSY, CAMSHAFT TIMING | ||||
| 13050-0P071 |
2GRFE..GSU5# |
2 | ||
| 13050-31170 |
2GRFE..GSU5# (J) |
2 | ||
| 13050 - GEAR ASSY, CAMSHAFT TIMING | ||||
| 13050-0P071 |
2GRFE..GSU5# |
2 | ||
| 13050-31170 |
2GRFE..GSU5# (J) |
2 | ||
| 13053 - CAMSHAFT SUB-ASSY, NO.3 | ||||
| 13053-0P021 |
2GRFE..GSU5# *250 |
1 | ||
| 13053-31061 |
2GRFE..GSU5# *250 |
1 | ||
| 13053-31080 |
2GRFE..GSU5# *251,*427 |
1 | ||
| 13054 - CAMSHAFT SUB-ASSY, NO.4 | ||||
| 13054-0P021 |
2GRFE..GSU5# *250 |
1 | ||
| 13054-31061 |
2GRFE..GSU5# *250 |
1 | ||
| 13054-31080 |
2GRFE..GSU5# *251,*427 |
1 | ||
| 13070 - GEAR ASSY, CAMSHAFT TIMING EXHAUST, RH | ||||
| 13080-0P040 |
2GRFE..GSU5# (L) |
1 | ||
| 13080-31050 |
2GRFE..GSU5# (J) |
1 | ||
| 13080 - GEAR ASSY, CAMSHAFT TIMING EXHAUST, LH | ||||
| 13080-31050 |
2GRFE..GSU5# (J) |
1 | ||
| 13080-0P040 |
2GRFE..GSU5# (L) |
1 | ||
| 13506 - CHAIN SUB-ASSY | ||||
| 13506-31031 |
2GR#..GSU5#,GVU58 (J) |
1 | ||
| 13506-0P011 |
2GRFE..GSU5# (L) |
1 | ||
| 13507 - CHAIN SUB-ASSY, NO.2 | ||||
| 13507-0P010 |
2GRFE..GSU5# (L) |
2 | ||
| 13507-31020 |
2GR#..GSU5#,GVU58 (J) |
2 | ||
| 13507 - CHAIN SUB-ASSY, NO.2 | ||||
| 13507-0P010 |
2GRFE..GSU5# (L) |
2 | ||
| 13507-31020 |
2GR#..GSU5#,GVU58 (J) |
2 | ||
| 13511 - CAMSHAFT | ||||
| 13501-0P021 |
2GRFE..GSU5# *250 |
1 | ||
| 13501-31091 |
2GRFE..GSU5# *250 |
1 | ||
| 13501-31100 |
2GRFE..GSU5# *251,*427 |
1 | ||
| 13512 - CAMSHAFT, NO.2 | ||||
| 13502-0P021 |
2GRFE..GSU5# *250 |
1 | ||
| 13502-31080 |
2GRFE..GSU5# *251,*427 |
1 | ||
| 13502-31061 |
2GRFE..GSU5# *250 |
1 | ||
| 13530 - SPROCKET ASSY, IDLE | ||||
| 13530-31021 |
2GR#..GSU5#,GVU58 |
1 | ||
| 13540 - TENSIONER ASSY, CHAIN, NO.1 | ||||
| 13540-31060 |
2GR#..GSU5#,GVU58 (J) |
1 | ||
| 13540-0P010 |
2GRFE..GSU5# (L) |
1 | ||
| 13540-31021 |
2GR#..GSU5#,GVU58 (J) |
1 | ||
| 13540-0P011 |
2GRFE..GSU5# (L) |
1 | ||
| 13550 - TENSIONER ASSY, CHAIN, NO.2 | ||||
| 13550-31020 |
2GR#..GSU5#,GVU58 (J) |
1 | ||
| 13550-0P010 |
2GRFE..GSU5# (L) |
1 | ||
| 13559 - SLIPPER, CHAIN TENSIONER | ||||
| 13559-31020 |
2GR#..GSU5#,GVU58 (J) |
1 | ||
| 13559-0P010 |
2GRFE..GSU5# (L) |
1 | ||
| 13560A - TENSIONER ASSY, CHAIN, NO.3 | ||||
| 13560-0P010 |
2GRFE..GSU5# (L) |
1 | ||
| 13560-31020 |
2GR#..GSU5#,GVU58 (J) |
1 | ||
| 13561 - DAMPER, CHAIN VIBRATION, NO.1 | ||||
| 13561-0P010 |
2GRFE..GSU5# (L) |
1 | ||
| 13561-31021 |
2GR#..GSU5#,GVU58 (J) |
1 | ||
| 13562 - DAMPER, CHAIN VIBRATION, NO.2 | ||||
| 13562-0P010 |
2GRFE..GSU5# (L) |
2 | ||
| 13562-31020 |
2GR#..GSU5#,GVU58 (J) |
2 | ||
| 13562 - DAMPER, CHAIN VIBRATION, NO.2 | ||||
| 13562-0P010 |
2GRFE..GSU5# (L) |
2 | ||
| 13562-31020 |
2GR#..GSU5#,GVU58 (J) |
2 | ||
| 13711 - VALVE, INTAKE | ||||
| 13711-31101 |
2GR#..GSU5#,GVU58 (J) |
12 | ||
| 13711-0P010 |
2GRFE..GSU5# (L) |
12 | ||
| 13711 - VALVE, INTAKE | ||||
| 13711-31101 |
2GR#..GSU5#,GVU58 (J) |
12 | ||
| 13711-0P010 |
2GRFE..GSU5# (L) |
12 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-36007 |
2GR#..GSU5#,GVU58 (J) |
24 | ||
| 90501-33027 |
2GRFE..GSU5# (J),PNC 13801=TYPE B |
24 | ||
| 90501-A0128 |
2GRFE..GSU5# (L),PNC 13801=TYPE B |
24 | ||
| 90501-36007 |
2GRFE..GSU5# *371,(J) |
24 | ||
| 90501-A0050 |
2GRFE..GSU5# *371,(L) |
24 | ||
| 90501-A0128 |
2GRFE..GSU5# (L) |
24 | ||
| 90501-33027 |
2GR#..GSU5#,GVU58 (J) |
24 | ||
| 90501-36007 |
2GRFE..GSU5# (J),PNC 13801=TYPE A |
24 | ||
| 90501-A0050 |
2GRFE..GSU5# (L),PNC 13801=TYPE A |
24 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-36007 |
2GR#..GSU5#,GVU58 (J) |
24 | ||
| 90501-33027 |
2GRFE..GSU5# (J),PNC 13801=TYPE B |
24 | ||
| 90501-A0128 |
2GRFE..GSU5# (L),PNC 13801=TYPE B |
24 | ||
| 90501-36007 |
2GRFE..GSU5# *371,(J) |
24 | ||
| 90501-A0050 |
2GRFE..GSU5# *371,(L) |
24 | ||
| 90501-A0128 |
2GRFE..GSU5# (L) |
24 | ||
| 90501-33027 |
2GR#..GSU5#,GVU58 (J) |
24 | ||
| 90501-36007 |
2GRFE..GSU5# (J),PNC 13801=TYPE A |
24 | ||
| 90501-A0050 |
2GRFE..GSU5# (L),PNC 13801=TYPE A |
24 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-36007 |
2GR#..GSU5#,GVU58 (J) |
24 | ||
| 90501-33027 |
2GRFE..GSU5# (J),PNC 13801=TYPE B |
24 | ||
| 90501-A0128 |
2GRFE..GSU5# (L),PNC 13801=TYPE B |
24 | ||
| 90501-36007 |
2GRFE..GSU5# *371,(J) |
24 | ||
| 90501-A0050 |
2GRFE..GSU5# *371,(L) |
24 | ||
| 90501-A0128 |
2GRFE..GSU5# (L) |
24 | ||
| 90501-33027 |
2GR#..GSU5#,GVU58 (J) |
24 | ||
| 90501-36007 |
2GRFE..GSU5# (J),PNC 13801=TYPE A |
24 | ||
| 90501-A0050 |
2GRFE..GSU5# (L),PNC 13801=TYPE A |
24 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-36007 |
2GR#..GSU5#,GVU58 (J) |
24 | ||
| 90501-33027 |
2GRFE..GSU5# (J),PNC 13801=TYPE B |
24 | ||
| 90501-A0128 |
2GRFE..GSU5# (L),PNC 13801=TYPE B |
24 | ||
| 90501-36007 |
2GRFE..GSU5# *371,(J) |
24 | ||
| 90501-A0050 |
2GRFE..GSU5# *371,(L) |
24 | ||
| 90501-A0128 |
2GRFE..GSU5# (L) |
24 | ||
| 90501-33027 |
2GR#..GSU5#,GVU58 (J) |
24 | ||
| 90501-36007 |
2GRFE..GSU5# (J),PNC 13801=TYPE A |
24 | ||
| 90501-A0050 |
2GRFE..GSU5# (L),PNC 13801=TYPE A |
24 | ||
| 13711E - SEAL, INTAKE VALVE STEM OIL | ||||
| 90913-02101 |
2GR#..GSU5#,GVU58 (J) |
12 | ||
| 90080-31043 |
2GRFE..GSU5# (L) |
12 | ||
| 13711E - SEAL, INTAKE VALVE STEM OIL | ||||
| 90913-02101 |
2GR#..GSU5#,GVU58 (J) |
12 | ||
| 90080-31043 |
2GRFE..GSU5# (L) |
12 | ||
| 13715 - VALVE, EXHAUST | ||||
| 13715-0P030 |
2GRFE..GSU5# (L) |
12 | ||
| 13715-31150 |
2GR#..GSU5#,GVU58 (J) |
12 | ||
| 13715 - VALVE, EXHAUST | ||||
| 13715-0P030 |
2GRFE..GSU5# (L) |
12 | ||
| 13715-31150 |
2GR#..GSU5#,GVU58 (J) |
12 | ||
| 13715A - SEAL, EXHAUST VALVE STEM OIL | ||||
| 90913-02112 |
2GR#..GSU5#,GVU58 (J) |
12 | ||
| 90080-31101 |
2GRFE..GSU5# (L) |
12 | ||
| 13715A - SEAL, EXHAUST VALVE STEM OIL | ||||
| 90913-02112 |
2GR#..GSU5#,GVU58 (J) |
12 | ||
| 90080-31101 |
2GRFE..GSU5# (L) |
12 | ||
| 13716 - CAP, VALVE STEM | ||||
| 13716-0S010 |
2GRFE..GSU5# (L) |
24 | ||
| 13716-75020 |
2GRFE..GSU5# (J) |
24 | ||
| 13716-75020 |
2GR#..GSU5#,GVU58 |
24 | ||
| 13716 - CAP, VALVE STEM | ||||
| 13716-0S010 |
2GRFE..GSU5# (L) |
24 | ||
| 13716-75020 |
2GRFE..GSU5# (J) |
24 | ||
| 13716-75020 |
2GR#..GSU5#,GVU58 |
24 | ||
| 13716 - CAP, VALVE STEM | ||||
| 13716-0S010 |
2GRFE..GSU5# (L) |
24 | ||
| 13716-75020 |
2GRFE..GSU5# (J) |
24 | ||
| 13716-75020 |
2GR#..GSU5#,GVU58 |
24 | ||
| 13716 - CAP, VALVE STEM | ||||
| 13716-0S010 |
2GRFE..GSU5# (L) |
24 | ||
| 13716-75020 |
2GRFE..GSU5# (J) |
24 | ||
| 13716-75020 |
2GR#..GSU5#,GVU58 |
24 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-62020 |
2GR#..GSU5#,GVU58 (J) |
24 | ||
| 13734-0P010 |
2GRFE..GSU5# (L) |
24 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-62020 |
2GR#..GSU5#,GVU58 (J) |
24 | ||
| 13734-0P010 |
2GRFE..GSU5# (L) |
24 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-62020 |
2GR#..GSU5#,GVU58 (J) |
24 | ||
| 13734-0P010 |
2GRFE..GSU5# (L) |
24 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-62020 |
2GR#..GSU5#,GVU58 (J) |
24 | ||
| 13734-0P010 |
2GRFE..GSU5# (L) |
24 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-0P010 |
2GRFE..GSU5# (L),PNC 13801=TYPE A |
24 | ||
| 13741-0P010 |
2GRFE..GSU5# (L) |
24 | ||
| 13741-31020 |
2GR#..GSU5#,GVU58 (J) |
24 | ||
| 13741-0P020 |
2GRFE..GSU5# (L) |
24 | ||
| 13741-36010 |
2GR#..GSU5#,GVU58 (J) |
24 | ||
| 13741-0P020 |
2GRFE..GSU5# (L),PNC 13801=TYPE B |
24 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-0P010 |
2GRFE..GSU5# (L),PNC 13801=TYPE A |
24 | ||
| 13741-0P010 |
2GRFE..GSU5# (L) |
24 | ||
| 13741-31020 |
2GR#..GSU5#,GVU58 (J) |
24 | ||
| 13741-0P020 |
2GRFE..GSU5# (L) |
24 | ||
| 13741-36010 |
2GR#..GSU5#,GVU58 (J) |
24 | ||
| 13741-0P020 |
2GRFE..GSU5# (L),PNC 13801=TYPE B |
24 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-0P010 |
2GRFE..GSU5# (L),PNC 13801=TYPE A |
24 | ||
| 13741-0P010 |
2GRFE..GSU5# (L) |
24 | ||
| 13741-31020 |
2GR#..GSU5#,GVU58 (J) |
24 | ||
| 13741-0P020 |
2GRFE..GSU5# (L) |
24 | ||
| 13741-36010 |
2GR#..GSU5#,GVU58 (J) |
24 | ||
| 13741-0P020 |
2GRFE..GSU5# (L),PNC 13801=TYPE B |
24 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-0P010 |
2GRFE..GSU5# (L),PNC 13801=TYPE A |
24 | ||
| 13741-0P010 |
2GRFE..GSU5# (L) |
24 | ||
| 13741-31020 |
2GR#..GSU5#,GVU58 (J) |
24 | ||
| 13741-0P020 |
2GRFE..GSU5# (L) |
24 | ||
| 13741-36010 |
2GR#..GSU5#,GVU58 (J) |
24 | ||
| 13741-0P020 |
2GRFE..GSU5# (L),PNC 13801=TYPE B |
24 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
2GR#..GSU5#,GVU58 (J) |
48 | ||
| 90913-A3001 |
2GRFE..GSU5# (L) |
48 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
2GR#..GSU5#,GVU58 (J) |
48 | ||
| 90913-A3001 |
2GRFE..GSU5# (L) |
48 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
2GR#..GSU5#,GVU58 (J) |
48 | ||
| 90913-A3001 |
2GRFE..GSU5# (L) |
48 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
2GR#..GSU5#,GVU58 (J) |
48 | ||
| 90913-A3001 |
2GRFE..GSU5# (L) |
48 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
2GR#..GSU5#,GVU58 (J) |
48 | ||
| 90913-A3001 |
2GRFE..GSU5# (L) |
48 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
2GR#..GSU5#,GVU58 (J) |
48 | ||
| 90913-A3001 |
2GRFE..GSU5# (L) |
48 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
2GR#..GSU5#,GVU58 (J) |
48 | ||
| 90913-A3001 |
2GRFE..GSU5# (L) |
48 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
2GR#..GSU5#,GVU58 (J) |
48 | ||
| 90913-A3001 |
2GRFE..GSU5# (L) |
48 | ||
| 13750 - ADJUSTER ASSY, VALVE LASH | ||||
| 13750-0P020 |
2GRFE..GSU5# (L) |
24 | ||
| 13750-31030 |
2GR#..GSU5#,GVU58 (J) |
24 | ||
| 13750 - ADJUSTER ASSY, VALVE LASH | ||||
| 13750-0P020 |
2GRFE..GSU5# (L) |
24 | ||
| 13750-31030 |
2GR#..GSU5#,GVU58 (J) |
24 | ||
| 13750 - ADJUSTER ASSY, VALVE LASH | ||||
| 13750-0P020 |
2GRFE..GSU5# (L) |
24 | ||
| 13750-31030 |
2GR#..GSU5#,GVU58 (J) |
24 | ||
| 13750 - ADJUSTER ASSY, VALVE LASH | ||||
| 13750-0P020 |
2GRFE..GSU5# (L) |
24 | ||
| 13750-31030 |
2GR#..GSU5#,GVU58 (J) |
24 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13801-36020 |
2GR#..GSU5#,GVU58 (J) |
24 | ||
| 13801-0P030 |
2GRFE..GSU5# (L),TYPE B:REF ILL. |
24 | ||
| 13801-23011 |
2GR#..GSU5#,GVU58 (J) |
24 | ||
| 13801-0P010 |
2GRFE..GSU5# (L) |
24 | ||
| 13801-0P010 |
2GRFE..GSU5# (L),TYPE A:REF ILL. |
24 | ||
| 13801-0P030 |
2GRFE..GSU5# (L) |
24 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13801-36020 |
2GR#..GSU5#,GVU58 (J) |
24 | ||
| 13801-0P030 |
2GRFE..GSU5# (L),TYPE B:REF ILL. |
24 | ||
| 13801-23011 |
2GR#..GSU5#,GVU58 (J) |
24 | ||
| 13801-0P010 |
2GRFE..GSU5# (L) |
24 | ||
| 13801-0P010 |
2GRFE..GSU5# (L),TYPE A:REF ILL. |
24 | ||
| 13801-0P030 |
2GRFE..GSU5# (L) |
24 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13801-36020 |
2GR#..GSU5#,GVU58 (J) |
24 | ||
| 13801-0P030 |
2GRFE..GSU5# (L),TYPE B:REF ILL. |
24 | ||
| 13801-23011 |
2GR#..GSU5#,GVU58 (J) |
24 | ||
| 13801-0P010 |
2GRFE..GSU5# (L) |
24 | ||
| 13801-0P010 |
2GRFE..GSU5# (L),TYPE A:REF ILL. |
24 | ||
| 13801-0P030 |
2GRFE..GSU5# (L) |
24 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13801-36020 |
2GR#..GSU5#,GVU58 (J) |
24 | ||
| 13801-0P030 |
2GRFE..GSU5# (L),TYPE B:REF ILL. |
24 | ||
| 13801-23011 |
2GR#..GSU5#,GVU58 (J) |
24 | ||
| 13801-0P010 |
2GRFE..GSU5# (L) |
24 | ||
| 13801-0P010 |
2GRFE..GSU5# (L),TYPE A:REF ILL. |
24 | ||
| 13801-0P030 |
2GRFE..GSU5# (L) |
24 | ||
| Common parts | ||||
| 90105-A0118 | ||||
| 90105-A0128 | ||||
| 90119-12370 | ||||
| 91551-80630 | ||||
| 91551-80830 | ||||
| 91671-G0825 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
