GSU50L-ARTNKA (2013)

Toyota Highlander (Nap)

Production Dec 2013 - Nov 2016
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1312-1611)2GRFE

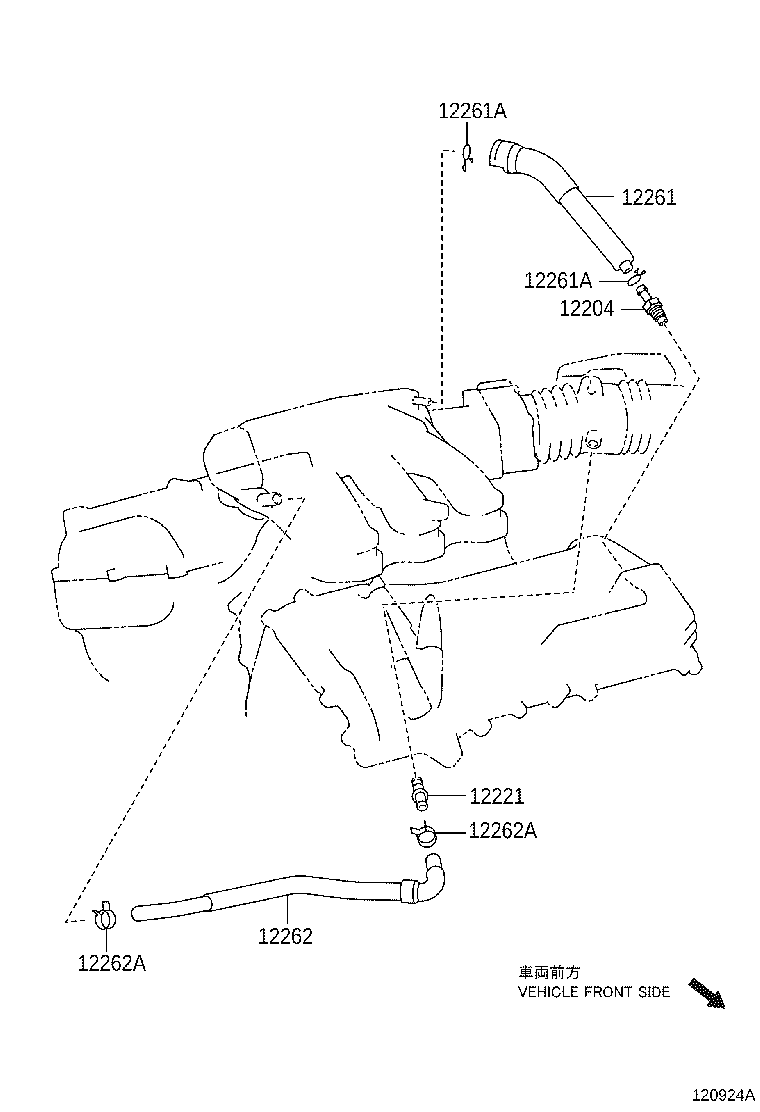

Click highlighted areas on diagram

diagram 12204 12221 12261 12261A 12261A 12262 12262A 12262A
Part # Description Qty Price
12204 - VALVE SUB-ASSY, VENTILATION
12204-31120

2GRFE..GSU5#

 1
12221 - TUBE, VENTILATION NO.1
17878-0P020

2GRFE..GSU5#

 1
12261 - HOSE, VENTILATION
12261-0P080

2GRFE..GSU5#

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-14017

2GRFE..GSU5#

 2
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-14017

2GRFE..GSU5#

 2
12262 - HOSE, VENTILATION, NO.2
12262-31100

2GRFE..GSU5#

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-21004

2GRFE..GSU5#

 2
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-21004

2GRFE..GSU5#

 2
