GSU50L-ARTNKA (2013)

Toyota Highlander (Nap)

Production Dec 2013 - Nov 2016
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1312-1611)2GR#

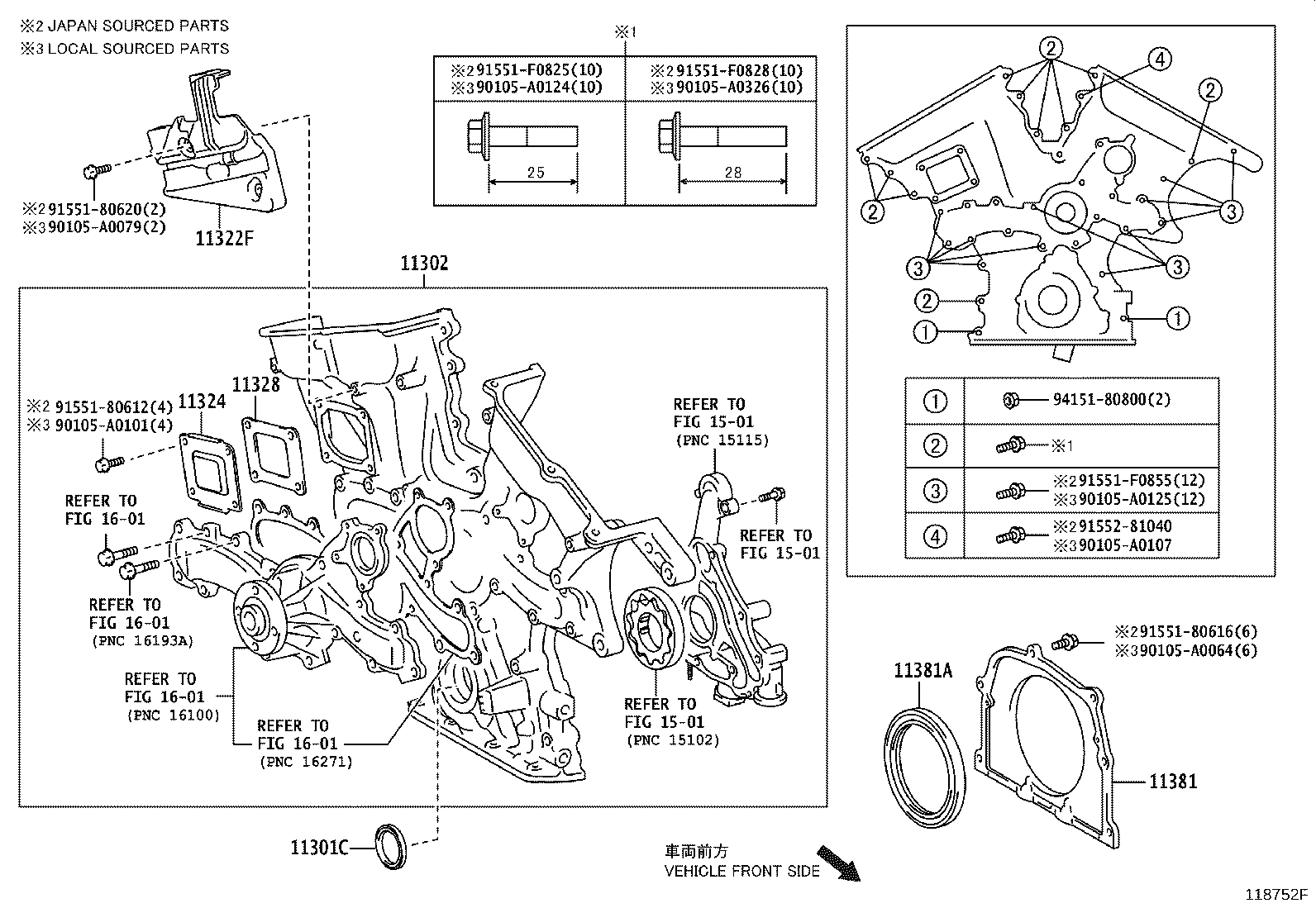

Click highlighted areas on diagram

diagram 11301C 11302 11322F 11324 11328 11381 11381A 1501 1501 1501 1601 1601 1601 1601 90105A0064 90105A0079 90105A0101 90105A0107 90105A0124 90105A0125 90105A0326 9155180612 9155180616 9155180620 91551F0825 91551F0828 91551F0855 9155281040 9415180800
Part # Description Qty Price
11301C - SEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
90311-42045

2GR#..GSU5#,GVU58

*427

 1
90311-A0005

2GRFE..GSU5#

*371

 1
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11310-0P041

2GRFE..GSU5#

(L)

 1
11310-0P040

2GRFE..GSU5#

(L)

 1
11310-31020

2GR#..GSU5#,GVU58

(J)

 1
11322F - COVER, TIMING GEAR, NO.2
11322-31021

2GR#..GSU5#,GVU58

 1
11324 - PLATE, TIMING CHAIN COVER
11324-31020

2GR#..GSU5#,GVU58

(J)

 1
11324-0P010

2GRFE..GSU5#

(L)

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-0P010

2GRFE..GSU5#

(L)

 1
11328-31030

2GR#..GSU5#,GVU58

(J)

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-31021

2GR#..GSU5#,GVU58

 1
11381A - SEAL, ENGINE REAR OIL
90311-A0027

2GRFE..GSU5#

*371

 1
90311-92010

2GR#..GSU5#,GVU58

*427

 1
90311-92011

2GR#..GSU5#,GVU58

*427

 1
90080-31053

2GRFE..GSU5#

*371

 1
Common parts
90105-A0064
90105-A0079
90105-A0101
90105-A0107
90105-A0124
90105-A0125
90105-A0326
91551-80612
91551-80616
91551-80620
91551-F0825
91551-F0828
91551-F0855
91552-81040
94151-80800
Linked diagrams
1501
1601
