GSU50L-ARTNKA (2013)

Toyota Highlander (Nap)

Production Dec 2013 - Nov 2016
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1312-1504)2GRFE

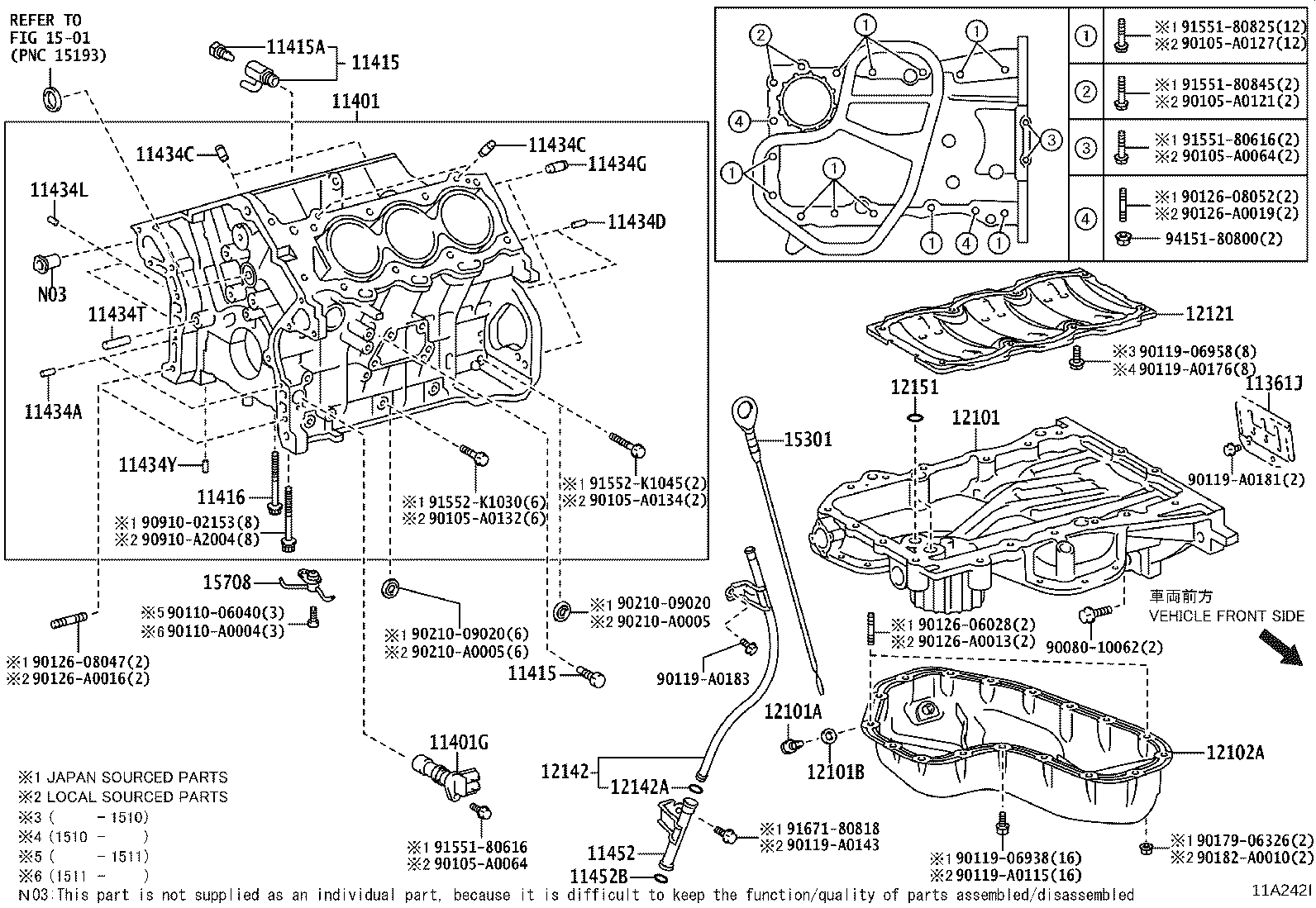

Click highlighted areas on diagram

diagram 11361J 11401 11401G 11415 11415 11415A 11416 11434A 11434C 11434C 11434D 11434G 11434L 11434T 11434Y 11452 11452B 12101 12101A 12101B 12102A 12121 12142 12142A 12151 1501 15301 15708 9008010062 90105A0064 90105A0064 90105A0121 90105A0127 90105A0132 90105A0134 9011006018 9011006040 9011906938 9011906958 90119A0115 90119A0143 90119A0181 90119A0183 9012606028 9012608047 9012608052 90126A0013 90126A0016 90126A0019 9017906326 90182A0010 9021009020 9021009020 9091002153 90910A2004 9155180616 9155180616 9155180825 9155180845 91552K1030 91552K1045 9167180818 9415180800
Part # Description Qty Price
11361J - COVER, FLYWHEEL HOUSING UNDER
11361-0P020

2GR#..GSU5#,GVU58

 1
11401 - BLOCK SUB-ASSY, CYLINDER
11401-80814

2GRFE..GSU5#

*251

 1
11401-80814

2GR#..GSU5#,GVU58

 1
11401-80800

2GR#..GSU5#,GVU58

 1
11401-09601

2GRFE..GSU5#

*371,(L)

 1
11401-80826

2GR#..GSU5#,GVU58

*427

 1
11401-09602

2GRFE..GSU5#

*371,(L)

 1
11401-80828

2GRFE..GSU5#

*371,(J)

 1
11401-09A30

2GRFE..GSU5#

*371,(L)

 1
11401G - SENSOR, CRANK POSITION
90919-A5003

2GRFE..GSU5#

(L)

 1
90919-05057

2GRFE..GSU5#

(J)

 1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
90910-09129

2GRFE..GSU5#

 2
90345-A0001

2GRFE..GSU5#

(L),LH

 1
90345-52001

2GR#..GSU5#,GVU58

LH

 1
90910-09129

2GR#..GSU5#,GVU58

RH

 1
90345-52001

2GRFE..GSU5#

(J),LH

 1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
90910-09129

2GRFE..GSU5#

 2
90345-A0001

2GRFE..GSU5#

(L),LH

 1
90345-52001

2GR#..GSU5#,GVU58

LH

 1
90910-09129

2GR#..GSU5#,GVU58

RH

 1
90345-52001

2GRFE..GSU5#

(J),LH

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
90910-09087

2GR#..GSU5#,GVU58

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-A2005

2GRFE..GSU5#

(L)

 8
90910-02154

2GR#..GSU5#,GVU58

(J)

 8
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-04097

2GR#..GSU5#,GVU58

L=12,OD=4.0

 2
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90250-08120

2GR#..GSU5#,GVU58

L=18,OD=8

 4
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90250-08120

2GR#..GSU5#,GVU58

L=18,OD=8

 4
11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
90250-04097

2GR#..GSU5#,GVU58

L=12,OD=4.0

 2
11434G - PIN, STRAIGHT(FOR END PLATE)
90250-10113

2GR#..GSU5#,GVU58

 2
11434L - PIN, STRAIGHT(FOR ENGINE MOUNTING)
90250-04097

2GR#..GSU5#,GVU58

 2
11434T - PIN, RING(FOR TIMING BELT IDLER BRACKET SET)
90250-10030

2GR#..GSU5#,GVU58

 1
90250-A0026

2GRFE..GSU5#

(L)

 1
90250-10030

2GRFE..GSU5#

(J)

 1
11434Y - PIN, STRAIGHT(FOR OIL PAN)
90250-04097

2GR#..GSU5#,GVU58

 2
11452 - GUIDE, OIL LEVEL GAGE
11452-31060

2GR#..GSU5#,GVU58

(J)

 1
11452-0P010

2GRFE..GSU5#

(L)

 1
11452B - RING, O(FOR OIL LEVEL GAGE GUIDE)
90301-12018

2GRFE..GSU5#

(J),(L)

 1
90301-12018

2GRFE..GSU5#

TOWING PACKAGE-5000LBS

 1
12101 - PAN SUB-ASSY, OIL
12101-0P040

2GRFE..GSU5#

(L)

 1
12111-31150

2GRFE..GSU5#

TOWING PACKAGE-5000LBS,(J)

 1
12111-0P050

2GRFE..GSU5#

TOWING PACKAGE-5000LBS,(L)

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-12012

2GRFE..GSU5#

 1
90341-A0007

2GRFE..GSU5#

(L)

 1
90341-12012

2GR#..GSU5#,GVU58

(J)

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-A0006

2GRFE..GSU5#

(L)

 1
90430-12031

2GR#..GSU5#,GVU58

 1
90430-12031

2GRFE..GSU5#

(J)

 1
12102A - PAN SUB-ASSY, OIL, NO.2
12102-0P020

2GRFE..GSU5#

(L)

 1
12102-31051

2GR#..GSU5#,GVU58

(J)

 1
12121 - PLATE, OIL PAN BAFFLE, NO.1
12121-31070

2GR#..GSU5#,GVU58

(J)

 1
12121-31120

2GR#..GSU5#,GVU58

(J)

 1
12121-0P010

2GRFE..GSU5#

(L)

 1
12121-0P040

2GRFE..GSU5#

(L)

 1
12142 - GUIDE, OIL LEVEL GAGE, NO.2
12142-0P020

2GR#..GSU5#,GVU58

 1
12142A - RING, O(FOR OIL LEVEL GAGE GUIDE, NO.2)
96721-19010

2GR#..GSU5#,GVU58

 1
12151 - GASKET, OIL PAN
12151-31010

2GR#..GSU5#,GVU58

(J)

 2
12151-0P010

2GRFE..GSU5#

(L)

 2
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-0P030

2GR#..GSU5#,GVU58

 1
15708 - NOZZLE SUB-ASSY, OIL, NO.1
15708-31030

2GR#..GSU5#,GVU58

*252

 3
15708-31030

2GRFE..GSU5#

*250

 3
15708-31050

2GR#..GSU5#,GVU58

*252

 3
Common parts
90080-10062
90105-A0064
90105-A0121
90105-A0127
90105-A0132
90105-A0134
90110-06018
90110-06040
90119-06938
90119-06958
90119-A0115
90119-A0143
90119-A0181
90119-A0183
90126-06028
90126-08047
90126-08052
90126-A0013
90126-A0016
90126-A0019
90179-06326
90182-A0010
90210-09020
90910-02153
90910-A2004
91551-80616
91551-80825
91551-80845
91552-K1030
91552-K1045
91671-80818
94151-80800
Linked diagrams
1501

(1504-1611)2GRFE

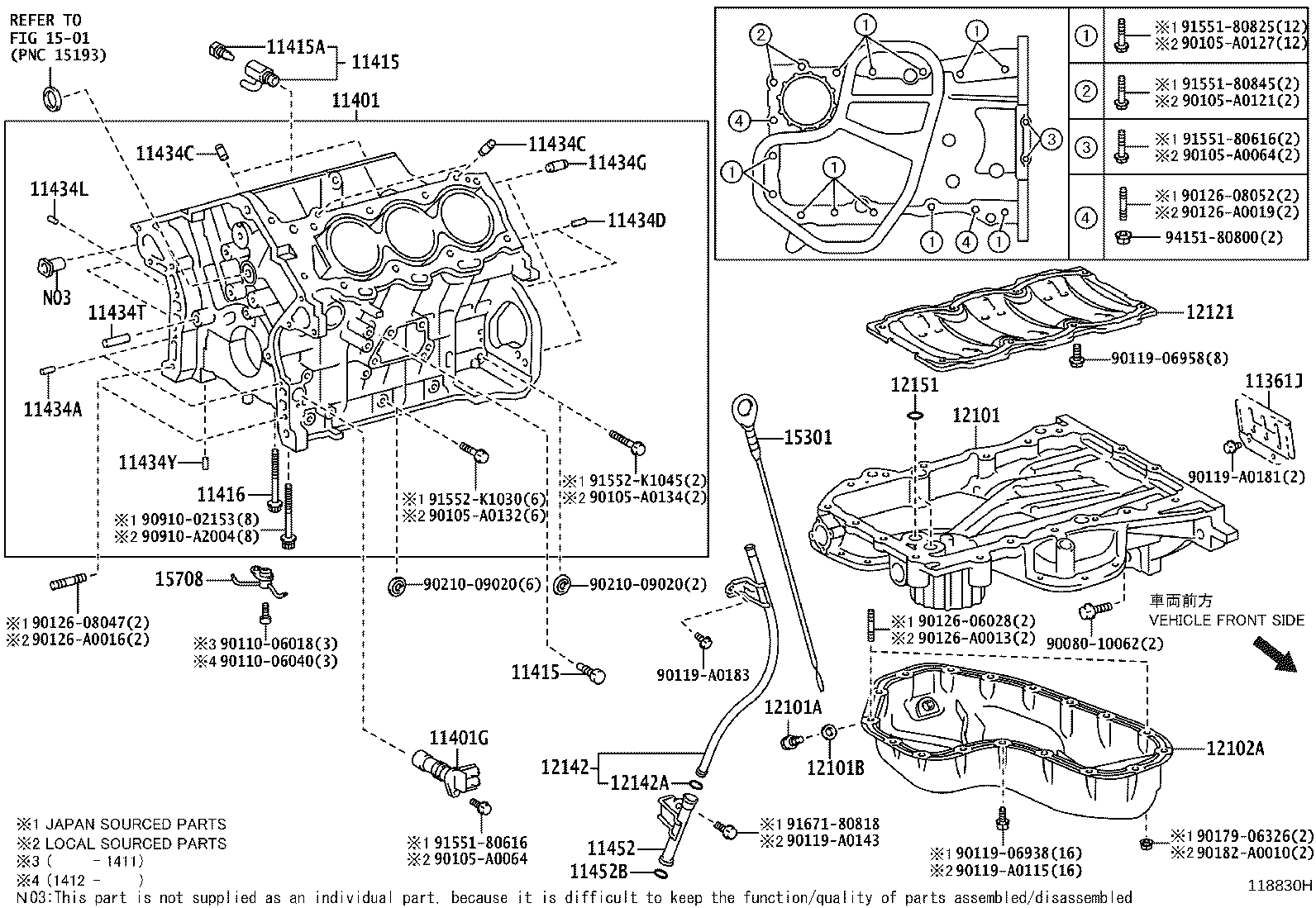

Click highlighted areas on diagram
