GSU50L-ARTNKA (2013)

Toyota Highlander (Nap)

Production Dec 2013 - Nov 2016
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

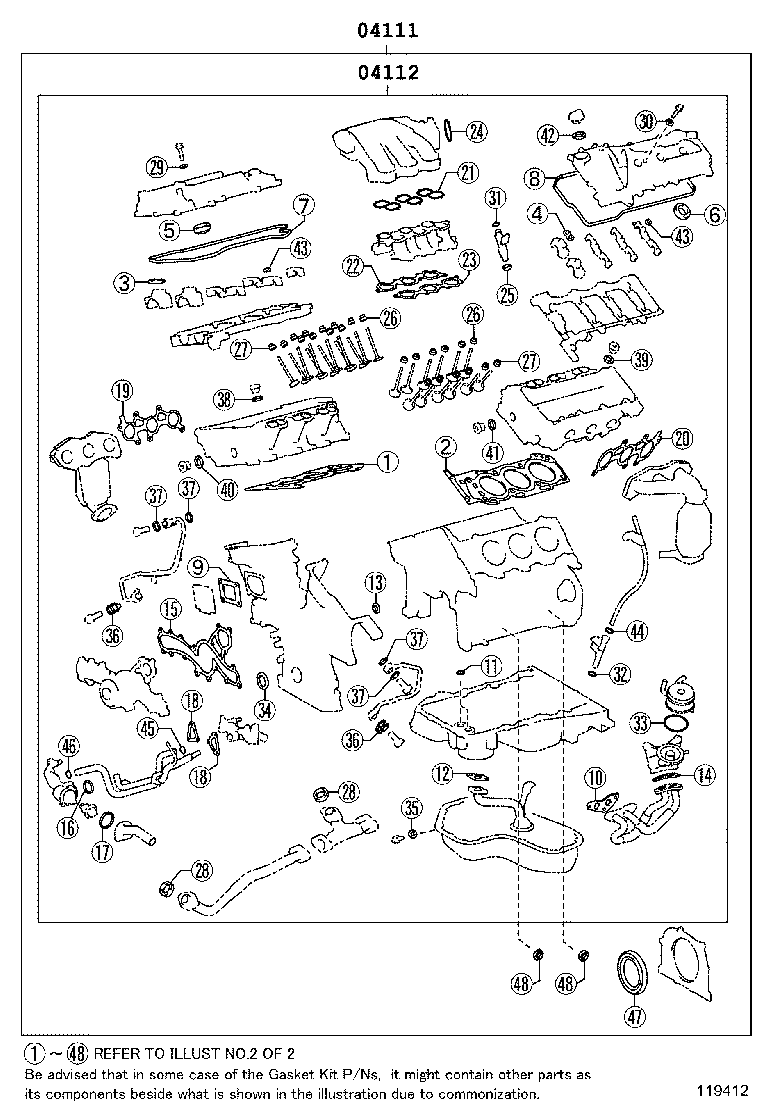

ILLUST NO. 1 OF 2(1312-1611)2GRFE

Click highlighted areas on diagram

diagram 04111 04112
Part # Description Qty Price
04111 - GASKET KIT, ENGINE OVERHAUL
04111-0P065

2GRFE..GSU5#

 1
04111-0P064

2GRFE..GSU5#

 1
04112 - GASKET KIT, ENGINE VALVE GRIND
04112-0P161

2GRFE..GSU5#

TOWING PACKAGE-5000LBS

 1
04112-0P055

2GRFE..GSU5#

 1

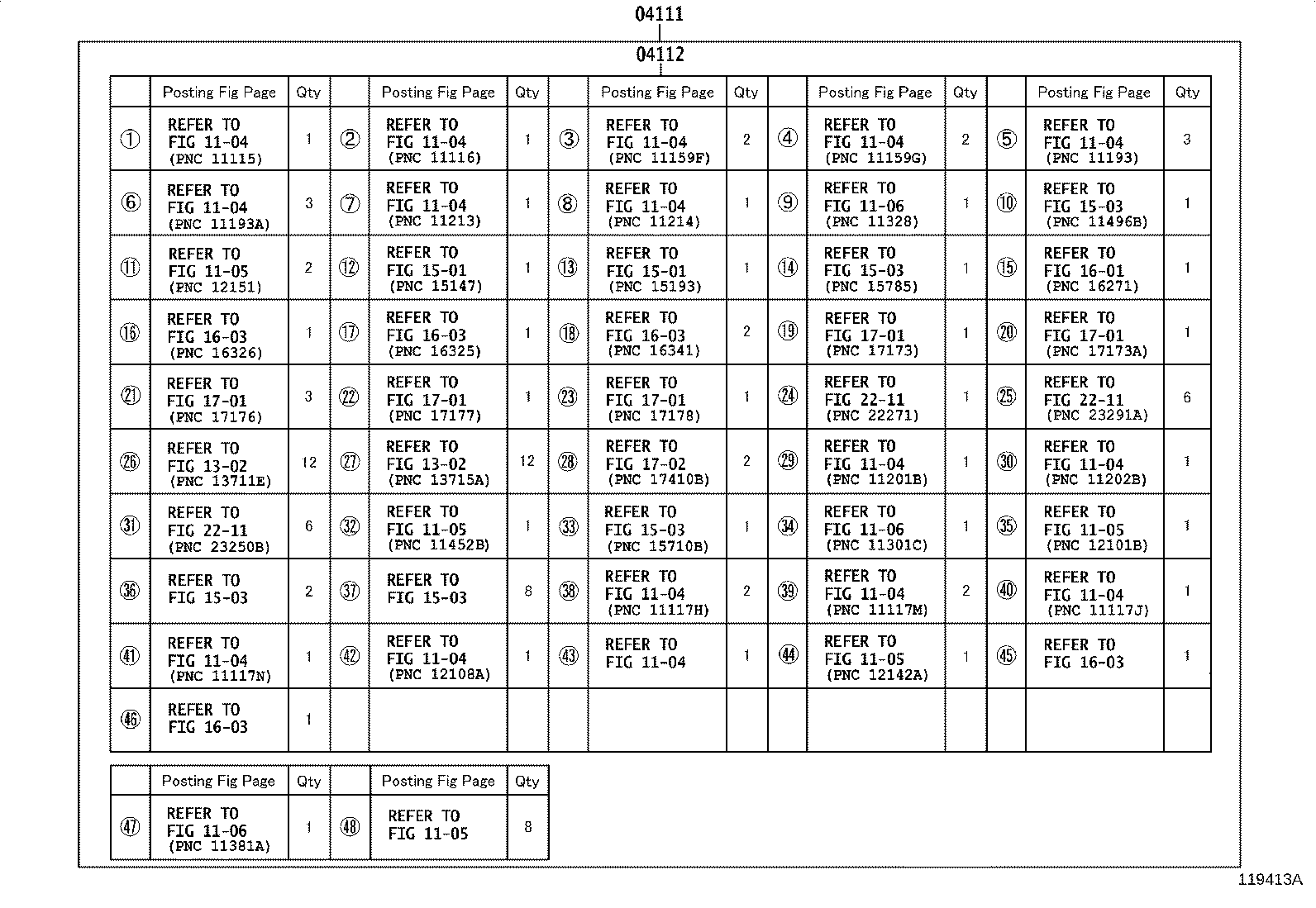

ILLUST NO. 2 OF 2(1312-1611)2GRFE

Click highlighted areas on diagram

diagram 04111 04112 1104 1104 1104 1104 1104 1104 1104 1104 1104 1104 1104 1104 1104 1104 1104 1104 1105 1105 1105 1105 1105 1106 1106 1106 1302 1302 1501 1501 1503 1503 1503 1503 1503 1601 1603 1603 1603 1603 1603 1701 1701 1701 1701 1701 1702 2211 2211 2211
Part # Description Qty Price
04111 - GASKET KIT, ENGINE OVERHAUL
04111-0P065

2GRFE..GSU5#

 1
04111-0P064

2GRFE..GSU5#

 1
04112 - GASKET KIT, ENGINE VALVE GRIND
04112-0P161

2GRFE..GSU5#

TOWING PACKAGE-5000LBS

 1
04112-0P055

2GRFE..GSU5#

 1
Linked diagrams
1104
1105
1106
1302
1501
1503
1601
1603
1701
1702
2211
