GSU40L-ARANKA (2010)

Toyota Highlander (Nap)

Production Aug 2010 - Dec 2013
Engine 2GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1008- )

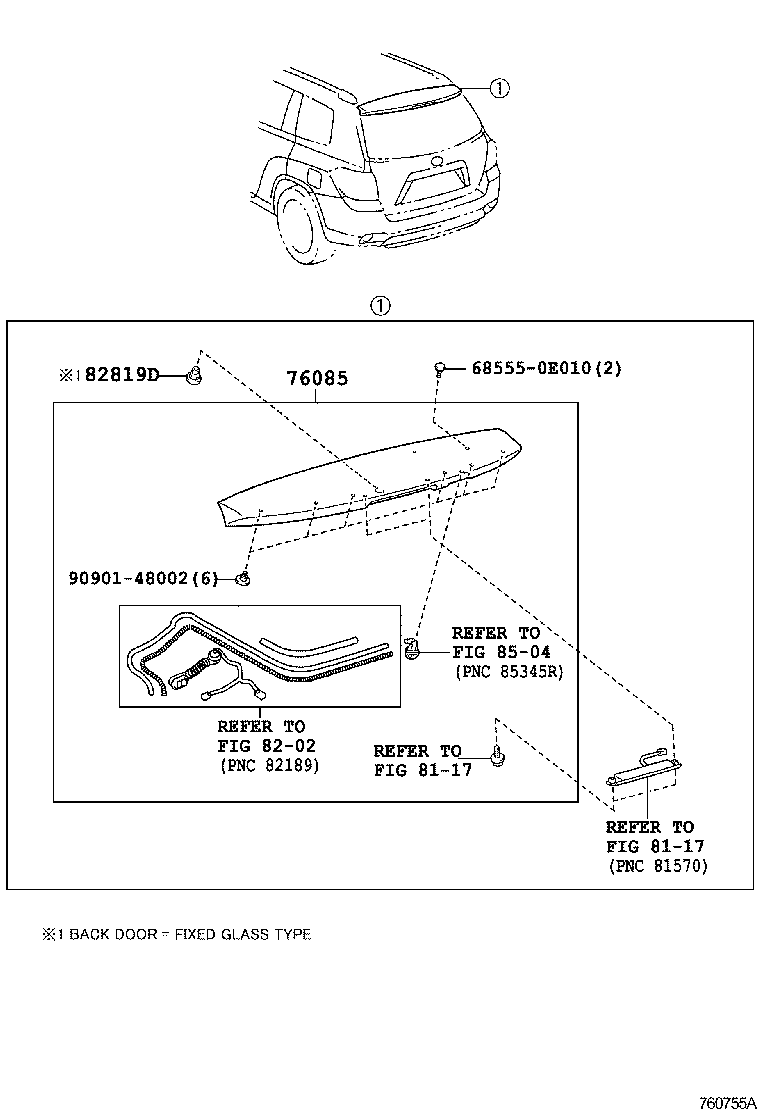

Click highlighted areas on diagram

diagram 685550E010 76085 8117 8117 8202 82819D 8504 9090148002
Part # Description Qty Price
76085 - SPOILER SUB-ASSY, REAR
76085-0E903C1

ASU40,GSU4#..LIMD,M,STD

BLACK,202,TYPE B:REFER ILLUST.

 1
76085-0E903G0

ASU40,GSU4#..LIMD,M,STD

OLIVE,6T7,TYPE B:REFER ILLUST.

 1
76085-0E903B2

ASU40,GSU4#..LIMD,M,STD

GRAY METALLIC,1G3,TYPE B:REFER ILLUST.

 1
76085-0E903B3

ASU40,GSU4#..LIMD,M,STD

SILVER METALLIC,1F7,TYPE B:REFER ILLUST.

 1
76085-0E903J2

ASU40,GSU4#..LIMD,M,STD

BLUE,8T7,TYPE B:REFER ILLUST.

 1
76085-0E903J3

ASU40,GSU4#..LIMD,M,STD

LT BLUE,8S7,TYPE B:REFER ILLUST.

 1
76085-0E903D1

ASU40,GSU4#..LIMD,M,STD

DK RED,3Q3,TYPE B:REFER ILLUST.

 1
76085-0E904B3

ASU40,GSU4#

SILVER METALLIC,1F7

 1
76085-0E903E3

ASU40,GSU4#..LIMD,M,STD

BEIGE METALLIC,4T8,TYPE B:REFER ILLUST.

 1
76085-0E904E3

ASU40,GSU4#

BEIGE,4T8

 1
76085-0E904A1

ASU40,GSU4#

WHITE PEARL,070

 1
76085-0E904D2

ASU40,GSU4#

DK RED,3R0

 1
76085-0E903A1

ASU40,GSU4#..LIMD,M,STD

WHITE PEARL,070,TYPE B:REFER ILLUST.

 1
76085-0E904B2

ASU40,GSU4#

GRAY METALLIC,1G3

 1
76085-0E904C1

ASU40,GSU4#

BLACK,202

 1
76085-0E904J5

ASU40,GSU4#

LT BLUE,8S6

 1
76085-0E904G0

ASU40,GSU4#

OLIVE,6T7

 1
76085-0E904J4

ASU40,GSU4#

BLUE,8V5

 1
82819D - GROMMET, WIRING HARNESS
82819-0E030

ASU40,GSU4#..STD

 1
82819-0E030

ASU40,GSU4#..STD

 1
Common parts
68555-0E010
90901-48002
Linked diagrams
8117
8202
8504
