GSU40L-ARANKA (2010)

Toyota Highlander (Nap)

Production Aug 2010 - Dec 2013
Engine 2GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1008- )

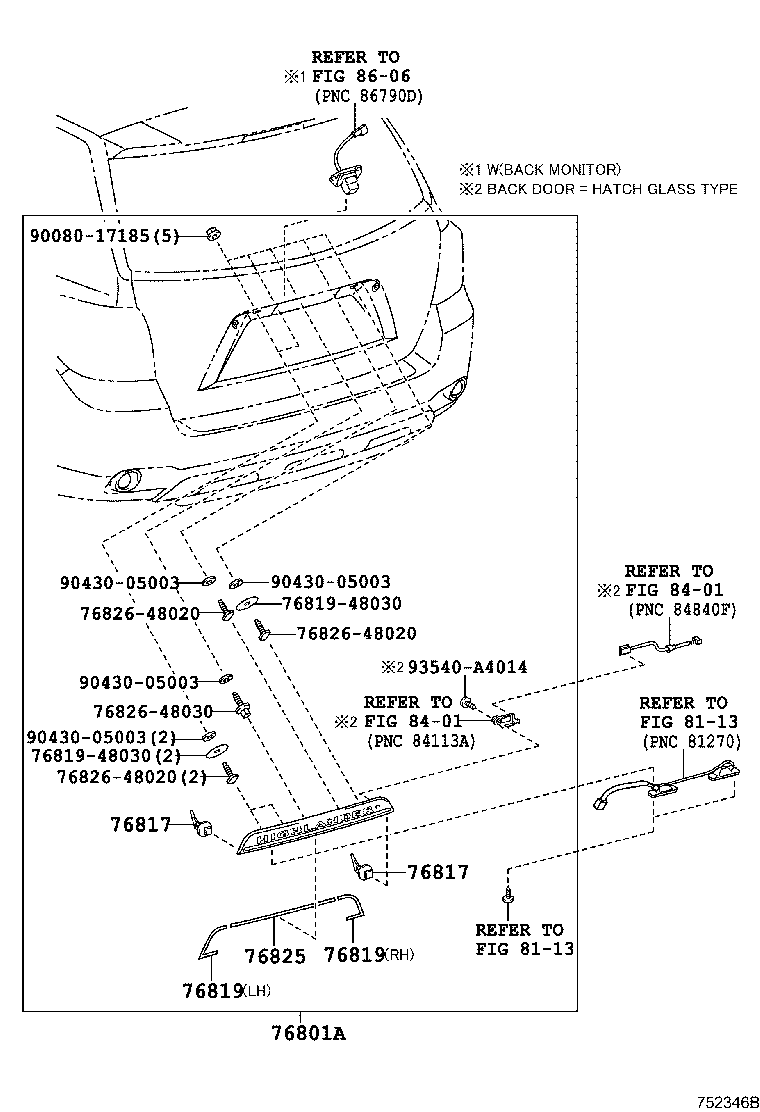

Click highlighted areas on diagram

diagram 76801A 76817 76817 76819 76819 7681948030 7681948030 76825 7682648020 7682648020 7682648020 7682648030 8113 8113 8401 8401 8606 9008017185 9043005003 9043005003 9043005003 9043005003 93540A4014
Part # Description Qty Price
76801A - GARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE
76801-0E900

GSU4#..STD

PAINT REQ.,(DELETE)FAMILY PACKAGE&MULTI INFORMATION DISPLAY-WITH

 1
76801-0E906

ASU40,GSU4#..STD

PLATED,MULTI INFORMATION DISPLAY-WITH

 1
76801-0E907

ASU40,GSU4#..STD

PLATED,CORE+ PACKAGE&BACK GLASS-WITH(GLASS HATCH-BACK DOOR)

 1
76801-0E901

ASU40,GSU4#..STD

PAINT REQ.

 1
76801-0E904

GSU4#..STD

PAINT REQ.,MULTI INFORMATION DISPLAY-WITH

 1
76801-0E908

ASU40,GSU4#..STD

PLATED,BACK GLASS-WITH(GLASS HATCH-BACK DOOR)

 1
76801-0E905

ASU40,GSU4#..STD

PLATED

 1
76801-0E907

ASU40,GSU4#..STD

PLATED,BACK GLASS-WITH(GLASS HATCH-BACK DOOR)&MULTI INFORMATION DISPLAY-WITH

 1
76801-0E906

ASU40,GSU4#..STD

PLATED,CORE PACKAGE

 1
76801-0E907

ASU40,GSU4#..STD

PLATED,CORE PACKAGE&BACK GLASS-WITH(GLASS HATCH-BACK DOOR)

 1
76817 - CLIP, BACK DOOR OUTSIDE GARNISH
76817-50010

ASU40,GSU4#

 2
76817-50010

ASU40,GSU4#

 2
76817 - CLIP, BACK DOOR OUTSIDE GARNISH
76817-50010

ASU40,GSU4#

 2
76817-50010

ASU40,GSU4#

 2
76819 - SEAL, BACK DOOR OUTSIDE GARNISH
76819-0E020

ASU40,GSU4#

 1
76819-0E030

ASU40,GSU4#

RH

 1
76829-0E030

ASU40,GSU4#

LH

 1
76819 - SEAL, BACK DOOR OUTSIDE GARNISH
76819-0E020

ASU40,GSU4#

 1
76819-0E030

ASU40,GSU4#

RH

 1
76829-0E030

ASU40,GSU4#

LH

 1
76825 - PROTECTOR, BACK DOOR OUTSIDE GARNISH
76825-0E040

ASU40,GSU4#

 1
76825-0E050

ASU40,GSU4#

 1
Common parts
76819-48030
76826-48020
76826-48030
90080-17185
90430-05003
93540-A4014
Linked diagrams
8113
8401
8606
