GSU40L-ARANKA (2010)

Toyota Highlander (Nap)

Production Aug 2010 - Dec 2013
Engine 2GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

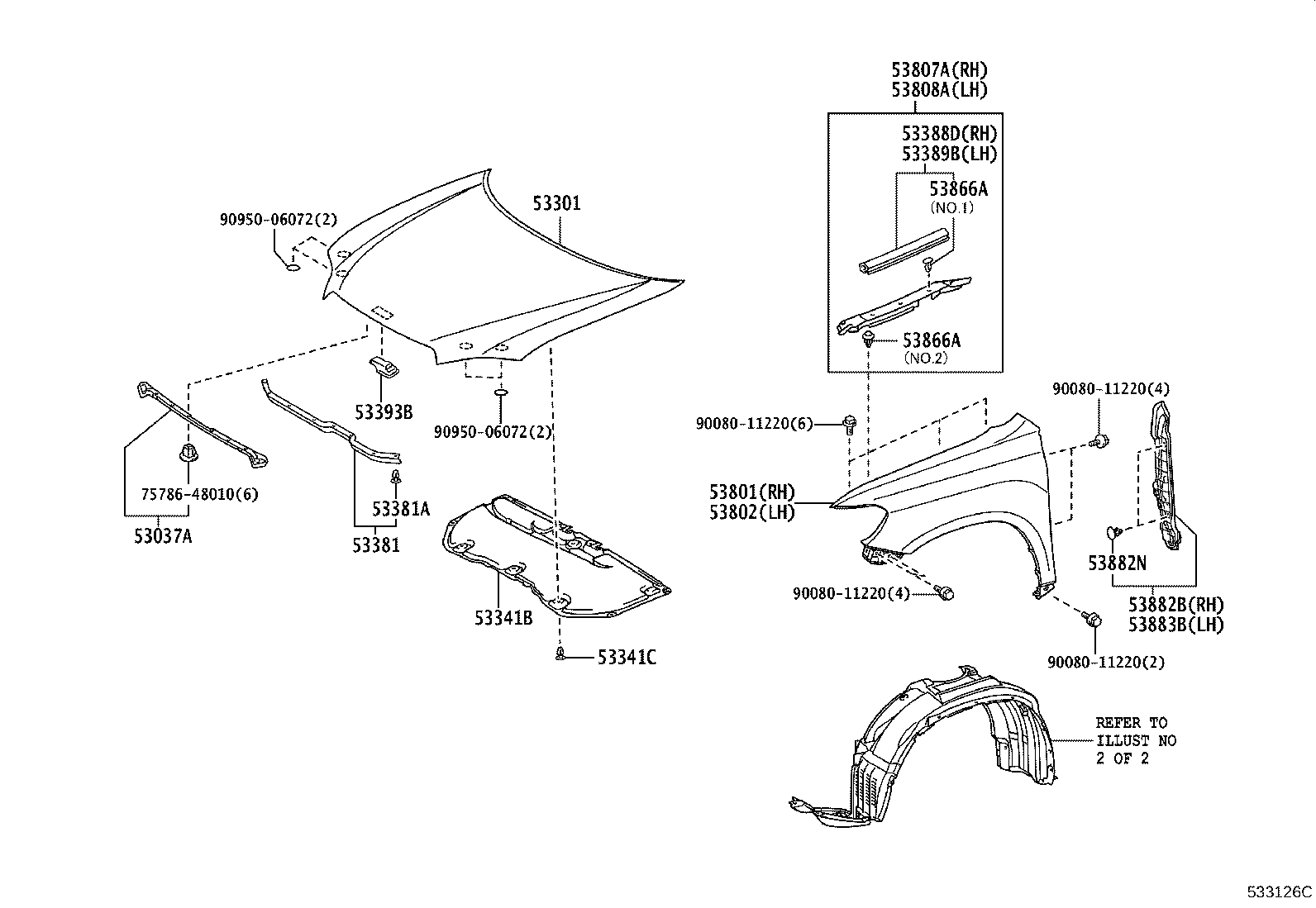

ILLUST NO. 1 OF 2(0910- )

Click highlighted areas on diagram

diagram 53037A 53301 53341B 53341C 53381 53381A 53388D 53389B 53393B 53801 53802 53807A 53808A 53866A 53866A 53882B 53882N 53883B 7578648010 9008011220 9008011220 9008011220 9008011220 9095006072 9095006072
Part # Description Qty Price
53037A - SEAL SUB-ASSY, RADIATOR
53037-0E030

ASU40,GSU4#

 1
53301 - HOOD SUB-ASSY
53301-0E050

ASU40,GSU4#

 1
53301-0E080

ASU40,GSU4#

 1
53341B - INSULATOR, HOOD
53341-0E051

ASU40,GSU4#

 1
53341-0E050

ASU40,GSU4#

 1
53341C - CLIP(FOR HOOD INSULATOR)
90467-09050

ASU40,GSU4#

 8
90467-09050

ASU40,GSU4#

 8
53381 - SEAL, HOOD TO RADIATOR SUPPORT
53381-0E050

ASU40,GSU4#

 1
53381-0E050

ASU40,GSU4#

 1
53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
90467-08011

ASU40,GSU4#

 8
90467-08011

ASU40,GSU4#

 8
53388D - SEAL, HOOD TO FRONT FENDER, RH
53388-0E050

ASU40,GSU4#

 1
53388-0E050

ASU40,GSU4#

 1
53389B - SEAL, HOOD TO FRONT FENDER, LH
53389-0E050

ASU40,GSU4#

 1
53389-0E050

ASU40,GSU4#

 1
53393B - PROTECTOR, HOOD, FRONT
53393-0E040

ASU40,GSU4#

 1
53801 - FENDER SUB-ASSY, FRONT RH
53801-0E040

GSU4#..STD

CANADA SPEC&AUDIO-6CD-CHANGER 6SPEAKER

 1
53801-0E080

ASU40,GSU4#..STD

AUDIO-MONITOR USB 6SPEAKER BLUETOOTH

 1
53801-0E030

GSU4#..STD

AUDIO-AVN 4CD-CHANGER 9SPEAKER JBL BLUETOOTH

 1
53801-0E040

ASU40,GSU4#..STD

 1
53801-0E080

ASU40,GSU4#..STD

AUDIO-CD USB 6SPEAKER BLUETOOTH

 1
53801-0E080

ASU40,GSU4#..STD

AUDIO-AVN 4CD-CHANGER USB 9SP JBL BLUETOOTH

 1
53801-0E080

ASU40,GSU4#..STD

AUDIO-6CD-CHANGER USB 9SPEAKER JBL BLUETOOTH

 1
53801-0E080

ASU40,GSU4#..STD

 1
53801-0E070

ASU40,GSU4#..STD

 1
53802 - FENDER SUB-ASSY, FRONT LH
53802-0E050

ASU40,GSU4#

 1
53802-0E030

ASU40,GSU4#

 1
53807A - SHIELD SUB-ASSY, FENDER SPLASH, REAR RH
53807-0E040

ASU40,GSU4#

 1
53807-0E050

ASU40,GSU4#

 1
53808A - SHIELD SUB-ASSY, FENDER SPLASH, REAR LH
53808-0E050

ASU40,GSU4#

 1
53808-0E040

ASU40,GSU4#

 1
53866A - CLIP(FOR FRONT FENDER TO COWL SIDE SEAL)
90467-08108

ASU40,GSU4#

NO.1

 6
90467-10161

ASU40,GSU4#

NO.2

 6
90467-10161

ASU40,GSU4#

NO.2

 6
90467-08108

ASU40,GSU4#

NO.1

 6
53866A - CLIP(FOR FRONT FENDER TO COWL SIDE SEAL)
90467-08108

ASU40,GSU4#

NO.1

 6
90467-10161

ASU40,GSU4#

NO.2

 6
90467-10161

ASU40,GSU4#

NO.2

 6
90467-08108

ASU40,GSU4#

NO.1

 6
53882B - SEAL, FRONT FENDER, RH
53882-0E040

ASU40,GSU4#

 1
53882-0E040

ASU40,GSU4#

 1
53882-0E041

ASU40,GSU4#

 1
53882N - CLIP(FOR FRONT FENDER SEAL)
90467-06205C0

ASU40,GSU4#

BLACK

 4
90467-06205C0

ASU40,GSU4#

BLACK

 4
53883B - SEAL, FRONT FENDER, LH
53883-0E040

ASU40,GSU4#

 1
53883-0E041

ASU40,GSU4#

 1
53883-0E040

ASU40,GSU4#

 1
Common parts
75786-48010
90080-11220
90950-06072

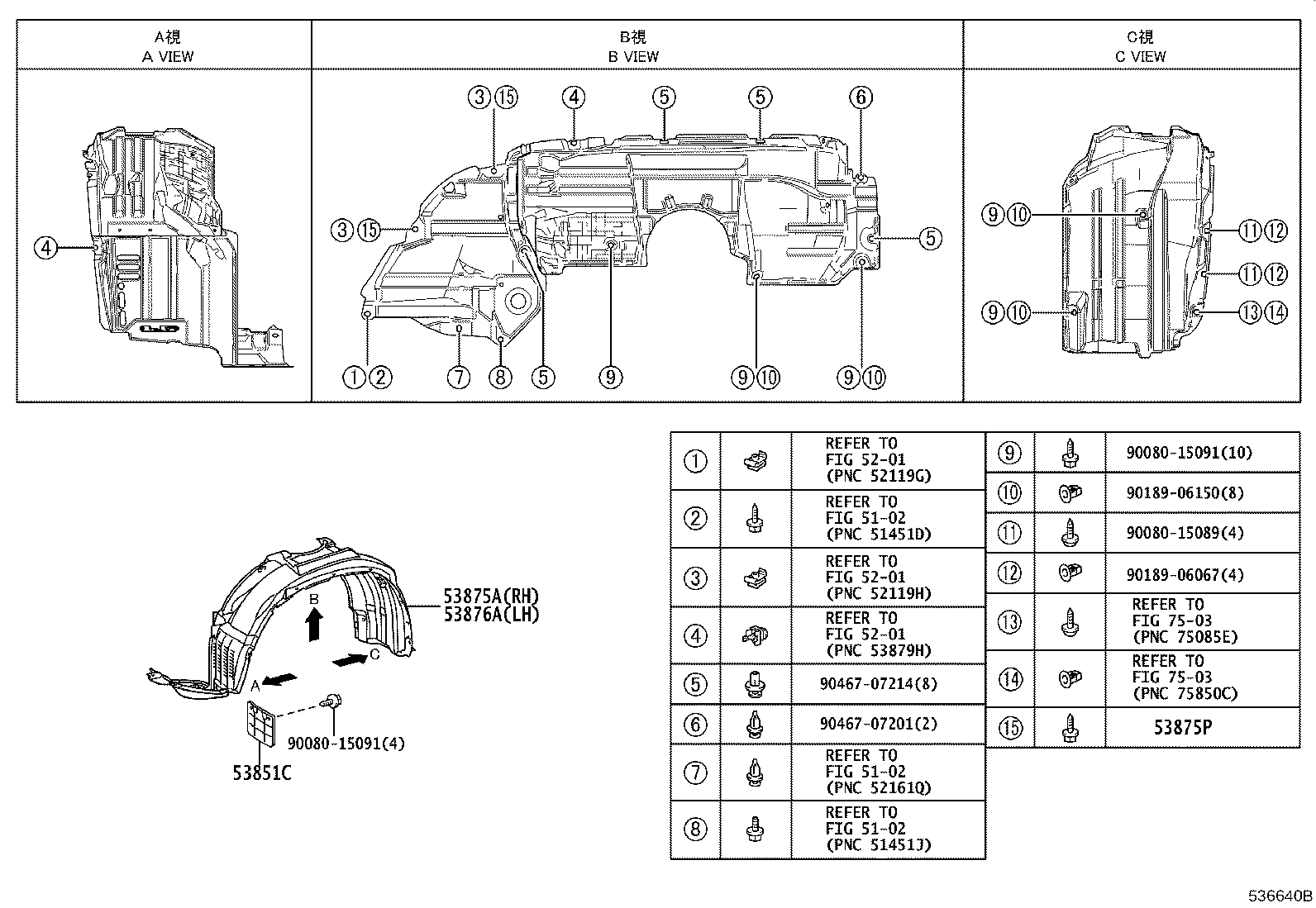

ILLUST NO. 2 OF 2(1008- )

Click highlighted areas on diagram

diagram 5102 5102 5102 5201 5201 5201 53851C 53875A 53875P 53876A 7503 7503 9008015089 9008015091 9008015091 9018906067 9018906150 9046707201 9046707214
Part # Description Qty Price
53851C - PAD, FRONT WHEEL OPENING EXTENSION, NO.1
53851-48040

ASU40,GSU4#

 2
53851-48040

ASU40,GSU4#

 2
53875A - LINER, FRONT FENDER, RH
53805-0E050

ASU40,GSU4#

 1
53805-0E040

ASU40,GSU4#

 1
53875P - SCREW, NO.1
90159-60525

ASU40,GSU4#

 4
90159-60444

ASU40,GSU4#

 3
53876A - LINER, FRONT FENDER, LH
53806-0E040

ASU40,GSU4#

 1
53806-0E050

GSU4#

TOWING PACKAGE-5000LBS&MUD GUARD-WITH

 1
53806-0E060

GSU40..STD;GSU45..LIMD

MEXICO SPEC

 1
53806-0E070

ASU40,GSU4#

 1
53806-0E060

GSU4#

TOWING PACKAGE-5000LBS

 1
53806-0E050

GSU4#

TOWING PACKAGE-5000LBS

 1
Common parts
90080-15089
90080-15091
90189-06067
90189-06150
90467-07201
90467-07214
Linked diagrams
5102
5201
7503
