GSU40L-ARANKA (2010)

Toyota Highlander (Nap)

Production Aug 2010 - Dec 2013
Engine 2GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1008- )

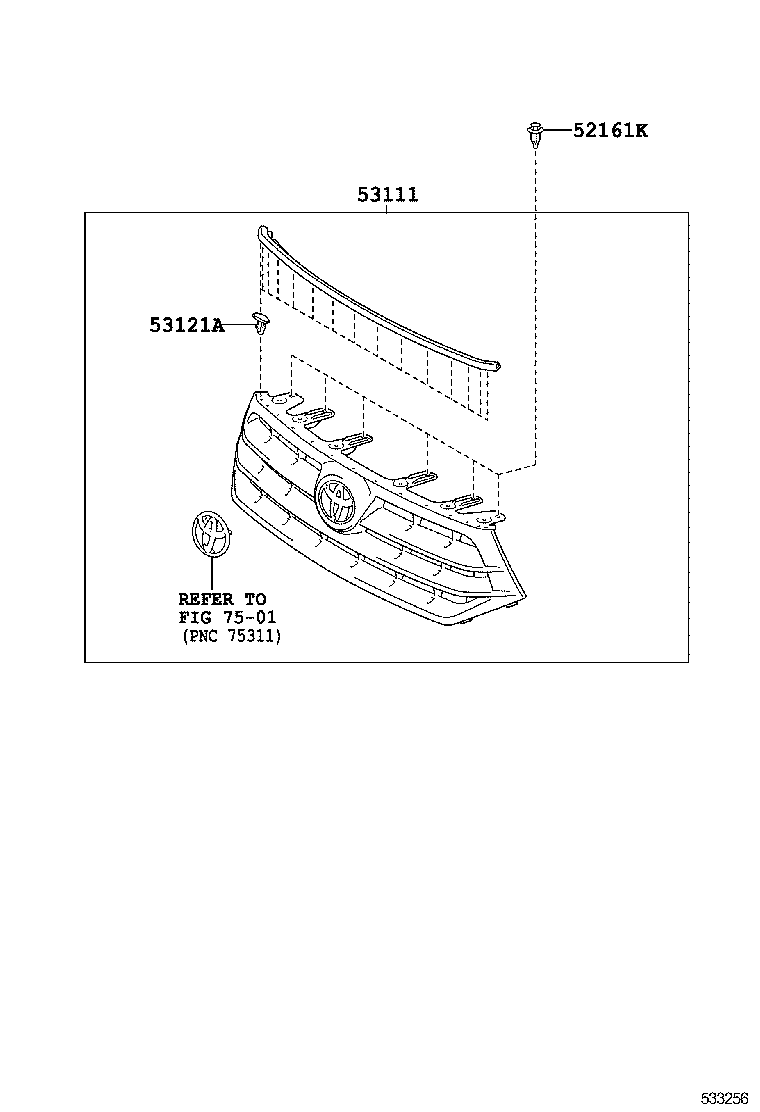

Click highlighted areas on diagram

diagram 52161K 53111 53121A 7501
Part # Description Qty Price
52161K - PIECE, FRONT BUMPER
52161-02020

ASU40,GSU4#

 4
52161-02020

ASU40,GSU4#

 6
53111 - GRILLE, RADIATOR
53101-0E020

ASU40,GSU4#

NO PAINT REQ.

 1
53101-0E090

ASU40,GSU4#..M,STD

PLATED

 1
53121A - MOULDING, RADIATOR GRILLE
53121-04020

ASU40,GSU4#

 15
Linked diagrams
7501
