GSU40L-ARANKA (2009)

Toyota Highlander (Nap)

Production Oct 2009 - Aug 2010
Engine 2GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0910-1008)GSU4#

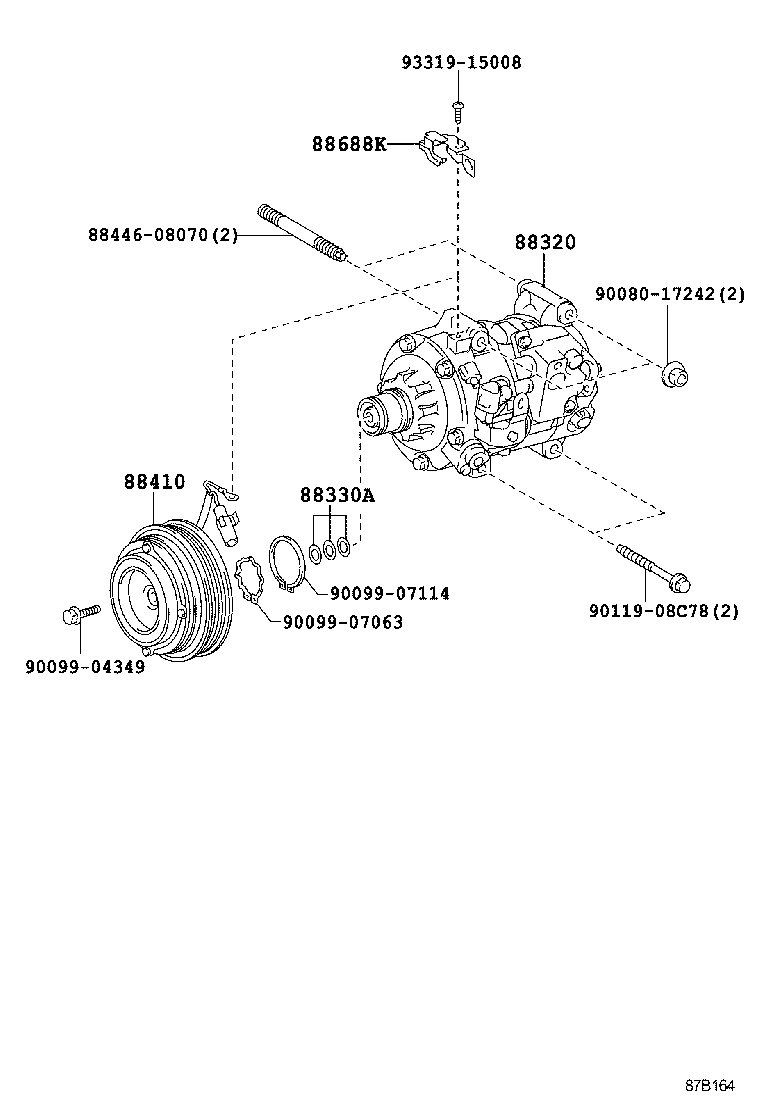

Click highlighted areas on diagram

diagram 88320 88330A 88410 8844608070 88688K 9008017242 9009904349 9009907063 9009907114 9011908C78 9331915008
Part # Description Qty Price
88320 - COMPRESSOR ASSY, COOLER
88320-08060

GSU4#..M,SPO,STD

REAR AIR CONDITIONER-WITH(REAR MANUAL AIR CONDITIONER)

 1
88320-0T010

GSU4#

 1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-14020

GSU4#

 1
88410 - CLUTCH ASSY, MAGNET
88410-33150

GSU4#

 1
88688K - BRACKET, COOLER COMPRESSOR
88688-48250

GSU4#

 1
Common parts
88446-08070
90080-17242
90099-04349
90099-07063
90099-07114
90119-08C78
93319-15008
