GSU40L-ARANKA (2009)

Toyota Highlander (Nap)

Production Oct 2009 - Aug 2010
Engine 2GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0910- )GSU4# ; (1008- )ASU40

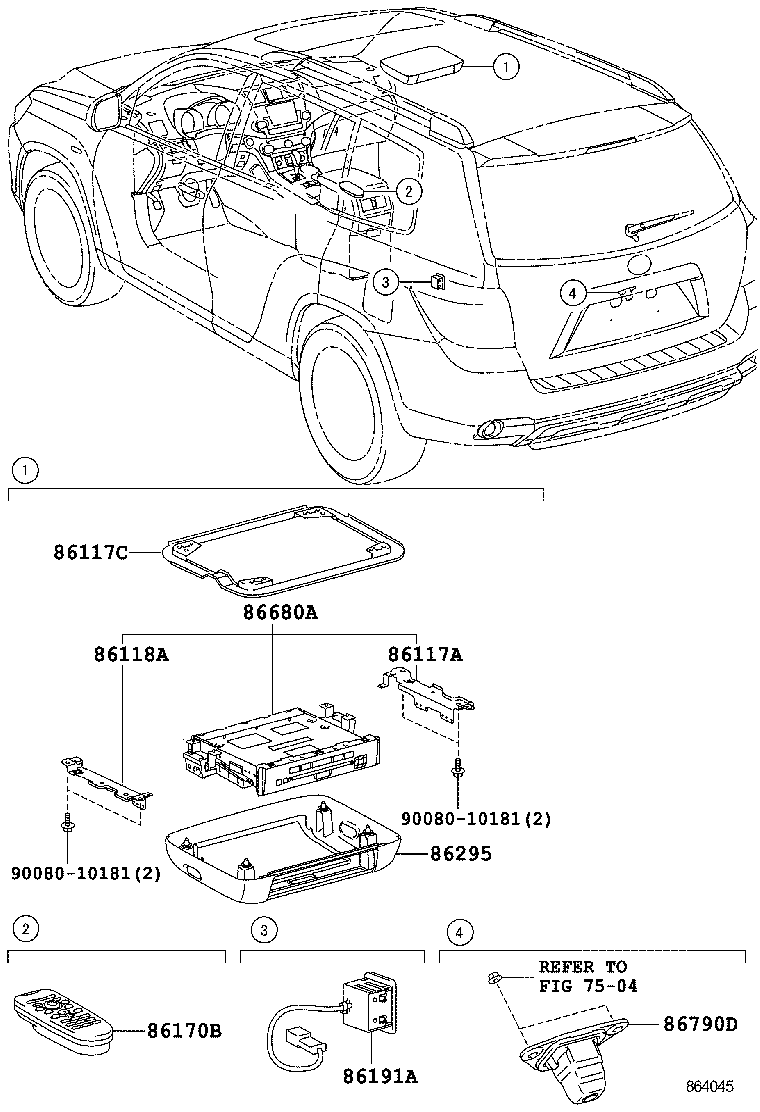

Click highlighted areas on diagram

diagram 7504 86117A 86117C 86118A 86170B 86191A 86295 86680A 86790D 9008010181 9008010181
Part # Description Qty Price
86117A - BRACKET, TELEVISION DISPLAY, A
86117-48100

GSU4#..LIMD,SPO,STD

WITH(DVD PLAYER & REAR DISPLAY)

 1
86117C - BRACKET, MULTI-DISPLAY CONTROLLER, NO.2
86117-48111

GSU4#..LIMD,SPO,STD

WITH(DVD PLAYER & REAR DISPLAY)

 1
86117-48110

GSU4#..LIMD,SPO,STD

WITH(DVD PLAYER & REAR DISPLAY)

 1
86118A - BRACKET, TELEVISION DISPLAY, B
86118-48080

GSU4#..LIMD,SPO,STD

WITH(DVD PLAYER & REAR DISPLAY)

 1
86170B - SWITCH & VOLUME ASSY, TELEVISION
86170-45020

GSU4#..LIMD,SPO,STD

WITH(DVD PLAYER & REAR DISPLAY)

 1
86191A - TERMINAL, VIDEO(VIDEO ADAPTER)
86191-48040C0

GSU4#..LIMD,SPO,STD

WITH(DVD PLAYER & REAR DISPLAY),BLACK

 1
86295 - BASE, TELEVISION
86295-48040E0

GSU4#..LIMD,SPO,STD

WITH(DVD PLAYER & REAR DISPLAY),SAND BEIGE,TRIM4#

 1
86295-48040B0

GSU4#..STD

WITH(DVD PLAYER & REAR DISPLAY),GRAY,TRIM1#

 1
86680A - DISPLAY ASSY, TELEVISION
86680-48050E0

GSU4#..LIMD,SPO,STD

MATSUSHITA,WITH(DVD PLAYER & REAR DISPLAY),SAND BEIGE,TRIM4#

 1
86680-48050B0

GSU4#..STD

MATSUSHITA,WITH(DVD PLAYER & REAR DISPLAY),GRAY,TRIM1#

 1
86790D - CAMERA ASSY, TELEVISION, RR
86790-0E020

GSU4#..STD

MULTI INFORMATION DISPLAY-WITH

 1
Common parts
90080-10181
Linked diagrams
7504
