GSU40L-ARANKA (2009)

Toyota Highlander (Nap)

Production Oct 2009 - Aug 2010
Engine 2GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0910- )

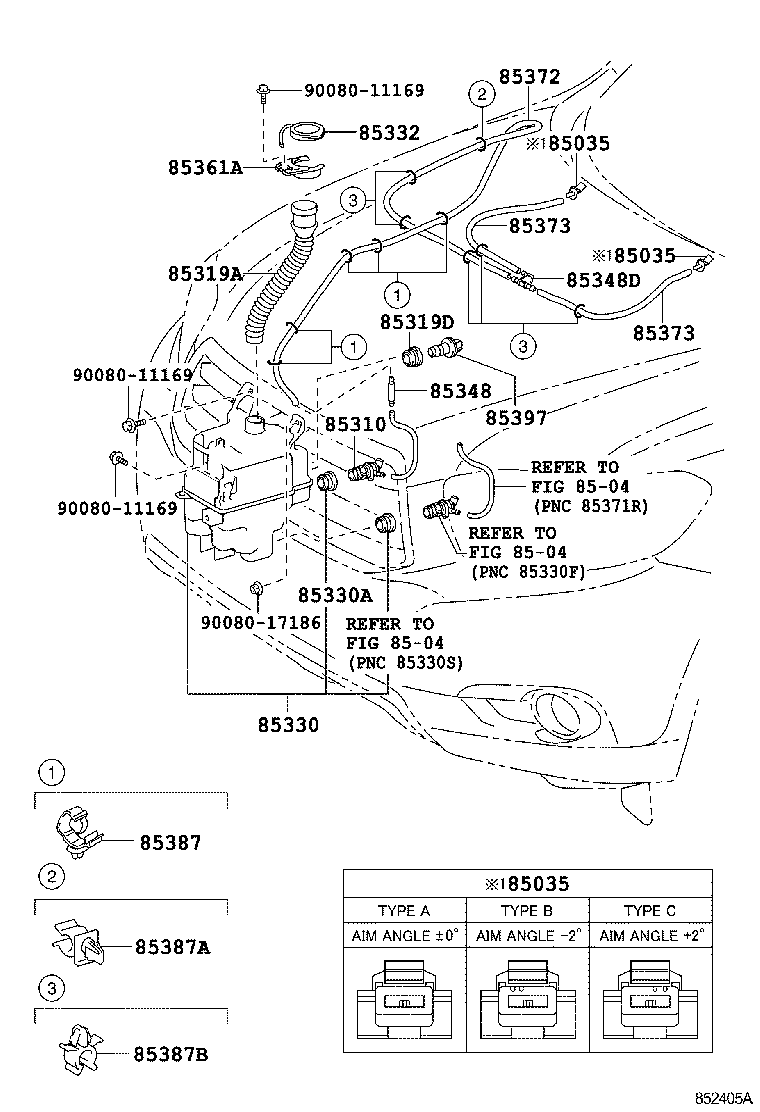

Click highlighted areas on diagram

diagram 85035 85035 85035 8504 8504 8504 85310 85319A 85319D 85330 85330A 85332 85348 85348D 85361A 85372 85373 85373 85387 85387A 85387B 85397 9008011169 9008011169 9008011169 9008017186
Part # Description Qty Price
85035 - NOZZLE SUB-ASSY, WASHER
85381-12310

ASU40,GSU4#

TYPE B:REFER ILLUST.

 2
85381-12300

ASU40,GSU4#

TYPE A:REFER ILLUST.

 2
85381-12320

ASU40,GSU4#

TYPE C:REFER ILLUST.

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-12310

ASU40,GSU4#

TYPE B:REFER ILLUST.

 2
85381-12300

ASU40,GSU4#

TYPE A:REFER ILLUST.

 2
85381-12320

ASU40,GSU4#

TYPE C:REFER ILLUST.

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-12310

ASU40,GSU4#

TYPE B:REFER ILLUST.

 2
85381-12300

ASU40,GSU4#

TYPE A:REFER ILLUST.

 2
85381-12320

ASU40,GSU4#

TYPE C:REFER ILLUST.

 2
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330-60190

ASU40,GSU4#

 1
85319A - HOSE, INLET
85319-48150

ASU40,GSU4#

 1
85319D - PACKING, FRONT WASHER
85319-AA020

ASU40,GSU4#

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85315-0E060

ASU40,GSU4#

 1
85330A - BUSH, WINDSHIELD WASHER JAR
85336-60300

ASU40,GSU4#

 1
85332 - CAP, WINDSHIELD WASHER JAR
85316-48060

ASU40,GSU4#

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85349-32150

ASU40,GSU4#

 1
85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1
85321-28020

ASU40,GSU4#

 1
85361A - BRACKET, WINDSHIELD WASHER, NO.1
85337-30380

ASU40,GSU4#

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90068-33117

ASU40,GSU4#

L=2350

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90068-33115

ASU40,GSU4#

L=550

 2
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90068-33115

ASU40,GSU4#

L=550

 2
85387 - CLAMP NO.1 (FOR WINDSEIELD WASHER)
82711-1E350

ASU40,GSU4#

 5
85387A - CLAMP, WASHER, NO.2
85371-0E060

ASU40,GSU4#

 1
85387B - CLAMP, WASHER, NO.3
90469-07011

ASU40,GSU4#

 5
85397 - SWITCH ASSY,LEVEL WARNING
85397-AA040

ASU40,GSU4#

 1
Common parts
90080-11169
90080-17186
Linked diagrams
8504
