GSU40L-ARANKA (2009)

Toyota Highlander (Nap)

Production Oct 2009 - Aug 2010
Engine 2GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(0910- )GSU4#

Click highlighted areas on diagram

FUEL TANK

diagram 23225A 23239C 23280J 23280K 23280K 77020A 77024A 77100 77113C 77114 77144 77144 77158A 77158A 77169A 77169A 77201E 77209F 77213B 77216A 77217C 77218A 77226A 77229C 77241W 77272B 77273C 77278C 77291A 77292C 77310A 77316 77350 77366 77390D 77391 77391A 77444 77501T 775130E010 77519 77601B 77602B 77606 77608C 77611A 776440E010 776450E010 77651A 77652A 77657A 77657A 77681A 77682 77785 8401 9008011136 9008011136 9008011652 9008011652 9008011653 9008017182 9008017182 9008017182 9008046352 90182A0014 90182A0014 90182A0031 90269A0005 9046037003 9046040007 9046042005 91631B0820 91672A1020 91672A1020 91672A1020 91672A1020
Part # Description Qty Price
23280J - REGULATOR ASSY, FUEL PRESSURE
23280-21010

1ARFE,2GRFE..ASU40,GSU4#

 1
23280K - RING, O(FOR FUEL PRESSURE REGULATOR)
90301-04013

1ARFE,2GRFE..ASU40,GSU4#

NO.1

 1
90301-15024

1ARFE,2GRFE..ASU40,GSU4#

NO.2

 1
23280K - RING, O(FOR FUEL PRESSURE REGULATOR)
90301-04013

1ARFE,2GRFE..ASU40,GSU4#

NO.1

 1
90301-15024

1ARFE,2GRFE..ASU40,GSU4#

NO.2

 1
77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE
77020-0E021

GSU4#

 1
77024A - PLATE SUB-ASSY, FUEL SUCTION
77024-0E020

GSU4#

 1
77100 - TANK ASSY, FUEL
77001-0E050

ASU40,GSU4#

 1
77113C - PLATE, FUEL TANK SIDE
77103-48030

ASU40,GSU4#

 1
77103-08010

ASU40,GSU4#

 1
77114 - PLATE, FUEL TANK SIDE, REAR
77114-48030

ASU40,GSU4#

 1
77144 - RETAINER, FUEL PUMP GAUGE
77144-08020

ASU40,GSU4#

NO.2

 1
77144-08010

ASU40,GSU4#

NO.1

 1
77144 - RETAINER, FUEL PUMP GAUGE
77144-08020

ASU40,GSU4#

NO.2

 1
77144-08010

ASU40,GSU4#

NO.1

 1
77158A - SUPPORT, TANK SUCTION TUBE
77158-08020

ASU40,GSU4#

NO.2

 1
77158-08010

ASU40,GSU4#

NO.1

 1
77158A - SUPPORT, TANK SUCTION TUBE
77158-08020

ASU40,GSU4#

NO.2

 1
77158-08010

ASU40,GSU4#

NO.1

 1
77169A - GASKET, FUEL SUCTION TUBE SET
77169-48040

ASU40,GSU4#

NO.1

 1
77169-48070

ASU40,GSU4#

NO.2

 1
77169-48030

ASU40,GSU4#

NO.2

 1
77169A - GASKET, FUEL SUCTION TUBE SET
77169-48040

ASU40,GSU4#

NO.1

 1
77169-48070

ASU40,GSU4#

NO.2

 1
77169-48030

ASU40,GSU4#

NO.2

 1
77201E - PIPE SUB-ASSY, FUEL TANK FILLER
77201-0E050

ASU40,GSU4#

 1
77209F - TUBE SUB-ASSY, FUEL TANK MAIN
77209-0E030

ASU40,GSU4#

 1
77213B - HOSE, FUEL TANK TO FILLER PIPE
77213-0E010

ASU40,GSU4#

 1
77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1
77216-0E010

ASU40,GSU4#

 1
77217C - SUPPORT, FUEL TANK FILLER PIPE, NO.2
77217-0E020

ASU40,GSU4#

 1
77218A - SUPPORT, FUEL TANK FILLER PIPE, NO.3
77218-0E020

ASU40,GSU4#

 1
77226A - TUBE, FUEL TANK BREATHER, NO.6
77226-0E030

ASU40,GSU4#

 1
77229C - CLAMP, BREATHER TUBE
77229-0E010

ASU40,GSU4#

 2
77241W - CLIP, TUBE JOINT
77241-02010

ASU40,GSU4#

 1
77272B - SUPPORT, BREATHER TUBE, NO.1
77272-0E010

ASU40,GSU4#

 1
77273C - SUPPORT, BREATHER TUBE, NO.2
77273-0E010

ASU40,GSU4#

 1
77278C - PROTECTOR, FUEL TANK FILLER PIPE, NO.2
77278-48010

ASU40,GSU4#

 1
77291A - SHIELD, FUEL TANK FILLER PIPE
77291-0E040

ASU40,GSU4#

 1
77292C - SHIELD, FUEL TANK FILLER PIPE, NO.2
77292-0E020

ASU40,GSU4#

 1
77310A - CAP ASSY, FUEL TANK
77300-06040

ASU40,GSU4#

 1
77350 - LID ASSY, FUEL FILLER OPENING
77350-48060

ASU40,GSU4#

 1
77366 - SPRING, FUEL FILLER OPENING LID HINGE
77360-0E010

ASU40,GSU4#

 1
77390D - VALVE ASSY, FUEL TANK OVER FILL CHECK
77390-0E011

ASU40,GSU4#

 1
77391 - RING, FUEL INLET BOX
77391-12020

ASU40,GSU4#

 1
77391A - RING, FUEL INLET BOX
77391-33010

ASU40,GSU4#

 1
77444 - HOSE, FUEL TANK VENT
77404-0E010

ASU40,GSU4#

 1
77501T - BRACKET SUB-ASSY, FUEL TANK
77501-48020

ASU40,GSU4#

 1
77501-08010

ASU40,GSU4#

 1
77519 - SPACER, FUEL TANK BRACKET
77529-0E010

ASU40,GSU4#

 3
77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH
77601-0E020

ASU40,GSU4#

(L)

 1
77601-48070

ASU40,GSU4#

(J)

 1
77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH
77602-48060

ASU40,GSU4#

(J)

 1
77602-0E021

ASU40,GSU4#

(L)

 1
77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77606-48060

ASU40,GSU4#

 1
77608C - CUSHION SET, FUEL TANK
77608-0E011

ASU40,GSU4#

RH

 1
77608-0E020

ASU40,GSU4#

LH

 1
77611A - PIN (FOR FUEL TANK BAND)
77653-08010

ASU40,GSU4#

 2
77651A - CUSHION, FUEL TANK, NO.1
77651-12070

ASU40,GSU4#

 3
77652A - CUSHION, FUEL TANK, NO.2
77652-48020

ASU40,GSU4#

 1
77657A - CUSHION, FUEL TANK, NO.5
77655-0E020

ASU40,GSU4#

LH

 2
77655-0E011

ASU40,GSU4#

RH

 2
77657A - CUSHION, FUEL TANK, NO.5
77655-0E020

ASU40,GSU4#

LH

 2
77655-0E011

ASU40,GSU4#

RH

 2
77681A - SEAT, FUEL TANK BAND
77681-48050

ASU40,GSU4#

(J)

 1
77681-0E020

ASU40,GSU4#

(L)

 1
77682 - SEAT, FUEL TANK BAND, LH
77682-0E020

ASU40,GSU4#

(L)

 1
77682-48050

ASU40,GSU4#

(J)

 1
77785 - HARNESS, FUEL PUMP
77785-0E020

ASU40,GSU4#

 1
Common parts
77513-0E010
77644-0E010
77645-0E010
90080-11136
90080-11652
90080-11653
90080-17182
90080-46352
90182-A0014
90182-A0031
90269-A0005
90460-37003
90460-40007
90460-42005
91631-B0820
91672-A1020
Linked diagrams
8401

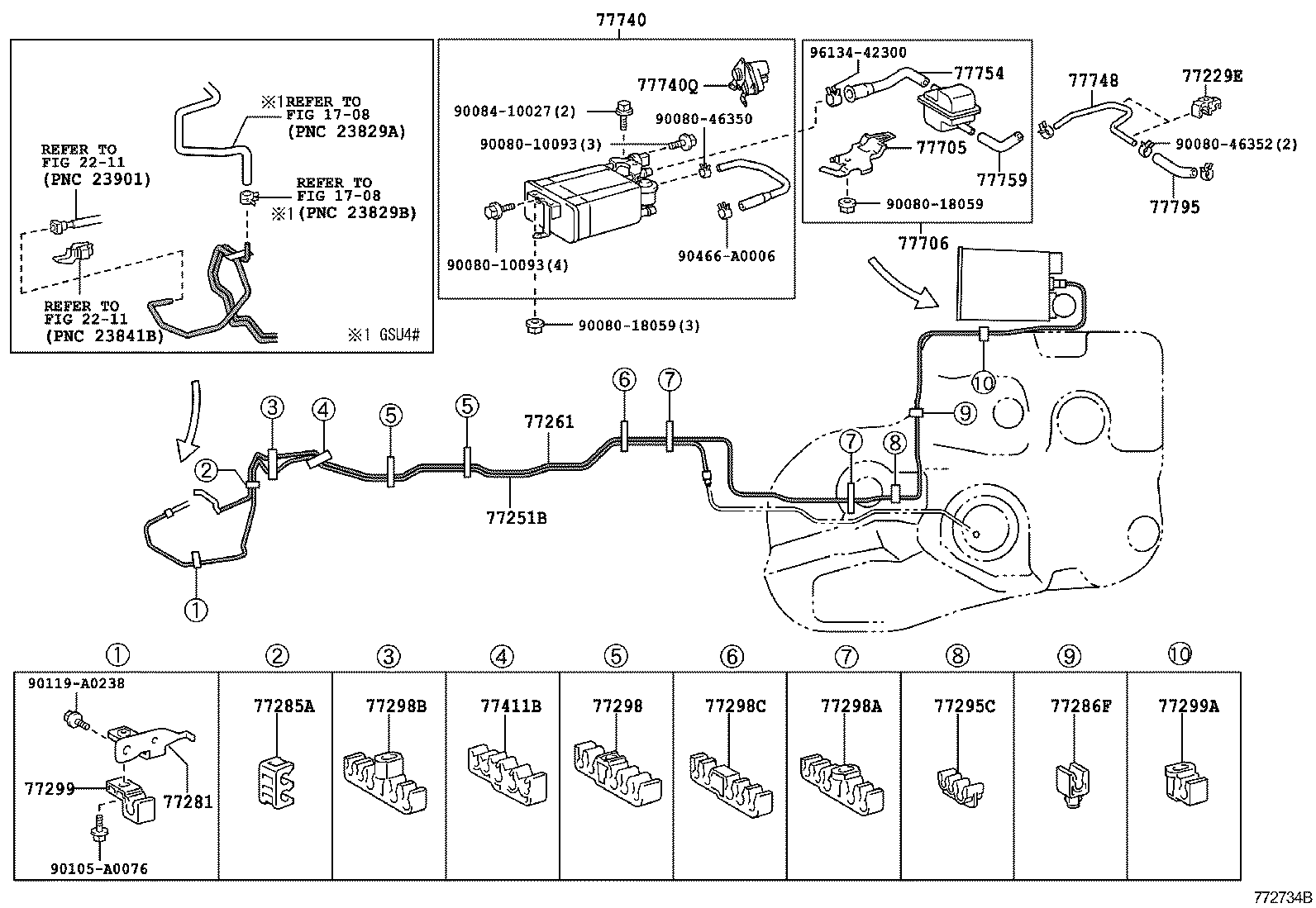

ILLUST NO. 2 OF 3(0910-1008) ; (1008- )ASU40

Click highlighted areas on diagram

FUEL TUBE

diagram 1708 1708 2211 2211 77229E 77251B 77261 77281 77285A 77286F 77295C 77298 77298A 77298B 77298C 77299 77299A 77411B 77705 77706 77740 77740Q 77748 77754 77759 77795 9008010093 9008010093 9008018059 9008018059 9008046350 9008046352 9008410027 90105A0076 90119A0238 90466A0006 9613442300
Part # Description Qty Price
77229E - CLAMP, BREATHER TUBE
77229-0E020

ASU40,GSU4#

 2
77251B - TUBE, FUEL MAIN
77251-0E050

GSU4#

 1
77261 - TUBE SUB-ASSY, FUEL EMISSION
77261-0E040

ASU40,GSU4#

 1
77281 - BRACKET, FUEL MAIN TUBE, NO.1
77281-0E010

ASU40,GSU4#

 1
77285A - SUPPORT, FUEL RETURN AND MAIN TUBE
77285-42110

ASU40,GSU4#

 1
77286F - CLAMP, FUEL TUBE, NO.2
77286-0E010

ASU40,GSU4#

 1
77295C - GROMMET, FUEL TUBE
77295-0E010

ASU40,GSU4#

 1
77298 - CLAMP, FUEL TUBE W/GROMMET, NO.4
77298-0E030

ASU40,GSU4#

 2
77298A - CLAMP, FUEL TUBE, NO.4
77298-0E010

ASU40,GSU4#

 2
77298B - CLAMP, FUEL TUBE, NO.4
77298-0E040

ASU40,GSU4#

 1
77298C - CLAMP, FUEL TUBE, NO.4
77298-68030

ASU40,GSU4#

 1
77299 - CLAMP, FUEL TUBE W/GROMMET, NO.5
77299-48010

ASU40,GSU4#

 1
77299A - CLAMP, FUEL TUBE, NO.5
77299-0E010

ASU40,GSU4#

 1
77411B - SUPPORT, FUEL TUBE GROMMET, NO.1
77411-0E020

ASU40,GSU4#

 1
77705 - BRACKET SUB-ASSY, CHARCOAL CANISTER
77705-48010

ASU40,GSU4#

 1
77706 - FILTER SUB-ASSY, CHARCOAL CANISTER
77706-0E030

ASU40,GSU4#

 1
77740 - CANISTER ASSY, CHARCOAL
77740-0E020

ASU40,GSU4#

 1
77740Q - LEAK DETECTION PUMP SUB-ASSY, CHARCOAL CANISTER
90910-AF002

ASU40,GSU4#

 1
77748 - PIPE, CHARCOAL CANISTER, NO.2
77748-0E010

ASU40,GSU4#

 1
77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1
77754-0E020

ASU40,GSU4#

 1
77759 - HOSE, CHARCOAL CANISTER
77759-48010

ASU40,GSU4#

 1
77795 - HOSE, CHARCOAL CANISTER OUTLET, NO.2
77795-0E010

ASU40,GSU4#

 1
Common parts
90080-10093
90080-18059
90080-46350
90080-46352
90084-10027
90105-A0076
90119-A0238
90466-A0006
96134-42300
Linked diagrams
1708
2211

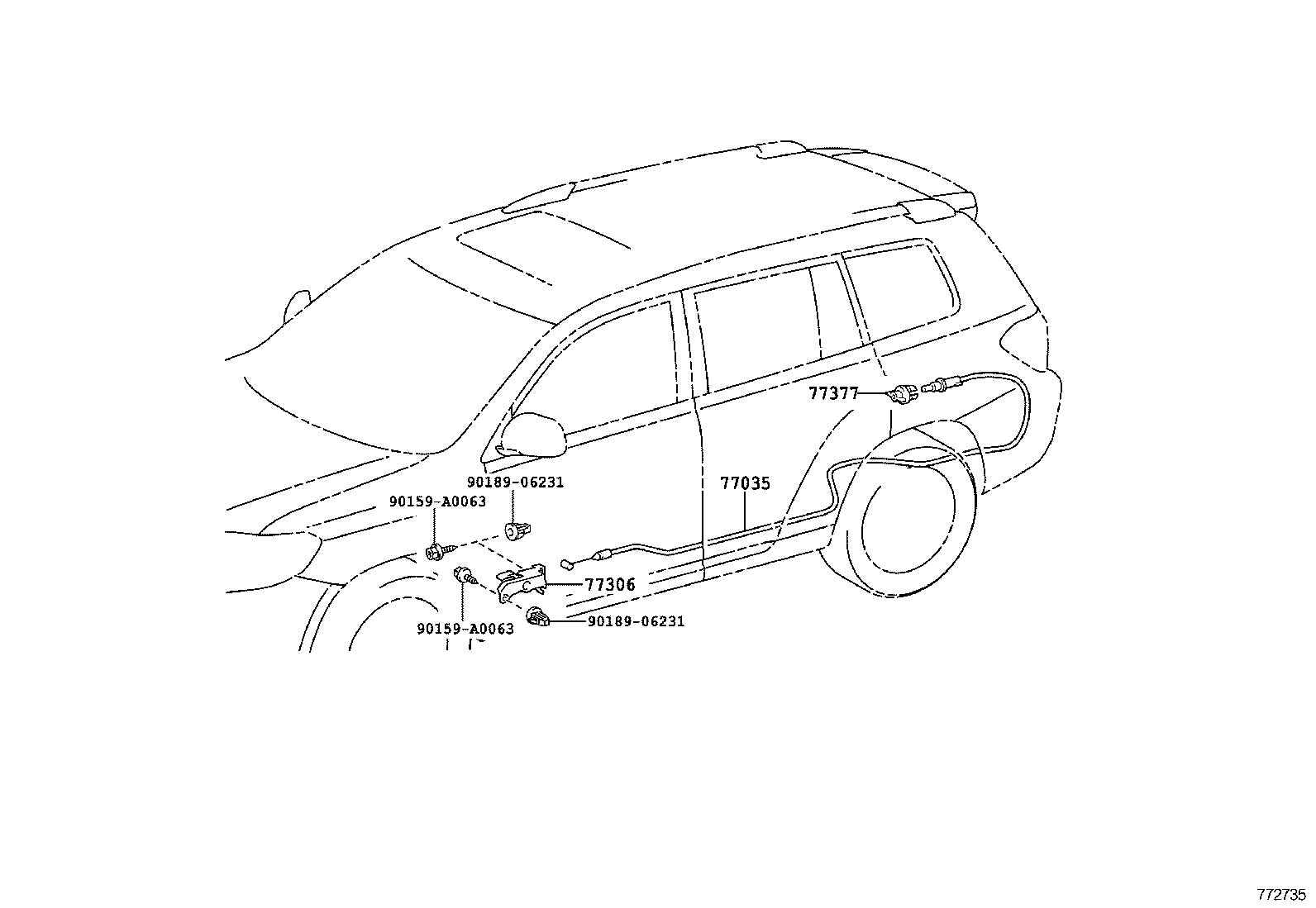

ILLUST NO. 3 OF 3(0910- )

Click highlighted areas on diagram

FUEL LID OPENER

diagram 77035 77306 77377 90159A0063 90159A0063 9018906231 9018906231
Part # Description Qty Price
77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77035-0E020

ASU40,GSU4#

 1
77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN
77306-48020

ASU40,GSU4#

 1
77377 - RETAINER, FUEL FILLER OPENING LID LOCK
77377-02010

ASU40,GSU4#

 1
Common parts
90159-A0063
90189-06231
