GSU40L-ARANKA (2009)
Toyota Highlander (Nap)
(0910-1008)

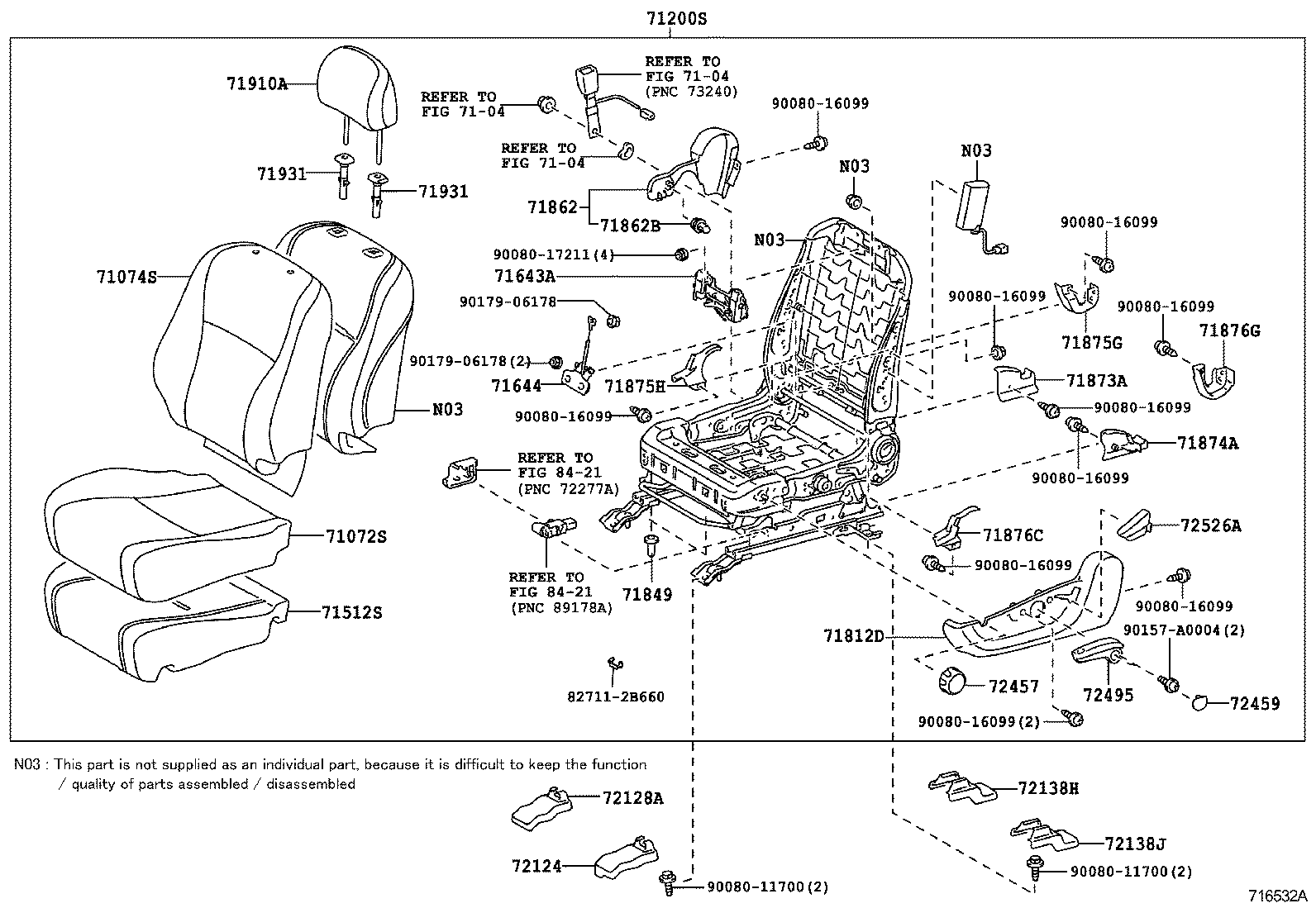

LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-0E090E0 |
ASU40,GSU4#..STD FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL,SAND BEIGE,TRIM4# |
1 | ||
| 71072-0E090B0 |
ASU40,GSU4#..STD FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL,GRAY,TRIM1# |
1 | ||
| 71072-0E080E0 |
ASU40,GSU4#..STD SAND BEIGE,TRIM4# |
1 | ||
| 71072-0E080B0 |
ASU40,GSU4#..STD GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-0E100B1 |
ASU40,GSU4#..STD GRAY,TRIM1# |
1 | ||
| 71074-0E100E1 |
ASU40,GSU4#..STD SAND BEIGE,TRIM4# |
1 | ||
| 71074-0E110B1 |
ASU40,GSU4#..STD FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL,GRAY,TRIM1# |
1 | ||
| 71074-0E110E1 |
ASU40,GSU4#..STD FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL,SAND BEIGE,TRIM4# |
1 | ||
| 71200S - SEAT ASSY, FRONT LH | ||||
| 71200-0E120B1 |
ASU40,GSU4#..STD GRAY,TRIM1# |
1 | ||
| 71200-0E130B2 |
ASU40,GSU4#..STD FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL,GRAY,TRIM1# |
1 | ||
| 71200-0E120E1 |
ASU40,GSU4#..STD SAND BEIGE,TRIM4# |
1 | ||
| 71200-0E130E2 |
ASU40,GSU4#..STD FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL,SAND BEIGE,TRIM4# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-0E080 |
ASU40,GSU4#..STD FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL |
1 | ||
| 71512-0E070 |
ASU40,GSU4#..STD |
1 | ||
| 71643A - UNIT, ACTIVE HEADREST, UPR | ||||
| 71643-04010 |
ASU40,GSU4# |
2 | ||
| 71644 - UNIT, ACTIVE HEADREST, LWR | ||||
| 71644-04010 |
ASU40,GSU4# |
2 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-0E060B0 |
ASU40,GSU4#..STD GRAY,TRIM1# |
1 | ||
| 71812-0E060E0 |
ASU40,GSU4#..STD SAND BEIGE,TRIM4# |
1 | ||
| 71812-0E090B0 |
ASU40,GSU4#..STD FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL,GRAY,TRIM1# |
1 | ||
| 71812-0E090E0 |
ASU40,GSU4#..STD FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL,SAND BEIGE,TRIM4# |
1 | ||
| 71849 - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-33010 |
ASU40,GSU4#..STD FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL |
1 | ||
| 71848-33010 |
ASU40,GSU4#..STD |
2 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-0E020E0 |
ASU40,GSU4#..STD FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL,SAND BEIGE,TRIM4# |
1 | ||
| 71862-0E020B1 |
ASU40,GSU4#..STD FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL,GRAY,TRIM1# |
1 | ||
| 71862-0E050B0 |
ASU40,GSU4#..STD GRAY,TRIM1# |
1 | ||
| 71862-0E050E0 |
ASU40,GSU4#..STD SAND BEIGE,TRIM4# |
1 | ||
| 71862B - CLIP(FOR FRONT SEAT SHIELD, LH) | ||||
| 71769-33020 |
ASU40,GSU4#..STD |
1 | ||
| 71873A - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71873-0E040 |
ASU40,GSU4#..STD FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL |
1 | ||
| 71873-0E130 |
ASU40,GSU4#..STD |
1 | ||
| 71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-0E040 |
ASU40,GSU4#..STD FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL |
1 | ||
| 71874-0E090 |
ASU40,GSU4#..STD |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71875-AA060 |
ASU40,GSU4#..STD |
1 | ||
| 71814-0E020 |
ASU40,GSU4#..STD FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL |
1 | ||
| 71875H - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71875-0E010E2 |
ASU40,GSU4#..STD FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL,SAND BEIGE,TRIM4# |
1 | ||
| 71875-06350E1 |
ASU40,GSU4#..STD SAND BEIGE,TRIM4# |
1 | ||
| 71875-0E020B6 |
ASU40,GSU4#..STD FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL,GRAY,TRIM1# |
1 | ||
| 71875-06350B1 |
ASU40,GSU4#..STD GRAY,TRIM1# |
1 | ||
| 71875-0E010B5 |
ASU40,GSU4#..STD FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL,GRAY,TRIM1# |
1 | ||
| 71875-0E020E2 |
ASU40,GSU4#..STD FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL,SAND BEIGE,TRIM4# |
1 | ||
| 71876C - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-06380E1 |
ASU40,GSU4#..STD SAND BEIGE,TRIM4# |
1 | ||
| 71876-06380B1 |
ASU40,GSU4#..STD GRAY,TRIM1# |
1 | ||
| 71876-AA090B6 |
ASU40,GSU4#..STD FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL,GRAY,TRIM1# |
1 | ||
| 71876-AA090E2 |
ASU40,GSU4#..STD FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL,SAND BEIGE,TRIM4# |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-AA060 |
ASU40,GSU4#..STD |
1 | ||
| 71813-0E020 |
ASU40,GSU4#..STD FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-0E090E0 |
ASU40,GSU4#..STD SAND BEIGE,TRIM4# |
2 | ||
| 71910-0E090B0 |
ASU40,GSU4#..STD GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-44020E2 |
ASU40,GSU4# W(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71930-44020B2 |
ASU40,GSU4# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-47010E8 |
ASU40,GSU4# W/O(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71931-47010P4 |
ASU40,GSU4# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-44020E2 |
ASU40,GSU4# W(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71930-44020B2 |
ASU40,GSU4# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-47010E8 |
ASU40,GSU4# W/O(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71931-47010P4 |
ASU40,GSU4# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72124-0E060B0 |
ASU40,GSU4#..STD GRAY,TRIM1# |
1 | ||
| 72124-0E060E0 |
ASU40,GSU4#..STD SAND BEIGE,TRIM4# |
1 | ||
| 72124-0E070E0 |
ASU40,GSU4#..STD FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL,SAND BEIGE,TRIM4# |
1 | ||
| 72124-0E070B0 |
ASU40,GSU4#..STD FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL,GRAY,TRIM1# |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72128-0E050E0 |
ASU40,GSU4#..STD SAND BEIGE,TRIM4# |
1 | ||
| 72128-0E050B0 |
ASU40,GSU4#..STD GRAY,TRIM1# |
1 | ||
| 72128-0E060B0 |
ASU40,GSU4#..STD FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL,GRAY,TRIM1# |
1 | ||
| 72128-0E060E0 |
ASU40,GSU4#..STD FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL,SAND BEIGE,TRIM4# |
1 | ||
| 72138H - COVER, FRONT SEAT TRACK, LH REAR INNER | ||||
| 72158-0E050B0 |
ASU40,GSU4#..STD FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL,GRAY,TRIM1# |
1 | ||
| 72137-0E090E0 |
ASU40,GSU4#..STD SAND BEIGE,TRIM4# |
1 | ||
| 72158-0E050E0 |
ASU40,GSU4#..STD FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL,SAND BEIGE,TRIM4# |
1 | ||
| 72137-0E090B0 |
ASU40,GSU4#..STD GRAY,TRIM1# |
1 | ||
| 72138J - COVER, FRONT SEAT TRACK, LH REAR OUTER | ||||
| 72137-0E090E0 |
ASU40,GSU4#..STD SAND BEIGE,TRIM4# |
1 | ||
| 72137-0E120B0 |
ASU40,GSU4#..STD FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL,GRAY,TRIM1# |
1 | ||
| 72137-0E120E0 |
ASU40,GSU4#..STD FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL,SAND BEIGE,TRIM4# |
1 | ||
| 72137-0E090B0 |
ASU40,GSU4#..STD GRAY,TRIM1# |
1 | ||
| 72457 - KNOB, VERTICAL SEAT ADJUSTER | ||||
| 72457-0E010E0 |
ASU40,GSU4#..STD SAND BEIGE,TRIM4# |
1 | ||
| 72457-0E010B0 |
ASU40,GSU4#..STD GRAY,TRIM1# |
1 | ||
| 72459 - CAP, VERTICAL SEAT ADJUSTER KNOB | ||||
| 72459-06010E1 |
ASU40,GSU4#..STD SAND BEIGE,TRIM4# |
1 | ||
| 72459-06010B0 |
ASU40,GSU4#..STD GRAY,TRIM1# |
1 | ||
| 72495 - HANDLE, VERTICAL ADJUSTING, LH | ||||
| 72495-0R010B1 |
ASU40,GSU4#..STD GRAY,TRIM1# |
1 | ||
| 72495-0R010E0 |
ASU40,GSU4#..STD SAND BEIGE,TRIM4# |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-06020E1 |
ASU40,GSU4#..STD SAND BEIGE,TRIM4# |
1 | ||
| 72526-06020B0 |
ASU40,GSU4#..STD GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 82711-2B660 | ||||
| 90080-11700 | ||||
| 90080-16099 | ||||
| 90080-17211 | ||||
| 90157-A0004 | ||||
| 90179-06178 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8421 | ||||
(0910-1008)

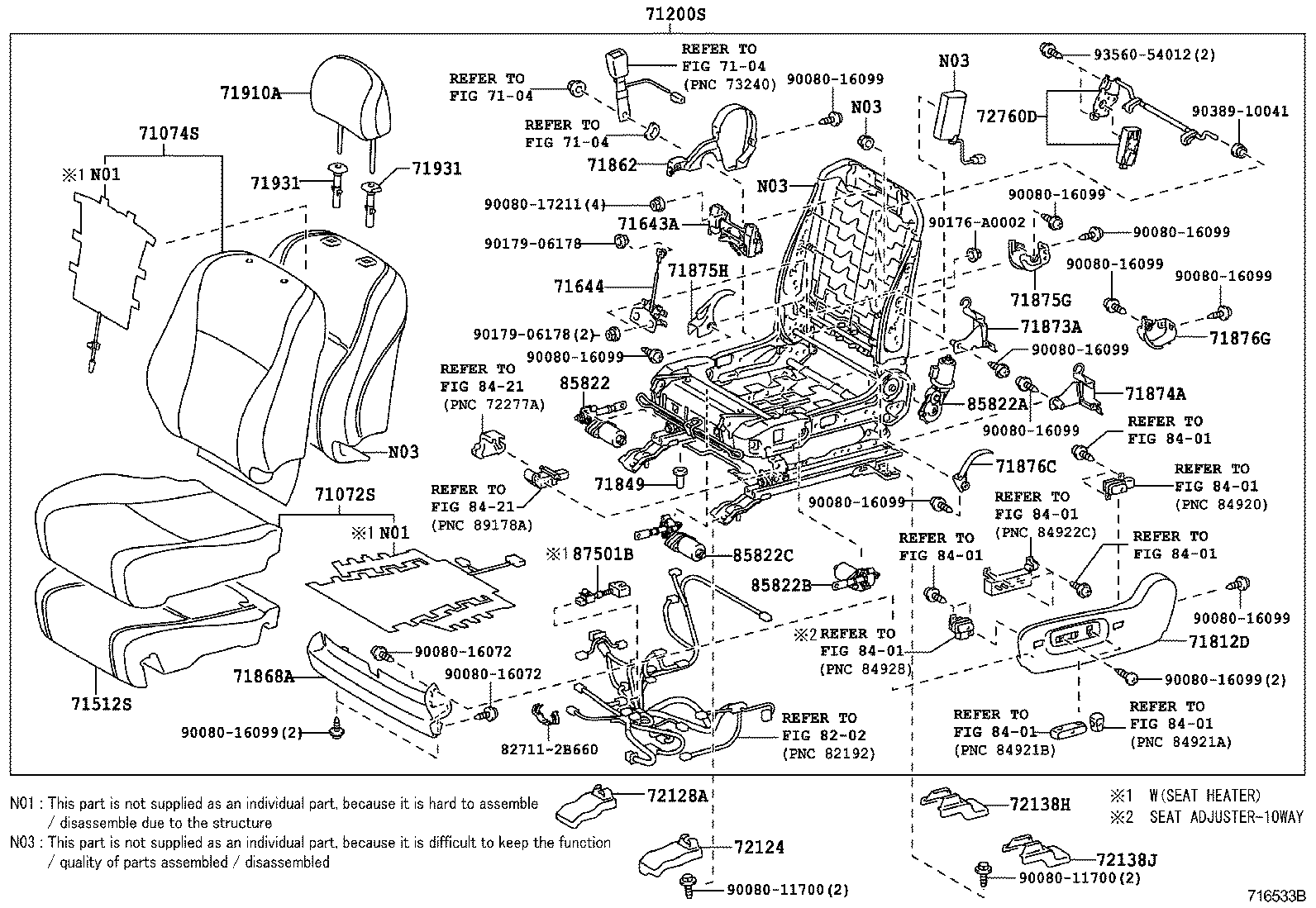

LH(POWER SEAT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-0E090E0 |
ASU40,GSU4#..STD FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL,SAND BEIGE,TRIM4# |
1 | ||
| 71072-0E090B0 |
ASU40,GSU4#..STD FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL,GRAY,TRIM1# |
1 | ||
| 71072-0E080E0 |
ASU40,GSU4#..STD SAND BEIGE,TRIM4# |
1 | ||
| 71072-0E080B0 |
ASU40,GSU4#..STD GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-0E100B1 |
ASU40,GSU4#..STD GRAY,TRIM1# |
1 | ||
| 71074-0E100E1 |
ASU40,GSU4#..STD SAND BEIGE,TRIM4# |
1 | ||
| 71074-0E110B1 |
ASU40,GSU4#..STD FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL,GRAY,TRIM1# |
1 | ||
| 71074-0E110E1 |
ASU40,GSU4#..STD FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL,SAND BEIGE,TRIM4# |
1 | ||
| 71200S - SEAT ASSY, FRONT LH | ||||
| 71200-0E120B1 |
ASU40,GSU4#..STD GRAY,TRIM1# |
1 | ||
| 71200-0E130B2 |
ASU40,GSU4#..STD FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL,GRAY,TRIM1# |
1 | ||
| 71200-0E120E1 |
ASU40,GSU4#..STD SAND BEIGE,TRIM4# |
1 | ||
| 71200-0E130E2 |
ASU40,GSU4#..STD FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL,SAND BEIGE,TRIM4# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-0E080 |
ASU40,GSU4#..STD FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL |
1 | ||
| 71512-0E070 |
ASU40,GSU4#..STD |
1 | ||
| 71643A - UNIT, ACTIVE HEADREST, UPR | ||||
| 71643-04010 |
ASU40,GSU4# |
2 | ||
| 71644 - UNIT, ACTIVE HEADREST, LWR | ||||
| 71644-04010 |
ASU40,GSU4# |
2 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-0E060B0 |
ASU40,GSU4#..STD GRAY,TRIM1# |
1 | ||
| 71812-0E060E0 |
ASU40,GSU4#..STD SAND BEIGE,TRIM4# |
1 | ||
| 71812-0E090B0 |
ASU40,GSU4#..STD FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL,GRAY,TRIM1# |
1 | ||
| 71812-0E090E0 |
ASU40,GSU4#..STD FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL,SAND BEIGE,TRIM4# |
1 | ||
| 71849 - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-33010 |
ASU40,GSU4#..STD FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL |
1 | ||
| 71848-33010 |
ASU40,GSU4#..STD |
2 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-0E020E0 |
ASU40,GSU4#..STD FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL,SAND BEIGE,TRIM4# |
1 | ||
| 71862-0E020B1 |
ASU40,GSU4#..STD FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL,GRAY,TRIM1# |
1 | ||
| 71862-0E050B0 |
ASU40,GSU4#..STD GRAY,TRIM1# |
1 | ||
| 71862-0E050E0 |
ASU40,GSU4#..STD SAND BEIGE,TRIM4# |
1 | ||
| 71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-0E060E0 |
ASU40,GSU4#..STD FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL,SAND BEIGE,TRIM4# |
1 | ||
| 71868-0E060B0 |
ASU40,GSU4#..STD FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL,GRAY,TRIM1# |
1 | ||
| 71873A - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71873-0E040 |
ASU40,GSU4#..STD FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL |
1 | ||
| 71873-0E130 |
ASU40,GSU4#..STD |
1 | ||
| 71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-0E040 |
ASU40,GSU4#..STD FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL |
1 | ||
| 71874-0E090 |
ASU40,GSU4#..STD |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71875-AA060 |
ASU40,GSU4#..STD |
1 | ||
| 71814-0E020 |
ASU40,GSU4#..STD FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL |
1 | ||
| 71875H - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71875-0E010E2 |
ASU40,GSU4#..STD FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL,SAND BEIGE,TRIM4# |
1 | ||
| 71875-06350E1 |
ASU40,GSU4#..STD SAND BEIGE,TRIM4# |
1 | ||
| 71875-0E020B6 |
ASU40,GSU4#..STD FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL,GRAY,TRIM1# |
1 | ||
| 71875-06350B1 |
ASU40,GSU4#..STD GRAY,TRIM1# |
1 | ||
| 71875-0E010B5 |
ASU40,GSU4#..STD FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL,GRAY,TRIM1# |
1 | ||
| 71875-0E020E2 |
ASU40,GSU4#..STD FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL,SAND BEIGE,TRIM4# |
1 | ||
| 71876C - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-06380E1 |
ASU40,GSU4#..STD SAND BEIGE,TRIM4# |
1 | ||
| 71876-06380B1 |
ASU40,GSU4#..STD GRAY,TRIM1# |
1 | ||
| 71876-AA090B6 |
ASU40,GSU4#..STD FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL,GRAY,TRIM1# |
1 | ||
| 71876-AA090E2 |
ASU40,GSU4#..STD FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL,SAND BEIGE,TRIM4# |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-AA060 |
ASU40,GSU4#..STD |
1 | ||
| 71813-0E020 |
ASU40,GSU4#..STD FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-0E090E0 |
ASU40,GSU4#..STD SAND BEIGE,TRIM4# |
2 | ||
| 71910-0E090B0 |
ASU40,GSU4#..STD GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-44020E2 |
ASU40,GSU4# W(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71930-44020B2 |
ASU40,GSU4# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-47010E8 |
ASU40,GSU4# W/O(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71931-47010P4 |
ASU40,GSU4# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-44020E2 |
ASU40,GSU4# W(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71930-44020B2 |
ASU40,GSU4# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-47010E8 |
ASU40,GSU4# W/O(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71931-47010P4 |
ASU40,GSU4# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72124-0E060B0 |
ASU40,GSU4#..STD GRAY,TRIM1# |
1 | ||
| 72124-0E060E0 |
ASU40,GSU4#..STD SAND BEIGE,TRIM4# |
1 | ||
| 72124-0E070E0 |
ASU40,GSU4#..STD FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL,SAND BEIGE,TRIM4# |
1 | ||
| 72124-0E070B0 |
ASU40,GSU4#..STD FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL,GRAY,TRIM1# |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72128-0E050E0 |
ASU40,GSU4#..STD SAND BEIGE,TRIM4# |
1 | ||
| 72128-0E050B0 |
ASU40,GSU4#..STD GRAY,TRIM1# |
1 | ||
| 72128-0E060B0 |
ASU40,GSU4#..STD FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL,GRAY,TRIM1# |
1 | ||
| 72128-0E060E0 |
ASU40,GSU4#..STD FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL,SAND BEIGE,TRIM4# |
1 | ||
| 72138H - COVER, FRONT SEAT TRACK, LH REAR INNER | ||||
| 72158-0E050B0 |
ASU40,GSU4#..STD FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL,GRAY,TRIM1# |
1 | ||
| 72137-0E090E0 |
ASU40,GSU4#..STD SAND BEIGE,TRIM4# |
1 | ||
| 72158-0E050E0 |
ASU40,GSU4#..STD FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL,SAND BEIGE,TRIM4# |
1 | ||
| 72137-0E090B0 |
ASU40,GSU4#..STD GRAY,TRIM1# |
1 | ||
| 72138J - COVER, FRONT SEAT TRACK, LH REAR OUTER | ||||
| 72137-0E090E0 |
ASU40,GSU4#..STD SAND BEIGE,TRIM4# |
1 | ||
| 72137-0E120B0 |
ASU40,GSU4#..STD FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL,GRAY,TRIM1# |
1 | ||
| 72137-0E120E0 |
ASU40,GSU4#..STD FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL,SAND BEIGE,TRIM4# |
1 | ||
| 72137-0E090B0 |
ASU40,GSU4#..STD GRAY,TRIM1# |
1 | ||
| 72760D - ADJUSTER ASSY, LUMBAR SUPPORT, LH | ||||
| 72760-AA050 |
ASU40,GSU4#..STD FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL |
1 | ||
| 85822 - MOTOR ASSY, POWER SEAT SLIDE, LH | ||||
| 85801-28060 |
ASU40,GSU4#..STD FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL |
1 | ||
| 85822A - MOTOR ASSY, POWER SEAT RECLINING, LH | ||||
| 85801-28050 |
ASU40,GSU4#..STD FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL |
1 | ||
| 85822B - MOTOR ASSY, POWER SEAT TILT, LH | ||||
| 85801-28080 |
ASU40,GSU4#..STD FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL |
1 | ||
| 85822C - MOTOR ASSY, POWER SEAT LIFTER, LH | ||||
| 85801-28070 |
ASU40,GSU4#..STD FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL |
1 | ||
| Common parts | ||||
| 82711-2B660 | ||||
| 90080-11700 | ||||
| 90080-16072 | ||||
| 90080-16099 | ||||
| 90080-17211 | ||||
| 90176-A0002 | ||||
| 90179-06178 | ||||
| 90389-10041 | ||||
| 93560-54012 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
| 8401 | ||||
| 8421 | ||||
(0910-1008)
RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-0E080B0 |
ASU40,GSU4#..STD GRAY,TRIM1# |
1 | ||
| 71071-0E080E0 |
ASU40,GSU4#..STD SAND BEIGE,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-0E110B1 |
ASU40,GSU4#..STD GRAY,TRIM1# |
1 | ||
| 71073-0E110E1 |
ASU40,GSU4#..STD SAND BEIGE,TRIM4# |
1 | ||
| 71100S - SEAT ASSY, FRONT RH | ||||
| 71100-0E160B1 |
ASU40,GSU4#..STD GRAY,TRIM1# |
1 | ||
| 71100-0E160E1 |
ASU40,GSU4#..STD SAND BEIGE,TRIM4# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-0E070 |
ASU40,GSU4#..M,SPO,STD |
1 | ||
| 71643A - UNIT, ACTIVE HEADREST, UPR | ||||
| 71643-04010 |
ASU40,GSU4# |
2 | ||
| 71644 - UNIT, ACTIVE HEADREST, LWR | ||||
| 71644-04010 |
ASU40,GSU4# |
2 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-0E070B0 |
ASU40,GSU4#..M,SPO,STD GRAY,TRIM1# |
1 | ||
| 71811-0E070E0 |
ASU40,GSU4#..M,SPO,STD SAND BEIGE,TRIM4# |
1 | ||
| 71848A - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-33010 |
ASU40,GSU4#..M,SPO,STD |
2 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-0E050E0 |
ASU40,GSU4#..M,SPO,STD SAND BEIGE,TRIM4# |
1 | ||
| 71861-0E050B0 |
ASU40,GSU4#..M,SPO,STD GRAY,TRIM1# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-0E100 |
ASU40,GSU4#..M,SPO,STD |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-0E080 |
ASU40,GSU4#..M,SPO,STD |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-06350E1 |
ASU40,GSU4#..M,SPO,STD SAND BEIGE,TRIM4# |
1 | ||
| 71875-06350B1 |
ASU40,GSU4#..M,SPO,STD GRAY,TRIM1# |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-AA060 |
ASU40,GSU4#..M,SPO,STD |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-06380E1 |
ASU40,GSU4#..M,SPO,STD SAND BEIGE,TRIM4# |
1 | ||
| 71876-06380B1 |
ASU40,GSU4#..M,SPO,STD GRAY,TRIM1# |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-AA060 |
ASU40,GSU4#..M,SPO,STD |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-0E090E0 |
ASU40,GSU4#..STD SAND BEIGE,TRIM4# |
2 | ||
| 71910-0E090B0 |
ASU40,GSU4#..STD GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-44020E2 |
ASU40,GSU4# W(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71930-44020B2 |
ASU40,GSU4# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-47010E8 |
ASU40,GSU4# W/O(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71931-47010P4 |
ASU40,GSU4# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-44020E2 |
ASU40,GSU4# W(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71930-44020B2 |
ASU40,GSU4# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-47010E8 |
ASU40,GSU4# W/O(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71931-47010P4 |
ASU40,GSU4# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-0E070E0 |
ASU40,GSU4#..M,SPO,STD SAND BEIGE,TRIM4# |
1 | ||
| 72123-0E070B0 |
ASU40,GSU4#..M,SPO,STD GRAY,TRIM1# |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72127-0E040B0 |
ASU40,GSU4#..M,SPO,STD GRAY,TRIM1# |
1 | ||
| 72127-0E040E0 |
ASU40,GSU4#..M,SPO,STD SAND BEIGE,TRIM4# |
1 | ||
| 72137J - COVER, FRONT SEAT TRACK, RH REAR OUTER | ||||
| 72137-0E110B0 |
ASU40,GSU4#..M,SPO,STD GRAY,TRIM1# |
2 | ||
| 72137-0E110E0 |
ASU40,GSU4#..M,SPO,STD SAND BEIGE,TRIM4# |
2 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-06020E1 |
ASU40,GSU4#..M,SPO,STD SAND BEIGE,TRIM4# |
1 | ||
| 72525-06020B1 |
ASU40,GSU4#..M,SPO,STD GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 82711-2B660 | ||||
| 90080-11700 | ||||
| 90080-16099 | ||||
| 90080-17211 | ||||
| 90176-A0002 | ||||
| 90179-06178 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
| 8421 | ||||
(0910-1008)
RH(POWER SEAT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-0E080B0 |
ASU40,GSU4#..STD GRAY,TRIM1# |
1 | ||
| 71071-0E080E0 |
ASU40,GSU4#..STD SAND BEIGE,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-0E110B1 |
ASU40,GSU4#..STD GRAY,TRIM1# |
1 | ||
| 71073-0E110E1 |
ASU40,GSU4#..STD SAND BEIGE,TRIM4# |
1 | ||
| 71100S - SEAT ASSY, FRONT RH | ||||
| 71100-0E160B1 |
ASU40,GSU4#..STD GRAY,TRIM1# |
1 | ||
| 71100-0E160E1 |
ASU40,GSU4#..STD SAND BEIGE,TRIM4# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-0E070 |
ASU40,GSU4#..M,SPO,STD |
1 | ||
| 71643A - UNIT, ACTIVE HEADREST, UPR | ||||
| 71643-04010 |
ASU40,GSU4# |
2 | ||
| 71644 - UNIT, ACTIVE HEADREST, LWR | ||||
| 71644-04010 |
ASU40,GSU4# |
2 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-0E070B0 |
ASU40,GSU4#..M,SPO,STD GRAY,TRIM1# |
1 | ||
| 71811-0E070E0 |
ASU40,GSU4#..M,SPO,STD SAND BEIGE,TRIM4# |
1 | ||
| 71848A - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-33010 |
ASU40,GSU4#..M,SPO,STD |
2 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-0E050E0 |
ASU40,GSU4#..M,SPO,STD SAND BEIGE,TRIM4# |
1 | ||
| 71861-0E050B0 |
ASU40,GSU4#..M,SPO,STD GRAY,TRIM1# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-0E100 |
ASU40,GSU4#..M,SPO,STD |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-0E080 |
ASU40,GSU4#..M,SPO,STD |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-06350E1 |
ASU40,GSU4#..M,SPO,STD SAND BEIGE,TRIM4# |
1 | ||
| 71875-06350B1 |
ASU40,GSU4#..M,SPO,STD GRAY,TRIM1# |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-AA060 |
ASU40,GSU4#..M,SPO,STD |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-06380E1 |
ASU40,GSU4#..M,SPO,STD SAND BEIGE,TRIM4# |
1 | ||
| 71876-06380B1 |
ASU40,GSU4#..M,SPO,STD GRAY,TRIM1# |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-AA060 |
ASU40,GSU4#..M,SPO,STD |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-0E090E0 |
ASU40,GSU4#..STD SAND BEIGE,TRIM4# |
2 | ||
| 71910-0E090B0 |
ASU40,GSU4#..STD GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-44020E2 |
ASU40,GSU4# W(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71930-44020B2 |
ASU40,GSU4# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-47010E8 |
ASU40,GSU4# W/O(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71931-47010P4 |
ASU40,GSU4# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-44020E2 |
ASU40,GSU4# W(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71930-44020B2 |
ASU40,GSU4# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-47010E8 |
ASU40,GSU4# W/O(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71931-47010P4 |
ASU40,GSU4# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-0E070E0 |
ASU40,GSU4#..M,SPO,STD SAND BEIGE,TRIM4# |
1 | ||
| 72123-0E070B0 |
ASU40,GSU4#..M,SPO,STD GRAY,TRIM1# |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72127-0E040B0 |
ASU40,GSU4#..M,SPO,STD GRAY,TRIM1# |
1 | ||
| 72127-0E040E0 |
ASU40,GSU4#..M,SPO,STD SAND BEIGE,TRIM4# |
1 | ||
| 72137J - COVER, FRONT SEAT TRACK, RH REAR OUTER | ||||
| 72137-0E110B0 |
ASU40,GSU4#..M,SPO,STD GRAY,TRIM1# |
2 | ||
| 72137-0E110E0 |
ASU40,GSU4#..M,SPO,STD SAND BEIGE,TRIM4# |
2 | ||
| Common parts | ||||
| 82711-2B660 | ||||
| 90080-11700 | ||||
| 90080-16072 | ||||
| 90080-16099 | ||||
| 90080-17211 | ||||
| 90176-A0002 | ||||
| 90179-06178 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
