GSU40L-ARANKA (2009)

Toyota Highlander (Nap)

Production Oct 2009 - Aug 2010
Engine 2GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0910- )

Click highlighted areas on diagram

diagram 68810C 68820C 68930 68940 68945 68946 68950C 68957B 68957B 68960 68961J 68961J 69350P 69350P 69370E 69430C 8401 9008010387 9008010387 9008010387 9008010387 9008011194 9008011194 9008011605 9008011605 9008011605 9008018061 9008018061 90148A0017
Part # Description Qty Price
68810C - HINGE ASSY, BACK DOOR, RH
68810-0E070

ASU40,GSU4#

PAD T=2.0

 1
68810-0E060

ASU40,GSU4#

PAD T=1.0

 1
68810-0E050

ASU40,GSU4#

PAD T=1.5

 1
68820C - HINGE ASSY, BACK DOOR, LH
68820-0E050

ASU40,GSU4#

PAD T=1.0

 1
68820-0E040

ASU40,GSU4#

PAD T=1.5

 1
68820-0E060

ASU40,GSU4#

PAD T=2.0

 1
68930 - STAY ASSY, BACK WINDOW, RH
68930-0E020

GSU4#..STD

(DELETE)FAMILY PACKAGE

 1
68940 - STAY ASSY, BACK WINDOW, LH
68940-0E020

GSU4#..STD

(DELETE)FAMILY PACKAGE

 1
68945 - BRACKET, BACK DOOR DAMPER STAY, UPPER RH
68945-48040

GSU4#..STD

(DELETE)FAMILY PACKAGE&POWRE BACK DOOR-WITH

 1
68945-48060

ASU40,GSU4#

 1
68945-48040

GSU4#..STD

(DELETE)FAMILY PACKAGE&POWRE BACK DOOR-WITH&AUDIO-AVN 4CD-CHANGER 9SPEAKER JBL BLUETOOTH

 1
68946 - BRACKET, BACK DOOR DAMPER STAY, UPPER LH
68945-48040

GSU4#..STD

(DELETE)FAMILY PACKAGE&POWRE BACK DOOR-WITH&AUDIO-AVN 4CD-CHANGER 9SPEAKER JBL BLUETOOTH

 1
68945-48040

GSU4#..STD

(DELETE)FAMILY PACKAGE&POWRE BACK DOOR-WITH

 1
68946-48010

ASU40,GSU4#

 1
68950C - STAY ASSY, BACK DOOR, RH
68950-0E070

GSU4#..STD

(DELETE)FAMILY PACKAGE&POWRE BACK DOOR-WITH&AUDIO-AVN 4CD-CHANGER 9SPEAKER JBL BLUETOOTH

 1
68950-0E050

GSU4#..STD

(DELETE)FAMILY PACKAGE

 1
68950-0E060

GSU4#..STD

(DELETE)FAMILY PACKAGE&POWRE BACK DOOR-WITH

 1
68950-0E090

GSU4#..STD

(DELETE)FAMILY PACKAGE&AUDIO-AVN 4CD-CHANGER 9SPEAKER JBL BLUETOOTH

 1
68950-0E080

ASU40,GSU4#..STD

 1
68957B - BRACKET, BACK DOOR STAY, LOWER
68957-48010

ASU40,GSU4#

RH

 1
68957-48020

ASU40,GSU4#

LH

 1
68957B - BRACKET, BACK DOOR STAY, LOWER
68957-48010

ASU40,GSU4#

RH

 1
68957-48020

ASU40,GSU4#

LH

 1
68960 - STAY ASSY, BACK DOOR, LH
68960-0E050

GSU4#..STD

(DELETE)FAMILY PACKAGE

 1
68960-0E070

GSU4#..STD

(DELETE)FAMILY PACKAGE&POWRE BACK DOOR-WITH&AUDIO-AVN 4CD-CHANGER 9SPEAKER JBL BLUETOOTH

 1
68960-0E060

GSU4#..STD

(DELETE)FAMILY PACKAGE&POWRE BACK DOOR-WITH

 1
68960-0E080

ASU40,GSU4#..STD

 1
68960-0E090

GSU4#..STD

(DELETE)FAMILY PACKAGE&AUDIO-AVN 4CD-CHANGER 9SPEAKER JBL BLUETOOTH

 1
68961J - BOLT, BACK WINDOW STAY
68961-0E020

GSU4#..STD

(DELETE)FAMILY PACKAGE

 2
68961J - BOLT, BACK WINDOW STAY
68961-0E020

GSU4#..STD

(DELETE)FAMILY PACKAGE

 2
69350P - LOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH
69350-0T010

GSU4#

POWRE BACK DOOR-WITH

 1
69350-0T020

ASU40,GSU4#

 1
69350P - LOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH
69350-0T010

GSU4#

POWRE BACK DOOR-WITH

 1
69350-0T020

ASU40,GSU4#

 1
69370E - LOCK ASSY, BACK WINDOW
69370-48010

GSU4#..STD

(DELETE)FAMILY PACKAGE

 1
69430C - STRIKER ASSY, BACK DOOR LOCK
69430-0E050

ASU40,GSU4#

 1
Common parts
90080-10387
90080-11194
90080-11605
90080-18061
90148-A0017
Linked diagrams
8401

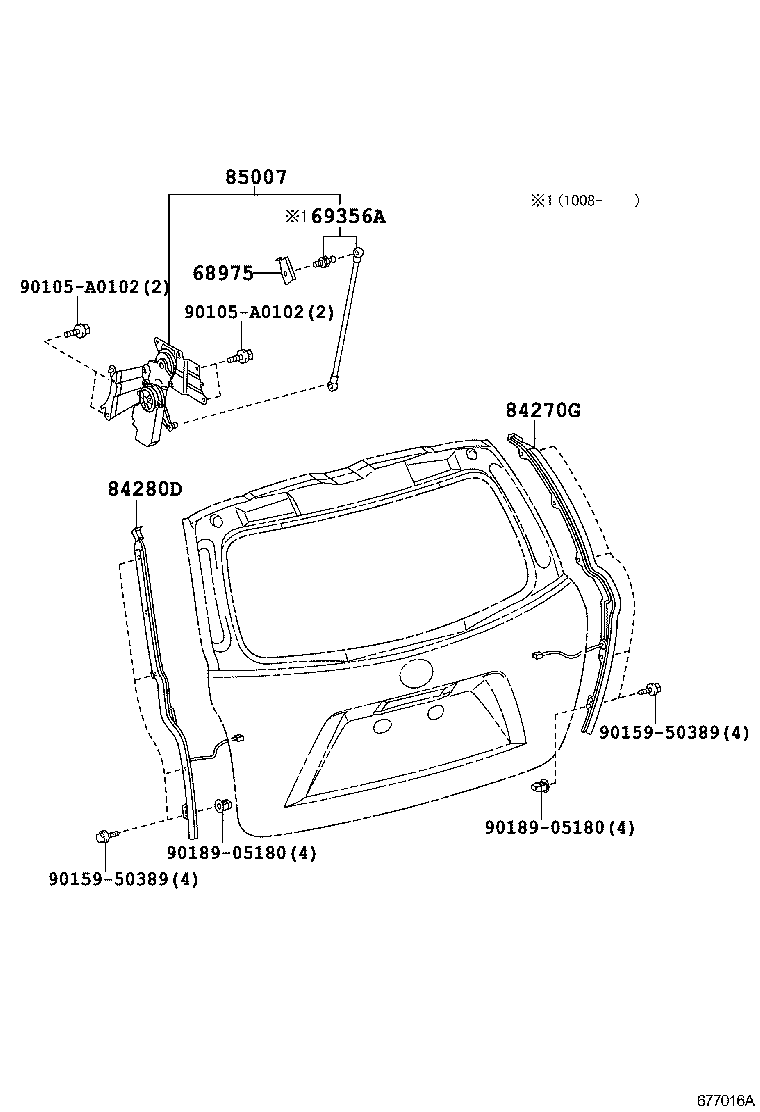

ILLUST NO. 2 OF 2(0910-1106)

Click highlighted areas on diagram

W(POWER BACK DOOR)

diagram 68975 69356A 84270G 84280D 85007 90105A0102 90105A0102 9015950389 9015950389 9018905180 9018905180
Part # Description Qty Price
68975 - PLATE, BACK DOOR STAY
68975-0E010

GSU4#

POWRE BACK DOOR-WITH

 1
84270G - SENSOR ASSY, POWER BACK DOOR, RH
84270-0E010

GSU4#

POWRE BACK DOOR-WITH

 1
84280D - SENSOR ASSY, POWER BACK DOOR, LH
84280-0E010

GSU4#

POWRE BACK DOOR-WITH

 1
85007 - MOTOR UNIT, BACK DOOR
85007-09001

GSU4#

POWRE BACK DOOR-WITH

 1
Common parts
90105-A0102
90159-50389
90189-05180
