GSU40L-ARANKA (2009)

Toyota Highlander (Nap)

Production Oct 2009 - Aug 2010
Engine 2GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0910- )2GRFE

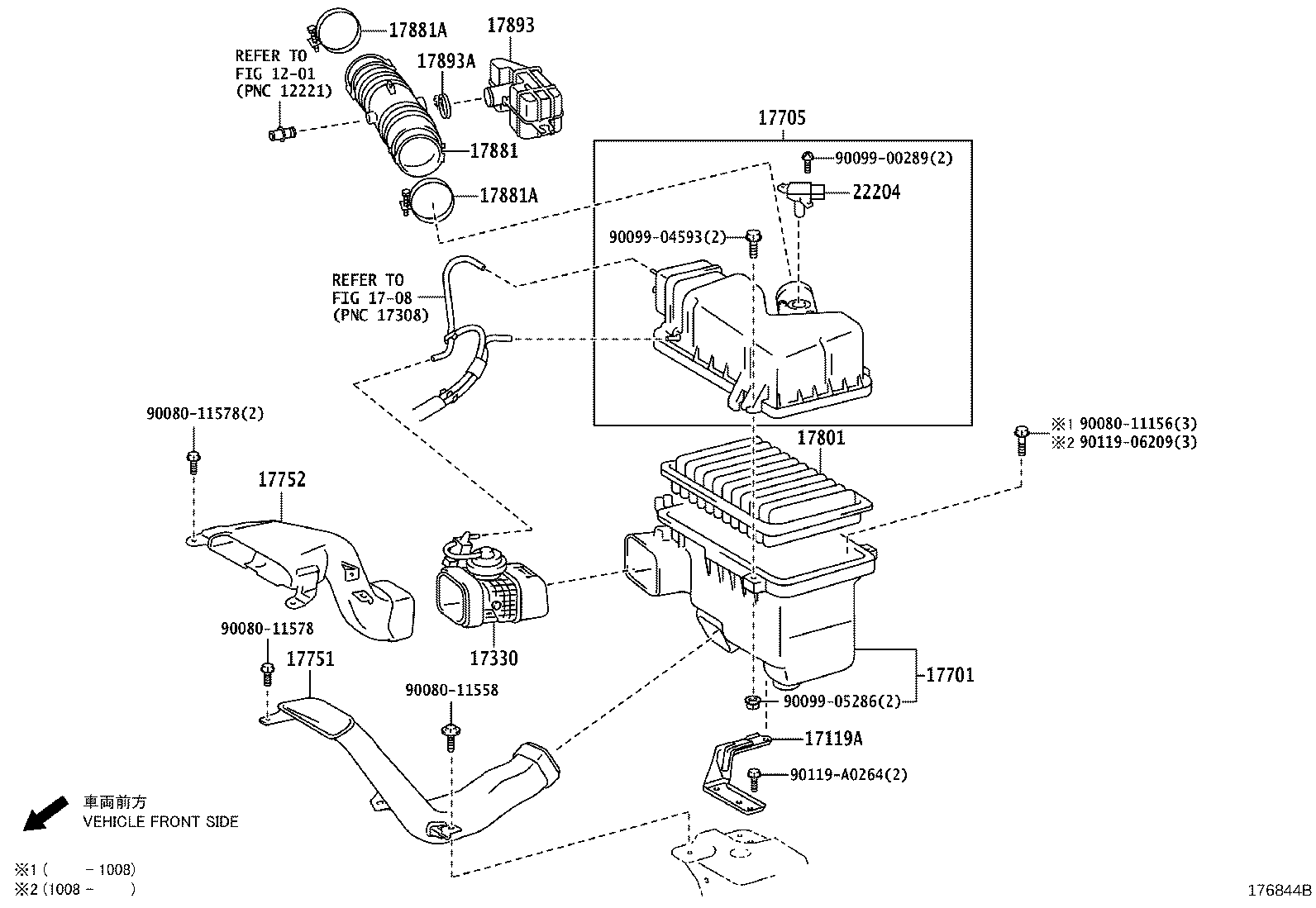

Click highlighted areas on diagram

diagram 1201 1708 17119A 17330 17701 17705 17751 17752 17801 17881 17881A 17881A 17893 17893A 22204 9008011156 9008011558 9008011578 9008011578 9009900289 9009904593 9009905286 9011906209 90119A0264
Part # Description Qty Price
17119A - BRACKET, AIR CLEANER
17119-0A010

2GRFE..GSU4#

 1
17330 - VALVE ASSY, INTAKE AIR CONTROL, NO.3
17330-0A010

2GRFE..GSU4#

 1
17701 - CASE SUB-ASSY, AIR CLEANER
17701-0A100

2GRFE..GSU4#

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-0P062

2GRFE..GSU4#

 1
17705-0P063

2GRFE..GSU4#

 1
17751 - INLET, AIR CLEANER, NO.1
17751-0P120

2GRFE..GSU4#

 1
17752 - INLET, AIR CLEANER, NO.2
17752-0P090

2GRFE..GSU4#

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-20040

2GRFE..GSU4#

(J)

 1
17801-0H010

2GRFE..GSU4#

(L)

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-0P100

2GRFE..GSU4#

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10900

2GRFE..GSU4#

 2
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10900

2GRFE..GSU4#

 2
17893 - RESONATOR, INTAKE AIR
17893-0P080

2GRFE..GSU4#

 1
17893A - CLAMP, HOSE
96111-10450

2GRFE..GSU4#

 1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-31020

2GRFE..GSU4#

(J)

 1
22204-0H010

2GRFE..GSU4#

(L)

 1
Common parts
90080-11156
90080-11558
90080-11578
90099-00289
90099-04593
90099-05286
90119-06209
90119-A0264
Linked diagrams
1201
1708
