ASU50L-ARTNKA (2013)

Toyota Highlander (Nap)

Production Dec 2013 - Nov 2016
Engine 1ARFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1312- )

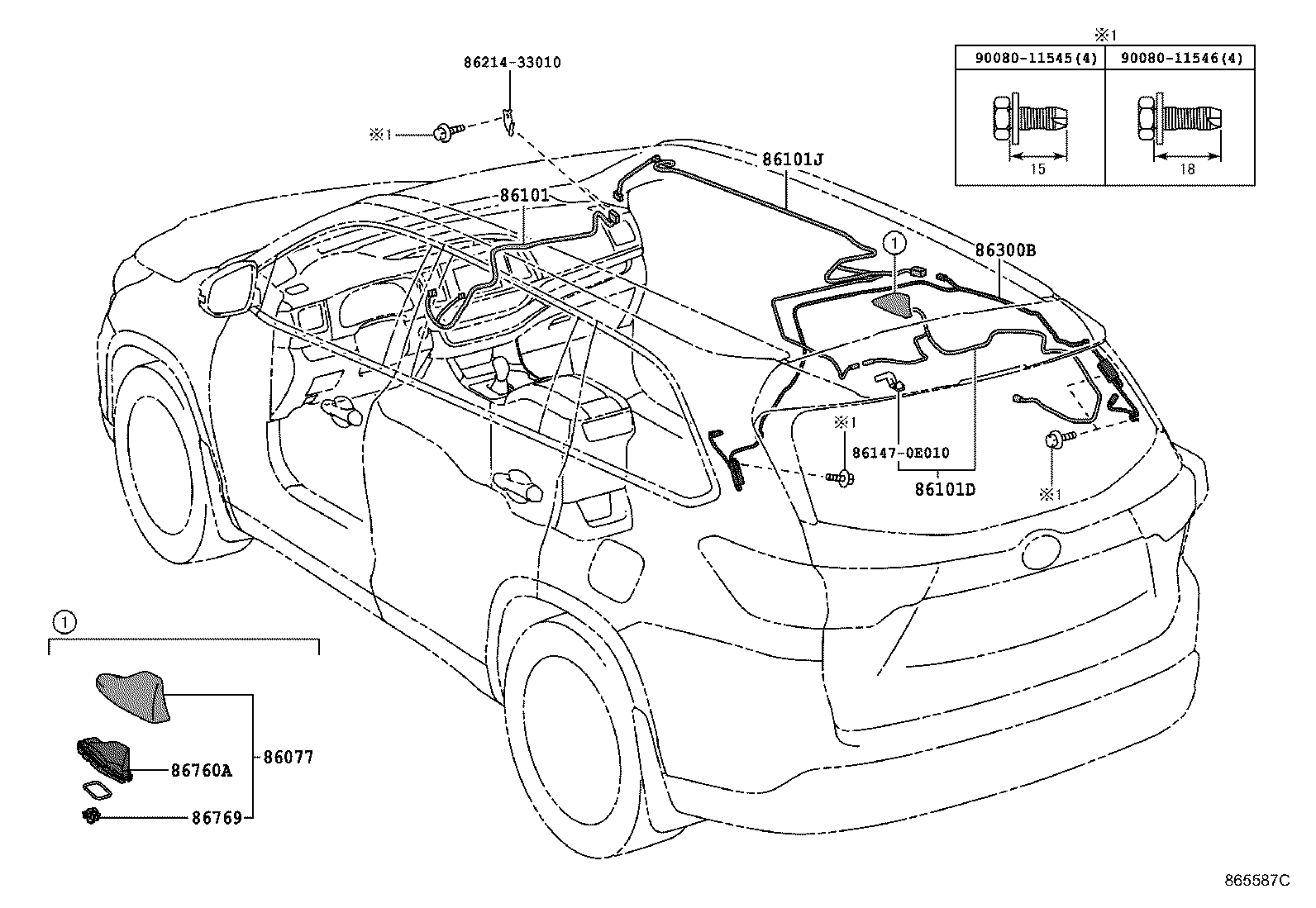

Click highlighted areas on diagram

diagram 86077 86101 86101D 86101J 861470E010 8621433010 86300B 86760A 86769 9008011545 9008011546
Part # Description Qty Price
86101 - CORD SUB-ASSY, ANTENNA
86101-0E450

ASU50,GSU5#..N

 1
86101J - CORD SUB-ASSY, ANTENNA, NO.2
86101-0E490

ASU50,GSU5#..N

 1
86300B - ANTENNA ASSY, AMPLIFIER, NO.1
86300-0E030

ASU50,GSU5#,GVU58

 1
Common parts
86147-0E010
86214-33010
90080-11545
90080-11546
