MHU48L-BRXNKA (2007)

Toyota Highlander (Jpp)

Production Aug 2007 - Aug 2010
Engine 3MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

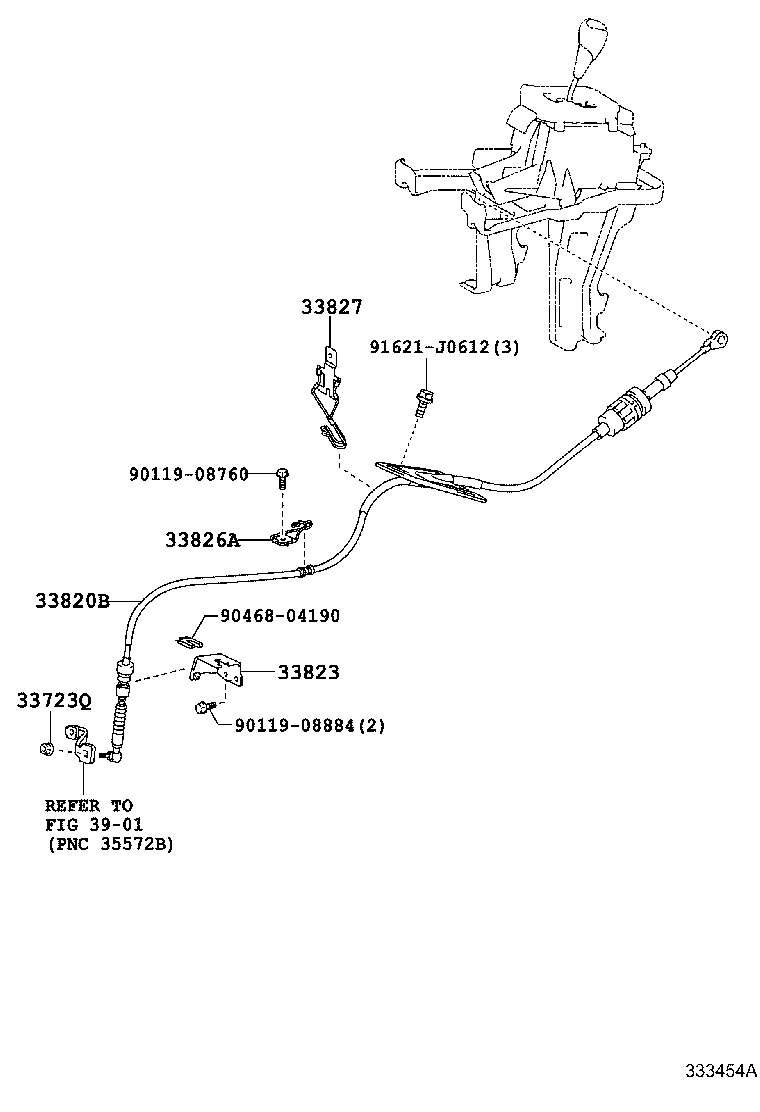

ILLUST NO. 2 OF 2(0708- )MHU48

Click highlighted areas on diagram

diagram 33723Q 33820B 33823 33826A 33827 3901 9011908760 9011908884 9046804190 91621J0612
Part # Description Qty Price
33723Q - NUT (FOR CONNECTING ROD SWIVEL)
90179-08054

ASU40,GSU4#,MHU48

 1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-48260

MHU48

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-48070

MHU48

 1
33826A - BRACKET, TRANSMISSION CONTROL CABLE, NO.2
33826-48060

MHU48

 1
33827 - BRACKET, TRANSMISSION CONTROL CABLE, NO.3
33827-48020

GSU4#,MHU48

 1
Common parts
90119-08760
90119-08884
90468-04190
91621-J0612
Linked diagrams
3901
