MHU48L-BRXMKA (2007)
Toyota Highlander (Jpp)
(0705-1008)

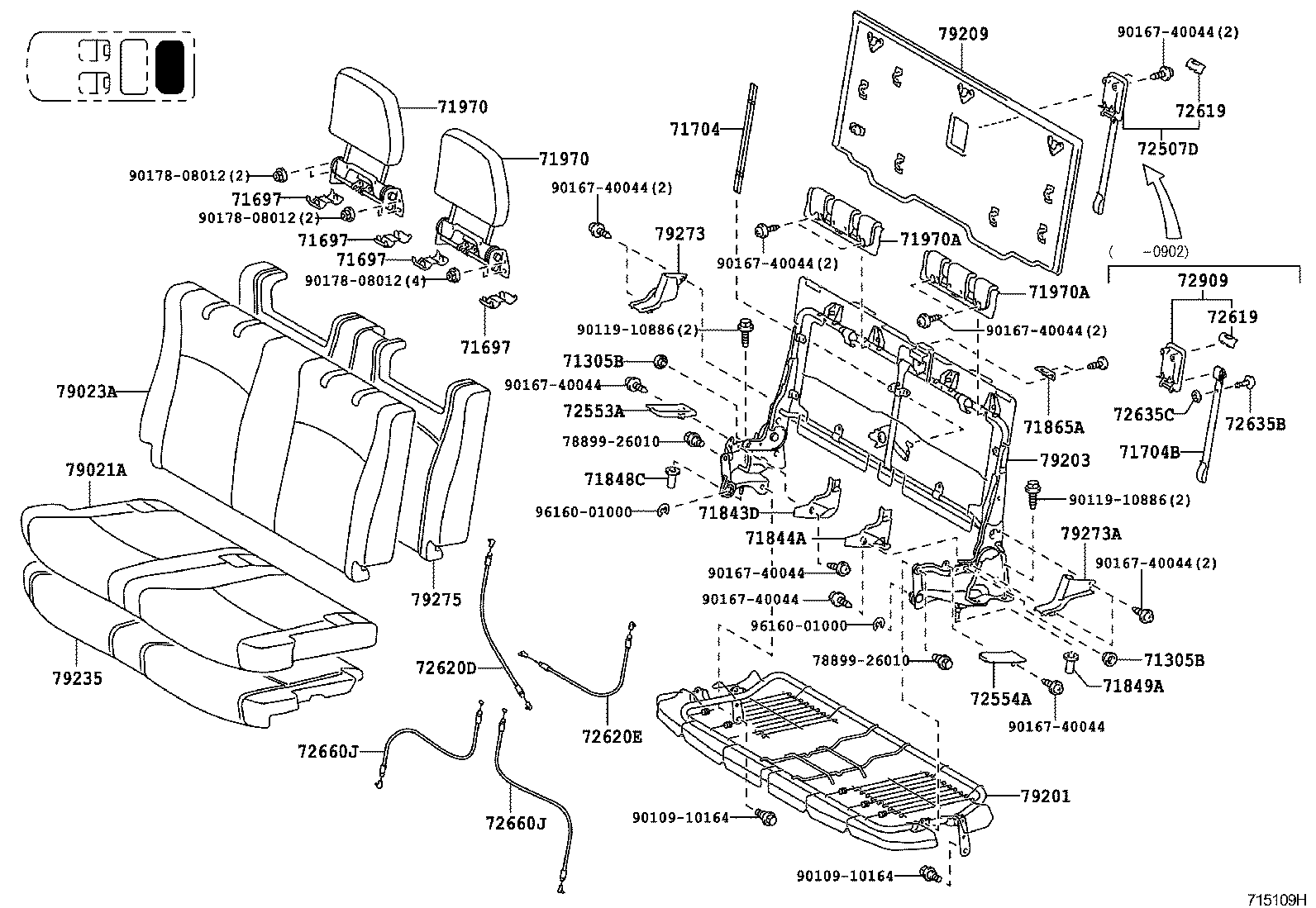

REAR NO.2 SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71305B - SPACER, REAR SEAT BACK HINGE | ||||
| 72749-48020 |
ASU40,GSU4#,MHU48 |
2 | ||
| 71305B - SPACER, REAR SEAT BACK HINGE | ||||
| 72749-48020 |
ASU40,GSU4#,MHU48 |
2 | ||
| 71697 - PROTECTOR, REAR SEAT BACK EDGE | ||||
| 71697-48030 |
ASU40,GSU4#,MHU48 |
4 | ||
| 71697 - PROTECTOR, REAR SEAT BACK EDGE | ||||
| 71697-48030 |
ASU40,GSU4#,MHU48 |
4 | ||
| 71697 - PROTECTOR, REAR SEAT BACK EDGE | ||||
| 71697-48030 |
ASU40,GSU4#,MHU48 |
4 | ||
| 71697 - PROTECTOR, REAR SEAT BACK EDGE | ||||
| 71697-48030 |
ASU40,GSU4#,MHU48 |
4 | ||
| 71704 - BAND SUB-ASSY, REAR SIDE SEAT | ||||
| 71704-48020B0 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
1 | ||
| 71704-48020E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 71704B - BAND SUB-ASSY, REAR SIDE SEAT, NO.2 | ||||
| 71704-48030B0 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
1 | ||
| 71704-48030E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 71843D - COVER, REAR SEAT RECLINING, NO.2 RH | ||||
| 71843-48020C2 |
MHU48;ASU40,GSU4#..STD BLACK |
1 | ||
| 71844A - COVER, REAR SEAT RECLINING, NO.2 LH | ||||
| 71844-48020C2 |
MHU48;ASU40,GSU4#..STD BLACK |
1 | ||
| 71848C - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-33010 |
ASU40,GSU4#,MHU48 |
1 | ||
| 71849A - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-33010 |
ASU40,GSU4#,MHU48 |
1 | ||
| 71865A - BEZEL, REAR SEAT COVER, NO.1 | ||||
| 71865-48030E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 71865-48030B0 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
1 | ||
| 71970 - HEADREST ASSY, REAR SEAT | ||||
| 71970-48050B1 |
MHU48 LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER&FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY POWER,GRAY,TRIM1# |
2 | ||
| 71970-48050E1 |
MHU48 LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER&FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY POWER,SAND BEIGE,TRIM4# |
2 | ||
| 71970-48040E0 |
MHU48;GSU4#..GD,SPO SAND BEIGE,TRIM4# |
2 | ||
| 71970-48040B0 |
MHU48;GSU4#..GD,SPO GRAY,TRIM1# |
2 | ||
| 71970 - HEADREST ASSY, REAR SEAT | ||||
| 71970-48050B1 |
MHU48 LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER&FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY POWER,GRAY,TRIM1# |
2 | ||
| 71970-48050E1 |
MHU48 LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER&FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY POWER,SAND BEIGE,TRIM4# |
2 | ||
| 71970-48040E0 |
MHU48;GSU4#..GD,SPO SAND BEIGE,TRIM4# |
2 | ||
| 71970-48040B0 |
MHU48;GSU4#..GD,SPO GRAY,TRIM1# |
2 | ||
| 71970A - COVER, REAR SEAT HEADREST | ||||
| 72985-48010 |
ASU40,GSU4#,MHU48 |
2 | ||
| 71970A - COVER, REAR SEAT HEADREST | ||||
| 72985-48010 |
ASU40,GSU4#,MHU48 |
2 | ||
| 72507D - HANDLE SUB-ASSY, NO.2 SEAT RECLINING RELEASE | ||||
| 72507-48010E1 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 72507-48010B1 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
1 | ||
| 72553A - PROTECTOR, RECLINING COVER, RH | ||||
| 72553-48090E3 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 72553-48090B3 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
1 | ||
| 72554A - PROTECTOR, RECLINING COVER, LH | ||||
| 72554-48080B3 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
1 | ||
| 72554-48080E3 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 72619 - COVER, REAR SEAT BACK LOCK STRIKER | ||||
| 72615-48100B0 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
1 | ||
| 72615-48100E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 72619 - COVER, REAR SEAT BACK LOCK STRIKER | ||||
| 72615-48100B0 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
1 | ||
| 72615-48100E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 72620D - CABLE ASSY, REAR NO.1 SEAT LOCK | ||||
| 72620-48060 |
ASU40,GSU4#,MHU48 |
1 | ||
| 72620E - CABLE ASSY, REAR NO.1 SEAT LOCK | ||||
| 72620-48070 |
ASU40,GSU4#,MHU48 |
1 | ||
| 72635B - HOOK, REAR SEAT BACK LOCK(MALE) | ||||
| 72635-13010E3 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
3 | ||
| 72635-13010B3 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
2 | ||
| 72635-13010B3 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
3 | ||
| 72635-13010E3 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
2 | ||
| 72635C - HOOK, REAR SEAT BACK LOCK(FEMALE) | ||||
| 72635-13020B3 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
3 | ||
| 72635-13020E3 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
3 | ||
| 72635-13020B3 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
2 | ||
| 72635-13020E3 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
2 | ||
| 72660J - CABLE ASSY, REAR NO.2 SEAT CUSHION LOCK | ||||
| 72660-48010 |
ASU40,GSU4#,MHU48 |
1 | ||
| 72660J - CABLE ASSY, REAR NO.2 SEAT CUSHION LOCK | ||||
| 72660-48010 |
ASU40,GSU4#,MHU48 |
1 | ||
| 72909 - HANDLE 3RD SEAT | ||||
| 72909-48010E3 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 72909-48010B0 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
1 | ||
| 79021A - COVER SUB-ASSY, NO.2 SEAT CUSHION | ||||
| 79021-48040B0 |
MHU48;GSU4#..GD,SPO GRAY,TRIM1# |
1 | ||
| 79021-48050B1 |
MHU48 LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER&FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY POWER,GRAY,TRIM1# |
1 | ||
| 79021-48050E1 |
MHU48 LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER&FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY POWER,SAND BEIGE,TRIM4# |
1 | ||
| 79021-48040E0 |
MHU48;GSU4#..GD,SPO SAND BEIGE,TRIM4# |
1 | ||
| 79023A - COVER SUB-ASSY, NO.2 SEAT BACK | ||||
| 79023-48050E1 |
MHU48 LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER&FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY POWER,SAND BEIGE,TRIM4# |
1 | ||
| 79023-48040B0 |
MHU48;GSU4#..GD,SPO GRAY,TRIM1# |
1 | ||
| 79023-48050B1 |
MHU48 LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER&FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY POWER,GRAY,TRIM1# |
1 | ||
| 79023-48040E0 |
MHU48;GSU4#..GD,SPO SAND BEIGE,TRIM4# |
1 | ||
| 79201 - FRAME SUB-ASSY, NO.2 SEAT CUSHION | ||||
| 79201-48020 |
ASU40,GSU4#,MHU48 |
1 | ||
| 79203 - FRAME SUB-ASSY, NO.2 SEAT BACK | ||||
| 79203-48020 |
ASU40,GSU4#,MHU48 |
1 | ||
| 79209 - BOARD SUB-ASSY, NO.2 SEAT BACK | ||||
| 79207-48020E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 79207-48020B0 |
ASU40,GSU4#,MHU48 LT.GRAY,TRIM1# |
1 | ||
| 79235 - PAD, NO.2 SEAT CUSHION | ||||
| 79235-48020 |
ASU40,GSU4#,MHU48 |
1 | ||
| 79273 - COVER, NO.2 SEAT HINGE | ||||
| 79273-48010B3 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
1 | ||
| 79273-48010E3 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 79273A - COVER, NO.2 SEAT HINGE, NO.2 | ||||
| 79273-48020B3 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
1 | ||
| 79273-48020E3 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 79275 - PAD, NO.2 SEAT BACK | ||||
| 79275-48020 |
ASU40,GSU4#,MHU48 |
1 | ||
| Common parts | ||||
| 78899-26010 | ||||
| 90109-10164 | ||||
| 90119-10886 | ||||
| 90167-40044 | ||||
| 90178-08012 | ||||
| 96160-01000 | ||||
