MHU48L-BRXMKA (2007)
Toyota Highlander (Jpp)

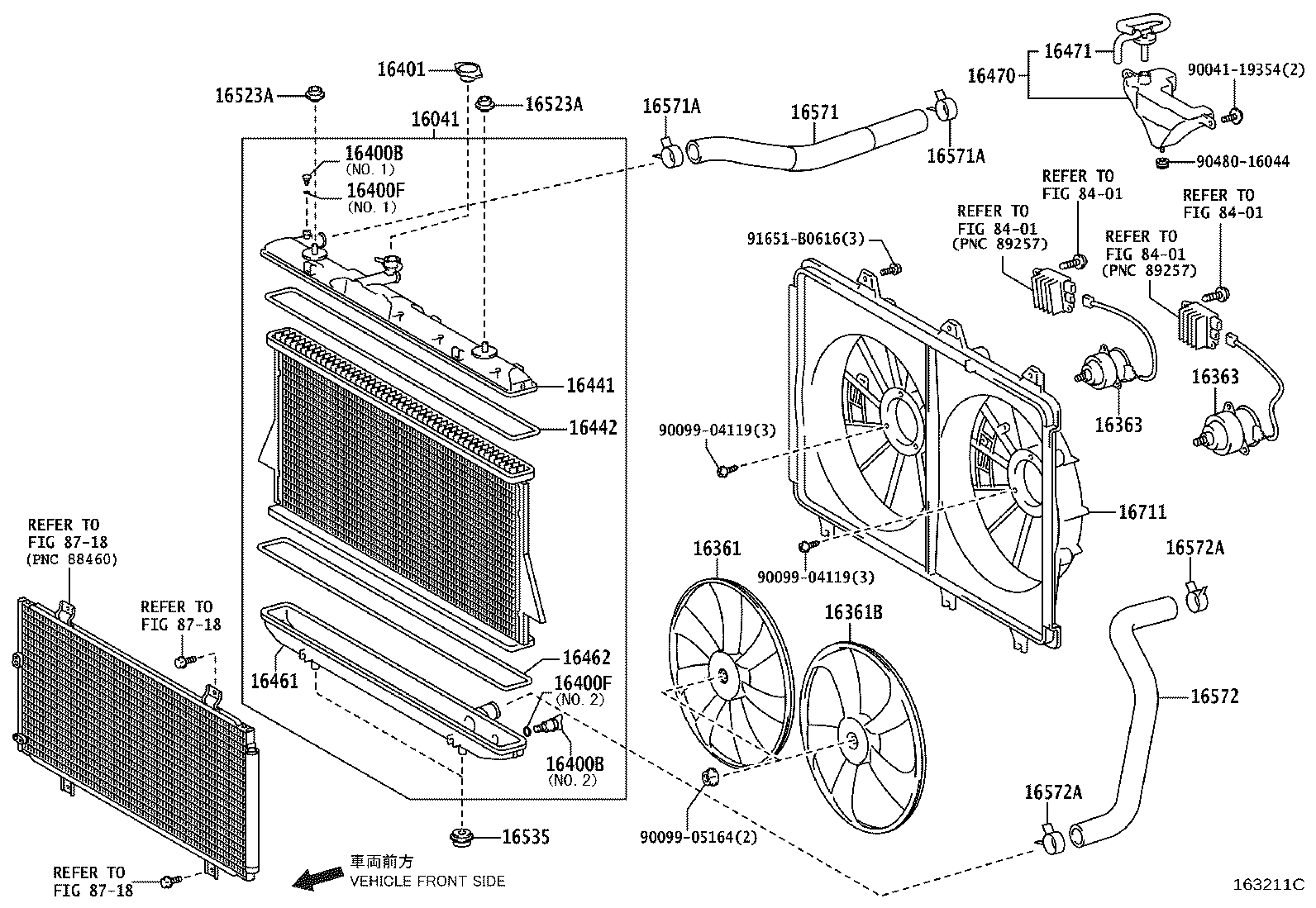

ILLUST NO. 1 OF 2(0708- )3MZFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16041 - RADIATOR ASSY, NO.2 | ||||
| 16041-20410 |
3MZFE..MHU48 |
1 | ||
| 16361 - FAN | ||||
| 16361-20250 |
3MZFE..MHU48 |
1 | ||
| 16361B - FAN, NO.2 | ||||
| 16361-20260 |
3MZFE..MHU48 |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-20390 |
3MZFE..MHU48 |
2 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-20390 |
3MZFE..MHU48 |
2 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-28530 |
3MZFE..MHU48 NO.1 |
1 | ||
| 23322-87101 |
3MZFE..MHU48 NO.2 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-28530 |
3MZFE..MHU48 NO.1 |
1 | ||
| 23322-87101 |
3MZFE..MHU48 NO.2 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
3MZFE..MHU48 NO.2 |
1 | ||
| 16418-20290 |
3MZFE..MHU48 NO.1 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
3MZFE..MHU48 NO.2 |
1 | ||
| 16418-20290 |
3MZFE..MHU48 NO.1 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-31480 |
3MZFE..MHU48 |
1 | ||
| 16441 - TANK, RADIATOR, UPPER | ||||
| 16441-20410 |
3MZFE..MHU48 |
1 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16442-31410 |
3MZFE..MHU48 |
1 | ||
| 16461 - TANK, RADIATOR, LOWER | ||||
| 16461-20410 |
3MZFE..MHU48 |
1 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16442-31410 |
3MZFE..MHU48 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-31090 |
3MZFE..MHU48 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-31060 |
3MZFE..MHU48 |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-20020 |
3MZFE..MHU48 |
2 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-20020 |
3MZFE..MHU48 |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-20030 |
3MZFE..MHU48 |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-20110 |
3MZFE..MHU48 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90466-35001 |
3MZFE..MHU48 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90466-35001 |
3MZFE..MHU48 |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-20140 |
3MZFE..MHU48 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-35001 |
3MZFE..MHU48 |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-35001 |
3MZFE..MHU48 |
2 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-20190 |
3MZFE..MHU48 |
1 | ||
| Common parts | ||||
| 90041-19354 | ||||
| 90099-04119 | ||||
| 90099-05164 | ||||
| 90480-16044 | ||||
| 91651-B0616 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8718 | ||||

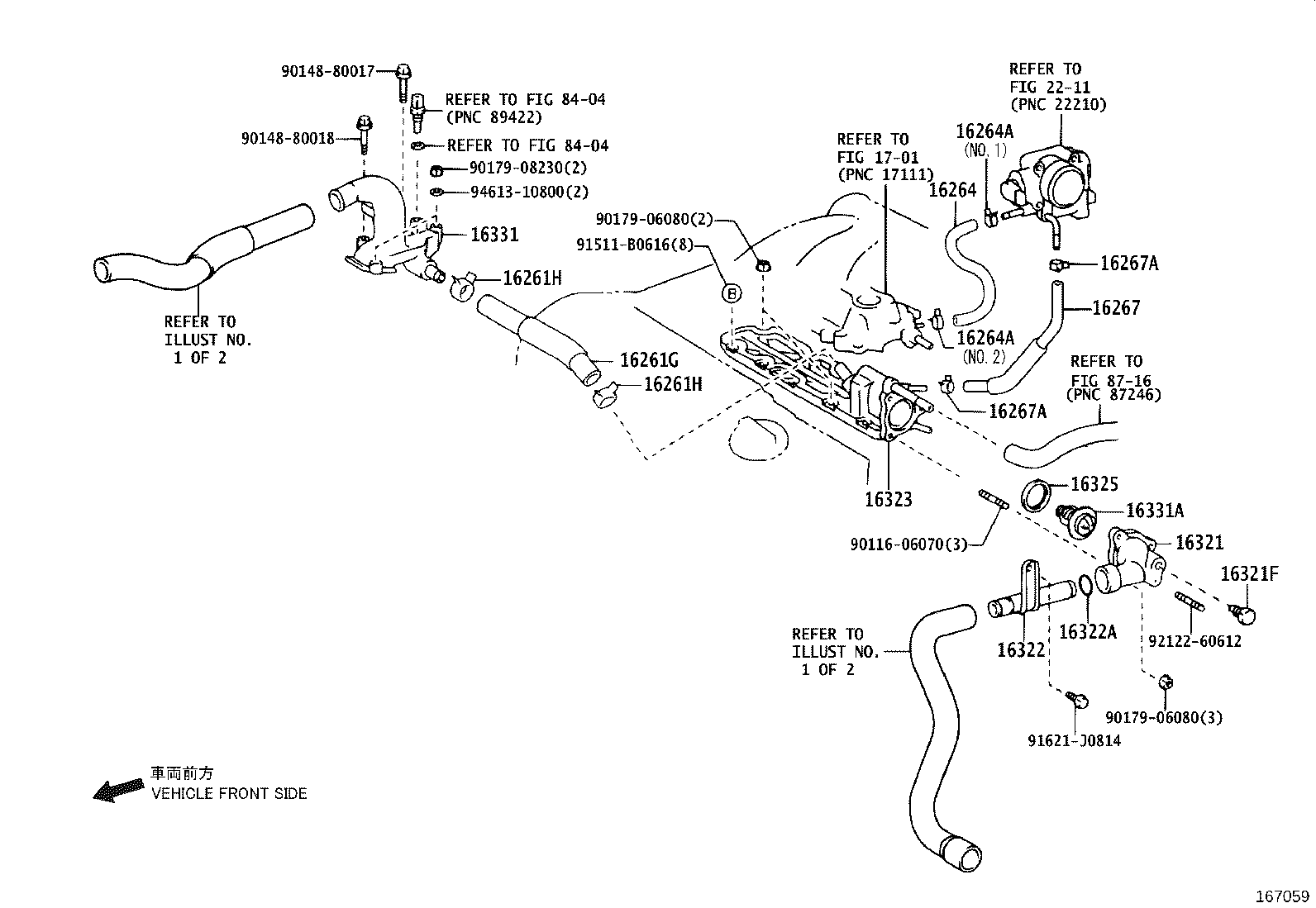

ILLUST NO. 2 OF 2(0708- )3MZFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-20010 |
3MZFE..MHU48 |
1 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90467-28007 |
3MZFE..MHU48 |
2 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90467-28007 |
3MZFE..MHU48 |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-20050 |
3MZFE..MHU48 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96135-51300 |
3MZFE..MHU48 NO.1 |
1 | ||
| 96137-41501 |
3MZFE..MHU48 NO.2 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96135-51300 |
3MZFE..MHU48 NO.1 |
1 | ||
| 96137-41501 |
3MZFE..MHU48 NO.2 |
1 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-20050 |
3MZFE..MHU48 |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96137-41501 |
3MZFE..MHU48 |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96137-41501 |
3MZFE..MHU48 |
2 | ||
| 16321 - INLET, WATER | ||||
| 16321-20030 |
3MZFE..MHU48 |
1 | ||
| 16321F - PLUG, W/HEAD STRAIGHT SCREW(FOR WATER INLET) | ||||
| 90341-16094 |
3MZFE..MHU48 |
1 | ||
| 16322 - PIPE, WATER INLET | ||||
| 16322-20031 |
3MZFE..MHU48 |
1 | ||
| 16322A - RING, O(FOR WATER INLET) | ||||
| 96761-35031 |
3MZFE..MHU48 |
1 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16323-20020 |
3MZFE..MHU48 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-62010 |
3MZFE..MHU48 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-20080 |
3MZFE..MHU48 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03129 |
3MZFE..MHU48 *WAX 82-95 |
1 | ||
| Common parts | ||||
| 90116-06070 | ||||
| 90148-80017 | ||||
| 90148-80018 | ||||
| 90179-06080 | ||||
| 90179-08230 | ||||
| 91511-B0616 | ||||
| 91621-J0814 | ||||
| 92122-60612 | ||||
| 94613-10800 | ||||
| Linked diagrams | ||||
| 1701 | ||||
| 2211 | ||||
| 8404 | ||||
| 8716 | ||||
