GVU48L-BRXNKA (2010)
Toyota Highlander (Jpp)

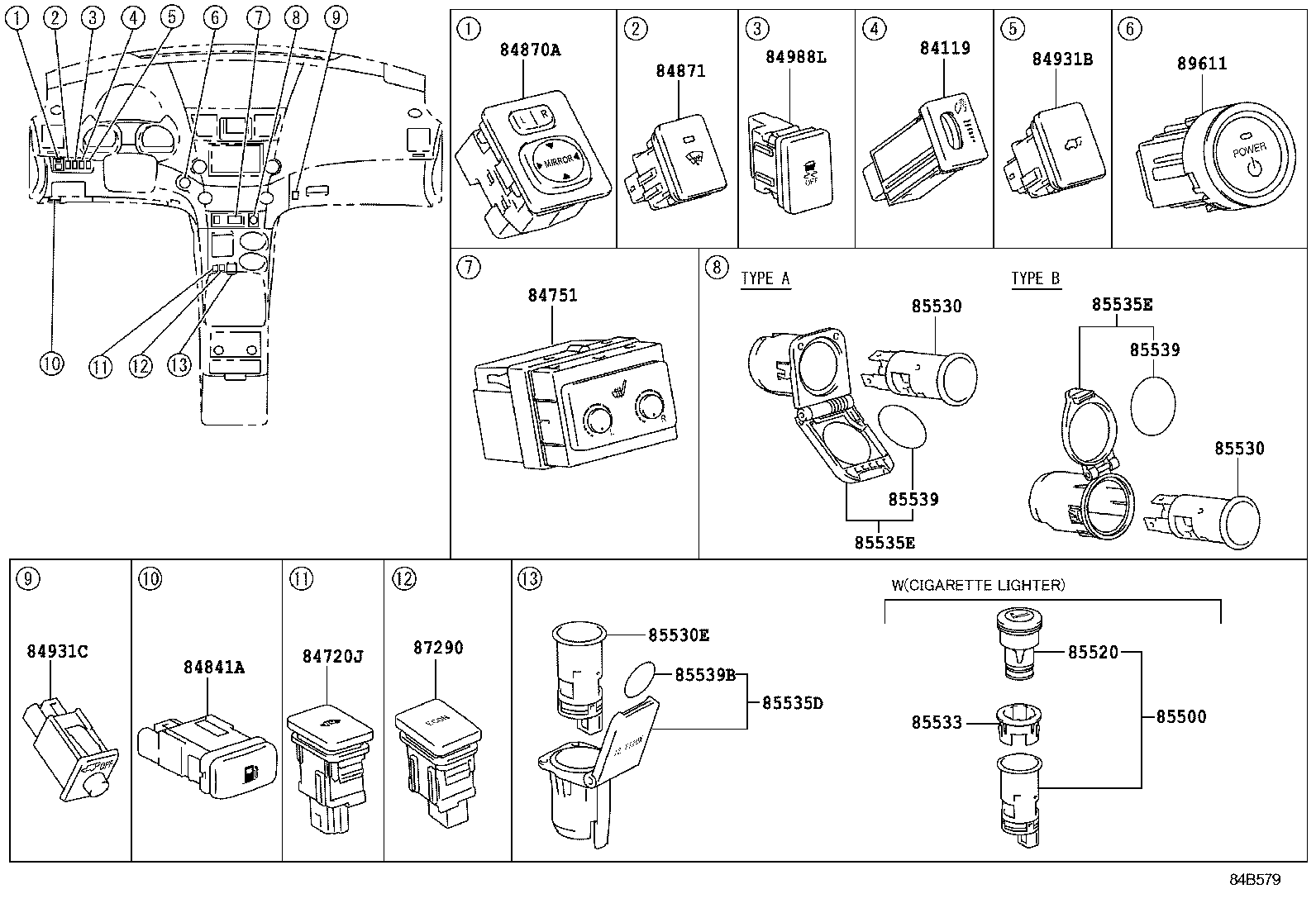

ILLUST NO. 5 OF 9(1008- )
INSTRUMENT PANEL 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-42020 |
GVU48 |
1 | ||
| 84720J - SWITCH ASSY, PATTERN SELECT | ||||
| 84720-47020 |
GVU48 |
1 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-48090 |
GVU48..STD SEAT COVER MATERIAL-LEATHER |
1 | ||
| 84841A - SWITCH, FUEL LID OPENER | ||||
| 84841-48010 |
GVU48 |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-34010 |
GVU48 |
1 | ||
| 84871 - SWITCH ASSY, OUTER MIRROR HEATER | ||||
| 84871-76010 |
GVU48..STD WINDSHIELD DEICER-WITH(WIPER DEICER) |
1 | ||
| 84931B - SWITCH, DOOR CONTROL | ||||
| 84930-48050 |
GVU48..STD AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR) |
1 | ||
| 84931C - SWITCH, BACK DOOR CONTROL | ||||
| 84930-48010 |
GVU48..STD AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR) |
1 | ||
| 84988L - SWITCH, VSC OFF | ||||
| 84986-20010 |
GVU48 |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-50090 |
GVU48 CIGARETTE LIGHTER-WITH |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-30200 |
GVU48 CIGARETTE LIGHTER-WITH |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-33020 |
GVU48 |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-33020 |
GVU48 |
1 | ||
| 85530E - SOCKET ASSY, POWER OUTLET, NO.3 | ||||
| 85530-42010 |
GVU48 |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-50010 |
GVU48 CIGARETTE LIGHTER-WITH |
1 | ||
| 85535D - COVER, POWER OUTLET SOCKET, CENTER | ||||
| 85535-33060 |
GVU48 |
1 | ||
| 85535E - COVER, POWER OUTLET SOCKET, NO.2 | ||||
| 85535-48070C0 |
GVU48..STD BLACK,TYPE B:REFER ILLUST. |
1 | ||
| 85535-33060 |
GVU48..STD SEAT COVER MATERIAL-LEATHER,TYPE A:REFER ILLUST. |
1 | ||
| 85535E - COVER, POWER OUTLET SOCKET, NO.2 | ||||
| 85535-48070C0 |
GVU48..STD BLACK,TYPE B:REFER ILLUST. |
1 | ||
| 85535-33060 |
GVU48..STD SEAT COVER MATERIAL-LEATHER,TYPE A:REFER ILLUST. |
1 | ||
| 85539 - LABEL, POWER OUTLET NOTICE | ||||
| 85539-60020 |
GVU48 |
1 | ||
| 85539 - LABEL, POWER OUTLET NOTICE | ||||
| 85539-60020 |
GVU48 |
1 | ||
| 85539B - LABEL, POWER OUTLET NOTICE, CENTER | ||||
| 85539-60020 |
GVU48 |
1 | ||
| 87290 - SWITCH ASSY, HEATER | ||||
| 87290-48020 |
GVU48 |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-75042 |
GVU48..STD WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 89611-75041 |
GVU48..STD WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 89611-75043 |
GVU48..STD WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||

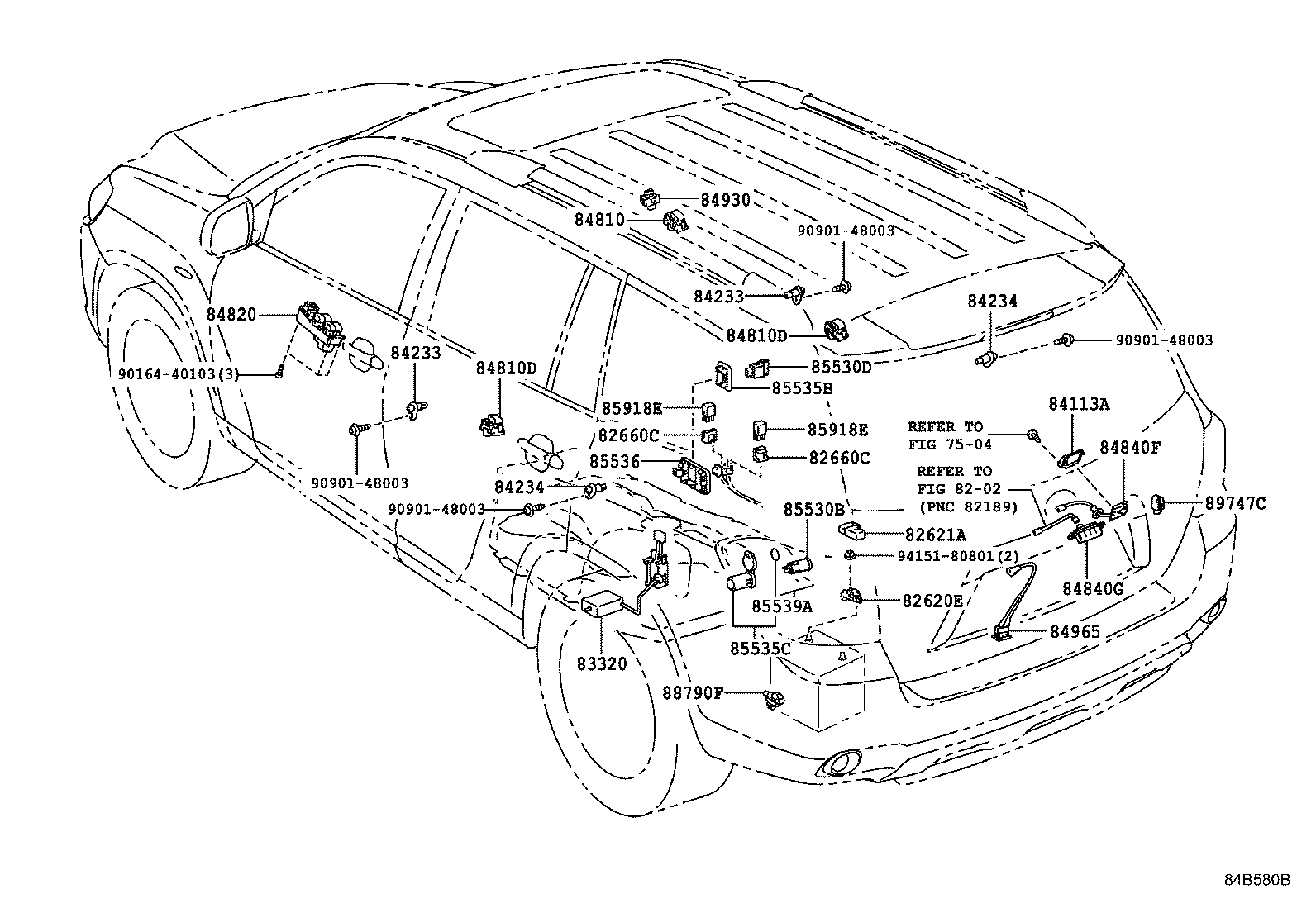

ILLUST NO. 9 OF 9(1008- )
DOOR,ROOF,FLOOR & BACK DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82620E - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-48190 |
GVU48 |
1 | ||
| 82621A - COVER, FUSIBLE LINK | ||||
| 82621-48030 |
GVU48 |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-53010 |
GVU48 |
2 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-53010 |
GVU48 |
2 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-48040 |
GVU48 |
1 | ||
| 84113A - BRACKET, SWITCH, NO.1 | ||||
| 84113-48020 |
GVU48..STD BACK GLASS-WITH(GLASS HATCH-BACK DOOR) |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-30380 |
GVU48 |
2 | ||
| 84231-60070 |
GVU48 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-30380 |
GVU48 |
2 | ||
| 84231-60070 |
GVU48 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-30380 |
GVU48 |
2 | ||
| 84231-60070 |
GVU48 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-30380 |
GVU48 |
2 | ||
| 84231-60070 |
GVU48 |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-52030 |
GVU48 |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-52030 |
GVU48 |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-52030 |
GVU48 |
2 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-33251 |
GVU48 |
1 | ||
| 84840F - SWITCH ASSY, GLASS HATCH OPENER | ||||
| 84840-48010 |
GVU48..STD BACK GLASS-WITH(GLASS HATCH-BACK DOOR) |
1 | ||
| 84840G - SWITCH ASSY, BACK DOOR OPENER | ||||
| 84840-28040 |
GVU48..STD WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 84840-28030 |
GVU48..STD |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-12250 |
GVU48 |
1 | ||
| 84965 - SWITCH, POWER BACK DOOR MAIN | ||||
| 84930-48021 |
GVU48..STD AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR) |
1 | ||
| 85530B - SOCKET ASSY, POWER OUTLET, REAR NO.1 | ||||
| 85530-42010 |
GVU48 |
1 | ||
| 85535C - COVER, POWER OUTLET SOCKET, REAR | ||||
| 85535-60100B2 |
GVU48 GRAY,TRIM1# |
1 | ||
| 85535-60100C0 |
GVU48 BLACK,TRIM2# |
1 | ||
| 85535-60100E1 |
GVU48 SAND BEIGE,TRIM4# |
1 | ||
| 85539A - LABEL, POWER OUTLET NOTICE, REAR | ||||
| 85539-60020 |
GVU48 |
1 | ||
| 85918E - RELAY, GLASS HATCH JUNCTION | ||||
| 90987-04004 |
GVU48..STD BACK GLASS-WITH(GLASS HATCH-BACK DOOR) |
2 | ||
| 85918E - RELAY, GLASS HATCH JUNCTION | ||||
| 90987-04004 |
GVU48..STD BACK GLASS-WITH(GLASS HATCH-BACK DOOR) |
2 | ||
| 88790F - THERMISTOR ASSY | ||||
| 88790-22131 |
GVU48 |
1 | ||
| 89747C - BUZZER, POWER SLIDE BACK DOOR WARNING | ||||
| 89747-52010 |
GVU48..STD AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR) |
1 | ||
| Common parts | ||||
| 90164-40103 | ||||
| 90901-48003 | ||||
| 94151-80801 | ||||
| Linked diagrams | ||||
| 7504 | ||||
| 8202 | ||||

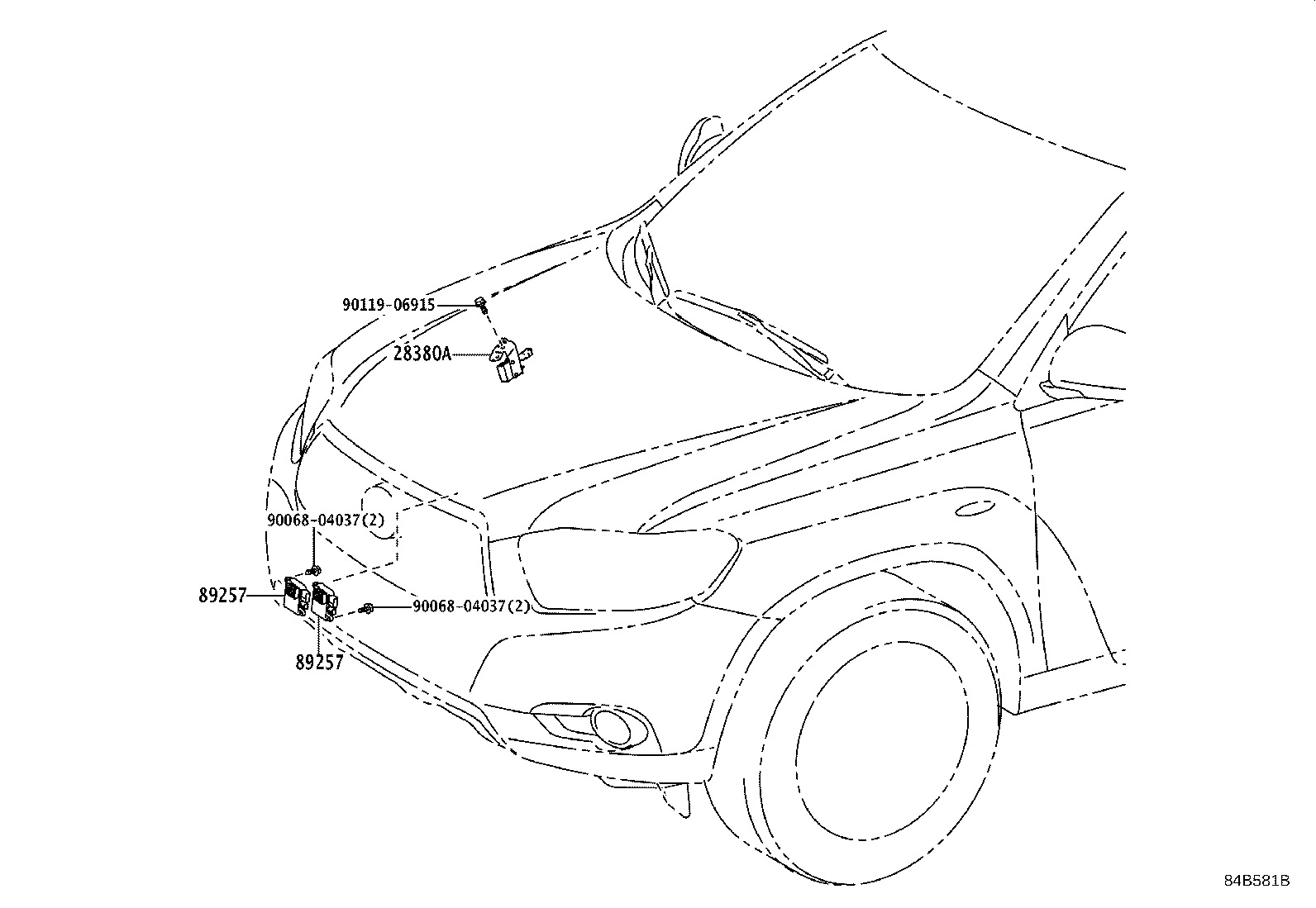

ILLUST NO. 2 OF 9(1008- )
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28380A - RESISTER, FUEL PUMP | ||||
| 23080-31190 |
2GRFXE..GVU48 |
1 | ||
| 23080-31152 |
2GRFXE..GVU48 |
1 | ||
| 89257 - COMPUTER, COOLING FAN | ||||
| 89257-26020 |
GVU48 |
2 | ||
| 89257 - COMPUTER, COOLING FAN | ||||
| 89257-26020 |
GVU48 |
2 | ||
| Common parts | ||||
| 90068-04037 | ||||
| 90119-06915 | ||||

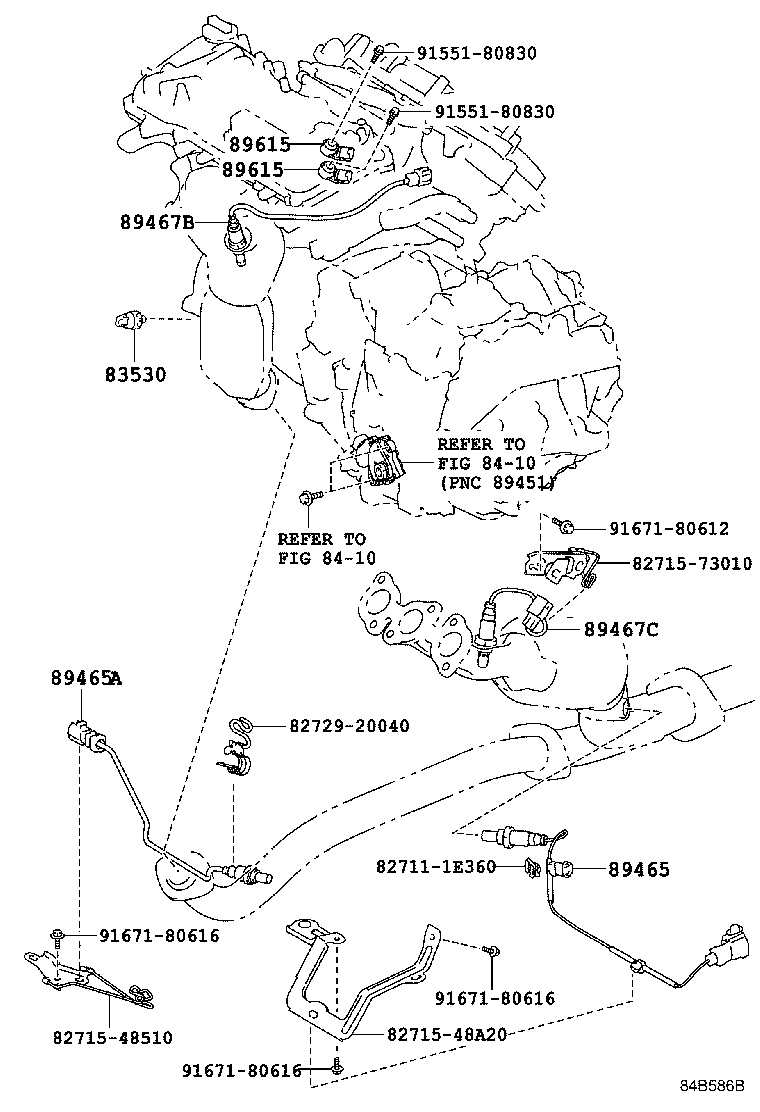

ILLUST NO. 1 OF 9(1008- )
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-28020 |
GVU48 DENSO |
1 | ||
| 83530-60020 |
GVU48 YAZAKI |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-48280 |
GVU48 |
1 | ||
| 89465A - SENSOR, OXYGEN NO.2 | ||||
| 89465-48270 |
GVU48 |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-48220 |
GVU48 |
1 | ||
| 89467C - SENSOR, AIR FUEL RATIO, NO.2 | ||||
| 89467-48210 |
GVU48 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
GVU48 |
2 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
GVU48 |
2 | ||
| Common parts | ||||
| 82711-1E360 | ||||
| 82715-48510 | ||||
| 82715-48A20 | ||||
| 82715-73010 | ||||
| 82729-20040 | ||||
| 91551-80830 | ||||
| 91671-80612 | ||||
| 91671-80616 | ||||
| Linked diagrams | ||||
| 8410 | ||||

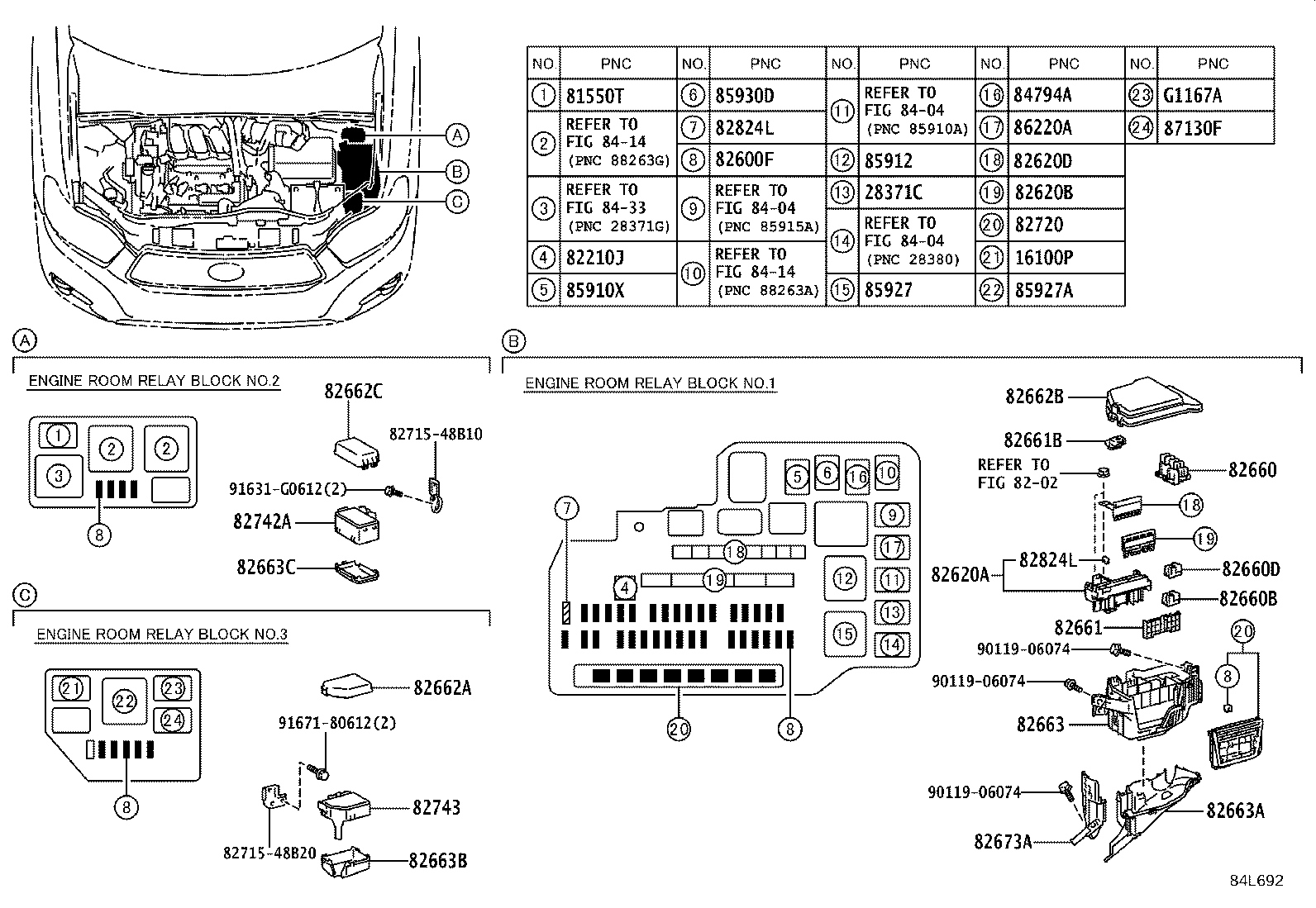

ILLUST NO. 3 OF 9(1008- )
ENGINE ROOM RELAY BLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16100P - RELAY, WATER PUMP | ||||
| 90987-02028 |
2GRFXE..GVU48 |
1 | ||
| 28371C - RELAY, IGNITION, NO.2 | ||||
| 90987-02027 |
2GRFXE..GVU48 |
1 | ||
| 81550T - RELAY, BACK UP LAMP | ||||
| 90987-02027 |
GVU48 |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08283 |
GVU48 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08296 |
GVU48 50A,TERM.:FEMALE,RED |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09020 |
GVU48 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09022 |
GVU48 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
GVU48 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09021 |
GVU48 10A,MINI FUSE,RED |
1 | ||
| 90982-09025 |
GVU48 30A,MINI FUSE,GRN |
1 | ||
| 90982-09024 |
GVU48 25A,MINI FUSE |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-48170 |
GVU48 |
1 | ||
| 82620-48170 |
GVU48 |
1 | ||
| 82620-48170 |
GVU48 |
1 | ||
| 82620B - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-48160 |
GVU48 |
1 | ||
| 82620-48160 |
GVU48 |
1 | ||
| 82620-48160 |
GVU48 |
1 | ||
| 82620D - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-48150 |
GVU48 |
1 | ||
| 82620-48150 |
GVU48 |
1 | ||
| 82620-48150 |
GVU48 |
1 | ||
| 82660 - BLOCK ASSY, RELAY, ENGINE ROOM | ||||
| 82660-48010 |
GVU48 |
1 | ||
| 82660-48010 |
GVU48 |
1 | ||
| 82660-48010 |
GVU48 |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-48020 |
GVU48 |
1 | ||
| 82660-48020 |
GVU48 |
1 | ||
| 82660-48020 |
GVU48 |
1 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-48040 |
GVU48 |
1 | ||
| 82660-48040 |
GVU48 |
1 | ||
| 82660-48040 |
GVU48 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-48070 |
GVU48 |
1 | ||
| 82661-48070 |
GVU48 |
1 | ||
| 82661-48070 |
GVU48 |
1 | ||
| 82661B - COVER, RELAY BLOCK, NO.3 | ||||
| 82661-48100 |
GVU48 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-48250 |
GVU48 |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-48230 |
GVU48 |
1 | ||
| 82662-48230 |
GVU48 |
1 | ||
| 82662C - COVER, RELAY BLOCK, UPPER, NO.3 | ||||
| 82662-48240 |
GVU48 |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82672-48221 |
GVU48..STD WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 82672-48220 |
GVU48..STD |
1 | ||
| 82672-48221 |
GVU48 |
1 | ||
| 82672-48221 |
GVU48 |
1 | ||
| 82672-48221 |
GVU48 |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-48080 |
GVU48 |
1 | ||
| 82663-48080 |
GVU48 |
1 | ||
| 82663-48080 |
GVU48 |
1 | ||
| 82663B - COVER, RELAY BLOCK, LOWER, NO.3 | ||||
| 82663-48090 |
GVU48 |
1 | ||
| 82663-48090 |
GVU48 |
1 | ||
| 82663-48090 |
GVU48 |
1 | ||
| 82663C - COVER, RELAY BLOCK LOWER, NO.4 | ||||
| 82663-48100 |
GVU48 |
1 | ||
| 82663-48100 |
GVU48 |
1 | ||
| 82663-48100 |
GVU48 |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-48010 |
GVU48 |
1 | ||
| 82673-48010 |
GVU48 |
1 | ||
| 82673-48010 |
GVU48 |
1 | ||
| 82720 - BLOCK ASSY, ENGINE ROOM JUNCTION | ||||
| 82720-48140 |
GVU48..STD |
1 | ||
| 82720-48160 |
GVU48..STD CANADA SPEC&WITH(DAYTIME RUNNING LIGHT SYSTEM)-WITHOUT(OFF SWITCH) |
1 | ||
| 82720-48150 |
GVU48..STD WITH(DAYTIME RUNNING LIGHT SYSTEM)-WITH(OFF SWITCH) |
1 | ||
| 82742A - BLOCK, ENGINE ROOM RELAY, NO.5 | ||||
| 82742-48020 |
GVU48 |
1 | ||
| 82742-48020 |
GVU48 |
1 | ||
| 82742-48020 |
GVU48 |
1 | ||
| 82743 - BLOCK, ENGINE ROOM RELAY, NO.3 | ||||
| 82743-48010 |
GVU48 |
1 | ||
| 82743-48010 |
GVU48 |
1 | ||
| 82743-48010 |
GVU48 |
1 | ||
| 82824L - PIN, SHORT | ||||
| 82824-41010 |
GVU48 |
1 | ||
| 82824L - PIN, SHORT | ||||
| 82824-41010 |
GVU48 |
1 | ||
| 84794A - RELAY, FR WIPER DEICER | ||||
| 90987-04004 |
GVU48..STD WINDSHIELD DEICER-WITH(WIPER DEICER) |
1 | ||
| 85910X - RELAY, HEATER MIRROR | ||||
| 90987-02027 |
GVU48..STD WINDSHIELD DEICER-WITH(WIPER DEICER) |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-04010 |
GVU48 |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02025 |
GVU48 |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90987-02025 |
GVU48 |
1 | ||
| 87130F - RELAY, BATTERY BLOWER, NO.1 | ||||
| 90987-02027 |
GVU48 |
1 | ||
| G1167A - RELAY (FOR OIL PUMP MOTOR) | ||||
| 90987-02027 |
GVU48 |
1 | ||
| Common parts | ||||
| 82715-48B10 | ||||
| 82715-48B20 | ||||
| 90119-06074 | ||||
| 91631-G0612 | ||||
| 91671-80612 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8404 | ||||
| 8414 | ||||
| 8433 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
